Sku: C4.8T

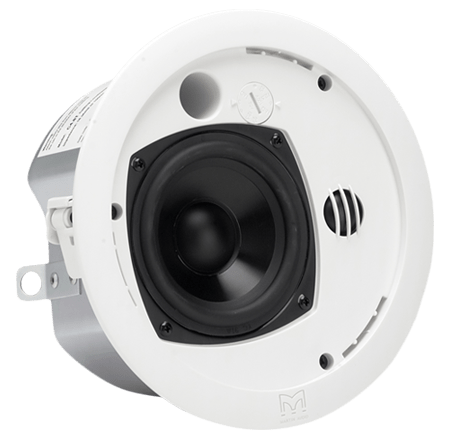

C4.8T Ceiling Loudspeaker, 4" LF & 0.8" Tweeter

$330.00
$330.00
Sold out
Shipping calculated at checkout.
Vendor: Martin Audio

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The C4.8T is an ceiling install type speaker. It is a great option for foreground and background sound requirements on a smaller scale.

Price is for (1) Speaker, but these must be purchased in pairs :)

From the Manufacturer:

The C4.8T is an extremely compact, two-way flush mount loudspeaker designed to deliver high performance and high intelligibility in a wide range of applications. The unit consists of a 4" (100mm) bass driver with a UL rated, carbon fibre loaded polypropylene cone and a 0.8" (19mm) dome tweeter mounted side by side on the baffle.

Features:

  • Two-way high performance flush mounting ceiling speaker

  • 4" (100mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver

  • Very wide dispersion – 180° up to 10kHz

  • High & low impedance operation – transformer included

  • Fireproofed rising clamp plug and socket for easy pre-wiring

  • 100dB continuous max SPL @ 1 metre

  • Steel backcan

  • Tile rails and C bracket included

  • UL2043 & UL1480

Applications:

  • Fixed installations in ceiling and walls

  • Low ceiling environments

Specifications:

  • Type

    • Ceiling mounted, two-way vented enclosure

  • Frequency Response

    • 100Hz-20kHz ± 3dB

    • -10dB @ 80Hz

  • Driver

    • 4" (100mm) UL94V-0 PP bass driver

    • 0.8" (19mm) dome tweeter

  • Rated Power

    • 40W AES, 160W peak

  • Sensitivity

    • 86dB

  • Maximum SPL

    • 100dB continuous, 106dB peak

  • Nominal Impedance

    • 16Ω

  • Dispersion (-6dB)

    • 180° conical up to 10kHz

  • Crossover

    • 5kHz passive

  • Enclosure

    • Steel backcan

  • Finish

    • Bezel & grille – white UV resistant (Overpaintable)

    • Backcan – zinc plated

  • Protective Grille

    • Perforated steel

  • Connectors

    • Rising clamp plug and socket

  • Voltage Taps

    • 100V – 25W, 12.5W, 6W

    • 70V – 25W, 12.5W, 6W, 3W

  • Dimensions

    • (OD) 205mm x (D) 131mm

    • (OD) 8.1ins x (D) 5.1ins

  • Cut-Out Diameter

    • 178mm (7.01 ins)

  • Weight

    • 2.6kg (5.7lbs)

Included Accessories:

  • 25W 70/100V line transformer

  • Tile rails

  • C bracket

  • Paint mask

  • Cut-out template
