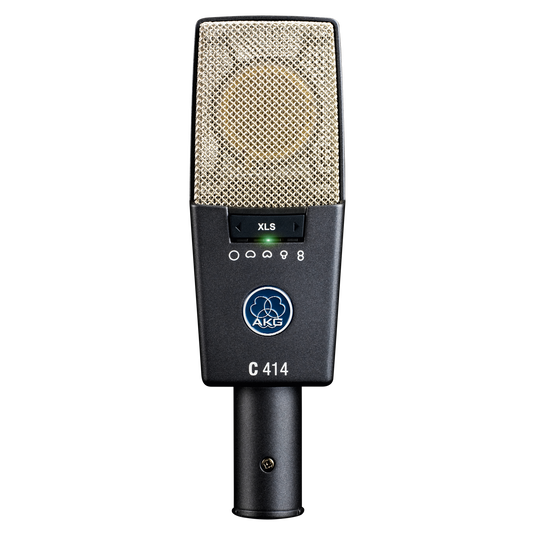

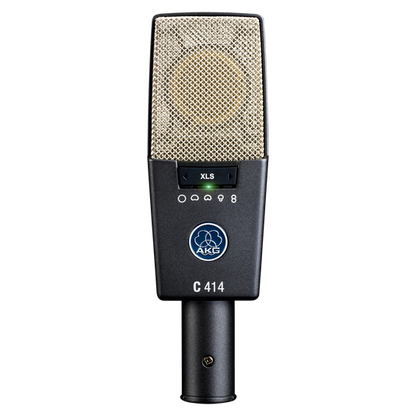

C414 XLS

The C414 XLS large diaphragm studio microphone is flexible for any application with a choice of nine polar patterns.

From the Manufacturer:

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

Features:

• Engineered for highest linearity and neutral sound: For beautifully detailed recording of vocals and any acoustic instrument
• Nine selectable polar patterns: for the perfect setting for every application
• Three attenuation levels (-6/ -12/ -18dB): For close-up recording or high-output sources of up to 158dB SPL
• Three switchable different bass-cut filters: To reduce wind noise, stage vibration or proximity effect
• Overload warning with audio peak hold LED: To detect shortest audio peaks

Specifications:

• General Specifications:
  • Polar Patterns: Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
  • Audio frequency bandwidth: 20 - 20000 Hz
  • Equivalent noise level: 6 dB-A
  • Sensitivity: 23 mV/Pa
  • Signal to Noise: 88 dB-A
  • Preattenuation Pad: -6; -12; -18 dB
  • Bass cut filter: 160; 80; 40 Hz
  • Electrical impedance: 200 Ohms
  • Recommended load impedance: 2200 Ohms
• Dimensions:
  • Length: 38 mm
  • Width: 50 mm
  • Height: 160 mm
  • Net Weight: 300 g
• Design:
  • Finish: dark gray/silver
• Audio Output:
  • Type: Balanced XLR
  • Gender: Male
  • Contacts: 3-pin
• Powering Interface:
  • Voltage: 44 to 52 V
  • Current: 4.5 mA
• Application:
  • Pro Studio
• Instrument:
  • Vocals
  • Piano / Strings
  • Horns / Woodwinds
