C50PACK

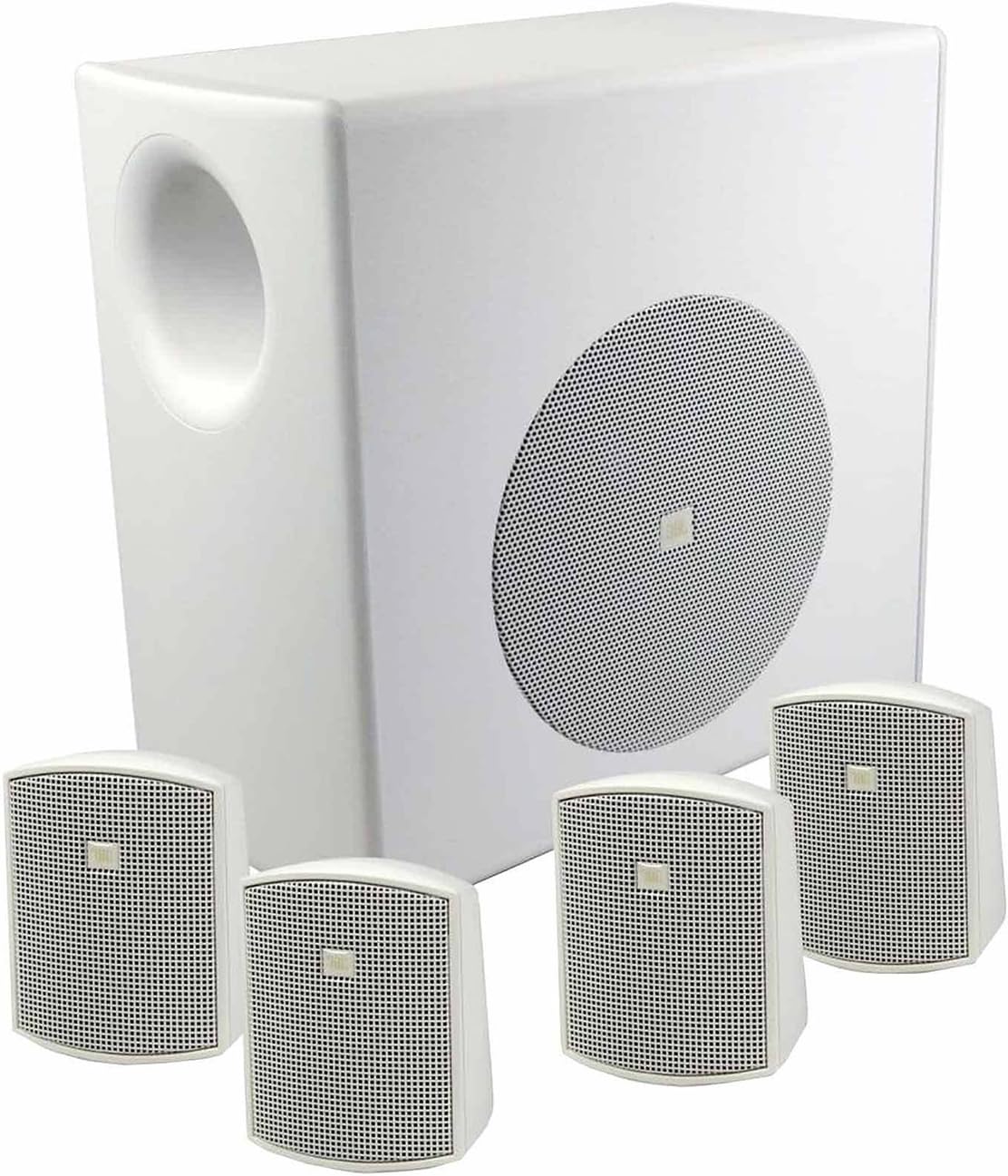

The JBL C50Pack packaged surface-mount subwoofer-satellite loudspeaker system is ideal for foreground/background music in restaurants, retail, clubs and similar venues.

From the Manufacturer:

The Control 50 Series subwoofer-satellite loudspeaker system provides high fidelity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high fidelity foreground/background music is required from surface-mount system.

Features:

• Versatile four satellite speaker system
• Stylish, unobtrusive design fits into a wide variety of decor
• High fidelity sound
• Selectable 70V/100V for distributed lines, or low impedance
• Wall-mount brackets include
• Available in black or white

Specifications:

• Frequency Range (-10dB): 32 Hz – 20 kHz
• Frequency Response (±3 dB): 50 Hz – 17 kHz
• Power Rating:
  • 200 Watts Continuous Program Power (100 hrs)
  • 100 Watts Continuous Pink Noise (100 hrs)
• Sensitivity: System:
  • 87 dB with 4 satellites
  • 85 dB with 2 satellites (depends on subwoofer boundary loading, see application note)
• Impedance: 4 ohms with 4 satellites, 8 ohms with 2 satellites
• Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
• Maximum SPL (1m): System:
  • 107 dB with 4 satellites, continuous (113 dB peak)
  • 105 dB with 2 satellites, continuous (111 dB peak) (depends on subwoofer boundary loading, see application note)
• Input Connectors: Removable locking 2-pin connectors with screw-down terminals.
• Grille: Zinc-plated steel
• Mounting Hardware: C50S/T: 2-part flush wall-mount bracket included.
• C52: Wall swivel ball bracket included
• Included Accessories: See Control 50S/T & Control 52
• Coverage Angle: Omnidirectional
