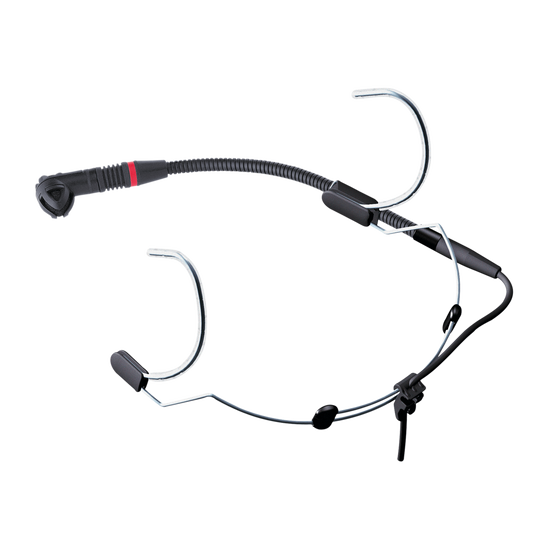

C555 L

Light, rugged head-worn mic for presenters with mini XLR connector for use with B29 L battery operated power supply, MPA V L external phantom power adapter, or AKG WMS bodypack transmitters.

From The Manufacturer:

The C555 L high-performance head-worn condenser microphone is ideal for handsfree applications, including presentations or onstage performances. The C555 L rests securely and comfortably on the head, and can be attached to the left or right side of the behind-the-neck headband as desired. A transducer shock mount reduces handling noise to a minimum. The moisture shield ensures a high degree of humidity protection for the microphone. The C555 L provides a three-pin mini XLR connector and can be used with all AKG WMS Series body-pack transmitters, B29 L battery power supply, or the MPA VL adapter for external phantom powering.

Specification:

• Type

• Pre-polarized condenser microphone

• Polar Pattern

• Cardioid

• Frequency Range

• 80 - 20000 Hz

• Sensitivity

• 25 mV/Pa (U=9V, R=10kOhm)

• Impedance @ 1kHz

• <200 Ohms

• Recommended load impedance

• >2000 Ohms

• Max SPL for 1% THD

• 120dB

• Equivalent noise level (IEC 60268-4)

• 30dBA

• Signal to Noise Ratio (@ 94dB SPL)

• 63dBA

• Recommended Serial Resistor

• 10kOhm (2kOhm - 10kOhm)

• Length (mic only)

• 195mm (7.7 in.)

• Max Diameter (mic only)

• 134 mm (5.3 in.)

• Net Weight

• 26g (0.9 oz.)

• Shipping Weight

• 260g (9.2 oz.)

• Finish

• matte black

• Audio Output

• Mini XLR (Female)

• Contacts

• 3-pin

• Cable Length

• 1.5m (5 ft.)

• Current Consumption

• <2mA (<500uA if U-9V, R=10kOhm)

• Operation voltage

• 9V (2V - 10V)

• Application

• Live Vocal

• Sports / Fitness

• Assisted Listening

• Sound Reinforcement

• Presentation

• Retail
