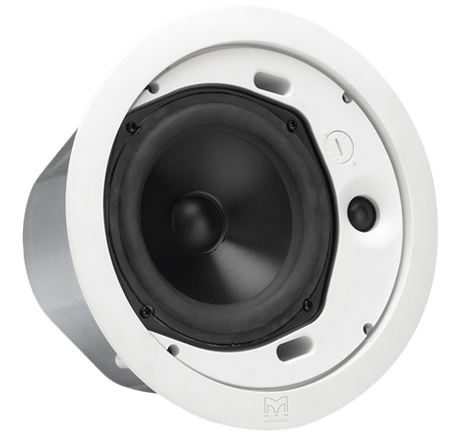

C6.8T Ceiling Loudspeaker

The C6.8T is a ceiling loudspeaker. It is a great option for background or foreground audio in smaller applications.

From the Manufacturer:

Featuring a 6.5" (165mm) bass driver and a 0.8" (19mm) dome tweeter, The C6.8T is ideal for flush mounted applications where full frequency performance and wide dispersion are required from a compact, ported enclosure.

Features:

• Two-way high performance flush mounting ceiling speaker

• 6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver

• Very wide dispersion – 150° conical up to 7kHz

• High & low impedance operation – transformer included

• 106dB continuous max SPL @ 1 metre

• 75W power handling – 16 ohm (40W transformer)

• Polyswitch and thermal fuse protection

• Steel backcan

• UL2043 & UL1480

Applications:

• Fixed installations in ceiling and walls

• Low ceiling environments

Specifications:

• Type

• Ceiling mounted, two-way vented enclosure

• Frequency Response

• 90Hz-20kHz ± 3dB

• -10dB @ 70Hz

• Driver

• 6.5" (165mm) UL94V-0 PP bass driver

• 0.8" (19mm) dome tweeter

• Rated Power

• 75W AES, 300W peak

• Sensitivity

• 89dB

• Maximum SPL

• 106dB continuous, 112dB peak

• Nominal Impedance

• 16Ω

• Dispersion (-6dB) 150° conical up to 7kHz

• Crossover

• 4kHz passive

• Enclosure

• Steel backcan

• Finish

• Bezel & grille – white UV resistant (Overpaintable)

• Backcan – zinc plated

• Protective Grille

• Perforated steel

• Connectors

• Rising clamp plug and socket

• Voltage Taps

• 100V – 40W, 20W, 10W

• 70V – 40W, 20W, 10W, 5W

• Dimension

• (OD) 260mm x (D) 181mm

• (OD) 10.2ins x (D) 7.1ins

• Cut-Out Diameter

• 224mm (8.83 ins)

• Weight

• 3.5kg (7.7lbs)

Included Accessories:

• 40W 70/100V line transformer

• Tile rails

• C bracket

• Paint mask

• Cut-out template
