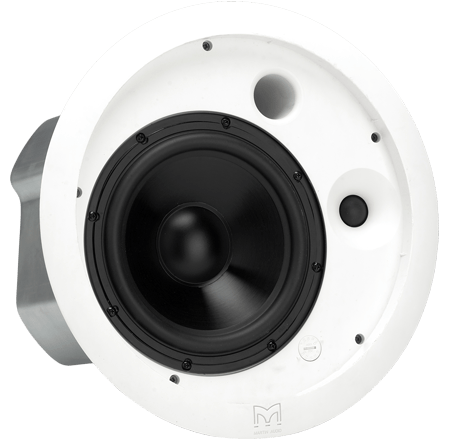

C8.1T Ceiling Loudspeaker, 8" LF & 1" Tweeter, Priced Each, Sold In Pairs

The C8.1T is a Loudspeaker for foreground and background applications on smaller installs.

Priced Each, Sold as Pairs

From the Manufacturer:

The C8.1T has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms. It features an 8" (200mm) unit with a carbon fibre loaded, polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis.

Features:

• Two-way high performance flush mounting ceiling speaker

• 8" (200mm) UL94V-0 carbon fibre loaded polypropylene cone bass

• Wide dispersion – 90° conical up to 7kHz

• High & low impedance operation – transformer included

• 110dB max SPL @ 1 metre (16 ohm)

• 125 watt power handling (60W through transformer)

• Polyswitch and thermal fuse protected

• Steel backcan

• UL2043 & UL1480

Applications:

• Fixed installations in ceiling and walls

• Bars and restaurants

Specifications:

• Type

• Ceiling mounted, two-way vented enclosure

• Frequency Response

• 80Hz-18kHz ± 3dB

• -10dB @ 50Hz

• Driver

• 8" (200mm) UL94V-0 PP bass driver

• 1" (25mm) dome tweeter

• Rated Power

• 125W AES, 500W peak

• Sensitivity

• 91dB

• Maximum SPL

• 110dB continuous, 116dB peak

• Nominal Impedance

• 16Ω

• Dispersion (-6dB)

• 90° conical up to 7kHz

• Crossover

• 3kHz passive

• Enclosure

• Steel backcan

• Finish

• Bezel & grille – white UV resistant (Overpaintable)

• Backcan – zinc plated

• Protective Grille

• Perforated steel

• Connectors

• Rising clamp plug and socket

• Voltage Taps

• 100V – 60W, 30W, 15W

• 70V – 60W, 30W, 15W, 7.5W

• Dimensions

• (OD) 354mm x (D) 258mm

• (OD) 13.9ins x (D) 10.2ins

• Cut-Out Diameter

• 308mm (12.14 ins)

• Weight

• 6.7kg (14.8lbs)

Included Accessories:

• 60W 70/100V line transformer

• Tile rails

• C bracket

• Paint mask

• Cut-out template
