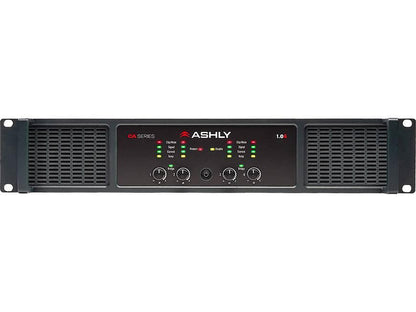

CA1.04 4-Channel Power Amplifier

The Ashly CA1.04 is a four-channel Class D power amplifier designed for professional sound reinforcement and commercial audio installations. It delivers 1,000 watts per channel at 2 or 4 ohms and 500 watts per channel at 8 ohms. With direct 70V operation, bridged 100V capability, efficient cooling, and installer-friendly connections, it is suitable for high-output loudspeaker systems and distributed audio applications.

From The Manufacturer:

Ashly's CA Series combines high-efficiency D-MAX Class D amplification with its SailFlow cooling architecture. Designed for demanding performance installations, the series provides high output power, selectable gain, flexible input connectivity, and support for both low-impedance and constant-voltage loudspeaker systems.

The CA1.04 is the four-channel, 1,000-watt-per-channel model in the series. Its features make it suitable for venues such as houses of worship, theatres, auditoriums, stadiums, and commercial installations.

Key Features:

• Four-channel Class D power amplifier.

• 1,000W per channel at 2 ohms.

• 1,000W per channel at 4 ohms.

• 500W per channel at 8 ohms.

• Direct 70V constant-voltage operation on all four channels.

• Bridged 100V operation, delivering up to 2,000W per channel pair.

• High-efficiency D-MAX amplifier design.

• SailFlow active cooling system.

• Selectable input gain for each channel.

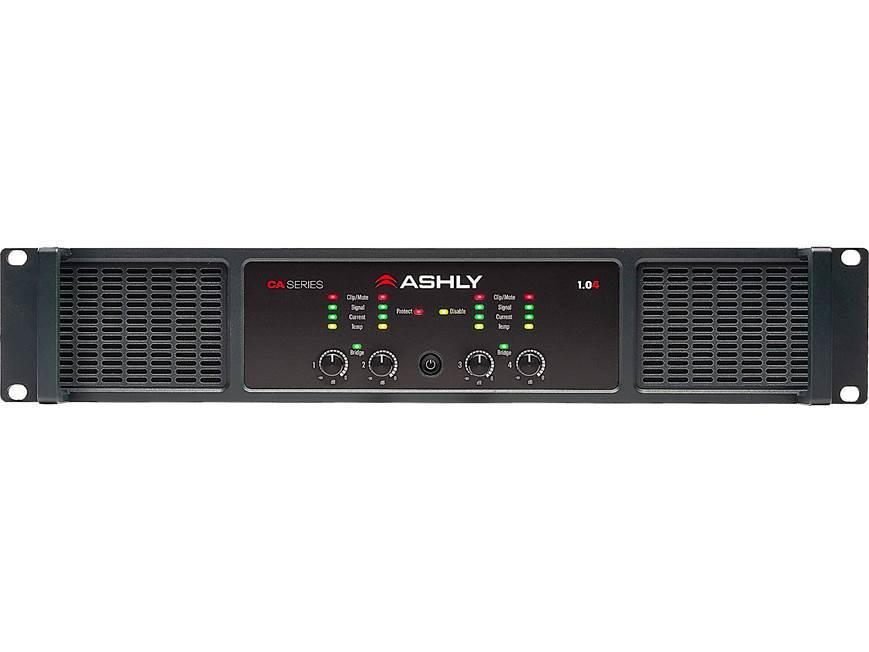

• Front-panel level controls with lockout capability.

• Switchable high-pass filter and clip limiter per channel.

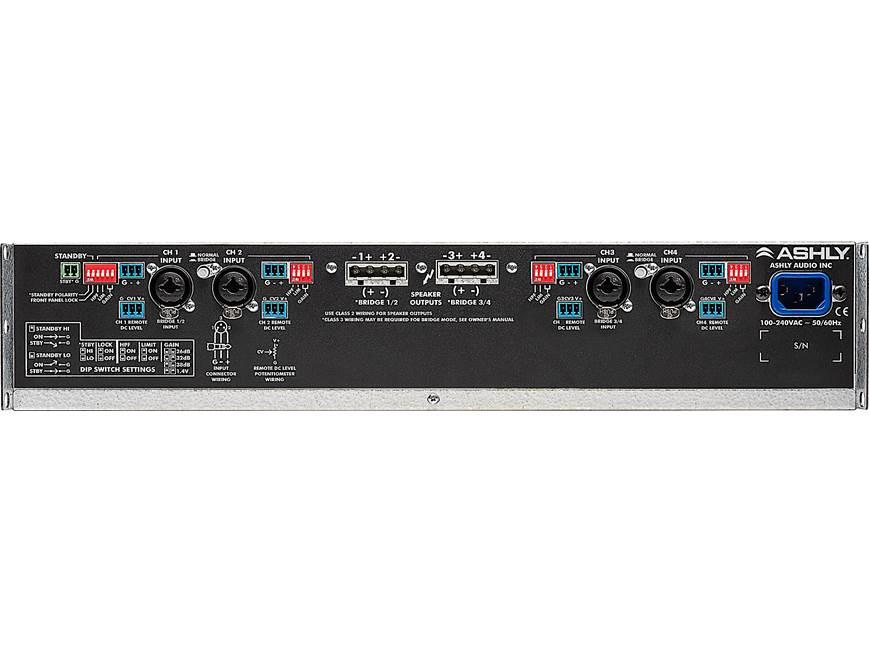

• Balanced XLR and 1/4-inch TRS combo inputs.

• Euroblock input and loudspeaker output connections.

• Remote DC level control connections.

• Integrated amplifier protection circuitry.

Specifications:

• Brand: Ashly.

• Model: CA1.04 / CA-1.04.

• Product type: Professional power amplifier.

• Amplifier class: Class D.

• Number of channels: 4.

• Output power at 2 ohms: 1,000W per channel.

• Output power at 4 ohms: 1,000W per channel.

• Output power at 8 ohms: 500W per channel.

• Bridged output power: 2,000W per channel pair at the specified load.

• Direct constant-voltage output: 1,000W per channel at 70V.

• Bridged constant-voltage output: 2,000W per channel pair at 100V.

• Frequency response: 20Hz–20kHz, ±0.05dB.

• Typical THD+N: Less than 0.5% under specified test conditions.

• Signal-to-noise ratio: Greater than 101dB, unweighted, at 26dB gain.

• Channel separation: -75dB at 1kHz.

• Damping factor: Greater than 250 at 8 ohms below 1kHz.

• Input impedance: 10k ohms.

• Maximum input level: +21dBu.

• Input connectors: XLR/1/4-inch TRS combo and 3.5mm Euroblock.

• Speaker output connectors: 7.62mm Euroblock.

• Selectable input gain: 26dB, 32dB, 38dB, or 1.4V sensitivity.

• Cooling: Temperature-controlled fan cooling.

• AC power connector: 20A IEC.

• Operating voltage range: 70–135V AC on 110–120V systems; 140–270V AC on 220–240V systems.

• Compliance: cTUVus, CE, FCC Class B, and RoHS.

Included Accessories:

• AC power cable, subject to regional package configuration.

• Other in-box accessories should be confirmed with the supplier.

Applications:

• Houses of worship and church sound systems.

• Concert venues and live sound reinforcement.

• Theatres and school auditoriums.

• Stadiums and performance venues.

• Commercial audio installations.

• Multi-channel passive loudspeaker systems.

• High-output subwoofer and full-range speaker systems.

• 70V distributed audio systems.

• Compatible 100V systems using bridged channel pairs.

Included Accessories:

• AC power cable, subject to regional package configuration.

• Other included accessories: Not confirmed.

Accessories (Not Included):

• Rack cabinet or rack case.

• Audio signal cables.

• Loudspeaker cables and any required connectors not supplied with the amplifier.

• Remote DC level controllers.

• Loudspeakers.

• External signal processing equipment, where required.

Size:

• Width: 483mm (19 inches).

• Height: 89mm (3.5 inches).

• Depth: 409mm (16.1 inches).

• Rack format: 2U.

Weight:

• Net weight: 8.85kg (19.5lb).

• Shipping weight: 10.9kg (24lb).

Electrical/Thermal:

• Operating voltage: 70–135V AC on 110–120V systems; 140–270V AC on 220–240V systems.

• Mains frequency: 50–60Hz.

• Standby power consumption: Approximately 19W.

• Idle power consumption: Approximately 70W.

• Power consumption at one-eighth maximum output: Approximately 675W under the manufacturer's stated test conditions.

• Thermal dissipation at one-eighth maximum output into 4-ohm loads: Approximately 474BTU/hour.

• Cooling: Continuously variable, temperature-controlled fan cooling.

• Protection features: Inrush-current, over-temperature, output DC, output over-power, AC mains voltage, and mains fuse protection.

• Operating temperature: 0°C–49°C, non-condensing.
