CA502

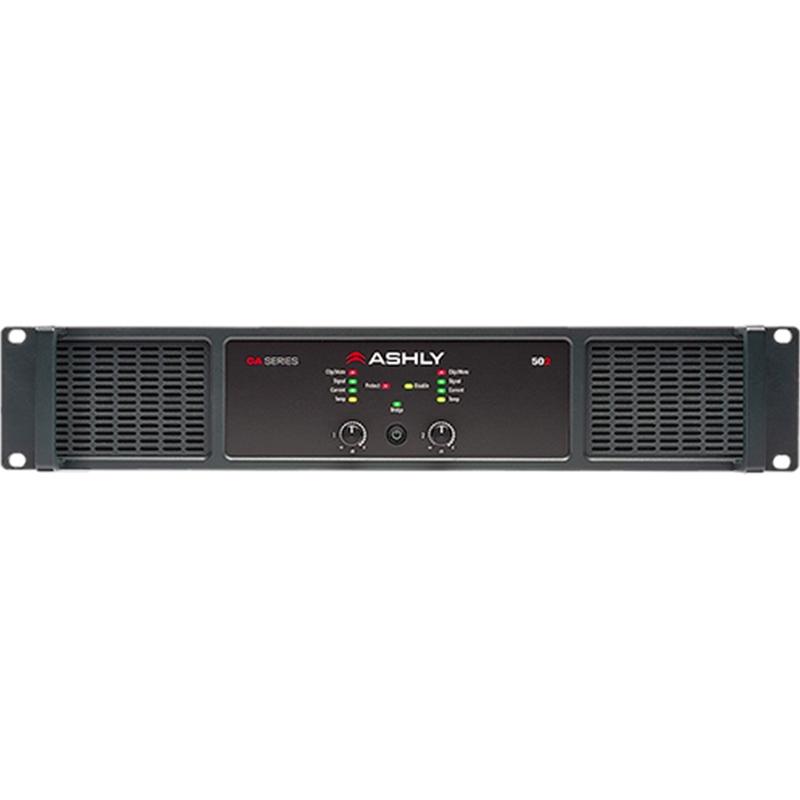

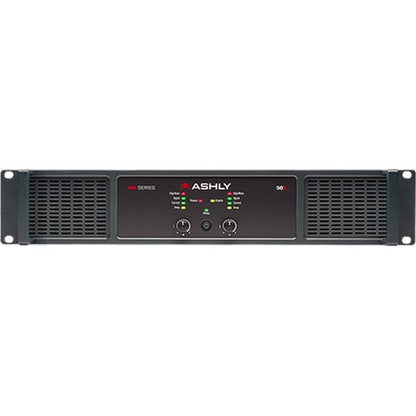

The Ashly CA502 is a two-channel, high-efficiency Class-D power amplifier designed for professional sound reinforcement and commercial audio installations. Delivering 500 watts per channel into 2-ohm or 4-ohm loads, it combines efficient amplification, flexible connectivity, selectable gain settings, and integrated protection features in a compact 2U rackmount chassis. It also supports bridged operation and 70 V or 100 V constant-voltage systems in the specified configurations.

From The Manufacturer:

The Ashly CA Series was developed to provide high-power amplification with improved energy efficiency and thermal management. The CA502 uses Ashly's proprietary D-MAX™ amplifier technology, active power-factor correction, and SailFlow™ cooling architecture.

Designed for both performance and installation applications, it supports low-impedance loudspeakers down to 2 ohms, provides configurable input gain, and includes switchable high-pass filtering and clip limiting. Its XLR, ¼-inch, and Euroblock connections make it suitable for a range of professional audio systems.

Key Features:

1. Two-channel professional power amplifier.

2. High-efficiency D-MAX™ Class-D amplifier design.

3. 500 W per channel at 2 Ω and 4 Ω.

4. 250 W per channel at 8 Ω.

5. Bridged operation delivering up to 1,000 W per channel pair.

6. Supports 70 V and 100 V constant-voltage systems in compatible bridged configurations.

7. Active power-factor correction (PFC).

8. Selectable input gain settings per channel.

9. Front-panel level controls with disable capability.

10. Switchable 80 Hz high-pass filter per channel.

11. Switchable clip limiter per channel.

12. Balanced XLR and ¼-inch TRS combo inputs.

13. Additional Euroblock input connections.

14. Euroblock speaker outputs.

15. Remote DC level-control ports per channel.

16. Remote standby control.

17. Front-panel LED indicators for signal, clipping, temperature, current, bridge mode, and protection.

18. Continuously variable fan cooling using Ashly's SailFlow™ design.

19. Universal 100–240 V AC power supply.

20. Compact 2U rackmount chassis.

Specifications:

• Brand: Ashly

• Series: CA Series

• Model: CA502

• Product Type: Professional power amplifier

• Amplifier Class: Class D

• Number of Channels: 2

• Output Power at 2 Ω: 2 × 500 W

• Output Power at 4 Ω: 2 × 500 W

• Output Power at 8 Ω: 2 × 250 W

• Bridged Output at 4 Ω: 1 × 1,000 W

• Bridged Output at 8 Ω: 1 × 1,000 W

• 70 V Output: 1 × 1,000 W in bridged mode

• 100 V Output: 1 × 1,000 W in bridged mode

• Frequency Response: 20 Hz–20 kHz, ±0.05 dB

• THD+N: Less than 0.5% under the manufacturer's specified test conditions

• Signal-to-Noise Ratio: Greater than 98 dB, unweighted, at 26 dB gain

• Channel Separation: -75 dB at 1 kHz

• Damping Factor: Greater than 250 at 8 Ω, below 1 kHz

• Input Impedance: 10 kΩ

• Maximum Input Level: +21 dBu

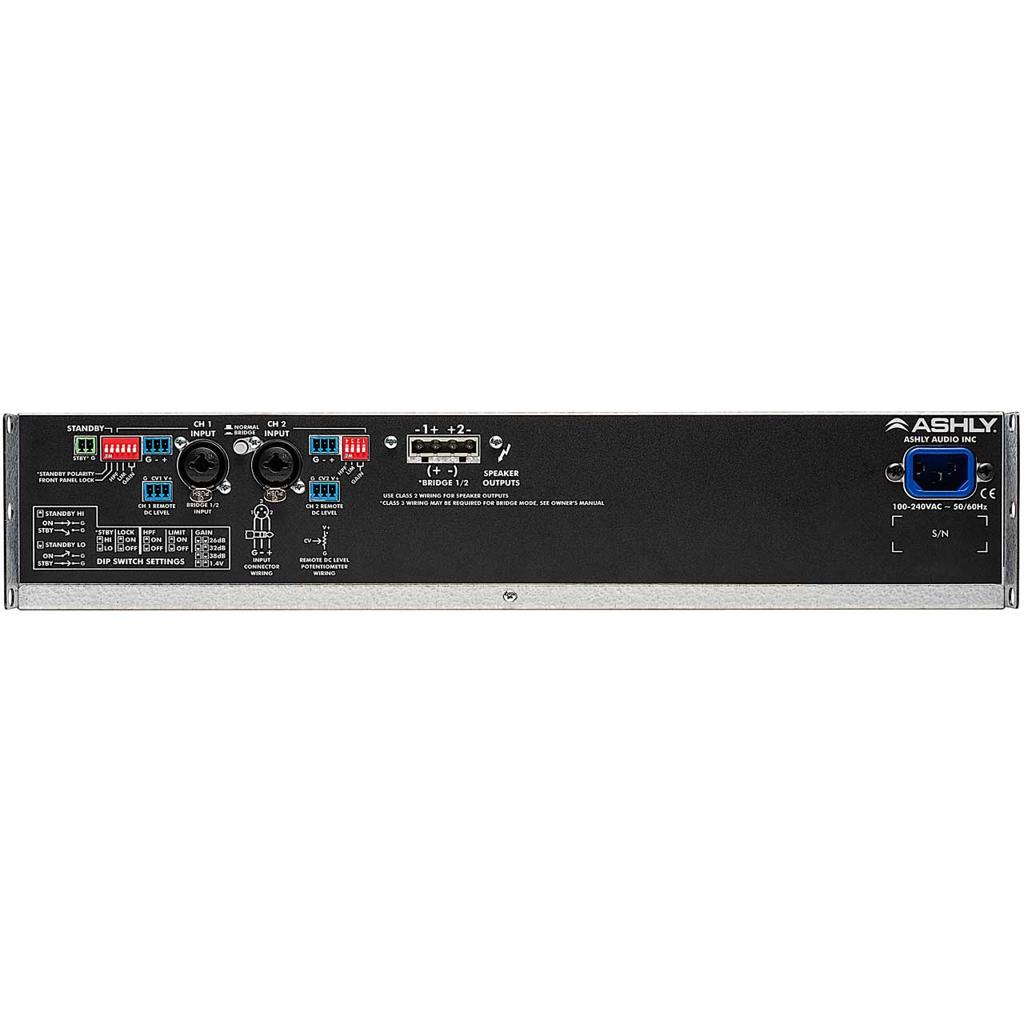

• Input Connectors: XLR/¼-inch TRS combo connectors and 3.5 mm Euroblock

• Output Connectors: 7.62 mm Euroblock

• Input Gain Settings: 26 dB, 32 dB, 38 dB, or 1.4 V sensitivity

• High-Pass Filter: Switchable 80 Hz, second-order filter per channel

• Clip Limiter: Switchable per channel

• Remote Control: DC level-control ports per channel and remote standby input

• Cooling: Continuously variable, temperature-controlled fan

• Rack Format: 2U, 19-inch rackmount

• Dimensions (W × H × D): 19 × 3.5 × 16.1 in (483 × 89 × 409 mm)

• Unit Weight: 15 lb (6.81 kg)

• Shipping Dimensions (W × H × D): 21.9 × 5.43 × 19.3 in (556 × 138 × 489 mm)

• Shipping Weight: 18.5 lb (8.4 kg)

• Power Requirements: 100–240 V AC, 50–60 Hz

• Operating Voltage Range: 70–270 V AC

• Power Supply: Switching power supply with active power-factor correction

• Compliance: cTUVus, CE, FCC Class B, RoHS

Included Accessories:

• Ashly CA502 power amplifier.

• Detachable AC power cable.

• Euroblock input and speaker-output connectors, subject to the supplied package configuration.

Applications:

• Live sound reinforcement.

• Houses of worship.

• Theatres and performance venues.

• Conference centres and auditoriums.

• Commercial audio installations.

• Retail stores, restaurants, and hospitality venues.

• Passive loudspeaker and subwoofer amplification.

• Distributed audio systems using compatible 70 V or 100 V loudspeakers.

• Fixed installations requiring efficient two-channel amplification.

Included Accessories:

The amplifier features a detachable AC power connection and Euroblock input and speaker-output connections. Confirm the exact number of supplied connectors and the regional power-cable configuration with the distributor.

Accessories (Not Included):

• Passive loudspeakers and subwoofers.

• XLR or ¼-inch audio signal cables.

• Euroblock wiring and installation accessories, if not supplied.

• Equipment rack and rack hardware.

• External DSP processors or loudspeaker management systems, where required.

• Additional remote-control wiring.

Size:

• Width: 19 in (483 mm)

• Height: 3.5 in (89 mm)

• Depth: 16.1 in (409 mm)

• Rack Height: 2U

Weight:

• Unit Weight: 15 lb (6.81 kg)

• Shipping Weight: 18.5 lb (8.4 kg)

Electrical/Thermal:

• Nominal Input Voltage: 100–240 V AC

• Frequency: 50–60 Hz

• Operating Voltage Range: 70–270 V AC

• Minimum Power-Up Voltage: 70 V AC

• Power Supply: Switching power supply with active power-factor correction

• Power Consumption at Standby: 8 W

• Power Consumption at Idle: 17 W

• Power Consumption at One-Eighth Rated Power: 172 W with both channels driven under the manufacturer's specified test conditions

• Cooling: Continuously variable, temperature-controlled fan

• Protection Features: Inrush-current limitation, over-temperature protection, output short-circuit and over-power protection, output DC protection, and mains fuse protection

• Operating Temperature: 32–120°F (0–49°C), non-condensing

• Power Connection: Detachable AC power cable; plug configuration may vary by region.
