CBT 1000E

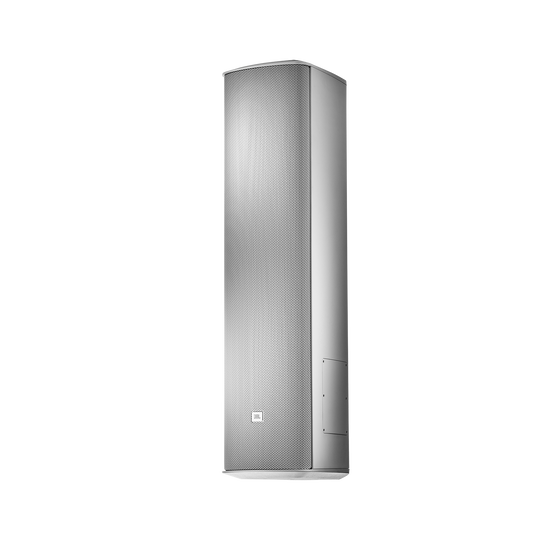

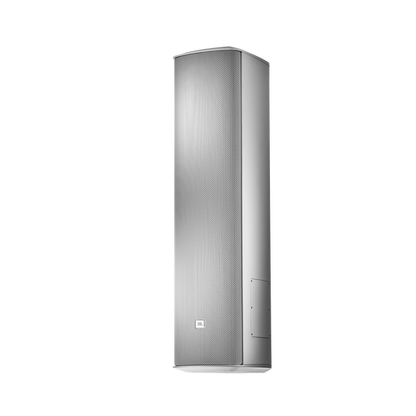

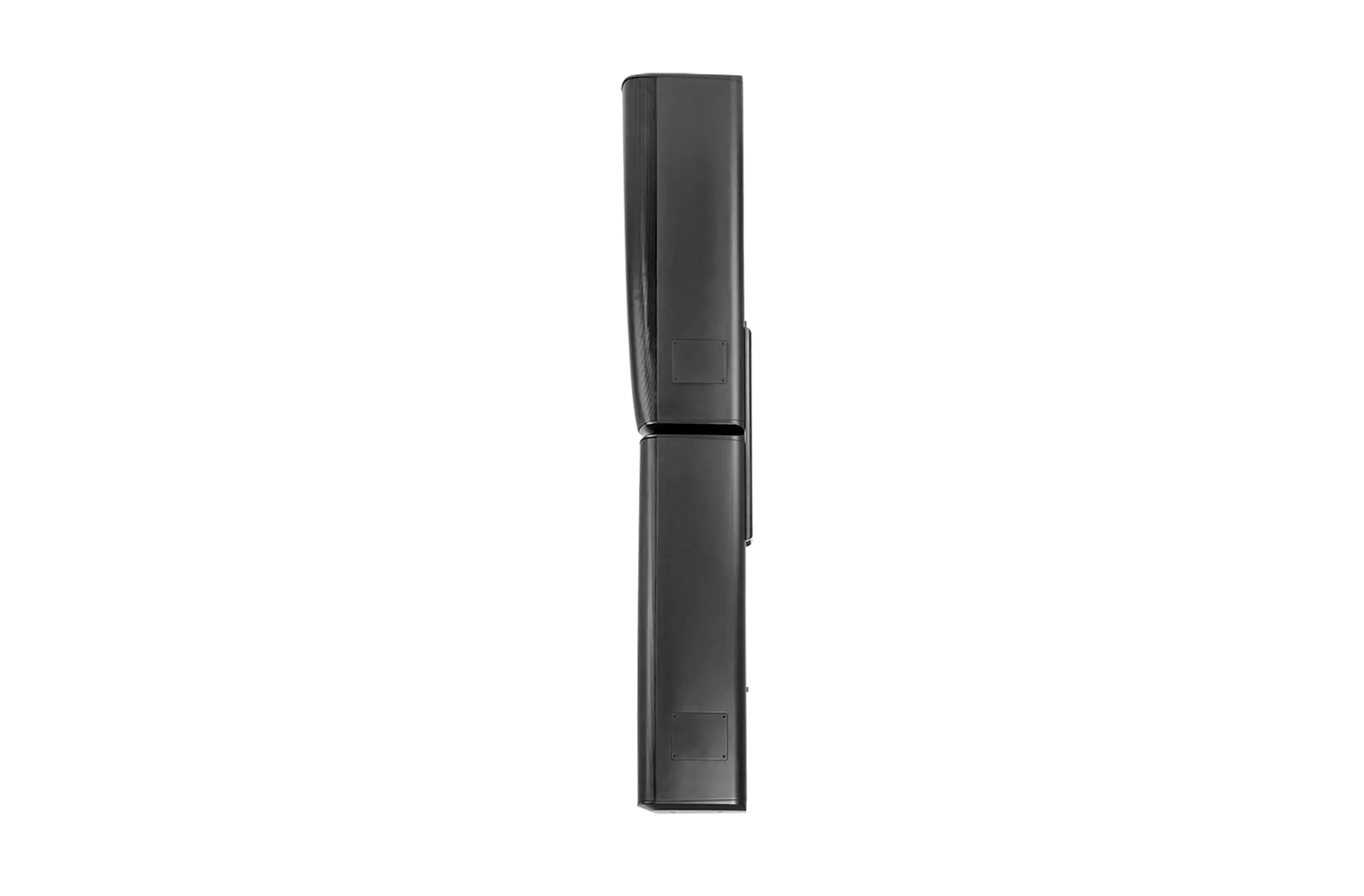

The JBL CBT1000E extension for the CBT1000 line array column speaker extends bass response, pattern control, and sound output.

From the Manufacturer:

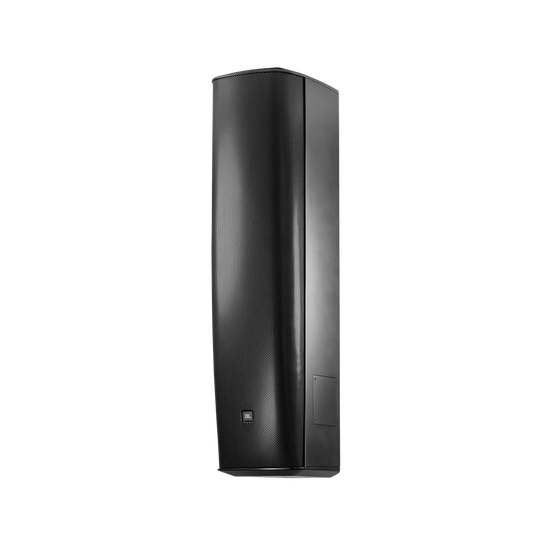

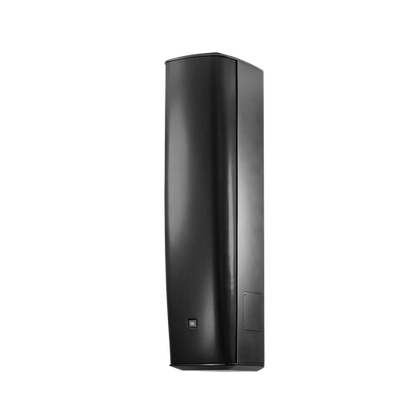

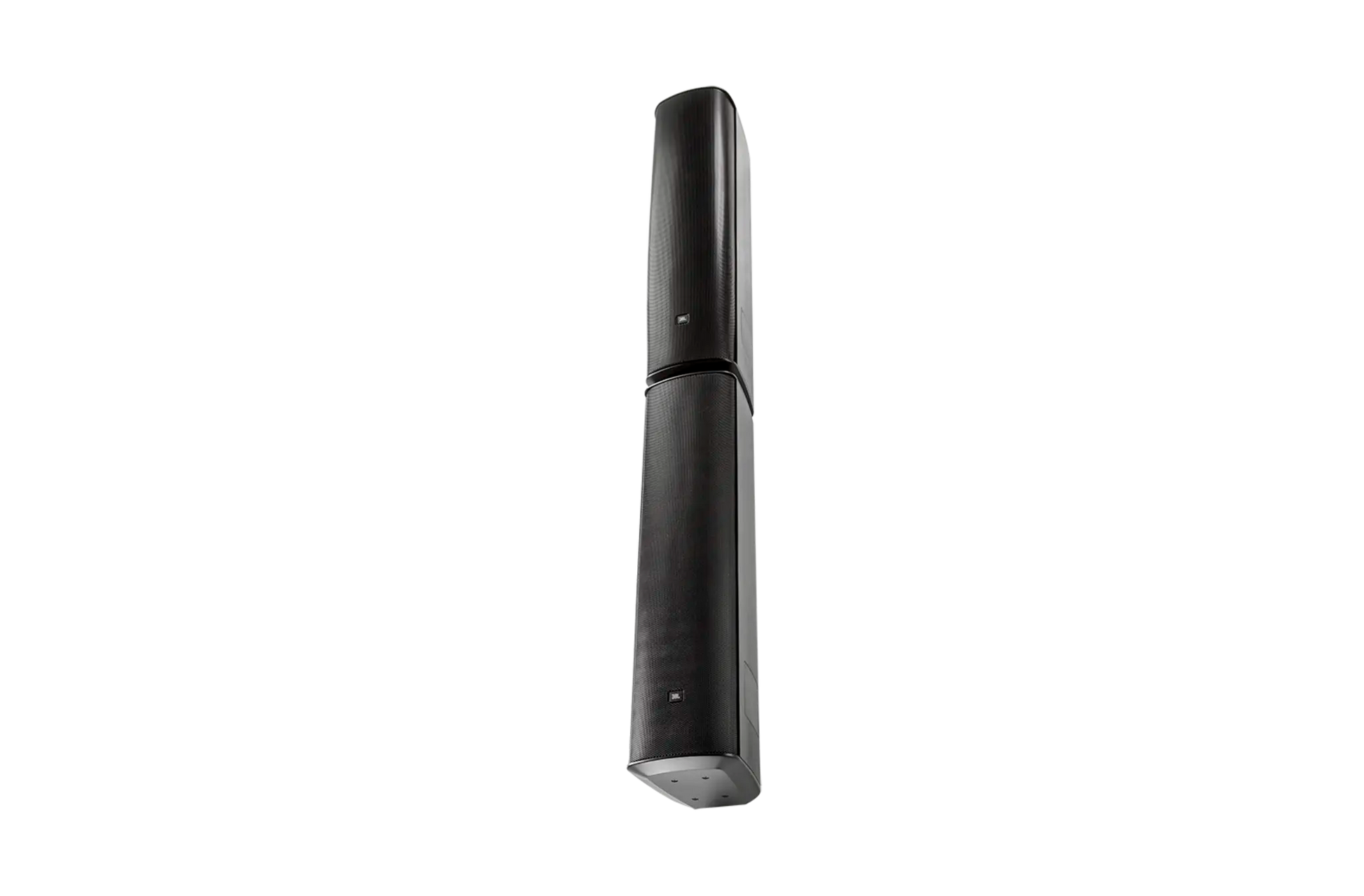

When connected to a CBT1000 line array column speaker, the CBT1000E Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Features:

• Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
• 1500 Watt power handling (CBT1000E)
• Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E)
• Coupler plate included (CBT1000E)
• Extended pattern control

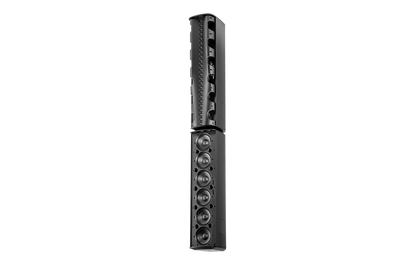

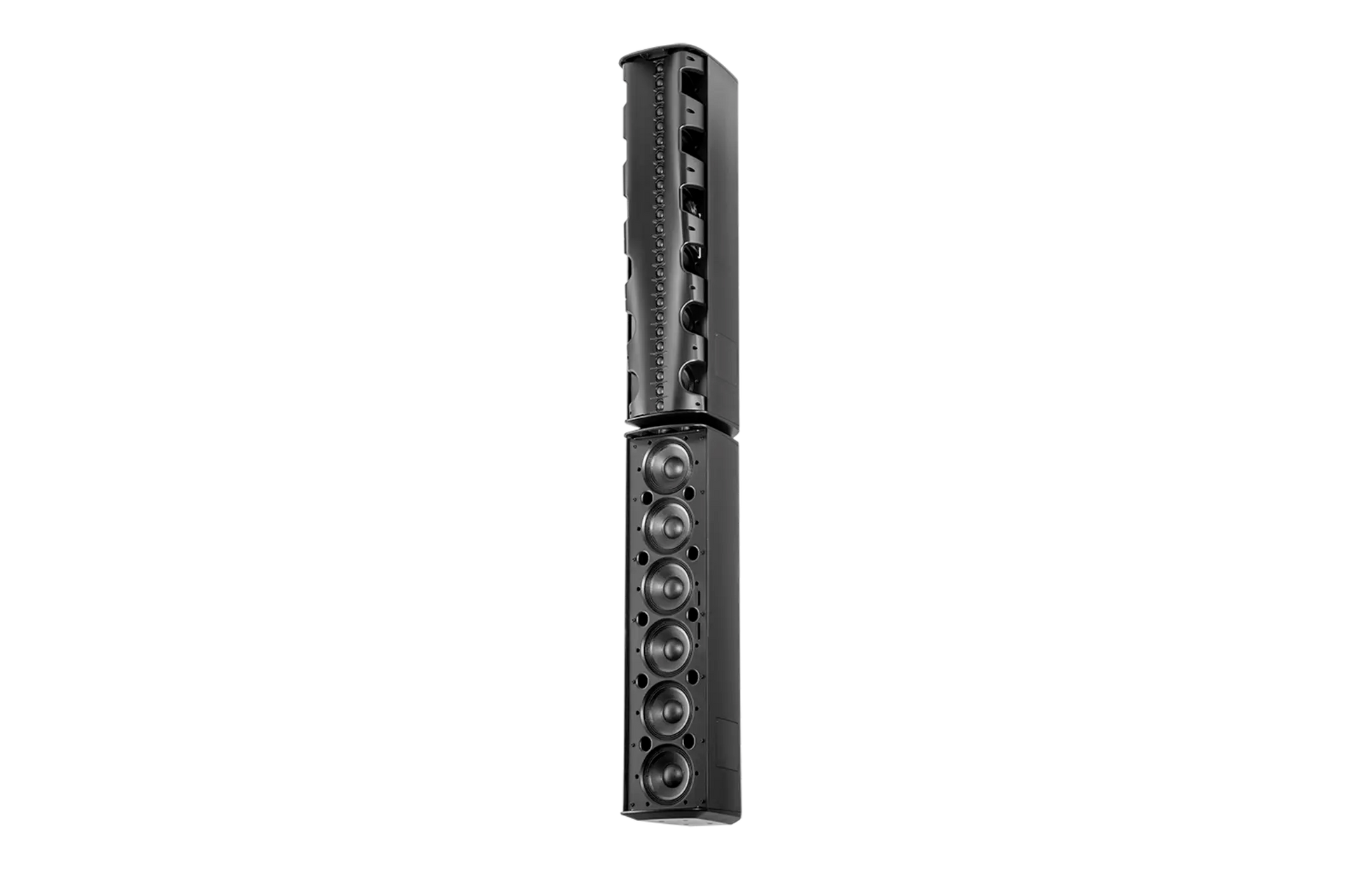

• Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
• 3000 watt power handling (CBT1000+1000E)
• Patent-pending Constant Beamwidth Technology ™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000)
• Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room (CBT1000)
• Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E)
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000)
• Swivel (pan)/tilt wall bracket and coupler plate included.

Specifications:

• Drivers: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
• Frequency Range (-10dB): 38 Hz - 20 kHz
• Coverage: Vertical (selectable via switch)
• Sensitivity: 102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space)95 dB (at lowest sensitivity setting: “Medium” pattern up, “Downfill” pattern down, “Music” voicing in free space)
• Impedance: 4 ohms
• Power Rating: 3000 W (12000 W peak), 2 hrs2000 W (8000 W peak), 100 hrs
• Maximum SPL (1m): Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing:      131 dB continuous average pink noise      134 dB continuous program      137 dB Peak Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Music” voicing:      127 dB continuous average pink noise      130 dB continuous program      133 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Speech” voicing:      128 dB continuous average pink noise      131 dB continuous program      134 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Music” voicing:      124
• Coverage Angle: Vertical: Separate four top and four bottom selections, Horizontal: tapered 100° to 160°
• Low Frequency Drivers: 12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance.
• High Frequency Drivers: 24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance.
• Enclosure: Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille
• Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature & UV, ASTM G85 for acid-air/salt-spray (200 hrs).
• Color: Black (RAL9004) or White (-WH) (RAL9016)

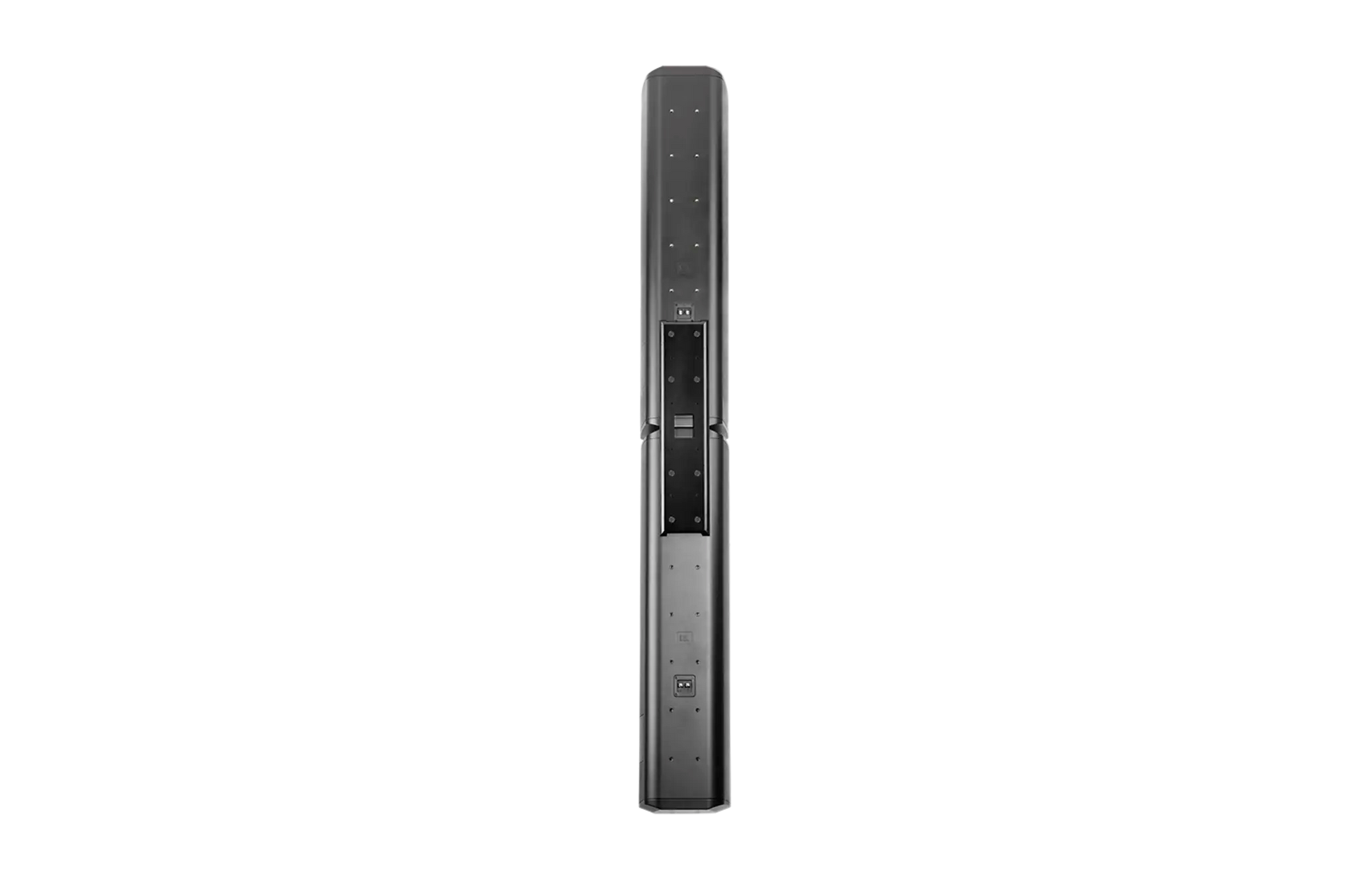

• Insert Points: Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps.
• Mounting: Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt – see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/- 5.25 degree tilt, in the following increments: 5.25°, 5.0°, 4.5°, 4°, 3.75°, 3.5°, 3.0°, 2.75°, 2.5°, 2.0°, 1.75°, and 1.25°. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount® and other compatible third–party brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.)
• Dimensions (H x W x D): 2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in)
• Net Weight: (cabinet): 47.2 kg (104 lbs)
• Included Accessories: Two-piece swivel (pan)/tilt wall bracket Coupler Plate
• Optional Accessories:
  • MTC-PC2 terminal panel cover
  • CBT1K-ACC1 Accessory kit includes:
    • 2 pcs MTC-CBT-FM3 flush-mount brackets
    • 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array – works in conjunction with CBT 1000E’s included
    • Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it)
  • MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points)
