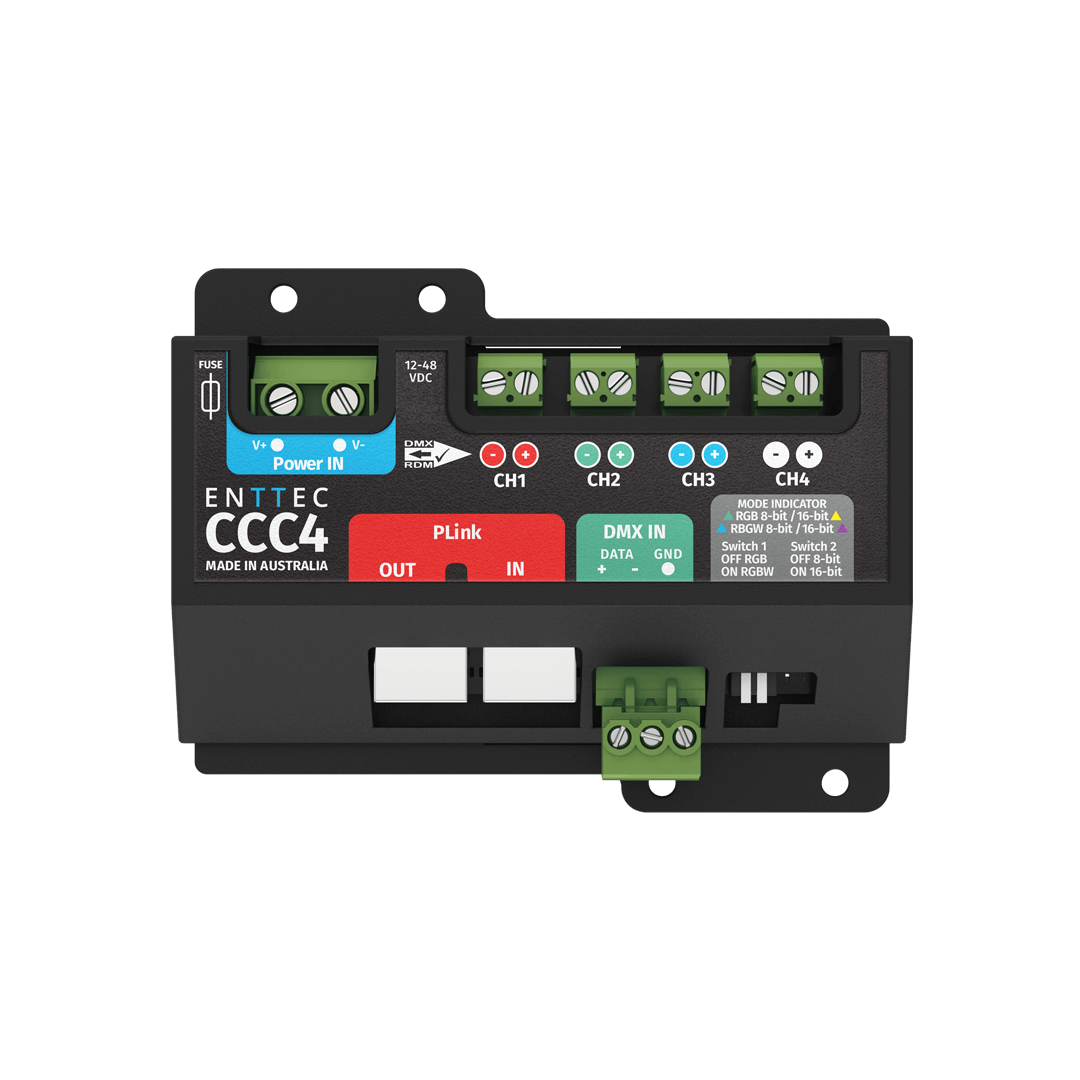

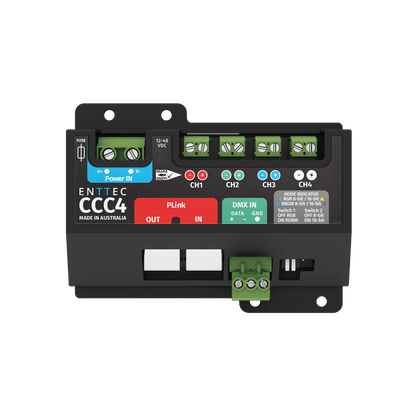

CCC4

The ENTTEC CCC4 is a 4-channel, installation-grade constant current (CC) LED dimmer with PLink or DMX input, designed for high-precision color rendering and high-power LED installations.

From the Manufacturer

The ENTTEC CCC4 is a 4-channel, auto-addressable constant current LED dimmer built for professional lighting applications. It supports a wide input voltage range of 12–48V DC, with output current preset at the factory to dim compatible constant current fixtures up to 1A per channel. By delivering a regulated current output per channel, the CCC4 ensures consistent brightness and reduces the risk of LED burnout or thermal runaway — especially beneficial for high-power installations. Its compact, solid-state, fanless design makes it virtually silent during operation, and built-in mounting points accommodate an optional TS35 DIN rail clip for installation in control cabinets or on surfaces and walls.

For optimal performance, the CCC4 integrates with ENTTEC's Pixelator series controllers via the long-range PLink protocol. Simply chain devices together using Cat 6 cable — extending up to 300m between each unit — and the CCC4s will auto-address themselves, eliminating the need for manual addressing. Alternatively, the CCC4 can receive data from any DMX controller, with RDM support for start address configuration and temperature monitoring. DIP switches allow users to select between RGB/RGBW mode and 8-bit/16-bit dimming resolution, while overtemperature protection automatically dims output to black if operating temperature becomes too high, restoring output once the device has cooled.

Features

• 4-channel constant current (CC) LED dimmer with factory-preset 1A per channel output
• Supports 12–48V DC input voltage for compatibility with a wide range of LED fixtures
• PLink auto-addressing — chain CCC4 units via Cat 6 cable up to 300m between devices with no manual addressing required
• DMX512A input with RDM support for start address configuration, temperature monitoring, and firmware updates
• CCC4 can convert DMX to PLink, streamlining addressing for daisy-chained units
• DIP switch selection for RGB or RGBW mode and 8-bit or 16-bit dimming resolution
• Overtemperature protection — dims to black over 3 seconds and automatically restores output once cooled
• User-serviceable ATO 5A blade fuse for protection against dead shorts
• MOSFET outputs bonded to a heat spreader for sustained safe operating temperature
• Compact, fanless, solid-state design for silent operation

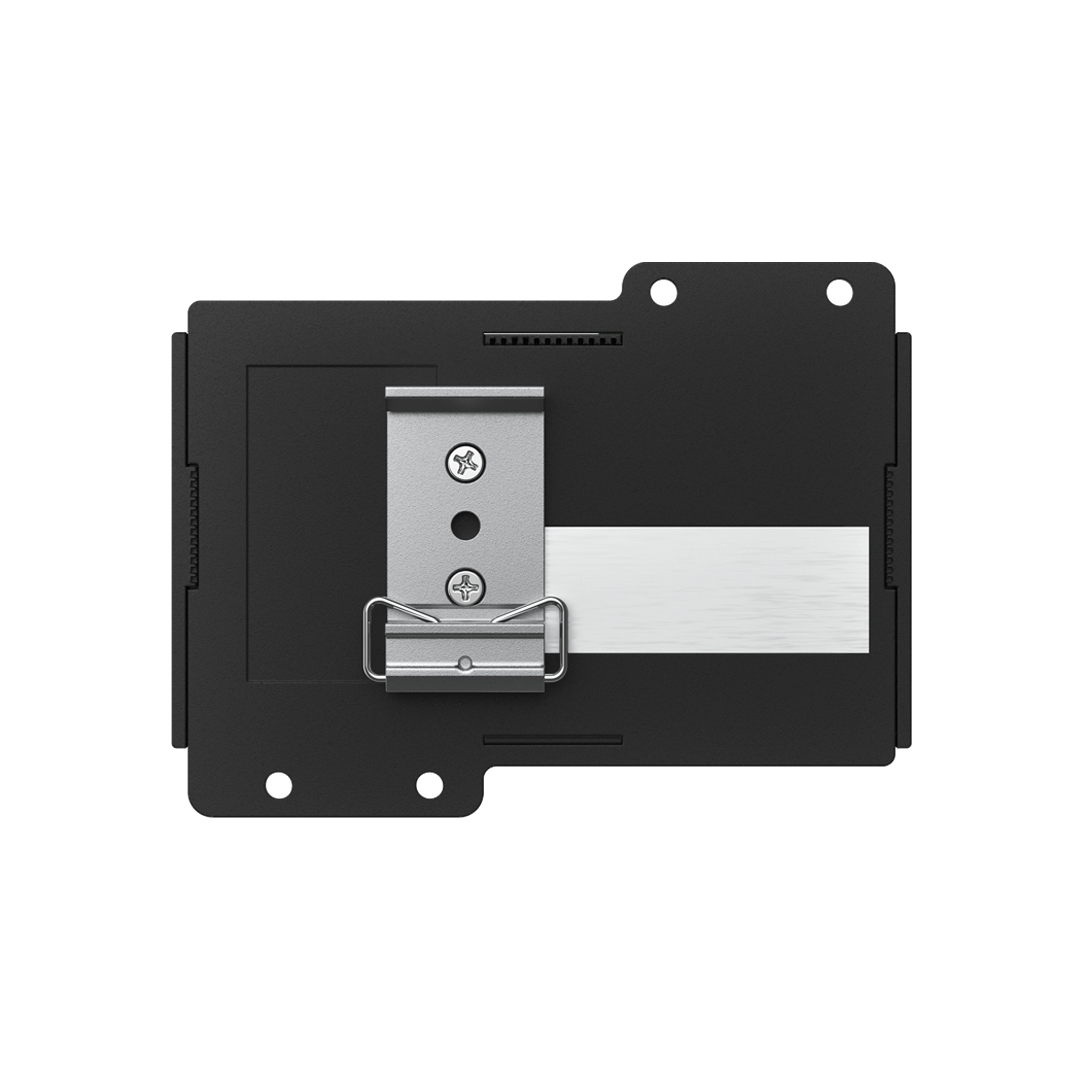

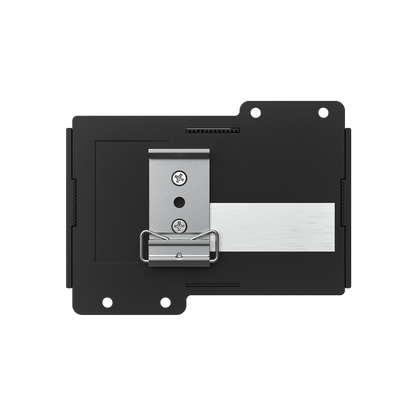

• DIN-rail mountable via optional TS35 DIN rail clip (included in box)
• Reverse polarity protection on power port
• 1 kHz fixed PWM frequency
• 3-year manufacturer warranty
• Recommended use: Architectural LED installations, permanent installs, theatrical and studio LED dimming, high-power constant current LED fixtures

Specifications

Electrical

• Input Voltage: 12–48V DC
• Max. Current Rating: 4.5A (4-channel mode)
• Max. Current per Channel: 1A
• Max. Output Power: 48W (@12V) / 96W (@24V) / 192W (@48V)
• Device Max. Power Draw: 1.5W
• PWM Frequency: 1 kHz (fixed)
• User-Serviceable Fuse: ATO 5A blade fuse
• Cooling Method: Convection
• Reverse Polarity Protection: Yes (power port)

Control

• Data Input Protocols: DMX512A, PLink
• Data Output Protocols: PLink
• RDM Functionality: Start address configuration, temperature monitoring, firmware updatable
• Start Address Configuration: PLink via Pixelator series controller / DMX/RDM (default channel: 1)
• Dimming Resolution: 8-bit / 16-bit (DIP switch selectable)
• Fixture Modes: 8-bit RGB (3ch), 8-bit RGBW (4ch), 16-bit RGB (6ch), 16-bit RGBW (8ch)
• Data Input Capacity per Chain: DMX: up to 1 universe / PLink: up to 8 universes
• Max. Data Cable Length: DMX: 300m per chain / PLink: 300m between each CCC4

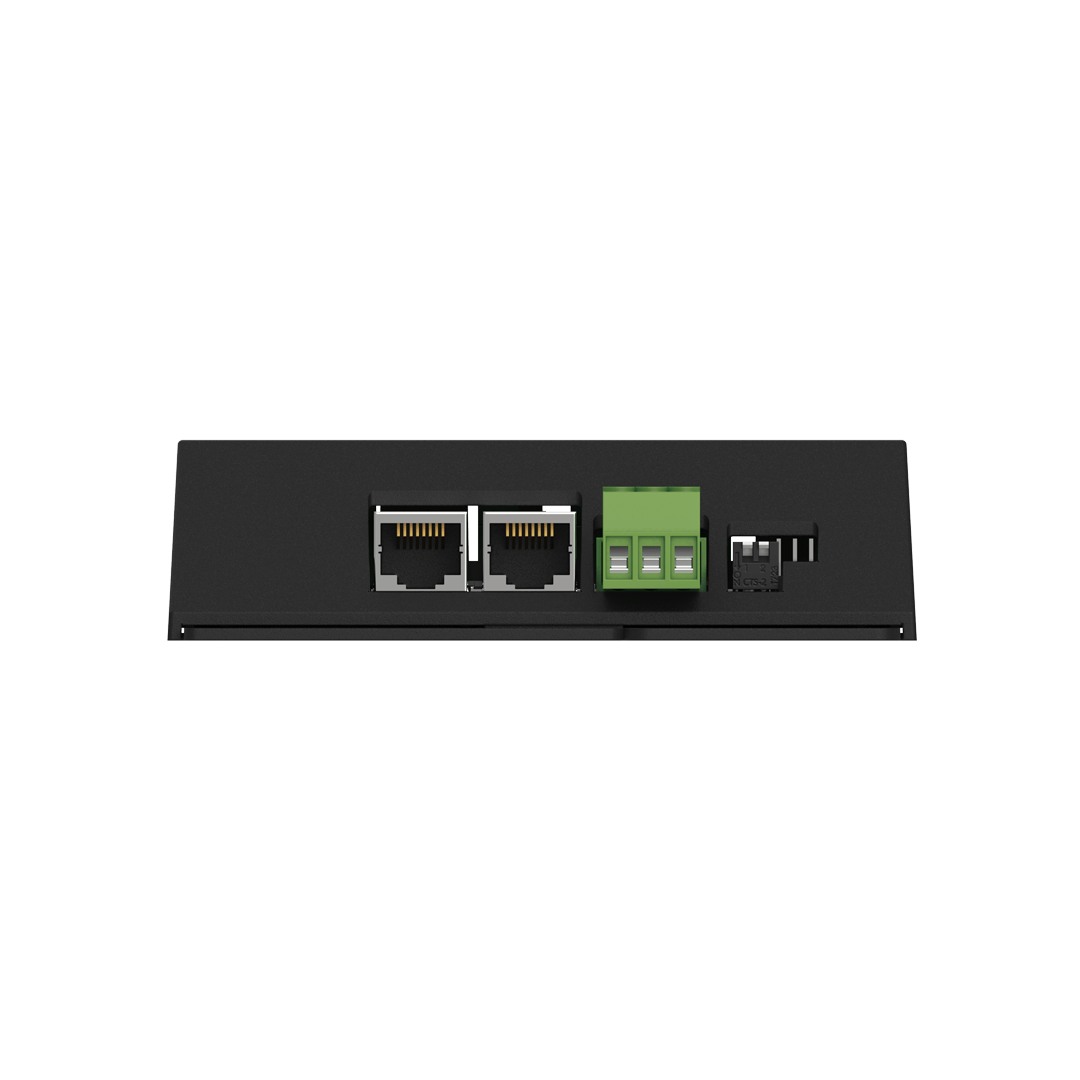

Connections

• Power Input: Screw terminal
• DMX Input: Screw terminal

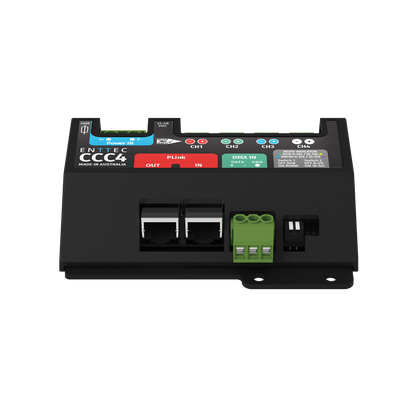

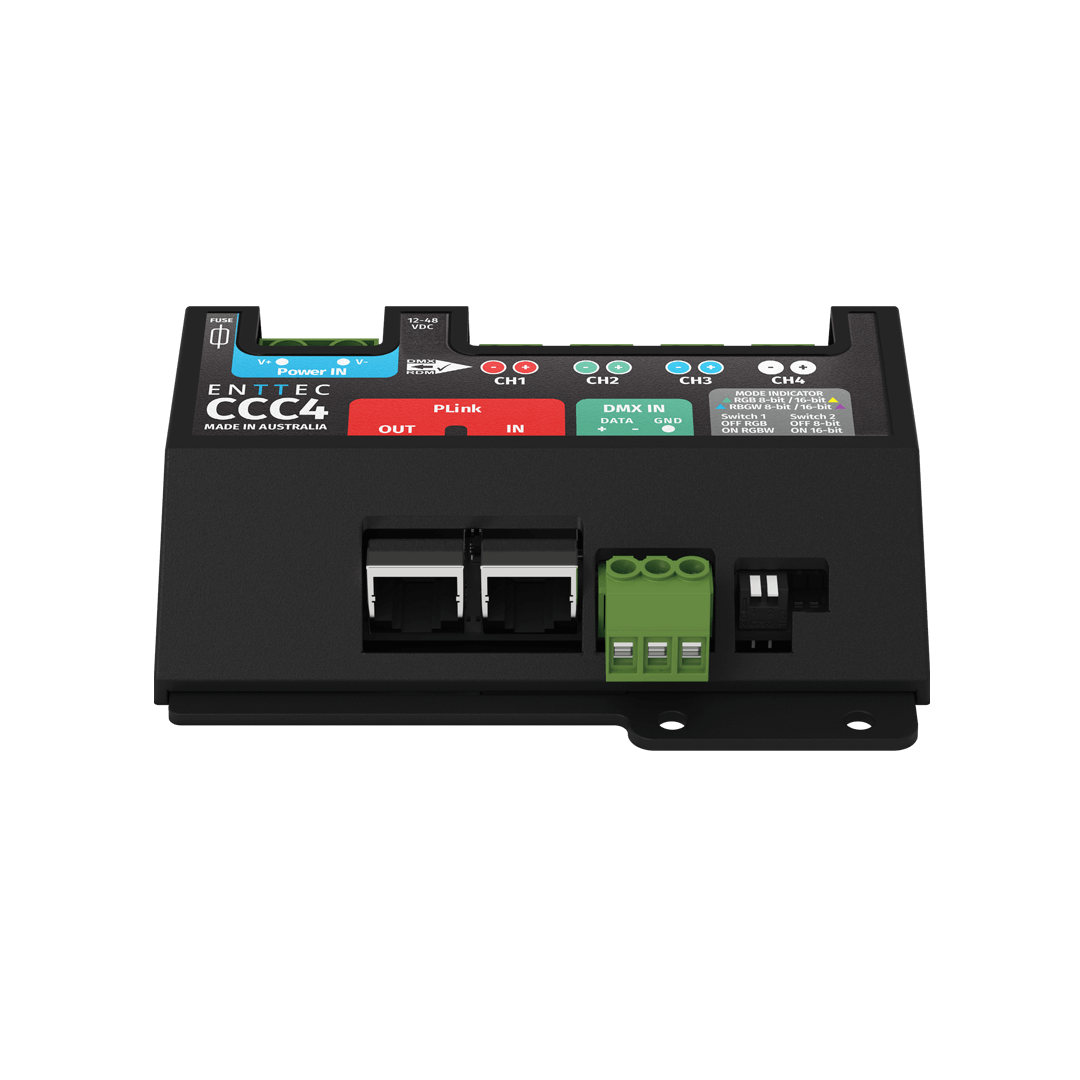

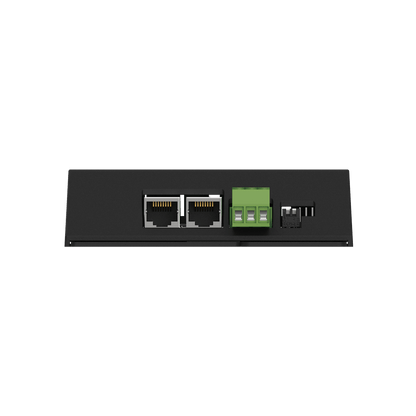

• PLink In/Out: RJ45

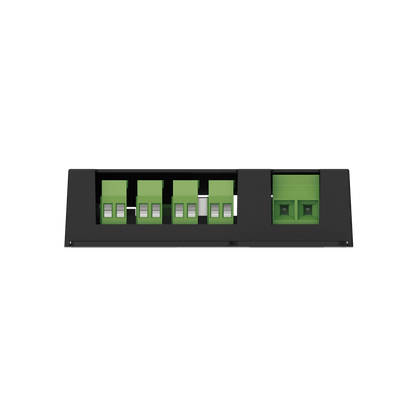

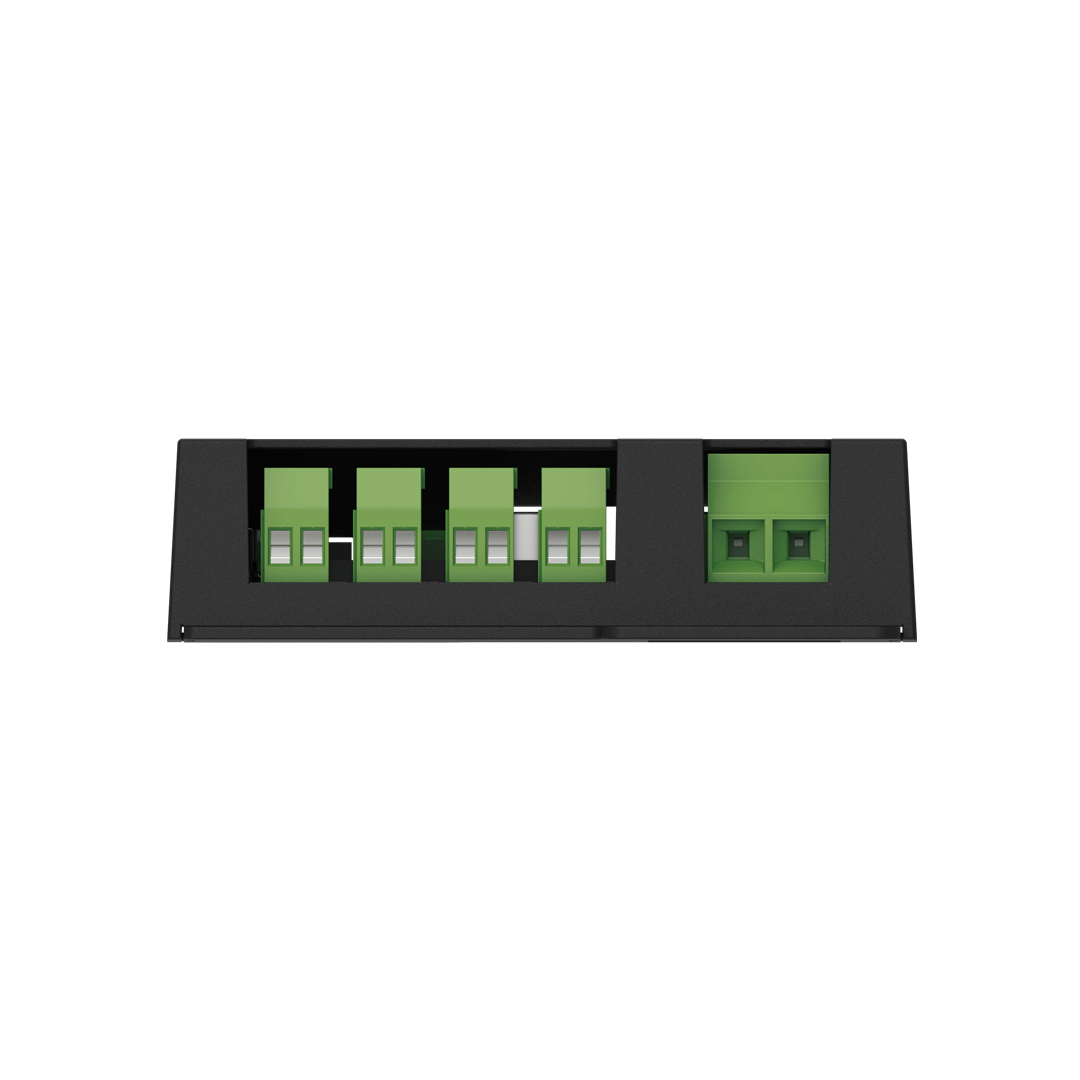

• CC Output: 4 x screw terminal

Construction / Physical

• Body Material: ABS plastic
• Mounting Options: Surface mount, TS35 DIN-rail mount
• IP Rating: IP20
• Unit Dimensions: 88 x 117.5 x 31.5 mm
• Unit Weight: 0.13 kg / 0.28 lbs
• Shipping Dimensions: 140 x 140 x 40 mm
• Shipping Weight: 0.19 kg / 0.42 lbs

Environmental

• Operating Temperature: 0°C to +50°C / -4°F to 122°F
• Operating Humidity: 5–95% (non-condensing)

Certifications

• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• ENTTEC CCC4 Constant Current LED Dimmer
• TS35 DIN rail clip
