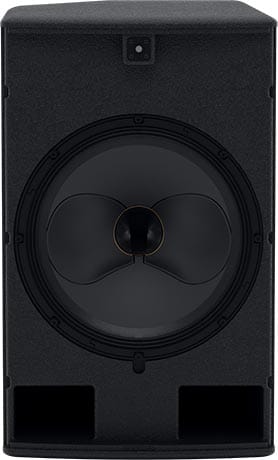

CDD-LIVE15 15” 2-Way Active Powered Speaker

The CDD-LIVE15 is an active loudspeaker. It is a great option for professional install or portable live applications.

From The Manufacturer:

The CDD-LIVE 15 is a self-powered two-way system designed for professional live applications and installations that demand the ultimate in sonic performance from a single enclosure. Its powerful Coaxial Differential Dispersion driver comprises a 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm. With a maximum SPL of 132dB peak at 1 metre, it is the ideal solution for medium-scale touring, theatre and portable live sound applications, as well as premium installations and stage monitor use.

Features:

• High-power, self-powered two-way system

• Coaxial Differential Dispersion™ technology

• Onboard Class D amplification and DSP

• Dante™ Digital Audio networking

• Global mains operation with Power Factor Correction

• User-rotatable CDD™ driver

• Vertical and horizontal mounting options

• Tour-grade, multi-angle plywood enclosure

• IP24 rating option with rain cowl

• Comprehensive mounting accessories

Applications:

• Live sound reinforcement

• Theater sound

• Corporate AV events

• Fixed installations in concert halls, ballrooms and HoW

• Stage monitor and sidefill

• Bars and clubs

Specifications:

• Type

• High-output, Coaxial Differential Dispersion powered two-way system

• Frequency Response

• 55Hz – 20kHz ±3dB, -10dB @ 45Hz

• Driver

• LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver

• Input Sensitivity

• -30dBu for 100dB SPL

• Maximum SPL

• 126dB continuous / 132dB peak

• Dispersion

• 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 1.5kHz Active LR8 with low latency HF FIR equalization

• Balance presets for pole mount/ pole mount with sub/ stage monitor

• Connectors

• Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon

• Analogue Input Impedance

• 20 kΩ balanced to ground

• Maximum Analogue Input Leve

• 24.6 Vpp (+21dBu), over voltage protected

• Internal Processing

• Multi-channel DSP, programmable via TCP/IP using VU-Net software

• PEQ/shelving filters

• Up to 48dB/Oct HPF

• Low latency HF FIR filters

• Up to 200ms input delay

• Pre-set selection via rear panel switch

• Network Connectors

• 2xNeutrik® Ethercon

• Network Protocol

• TCP/IP and UDP/IP

• Amplifier Type

• 2 channel switch-mode, class D,

• Bridged Tied Load + 1 channel switch-mode, class D

• Amplifier Peak Output Power

• 2500W total

• 2000W LF, 500W HF

• Amplifier Average Efficiency

• 89%

• Amplifier Cooling

• External convection cooled, with internal fan

• Amplifier Maximum Ambient Temperature

• 40°C (104°F) for full output

• Power Supply Type

• Switch mode, fixed frequency with PFC

• Power Supply AC Input Operating Range

• 85 – 265V ~ AC, 50 - 60Hz

• Power Supply Power Factor

• > 0.98

• Power Supply Nominal Power Consumption

• 550W

• Power Supply Mains Connector

• Neutrik® Powercon True1

• Enclosure

• Extensively braced multi-laminate plywood.

• Finish

• Textured black PU coating.

• Protective Grille

• HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth.

• Fittings

• Top hat for pole mounting

• 15 x M8 mounting points

• Two side pocket handles

• Optional weather protection cowl

• IP Rating

• IP24 factory option available

• Dimensions

• (W) 427mm x (H) 696mm x (D) 422mm

• (W) 16.81in x (H) x 27.42in (D) 16.61in

• Weight (excluding Transit cover)

• 37kg

• 81.4lbs

• Accessories

• Transit Cover

• Optional yoke and universal brackets (Please Request a Quote)
