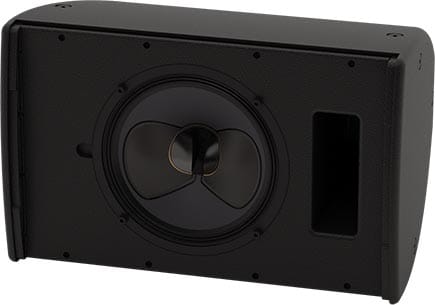

CDD10 Compact Passive 2-Way Speaker System

The CDD10 is a compact passive loudspeaker. It is a great  option for installations of  foreground sound requirements in medium sized venues.

Martin's CDD passive loudspeakers are some of the best passive speakers you can get that have a built-in crossover.  Using DSP makes them even more amazing!

From the Manufacturer:

The CDD10 is a very compact two-way passive loudspeaker system which utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a SX118 or CX218 subwoofer will enable the CDD10 to operate as a small dancefloor system that is remarkably powerful for its size.

Features:

• Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free perforated steel grille

• 8Ω nominal impedance

• Discreet mounting accessories

• Integral inserts for eyebolt suspension

• Black or white standard color options

Applications:

• Live Music Clubs and Bars

• Nightclubs

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centers

• Houses of Worship

Specifications:

• Type

• Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 65Hz-20kHz ± 3dB, -10dB @ 55Hz

• Driver LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF

• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Rated Power

• 250W AES, 1000W peak

• Sensitivity

• 96dB

• Maximum SPL

• 120dB continuous, 126dB peak

• Nominal Impedance

• 8Ω

• Dispersion  (-6dB)

• 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 2kHz passive

• Enclosure

• 28 litre, composite material

• Finish

• Black or white textured paint

• Protective Grille\

• Black or white perforated steel with scrim cloth backing\

• Connectors

• Low profile 20A push-lock

• Pin Connections

• Left to right: Input+, Input -, Link -, Link+

• Fittings

• 6 x M8 inserts for wall bracket

• 10 x M8 fly points

• Dimensions

• (W) 323mm x (H) 513mm x (D) 310mm

• (W) 12.7ins x (H) 20.2ins x (D) 12.2ins

• Weight

• 15.3kg (33.7lbs)
