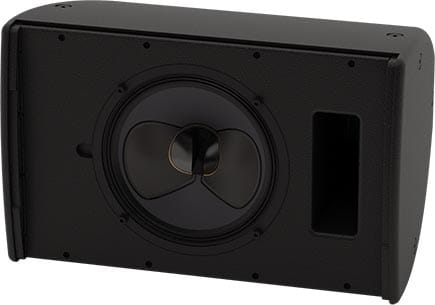

CDD10TX Compact Passive Speaker System

The CDD10TX is a compact passive loudspeaker with a 70V/100V transformer. It is a great option for medium sized installs that require background or foreground sound.

Martin's CDD passive loudspeakers are some of the best passive speakers you can get that have a built-in crossover.  Using DSP makes them even more amazing!

From The Manufacturer:

The CDD10TX is a very compact two-way passive loudspeaker system incorporating a 70V/100V transformer (with a 5-way connector) that utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver.

It is uniquely placed to meet the foreground requirements of varied architectural applications that require upfront sound levels from a very compact enclosure and that benefit from amplifier efficiency by being able to daisy-chain loudspeakers through use of the inbuilt transformer.

Features

• Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free perforated steel grille

• Discreet mounting accessories

• Integral inserts for eyebolt suspension

• Black or white standard color options

• 70V/100V line transformer

Applications:

• Live Music Clubs and Bars

• Nightclubs

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centers

• Houses of Worship

Specifications:

• Type

• Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 65Hz-20kHz ± 3dB, -10dB @ 55Hz

• Driver

• LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF

• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Rated Power

• 120W AES, 240W peak

• Transformer Settings

• 70V line: 120W, 60W, 30W, 15W

• 100V line: 120W, 60W, 30W

• Sensitivity

• 96dB

• Maximum  SPL

• 117dB continuous, 123dB peak

• Nominal Impedance

• Line transformer taps: 42, 83, 166, 333 ohms

• Dispersion (-6dB)

• 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 2kHz passive

• Enclosure

• 28 litre, composite material

• Finish

• Black or white textured paint

• Protective Grille

• Black or white perforated steel with scrim cloth backing

• Connesctors

• Low profile 20A push-lock

• Phoenix Connectors

• 5 WAY 70V: Common, 15W, 30W, 60W, 120W

• 100V: Common, 30W, 60W, 120W

• Fittings

• 6 x M8 inserts for wall bracket

• 10 x M8 fly points

• Dimensions

• (W) 323mm x (H) 513mm x (D) 310mm

• (W) 12.7ins x (H) 20.2ins x (D) 12.2ins

• Weight

• 16.9kg

• 37.23lbs
