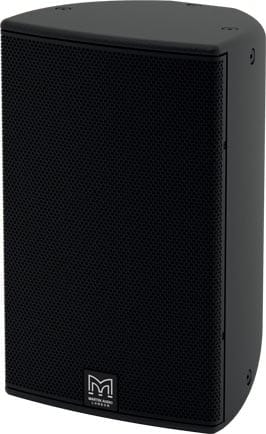

CDD10TX-WR IP54 Weatherized CDD10 Speaker with 70v/100v Transformer

The CDD10TX is a compact 2 way passive speaker for larger install applications.  Martin's CDD passive loudspeakers are some of the best passive speakers you can get that have a built-in crossover.  Using DSP makes them even more amazing!

From The Manufacturer:

The CDD10TX-WR is a weatherized very compact two-way passive loudspeaker system incorporating a 70V/100V transformer (with a 5-way connector). It is suitable for larger outdoor applications that benefit from amplifier efficiency by being able to daisy-chain loudspeakers through use of the inbuilt transformer and where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.

Features

• Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• Outdoor operation when sheltered from direct exposure to elements

• Operating temperature -20°C to +70°C

• Environmentally tested to meet IP54

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free water and particle resistant grille

• Integral inserts for eyebolt suspension

• Discreet weatherized mounting accessories

• Black or white standard color options

• 70V/100V line transformer

Applications:

• Outdoor Restaurants

• Bars

• Hotel Areas

• Nearfield Systems in Outdoor Stadia

• Transport Hubs

• Concourses and Theme Parks

Specifications:

• Type

• Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 65Hz-20kHz ± 3dB

• -10dB @ 55Hz

• Driver

• LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Rated Power

• 120W AES, 240W peak

• Transformer Settings

• 70V line: 120W, 60W, 30W, 15W

• 100V line: 120W, 60W, 30W

• Sensitivity

• 96dB

• Maximum SPL

• 117dB continuous, 123dB peak

• Nominal Impedance

• Line transformer taps: 42, 83, 166, 333 ohms

• Dispersion (-6dB)

• 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 2kHz passive

• Enclosure

• 28 liter, composite material

• Finish

• Black or white as standard

• Protective Grille

• Zinc plated mild steel with powder coated finish and weatherized backing

• Environmental

• Rated at IP54

• Connectors

• Low profile 20A push-lock, weatherproof input panel cover with cable gland

• Phoenix Connectors 5 WAY

• 70V: Common, 15W, 30W, 60W, 120W

• 100V: Common, 30W, 60W, 120W

• Fittings

• 6 x M8 inserts for wall bracket

• 10 x M8 fly points

• Dimension

• (W) 323mm x (H) 513mm x (D) 310mm

• (W) 12.7ins x (H) 20.23ins x (D) 12.2ins

• Weight

• 17.1kg (37.73lbs)
