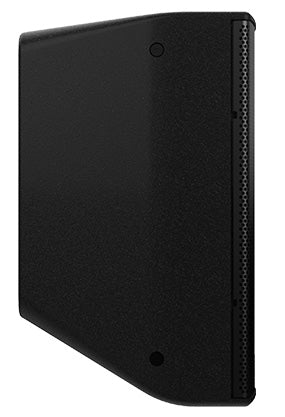

CDD12 Passive Loudspeaker

The CDD12 is a passive loudspeaker system. It is a great option for a medium-throw distance install applications.

From The Manufacturer:

The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.

Features:

• Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant birch plywood enclosure

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free perforated steel grille

• 8Ω nominal impedance

• Discreet mounting accessories

• Integral inserts for eyebolt suspension

• Black or white standard color options

Applications:

• Live Music Clubs and Bars

• Nightclubs

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centers

• Houses of Worship

Specifications:

• Type

• Compact, high-output, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 62Hz-20kHz ± 3dB, -10dB @ 50Hz

• Driver

• LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Rated Power

• 300W AES, 1200W peak

• Sensitivity

• 97dB

• Maximum SPL

• 122dB continuous, 128dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 1.9kHz passive

• Enclosure

• 38 litre, birch plywood

• Finish

• Black or white textured paint

• Protective Grille

• Black or white perforated steel with scrim cloth backing

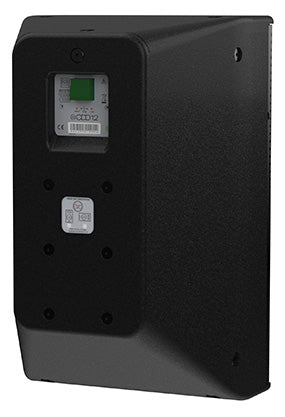

• Connectors

• Low profile 20A push-lock

• Pin Connections

• Left to right: Input+, Input -, Link -, Link+

• Fittings

• 6 x M8 inserts for wall bracket

• 10 x M8 fly points

• Dimensions

• (W) 360mm x (H) 560mm x (D) 350mm

• (W) 14.17ins x (H) 22.05ins x (D) 13.78ins

• Weight

• 19kg (41.89 lbs)
