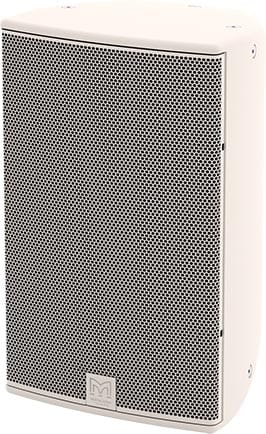

CDD12-WR IP54 Weatherized CDD12 Speaker

The CDD12-WR is a weatherized IP54 version of the CDD12. It is a great option for outdoor applications where it will be exposed to changing weather conditions, but will still be sheltered from direct exposure.

From The Manufacturer:

The CDD12-WR is a weatherized compact, passive two-way system designed for installations that require high output levels suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.

Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances. It features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.

Features:

• Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• Outdoor operation when sheltered from direct exposure to elements

• Operating temperature -20°C to +70°C

• Environmentally tested to meet IP54

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free water and particle resistant grille

• 8Ω nominal impedance

• Integral inserts for eyebolt suspension

• Discreet weatherised mounting accessories

• Black or white standard color options

Applications:

• Outdoor Restaurants

• Bars

• Hotel Areas

• Nearfield Systems in Outdoor Stadia

• Transport Hubs

• Concourses and Theme Parks

Specifications:

• Type

• Compact, high-output, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 62Hz-20kHz ± 3dB

• -10dB @ 50Hz

• Driver

• LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver

• Rated Power

• 300W AES, 1200W peak

• Sensitivity

• 97dB

• Maximum SPL

• 122dB continuous, 128dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 1.9kHz passive

• Enclosure

• 38 litre, composite material

• Finish

• Black or white as standard

• Protective Grille

• Zinc plated mild steel with powder coated finish and weatherised backing

• Environmental

• Rated at IP54

• Connectors

• Low profile 20A push-lock, weatherproof input panel cover with cable gland

• Pin Connections

• Left to right: Input+, Input -, Link -, Link+

• Fittings

• 6 x M8 inserts for wall bracket

• 10 x M8 fly points

• Dimensions

• (W) 360mm x (H) 571mm x (D) 350mm

• (W) 14.2ins x (H) 22.5ins x (D) 13.8ins

• Weight

• 19.8kg (43.65lbs)
