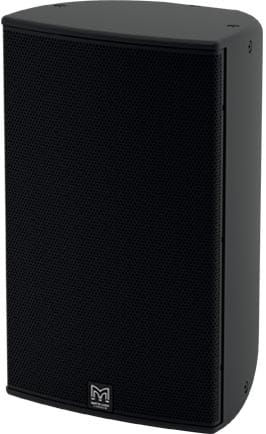

CDD15-WR IP54 Weatherized Speaker

The CDD15-WR is a great option for outdoor install applications that require high output from a single enclosure.

From The Manufacturer:

The CDD15-WR is a very high-power, weatherized, passive two-way system designed for outdoor installations that demand the ultimate in sonic performance from a single enclosure and suitable for applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.

Features:

• Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• Outdoor operation when sheltered from direct exposure to elements

• Operating temperature -20°C to +70°C

• Environmentally tested to meet IP54

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free water and particle resistant grille

• 8Ω nominal impedance

• Integral inserts for eyebolt suspension

• Black or white standard color options

Applications:

• Outdoor Restaurants

• Bars

• Hotel Areas

• Nearfield Systems in Outdoor Stadia

• Transport Hubs

• Concourses and Theme Parks

Specifications:

• Type

• High-output, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 55Hz-18kHz ± 3dB

• -10dB @ 45Hz

• Driver

• LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver

• Rated Power

• 400W AES, 1600W peak

• Sensitivity

• 100dB

• Maximum SPL

• 126dB continuous, 132dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 1.6kHz passive

• Enclosure

• 68 litre, composite material

• Finish

• Black or white as standard

• Protective Grille

• Zinc plated mild steel with powder coated finish and weatherised backing

• Environmental

• Rated at IP54

• Connectors

• Low profile 20A push-lock, weatherproof input panel cover with cable gland

• Pin Connections

• Left to right: Input+, Input -, Link -, Link+

• Fittings

• 10 x M8 fly points

• Dimensions

• (W) 429mm x (H) 691mm x (D) 413mm

• (W) 16.9ins x (H) 27.2ins x (D) 16.3ins

• Weight

• 28.3kg (62.4lbs)
