1 2
Sku: CDD5RALTX

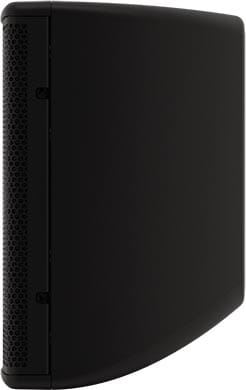

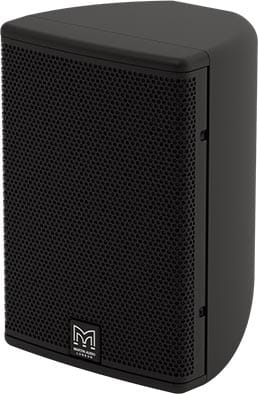

CDD5RALTX 2-Way Passive Loudspeaker with 70V/100V Transformer and Custom Color, Set-Up Charge

$1,260.00
$1,260.00
Sold out
Shipping calculated at checkout.
Vendor: Martin Audio

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The CDD6 is a compact speaker intended for smaller install applications.

From the Manufacturer:

The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.

Features:

  • Ultra-Compact, CDD™ passive two-way system

  • Coaxial Differential Dispersion™ technology

  • Elegant ABS moulded enclosure

  • User-rotatable coaxial drive unit

  • Vertical and horizontal mounting options

  • Screw-free perforated steel grille

  • 8Ω nominal impedance

  • Discreet mounting accessories

  • Black or white standard colour options

  • 70V/100V line transformer option

Applications:

  • Bars and Restaurants

  • Museums and AV Spaces

  • Convention Centres

  • Hotels

  • Retail Outlets

  • Leisure Centres

  • Houses of Worship

Specifications:

  • Type

    • Ultra-Compact, Coaxial Differential Dispersion passive two-way system

  • Frequency Response

    • 100Hz-20kHz ± 3dB, 10dB @ 70Hz

  • Driver

    • LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system

    • HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system

  • Rated Power

    • 100W AES, 400W peak

  • Sensitivity

    • 90dB

  • Maximum SPL

    • 110dB continuous, 116dB peak

  • Nominal Impedance

    • 8Ω

  • Dispersion (-6dB)

    • 120˚-90˚ horizontal, 80˚ vertical (user-rotatable)

  • Crossover

    • 2.5kHz passive

  • Enclosure

    • 3 litre, ABS

  • Finish

    • Black or white

  • Protective Grille

    • Black or white perforated steel with scrim cloth backing

  • Connectors

    • Low profile 13A push-lock

  • Pin Connections

    • Left to right: Input+, Input -, Link -, Link +

  • Fittings

    • 6 x M5 inserts for wall/ceiling brackets

  • Dimensions

    • (W) 160mm x (H) 230mm x (D) 149mm

    • (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins

  • Weight

    • 3kg

    • 6.6lbs

Tech Specs

View full details
CDD5RALTX 2-Way Passive Loudspeaker with 70V/100V Transformer and Custom Color, Set-Up Charge
CDD5RALTX 2-Way Passive Loudspeaker with 70V/100V..

$1,260.00
