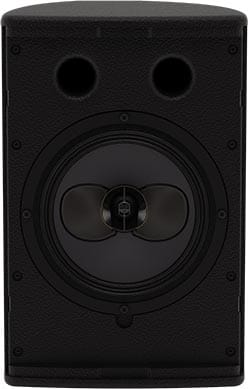

CDD6 2-Way Passive Ultra-Compact Loudspeaker

The CDD6 is a compact 2 way passive speaker. It is a great option for smaller install applications.

From the Manufacturer:

The ultra-compact CDD6 is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.

Features:

• Ultra-Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free perforated steel grille

• 8Ω nominal impedance

• Discreet mounting accessories

• Black or white standard colour options

Applications:

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centres

• Houses of Worship

Specifications:

• Type

• Ultra-Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 80Hz-20kHz ± 3dB, -10dB @ 70Hz

• Driver

• LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system

• HF: 1” (25mm) voice coil, fabric dome with neodymium motor system

• Rated Power

• 150W AES, 600W peak

• Sensitivity

• 91dB

• Maximum SPL

• 113dB continuous, 119dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 110˚-80˚ horizontal, 80˚ vertical (user-rotatable)

• Crossover

• 2.5kHz passive

• Enclosure

• 9 litre, composite material

• Finish

• Black or white textured paint

• Protective Grille

• Black or white perforated steel with scrim cloth backing

• Connectors

• Low profile 13A push-lock

• PIN Connections

• Left to right: Input+, Input -, Link -, Link +

• Fittings

• 4 x M6 inserts for wall/ceiling brackets

• Dimensions

• (W) 210mm x (H) 325mm x (D) 210mm

• (W) 8.3ins x (H) 12.8ins x (D) 8.3ins

• Weight

• 5.69kg (12.54lbs)
