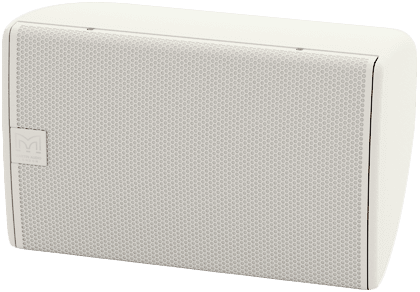

CDD8 CDD8 Speaker

The CDD8 is a passive loudspeaker that can be used horizontally or vertically. It is a great option for smaller applications or to be used as an infill loudspeaker in larger CDD models.

From the Manufacturer:

The CDD8 is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.

Features:

• Ultra-Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free perforated steel grille

• 8Ω nominal impedance

• Discreet mounting accessories

• Black or white standard colour options

Applications:

• Live Music Clubs and Bars

• Nightclubs

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centres

• Houses of Worship

Specifications:

• Type

• Ultra-Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 70Hz-20kHz ± 3dB, -10dB @ 55Hz

• Driver

• LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Rated Power

• 200W AES, 800W peak

• Sensitivity

• 94dB

• Maximum

• SPL (9) 117dB continuous, 123dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 2.3kHz passive

• Enclosure

• 14 litre, composite material

• Finish

• Black or white textured paint

• Protective Grille

• Black or white perforated steel with scrim cloth backing

• Connectors

• Low profile 13A push-lock

• Pin Connections

• Left to right: Input+, Input -, Link -, Link +

• Fittings

• 6 x M6 inserts for wall/ceiling brackets

• Dimensions

• (W) 256mm x (H) 410mm x (D) 252mm

• (W) 10.1ins x (H) 16.1ins x (D) 9.9ins

• Weight

• 9.5kg

• 21lbs
