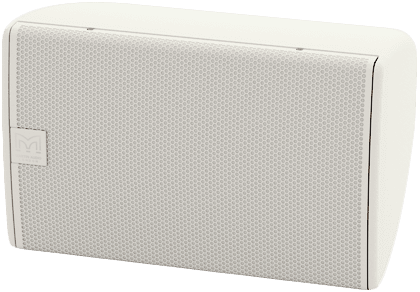

CDD8-WR IP54 Weatherized CDD8 Speaker

A weatherized version of the CDD8 loudspeaker. It is a great option for  outdoor applications where it isn't directly exposed.

From the Manufacturer:

The CDD8-WR is a weatherized ultra-compact two-way passive loudspeaker system suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It features an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12-WR and CDD15-WR.

Features:

• Ultra-Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• Outdoor operation when sheltered from direct exposure to elements

• Operating temperature -20°C to +70°C

• Environmentally tested to meet IP54

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free water and particle resistant grille

• 8Ω nominal impedance

• Discreet weatherized mounting accessories

• Black or white standard color options

Applications:

• Outdoor Restaurants

• Bars

• Hotel Areas

• Nearfield Systems in Outdoor Stadia

• Transport Hubs

• Concourses and Theme Parks

Specifications:

• Type

• Ultra-Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 70Hz-20kHz ± 3dB

• -10dB @ 55Hz

• Driver

• LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Rated Power

• 200W AES, 800W peak

• Sensitivity

• 94dB

• Maximum SPL

• 117dB continuous, 123dB peak

• Nominal Impedance

• 8Ω

• Dispersion (-6dB)

• 110°-80° horizontal, 60° vertical (user-rotatable)

• Crossover

• 2.3kHz passive

• Enclosure

• 14 litre, composite material

• Finish

• Black or white as standard

• Protective Grille

• Zinc plated mild steel with powder coated finish and weatherised backing

• Environmental

• Rated at IP54

• Connectors

• Low profile 13A push-lock, weatherproof input panel cover with cable gland

• Pin Connections

• Left to right: Input+, Input -, Link -, Link +

• Fittings

• 6 x M6 inserts for wall/ceiling brackets

• Dimensions

• (W) 256mm x (H) 410mm x (D) 252mm

• (W) 10.1ins x (H) 16.1ins x (D) 9.9ins

• Weight

• 9.8kg

• 21.6lbs
