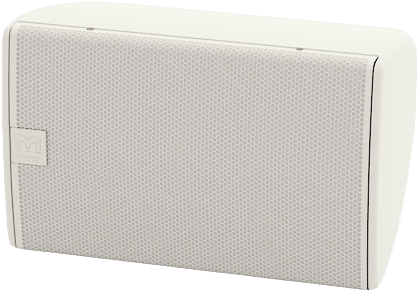

CDD8TX 2-Way Passive Ultra-Compact Loudspeaker with 70/100V Line Transformer

The CDD8TX is a passive loudspeaker that is a great option for small to medium sized foreground or background applications.

From the Manufacturer:

The CDD8TX is an ultra-compact two-way passive loudspeaker system incorporating a 70V/100V transformer (with a 5-way connector) and an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. It has a multitude of applications that would benefit from amplifier efficiency by being able to daisy-chain loudspeakers through use of the inbuilt transformer.

Features:

• Ultra-Compact, CDD™ passive two-way system

• Coaxial Differential Dispersion™ technology

• Elegant UPM Formi composite enclosure

• User-rotatable coaxial drive unit

• Vertical and horizontal mounting options

• Screw-free perforated steel grille

• Discreet mounting accessories

• Black or white standard colour options

• 70V/100V line transformer

Applications:

• Live Music Clubs and Bars

• Nightclubs

• Bars and Restaurants

• Museums and AV Spaces

• Convention Centres

• Hotels

• Retail Outlets

• Leisure Centres

• Houses of Worship

Specifications:

• Type

• Ultra-Compact, Coaxial Differential Dispersion passive two-way system

• Frequency Response

• 70Hz-20kHz ± 3dB, -10dB @ 55Hz

• Driver

• LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Rated Power

• 120W AES, 240W peak

• Transformer Settings

• 70V line: 120W, 60W, 30W, 15W

• 100V line: 120W, 60W, 30W

• Sensitivity

• 94dB

• Maximum SPL

• 115dB continuous, 121dB peak

• Nominal Impedance

• Line transformer taps: 42, 83, 166, 333 ohms

• Dispersion (-6dB)

• 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 2.3kHz passive

• Enclosure

• 14 litre, composite material

• Finish

• Black or white textured paint

• Protective Grille

• Black or white perforated steel with scrim cloth backing

• Connectors

• Low profile 13A push-lock

• Phoenix Connector 5 WAY

• 70V: Common, 15W, 30W, 60W, 120W

• 100V: Common, 30W, 60W, 120W

• Fittings

• 6 x M6 inserts for wall/ceiling brackets

• Dimensions

• (W) 256mm x (H) 410mm x (D) 252mm

• (W) 10.1ins x (H) 16.1ins x (D) 9.9ins

• Weight

• 11.1kg

• 24.53lbs
