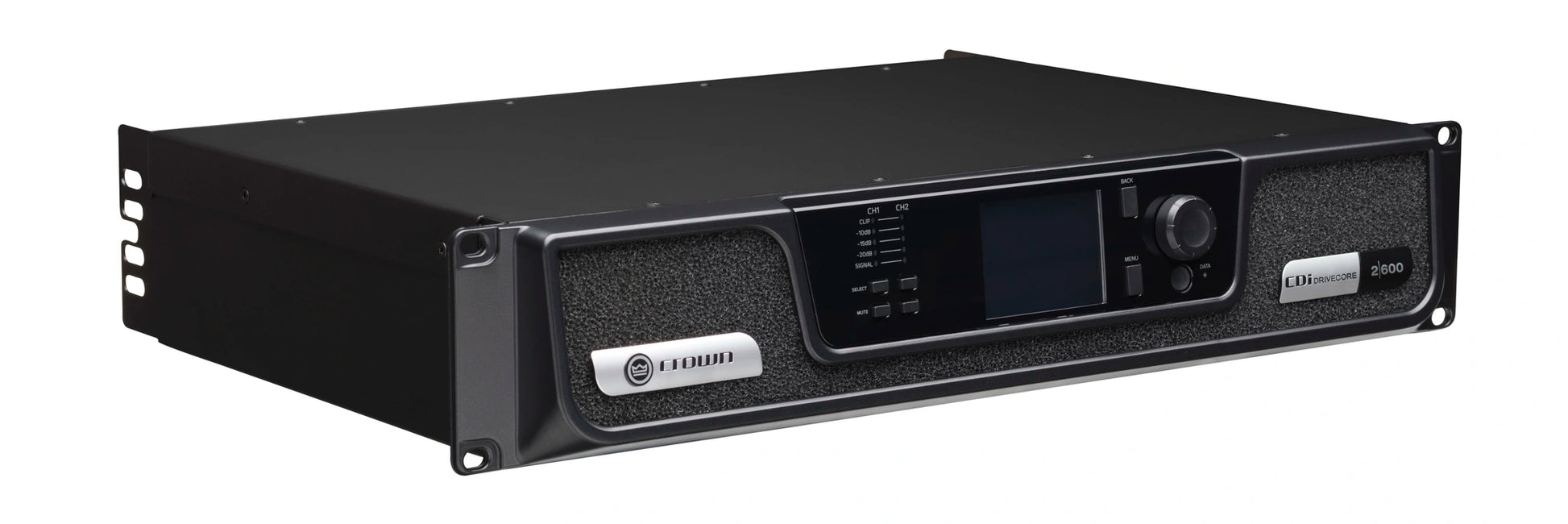

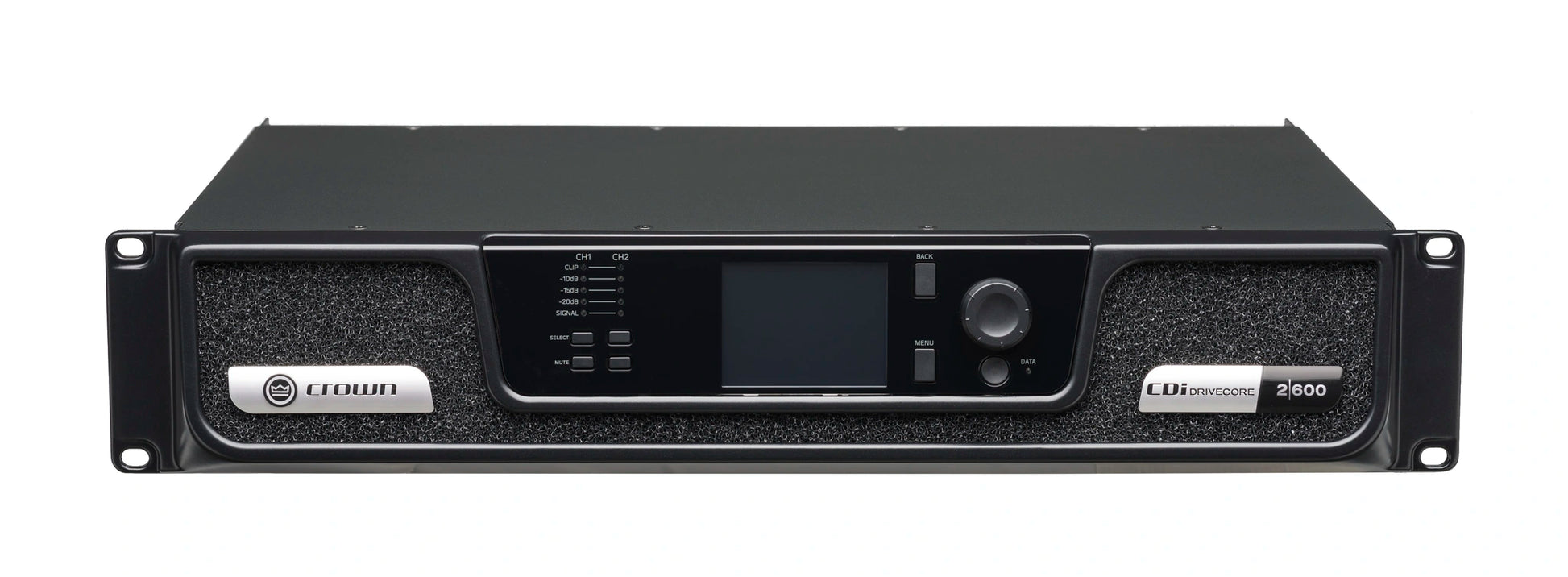

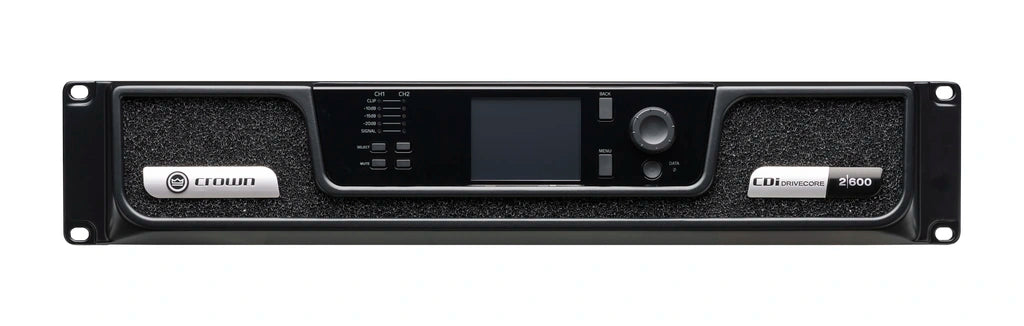

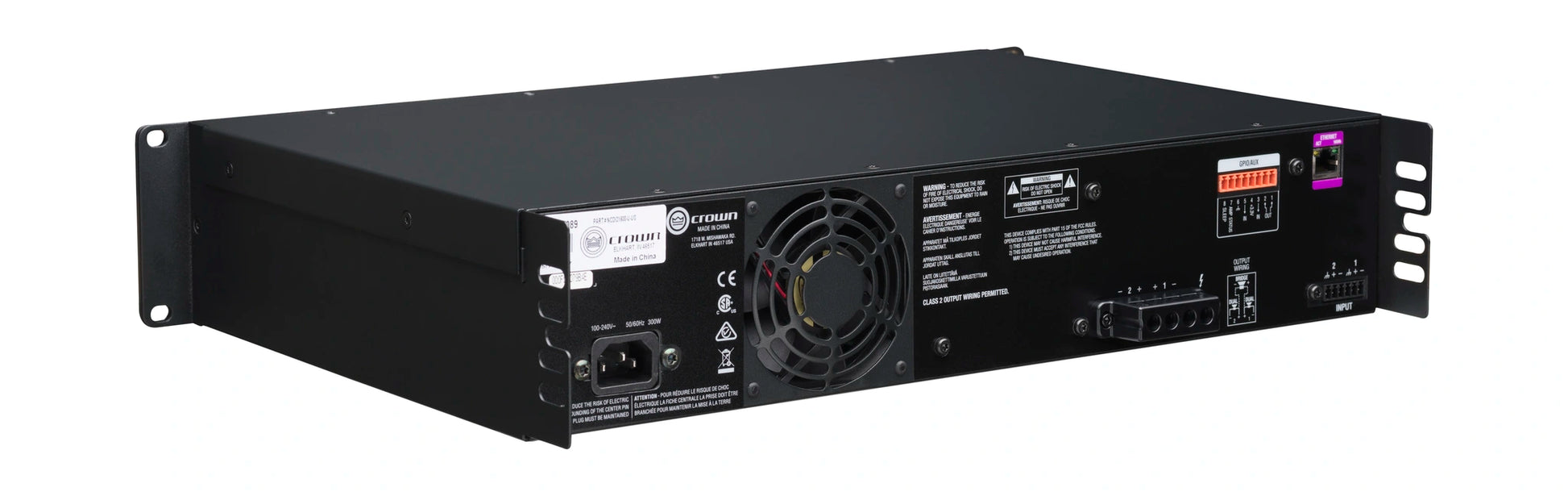

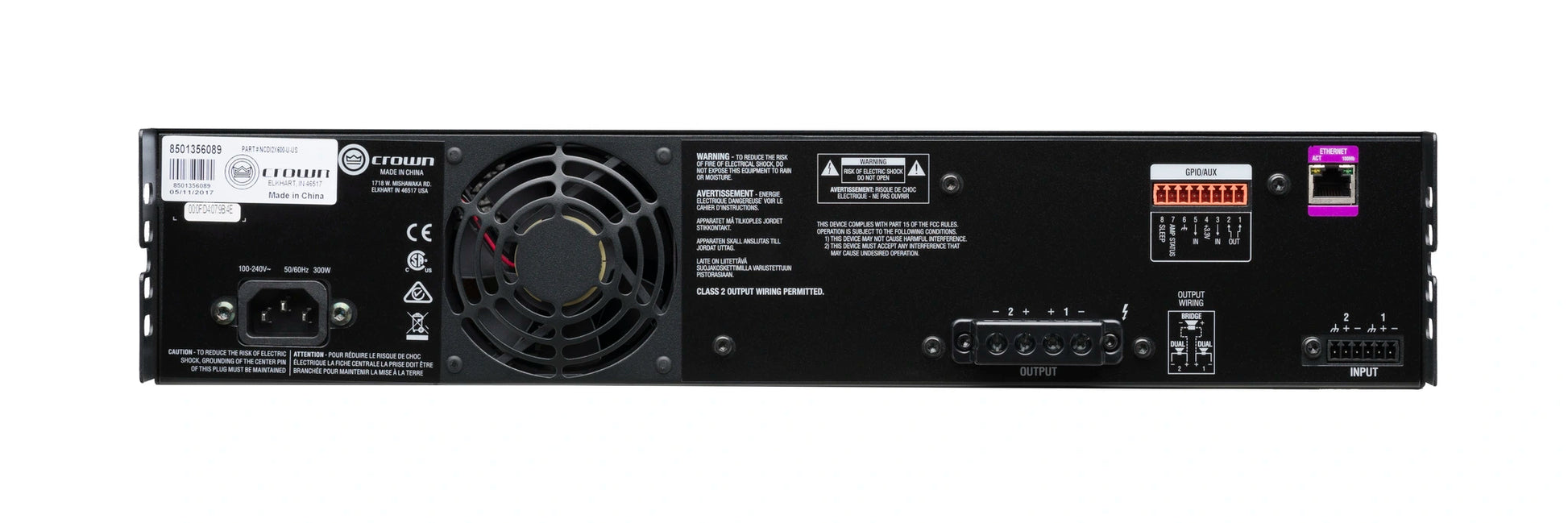

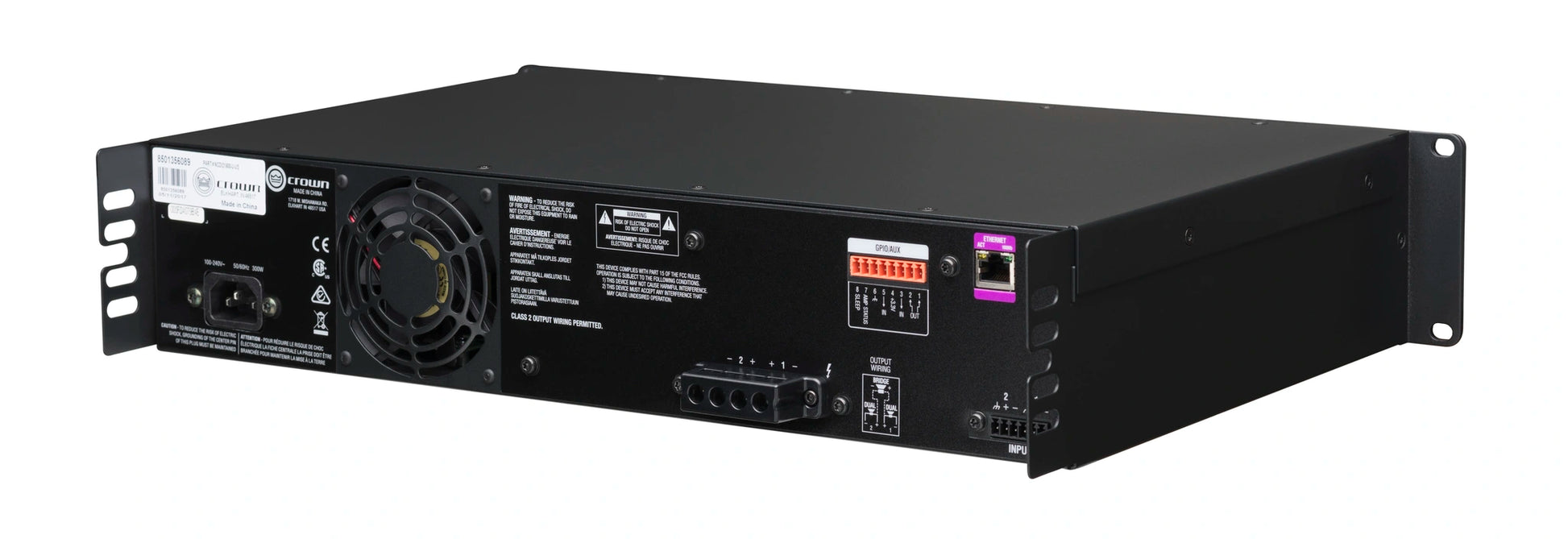

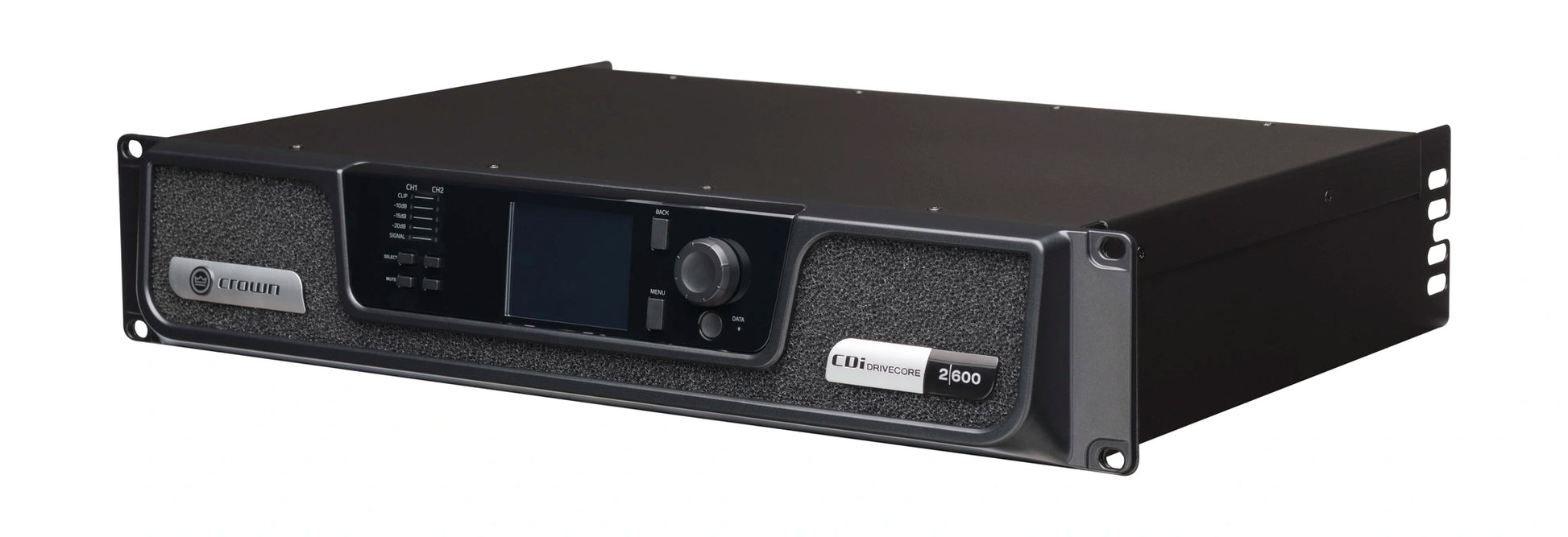

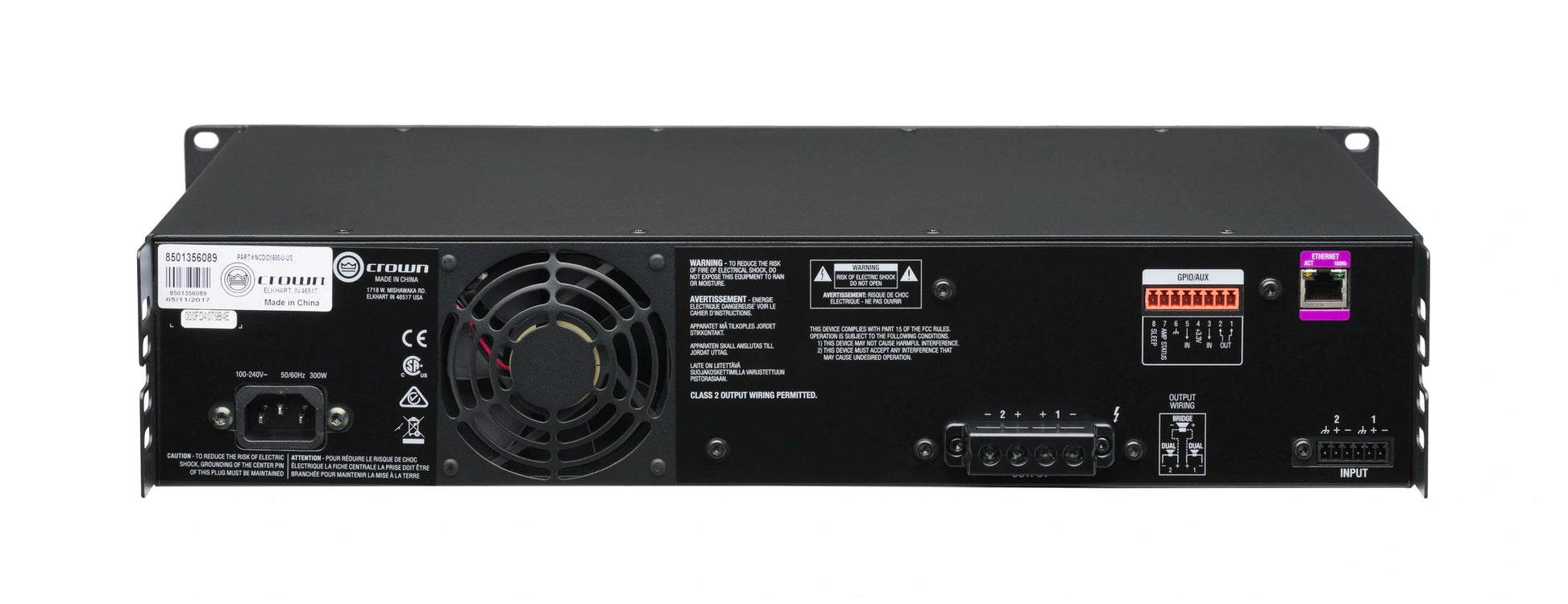

CDi2x600

The CDi2x600 is an analog 2 channel speaker amplifier. It is a great option for high quality audio on a medium sized install.

From the Manufacturer:

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.

Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.

Designed for ease-of-use in a variety of applications, the 2|600 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Features:

• DriveCore Technology

• Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.

• Network Control and Monitoring

• Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.

• DSP – On-board Digital Signal Processor in each amplifier allows for custom configuration

• Input Router

• Input Delay – Up to 1000ms

• Input Parametric EQ – 8 band

• Crossover

• Output Parametric EQ – 8 band

• Output Delay – Up to 100ms

• LevelMAX™ Limiter

• BLU link (BL models only)

•  Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link

• Direct Drive 70/100Vrms Output

• Each output channel is capable of provide either 70V or 100V for high impedance applications.

• Front-Panel Interface

• Completely configure the amplifier using an intuitive front-panel interface.

• GPIO/AUX Port

• Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

Specifications:

• BLU link

• No

• Channels

• 2

• Sensitivity (for full rated power at 8 ohms)

• 0.7V RMS

• Rated Power Output (per channel @ 4 ohms)

• 600W

• Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)

• > 104dB

• THD (full rated power, 20 Hz - 20 kHz)

• 0.35%

• Damping Factor (20 Hz to 100 Hz)

• > 1000

• Frequency Response (8Ω, 20 Hz - 20 kHz)

• +/-0.5dB

• Crosstalk (below rated power) 20 Hz to 1 kHz

• > 80dB

• Input Impedance (nominally balanced, nominally unbalanced)

• 20 kΩ balanced, 10 kΩ unblanced

• Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)

• 19 x 3.5 x 12.25

• Weight

• 14.56 lbs (6.6 kg)

• Power Supply Connector

• "Standard IEC type 320 inlet for detachable connector 100 – 240V~"
