Sku: NCDI4x300BL-U-US

CDi4x300BL

Regular price
$2,886.00
Regular price
Sale price
$2,886.00
Shipping calculated at checkout.
Vendor: Crown

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The CDi4x300BL is an analog, 4 channel speaker amplifier that provides high quality audio in small-medium sized installs.

From the Manufacturer:

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|300 offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more.  Designed for ease-of-use in a variety of applications, the 4|300 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Features

  • DriveCore Technology

    • Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.

  • Network Control and Monitoring

    • Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.

  • DSP -On-board Digital Signal Processor in each amplifier allows for custom configuration

    • Input Router

    • Input Delay – Up to 1000ms

    • Input Parametric EQ – 8 band

    • Crossover

    • Output Parametric EQ – 8 band

    • Output Delay – Up to 100ms

    • LevelMAX™ Limiter

  • BLU link (BL models only)

    • Both receive and send channels over HARMAN’s 256 channel, fault-tolerant audio BUS, BLU link

  • Direct Drive 70/100Vrms Output

    • Each output channel is capable of provide either 70V or 100V for high impedance applications.

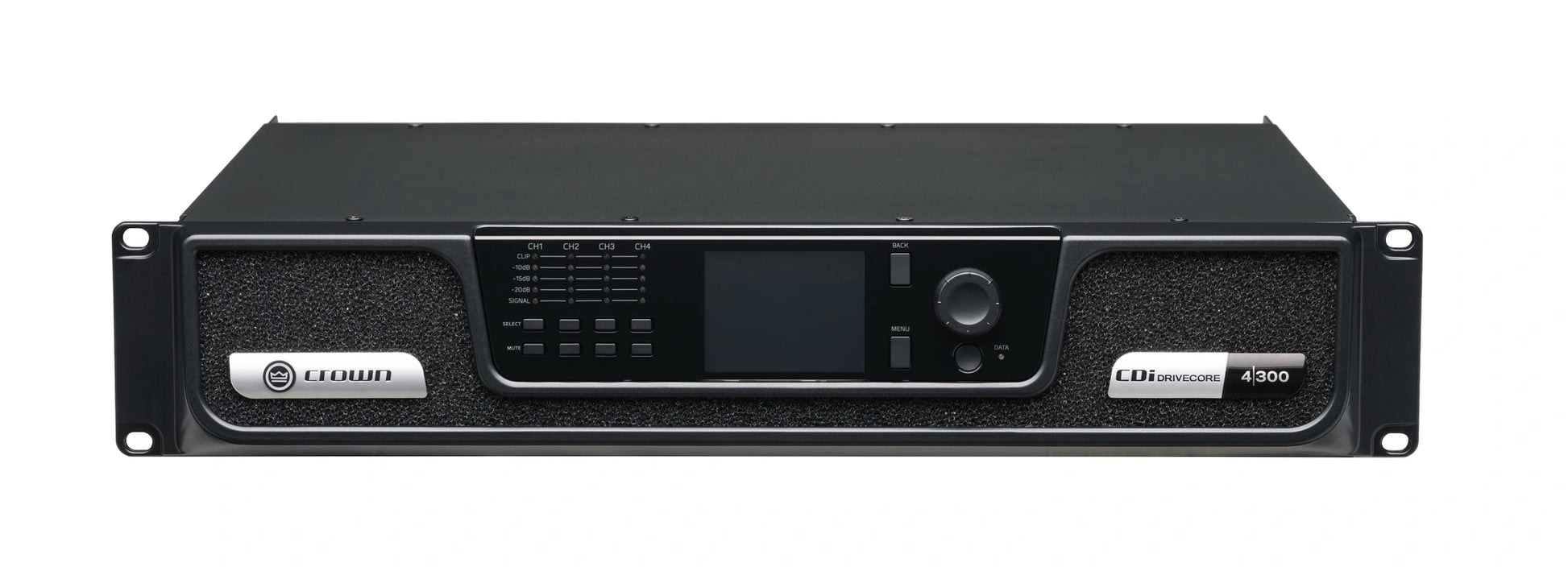

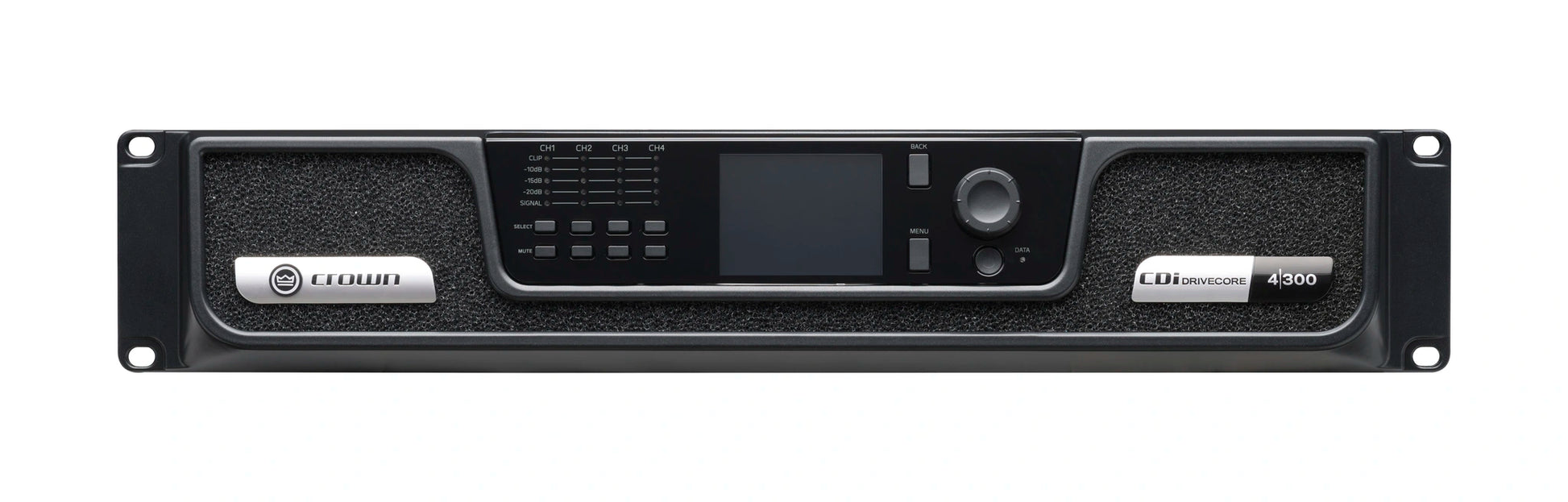

  • Front-Panel Interface

    • Completely configure the amplifier using an intuitive front-panel interface.

  • GPIO/AUX Port

    • Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

Specifications:

  • BLU link

    • No

  • Channels

    • 4

  • Sensitivity (for full rated power at 8 ohms)

    • 0.7V RMS

  • Rated Power Output (per channel @ 4 ohms)

    • 300W

  • Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)

    • > 104dB

  • THD (full rated power, 20 Hz - 20 kHz)

    • 0.35%

  • Damping Factor (20 Hz to 100 Hz)

    • > 1000

  • Frequency Response (8Ω, 20 Hz - 20 kHz)

    • +/-0.5dB

  • Crosstalk (below rated power) 20 Hz to 1 kHz

    • > 80dB

  • Input Impedance (nominally balanced, nominally unbalanced)

    • 20 kΩ balanced, 10 kΩ unblanced

  • Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) 1

    • 9 x 3.5 x 12.25

  • Weight

    • 16.13 lbs (7.31 kg)

  • Power Supply Connector

    • Standard IEC type 320 inlet for detachable connector 100 – 240V~
