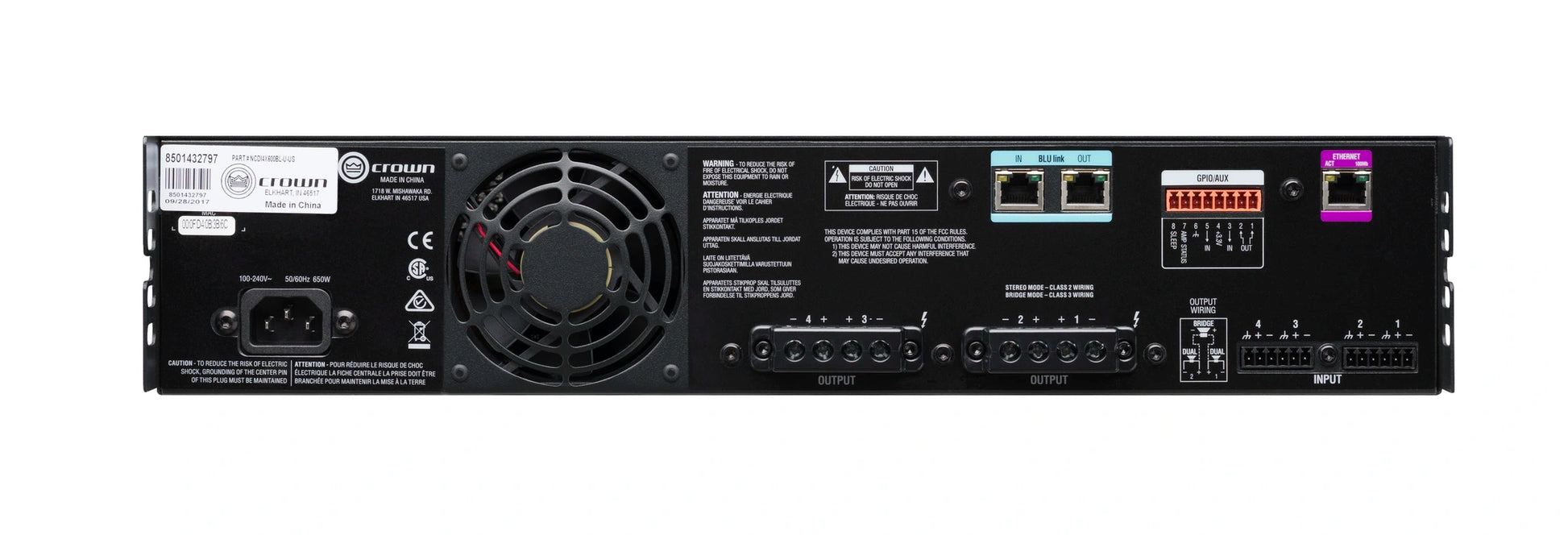

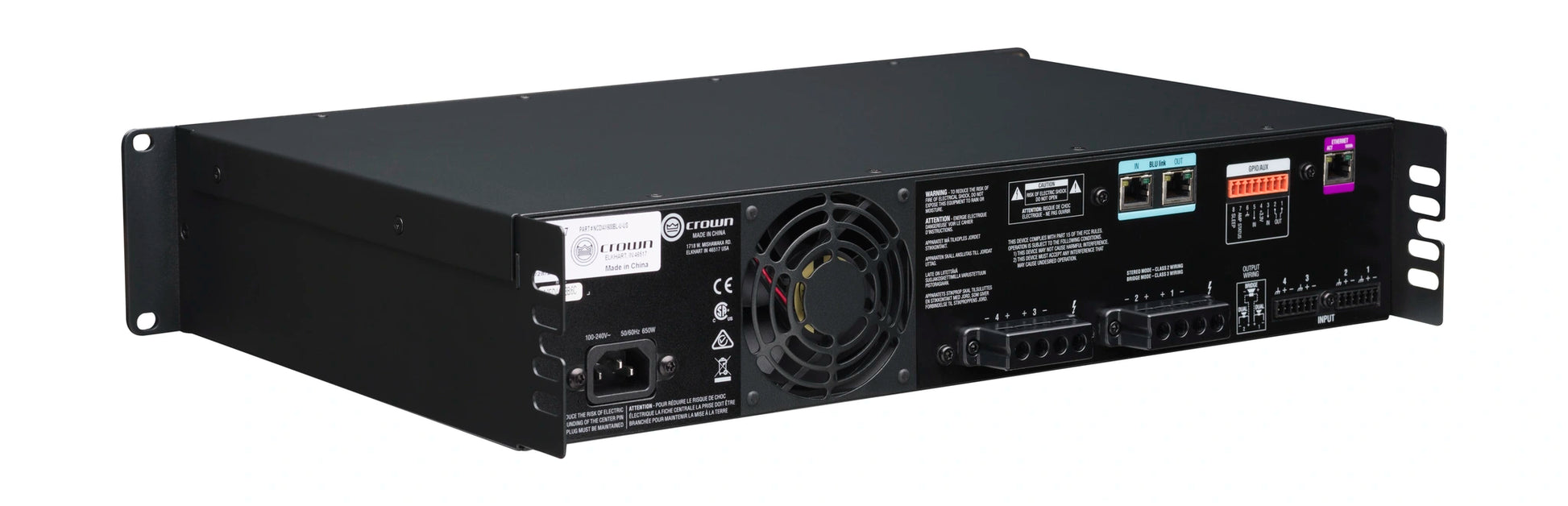

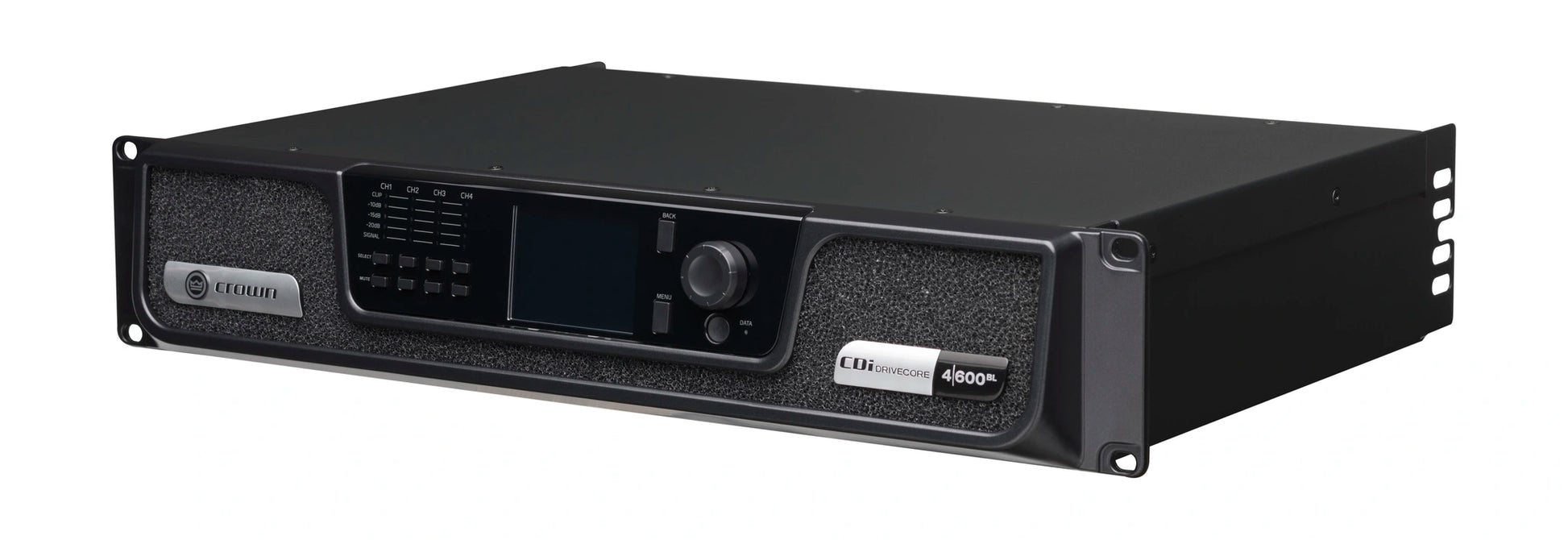

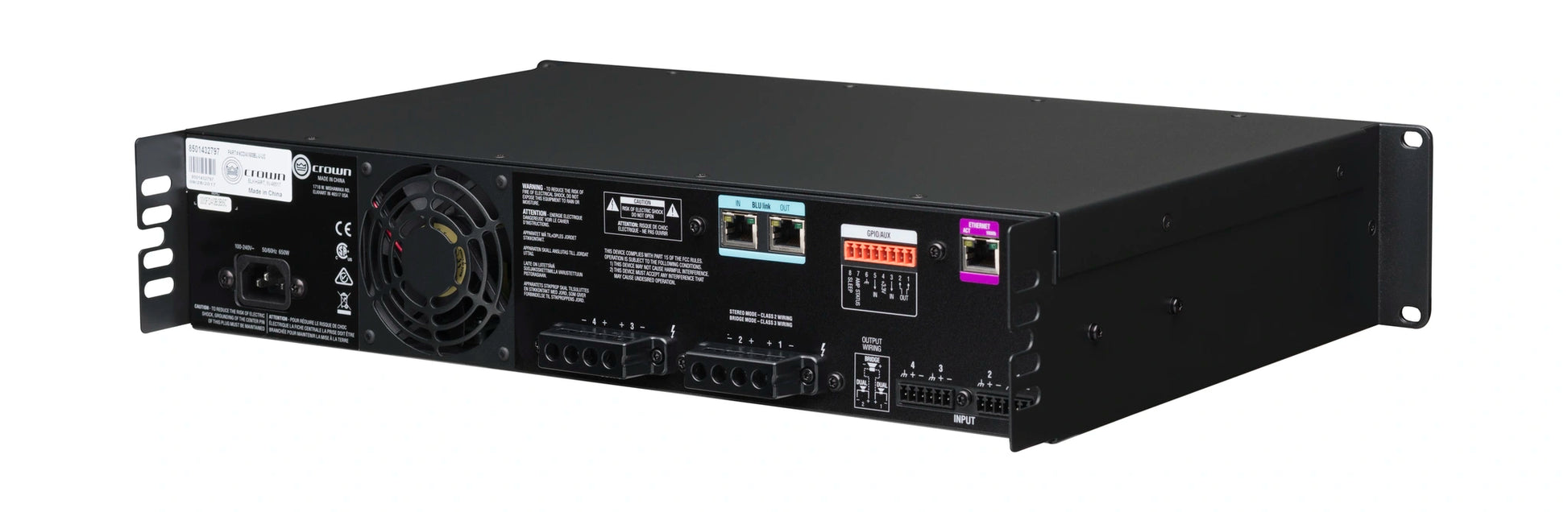

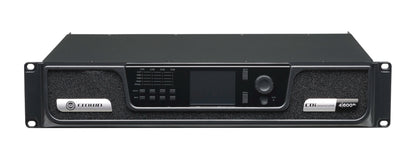

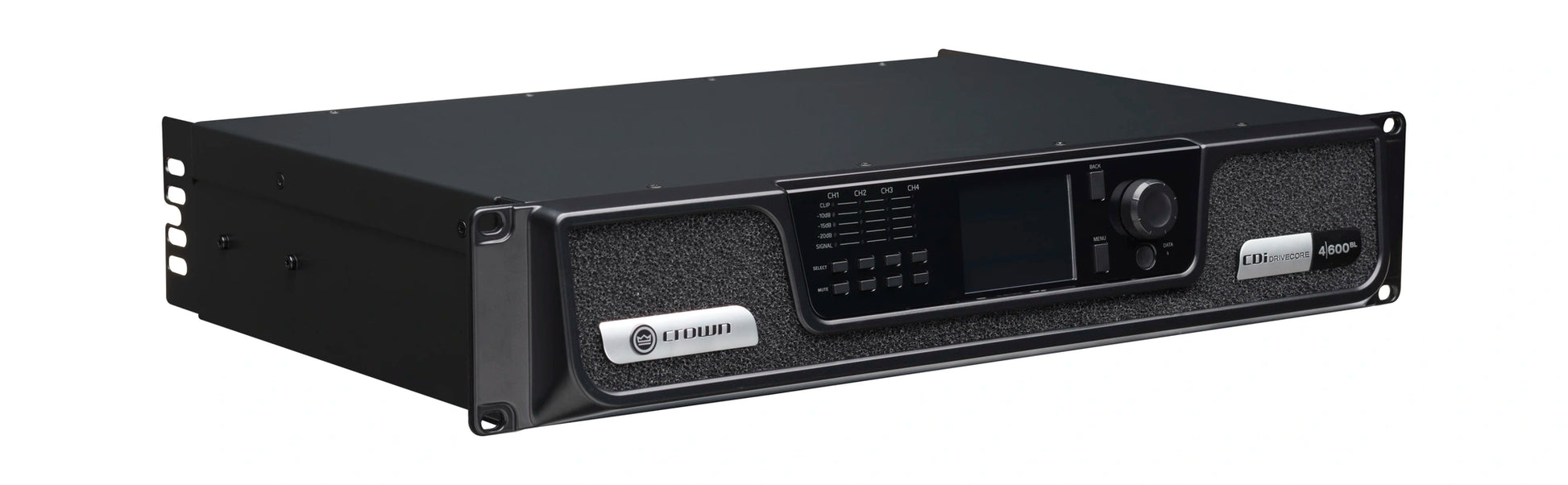

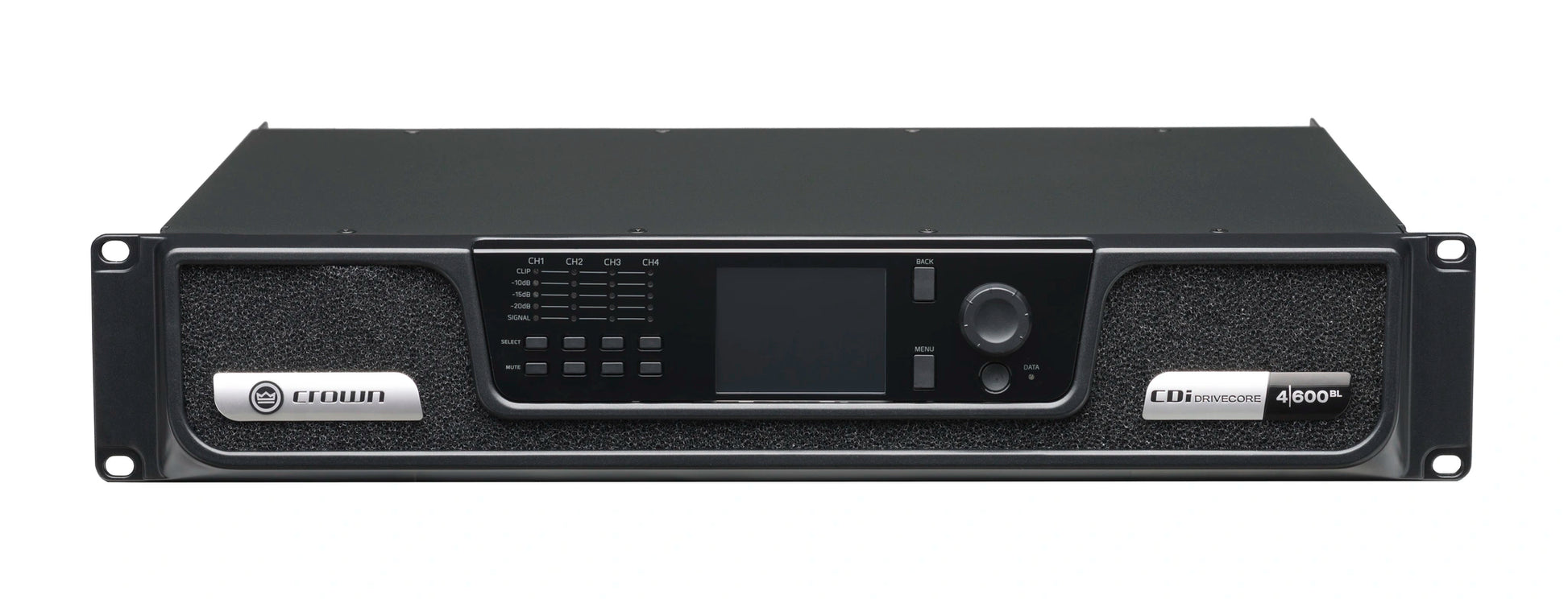

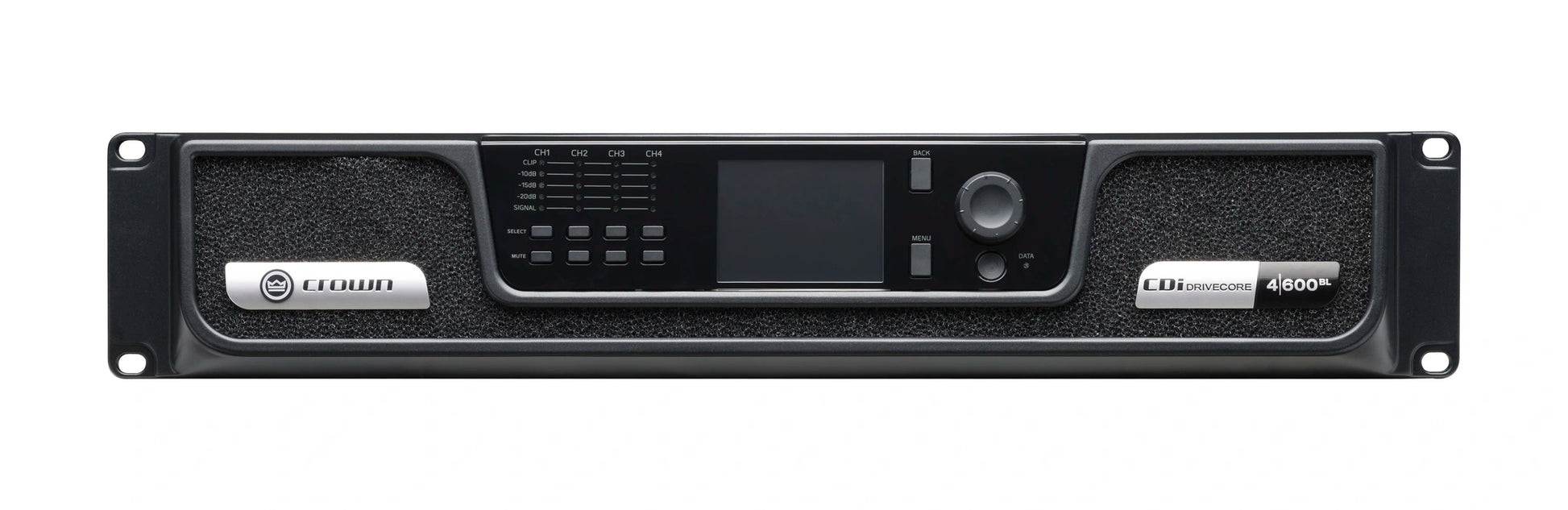

CDi4x600BL

The CDi4x600BL is an analog, 4 channel speaker amplifier. It is a great option for medium sized venues looking for good audio quality.

From the Manufacturer:

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600BL offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.  Designed for ease-of-use in a variety of applications, the 4|600BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The 4|600BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Specifications:

• BLU link

• Yes

• Channels

• 4

• Sensitivity (for full rated power at 8 ohms)

• 0.7V RMS

• Rated Power Output (per channel @ 4 ohms)

• 600W

• Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)

• > 104dB

• THD (full rated power, 20 Hz - 20 kHz)

• 0.35%

• Damping Factor (20 Hz to 100 Hz)

• > 1000

• Frequency Response (8Ω, 20 Hz - 20 kHz)

• +/-0.25dB

• Crosstalk (below rated power) 20 Hz to 1 kHz

• > 80dB

• Input Impedance (nominally balanced, nominally unbalanced)

• 20 kΩ balanced, 10 kΩ unblanced

• Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)

• 19 x 3.5 x 12.25

• Weight

• 16.3 lbs (7.39 kg)

• Power Supply Connector

• "15A IEC connector, 100 – 240V "
