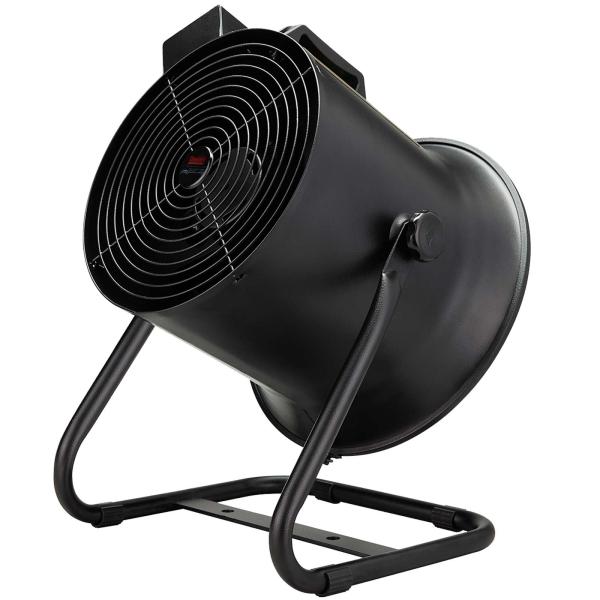

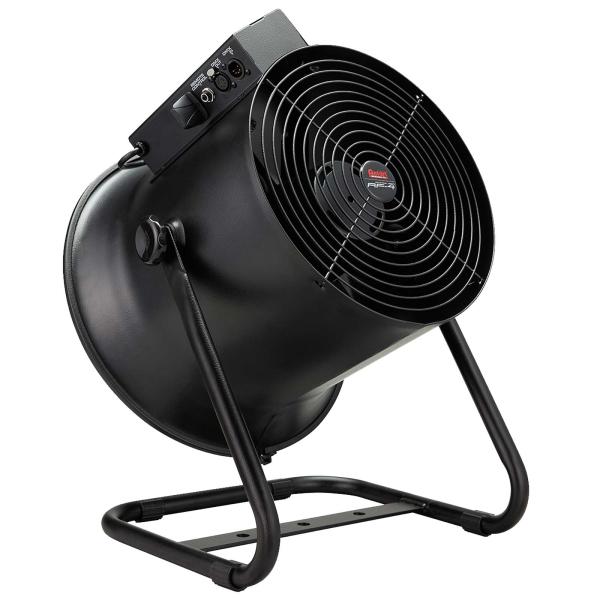

AF-4R Center Focused Special Effects Fan with DMX & Timer

The Antari AF-4R is a professional center-focused special effects fan designed to produce smooth, concentrated airflow for stage, theatre, film, concerts and live productions. With adjustable airflow from 20–100%, a maximum focused throw of approximately 20 metres, onboard timer control and DMX512 operation, it provides flexible control for distributing fog, haze and other atmospheric effects.

From The Manufacturer

Antari’s AF-4 special effect fan centrally focuses its airflow to produce a smooth wind effect of up to 20 meters.

The AF-4 is suitable for a wide variety of applications including stage, theatre, cinema, and concert tours.

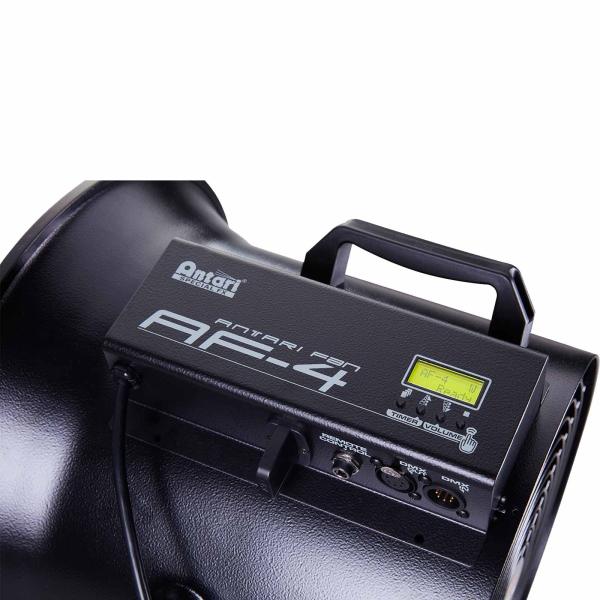

Features include a 4-button LCD control menu display for easy manual control setting adjustments, timer control, onboard 5-pin DMX in/out connections, and an adjustable floor stand that can also be used to hang the fan. Wireless and wired remote control options are available.

Key Features

• Center-focused professional effects fan

• Focused smooth airflow up to 20 m / 65 ft

• Adjustable wind output from 20–100%

• 1,187 CFM airflow at 110 V / 60 Hz

• 1,035 CFM airflow at 220 V / 60 Hz

• Low power consumption

• Low noise operation

• Manual control

• Onboard timer control

• DMX512 control

• 1 DMX channel

• 5-pin DMX input and output

• 4-button LCD control display

• Wireless remote control option

• Wired remote control option

• Adjustable floor stand

• Can be floor-mounted or suspended

Specifications

• Product Type: Center Focused Special Effects Fan

• Manufacturer: Antari

• Model: AF-4R

• Wind Output Adjustment: 20–100%

• Maximum Focused Airflow Distance: 20 m / 65 ft

• Air Flow @ 110 V / 60 Hz: 1,187 CFM

• Air Flow @ 220 V / 60 Hz: 1,035 CFM

• Fan Speed @ 110 V / 60 Hz: 1,242–1,480 RPM

• Fan Speed @ 220 V / 60 Hz: 1,175–1,289 RPM

• Control Methods: Manual / Timer / DMX512 / Wireless Remote / Wired Remote

• DMX Channels: 1

• DMX Connection: 5-Pin XLR In/Out

• Control Interface: 4-Button LCD Display

• Mounting: Adjustable Floor / Hanging Stand

• Ambient Temperature Range: 0°C–40°C

Applications

• Fog and haze distribution

• Stage productions

• Theatre

• Concerts and touring

• Film and television

• Cinematic wind effects

• Live events

• Haunted attractions

• Theme parks

• Photography

• Professional special effects

Included

• Antari AF-4R Center Focused Special Effects Fan

Accessories (Not Included)

• Wireless remote control

• Wired remote control

• DMX cable

• Hanging hardware

• Safety cable

Size

• Length: 353 mm / 13.9 in

• Width: 377 mm / 14.8 in

• Height: 516.6 mm / 20.3 in

Weight

• 9.0 kg

• 19.8 lb

Electrical / Thermal

• Input Voltage: AC 100–120 V, 50/60 Hz (US version)

• Rated Power: 115 W

• Maximum Power Consumption: Approximately 90 W @ 120 V / 60 Hz

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F
