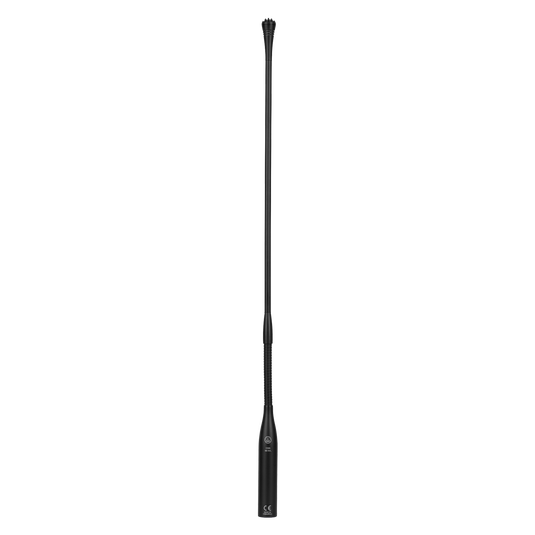

CGN99 H/L

The CGN99 H/S and CGN99 H/L are hypercardioid condenser gooseneck microphones designed to reduce side noise and capture clear speech from greater distances. Available in 30 cm and 50 cm lengths, they include an XLR phantom power adapter with 250 Hz bass roll-off for use with standard mixers.

From The Manufacturer:

The CGN99 H/S and CGN99 H/L, part of the DAC Series, are condenser gooseneck microphones with a hypercardioid polar pattern. They are a good choice for all situations when unwanted noise arrives from the sides or where people talk into the microphone from greater distances. The rugged gooseneck is available in two different lengths: C/S - 30cm (12in); C/L - 50cm (20in) and ideal for fixed and mobile installations. CGN99 H/S and CGN99 H/L come with an integrated XLR phantom power adapter with 250Hz bass rolloff. The phantom power adapter connects to any standard mixer input with 9V to 52V power supply.

Features:

• Compact

• Hypercardioid Polar Pattern

Specification:

• Audio frequency bandwidth

  • 50 - 19000 Hz

• Equivalent noise level

  • 21 dB-A

• Sensitivity

  • 12 mV/Pa

• Signal to Noise

  • 73 dB-A

• Electrical impedance

  • 600 Ohms

• Recommended load impedance

  • 2000 Ohms

• Polar Pattern

  • Hypercardioid

• Height

  • 380 mm

• Diameter

  • 13.5 mm

• Gooseneck Length
  • 50cm

• Net Weight

  • 160 g

• Finish

  • black

• Audio Output

  • Balanced XLR

• Gender

  • Male

• Contacts

  • 3-pin

• Voltage

  • 9 to 52 V

• Current

  • 3 mA
