CHR10

The Yamaha CHR10 loudspeaker delivers exceptional sound quality and durability, perfect for fixed installations.

From the Manufacturer

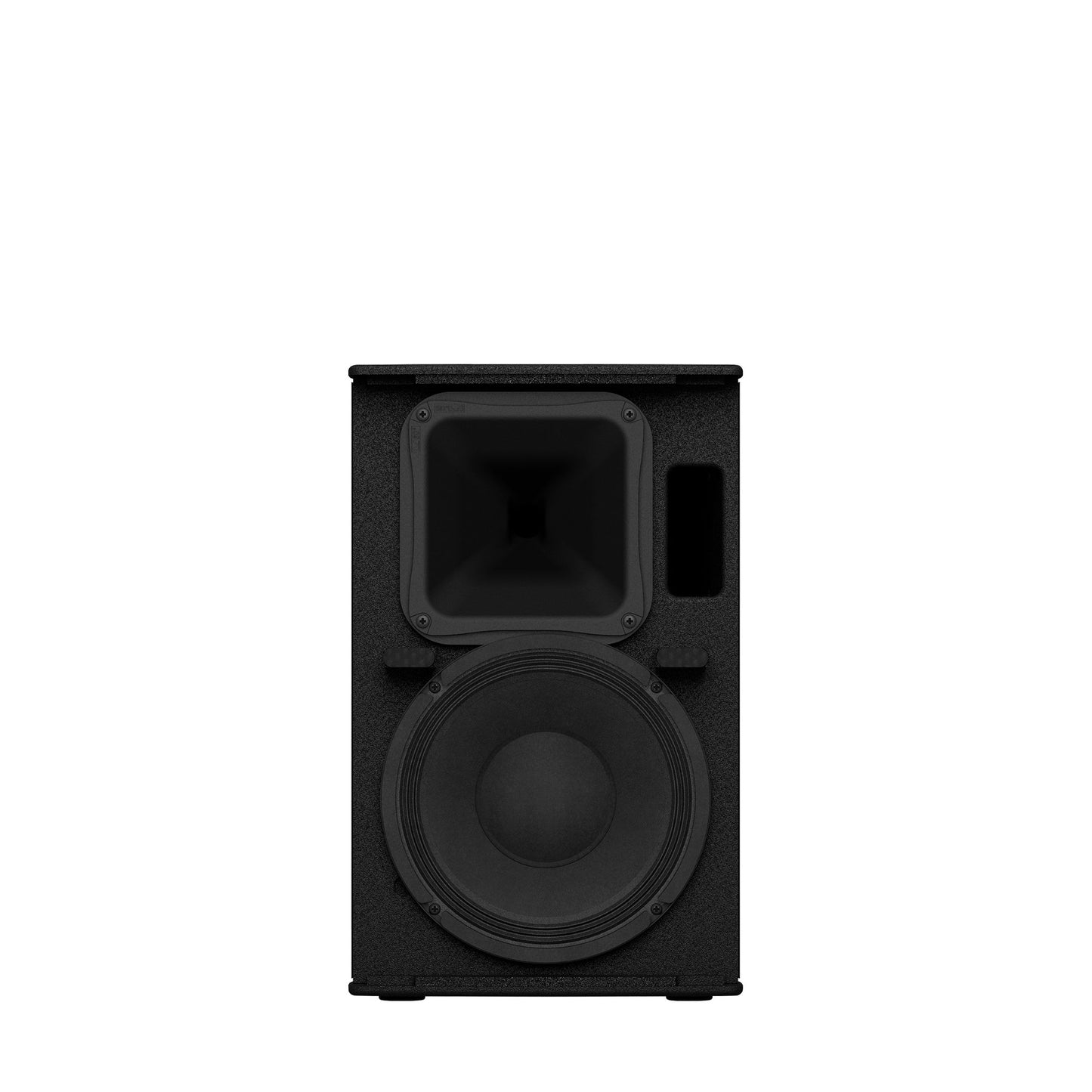

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on our high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with CHR12 and CHR10 for fixed installation and utilities, CHR15M and CHR12M designed for use as floor monitors, and CHR15 for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the CHR series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

Cabinet designs optimized for a range of audio environments

CHR10 and CHR12 are equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility, while CHR12M and CHR15M feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by CHR15, which features rigging points for use in fixed installations. CHR12 and CHR15 also feature dual-angle pole sockets, allowing them to be used as temporary main speakers for sound reinforcement.

Custom Designed Transducers

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver* produces accurate mid-range and high frequencies. *CHR12M and CHR15M feature a 1.75" coaxial compression driver.

A Rugged, Highly Portable Cabinet

The CHR series feature plywood enclosures like our acclaimed CZR loudspeakers to deliver outstanding durability and acoustic performance.

Intelligent processing to maximize system performance

When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. (*Supported firmware is Ver1.63 or later.)

Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB): 55 Hz - 20 kHz
• Coverage Area: H90ﾟ x V60ﾟ (Rotatable)
• Crossover: 2.5kHz
• Components
  • LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
  • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• Power rating
  • NOISE: 175 W
  • PGM: 350 W
  • PEAK: 700 W
• Nominal impedance: 8Ω
• SPL
  • Sensitivity (1W; 1m on axis): 93 dB SPL
  • Peak (Calculated): 122 dB SPL

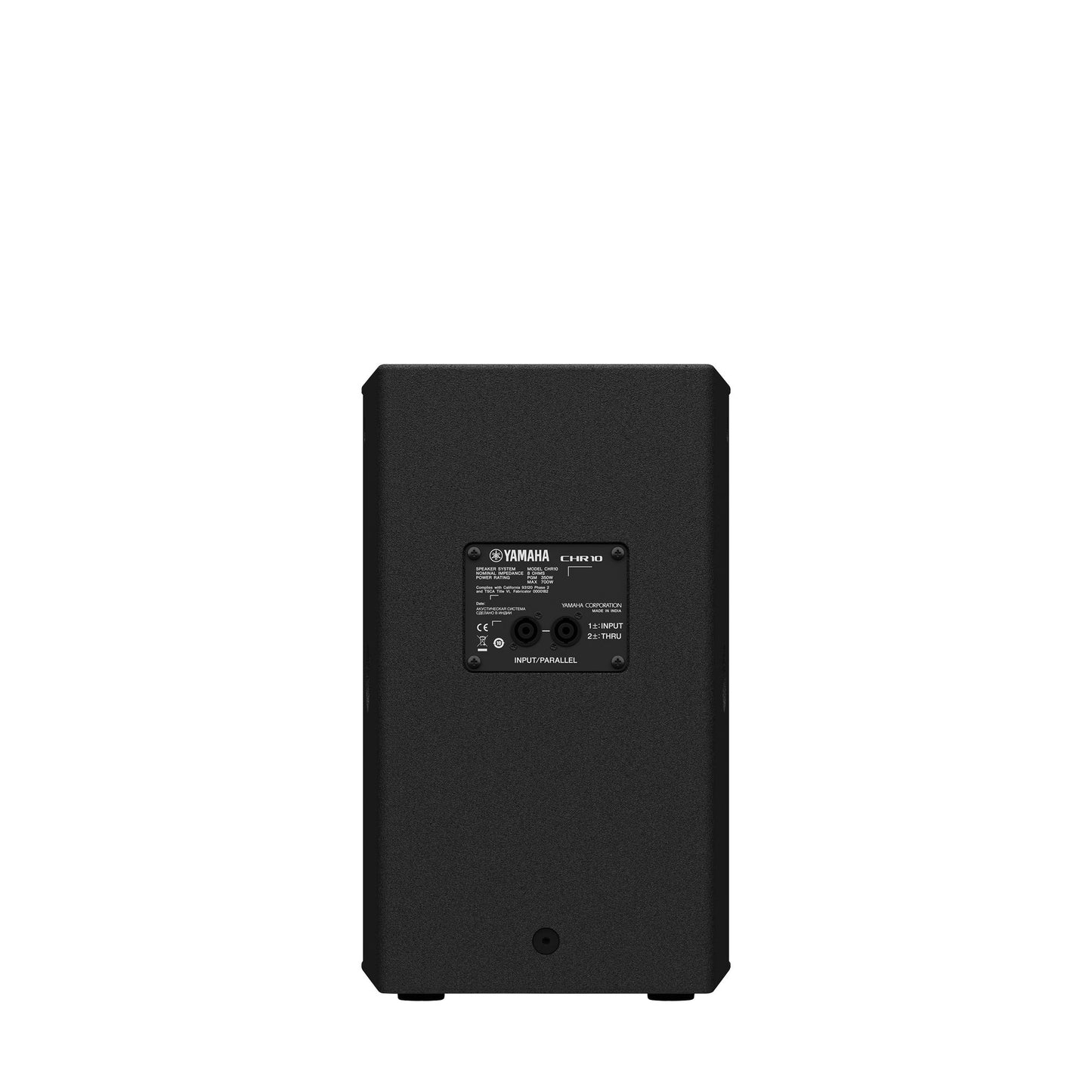

• I/O connectors: SpeakON NL4MP x 2 (Parallel)
• Cabinet Material: Plywood
• Handle: Top x1
• Pole socket: Φ35 mm x1 (Bottom)
• Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Dimensions
  • W: 305 mm (12.0")
  • H: 494 mm (19.5") (with rubber feet)
  • D: 300 mm (11.8")
• Net weight: 13.7 kg (30.2 lbs)
• Options: U-bracket: UB-DXRDHR10
