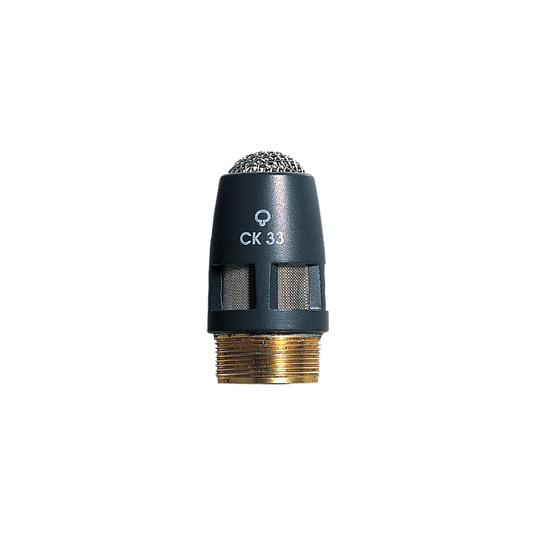

CK33

Screw-on hyper cardioid microphone capsule module, only for GN / HM modules, W30 windscreen included

From The Manufacturer:

The CK33 is a high-performance hypercardioid condenser microphone capsule and a good choice in situations when noise comes from the sides or people talk into the microphone from greater distances. The CK33 capsule is integrated into a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which reduces wind and pop noise.

Features:

• Highly efficient 2-in-1 windscreen

• Wide frequency range

• Hypercardioid polar pattern

• 95° pickup angle

• Highly Reliable capsule contacts

Specification:

• Audio frequency bandwidth

• 50 - 20000 Hz

• Equivalent noise level

• 21 dB-A

• Sensitivity

• 20 mV/Pa

• Signal to Noise

• 73 dB-A

• Electrical impedance

• 600 Ohms

• Recommended load impedance

• 2000 Ohms

• Polar Pattern

• Hypercardioid

• Height

• 20 mm

• Diameter

• 13.5 mm

• Net Weight

• 5 g

• Finish

• matte dark gray

• Audio Output

• Modular Series Standard

• Voltage

• 9 to 52 V

• Current

• 3 mA
