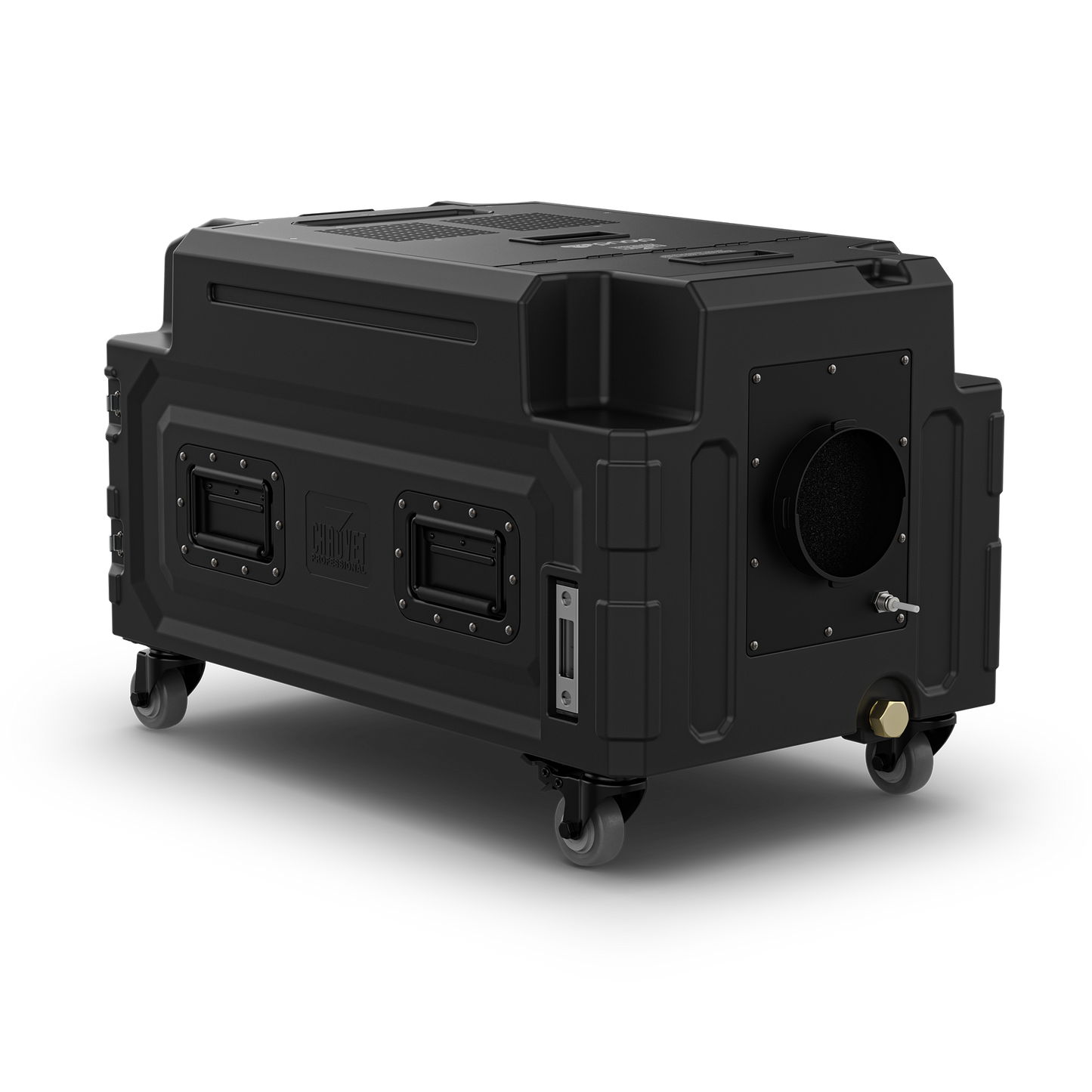

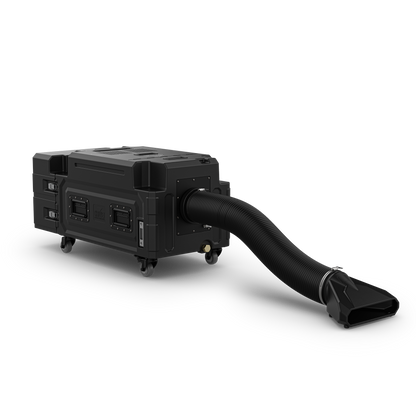

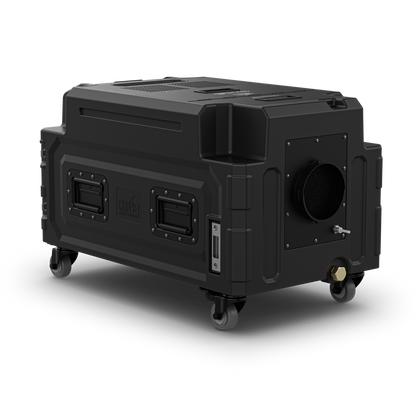

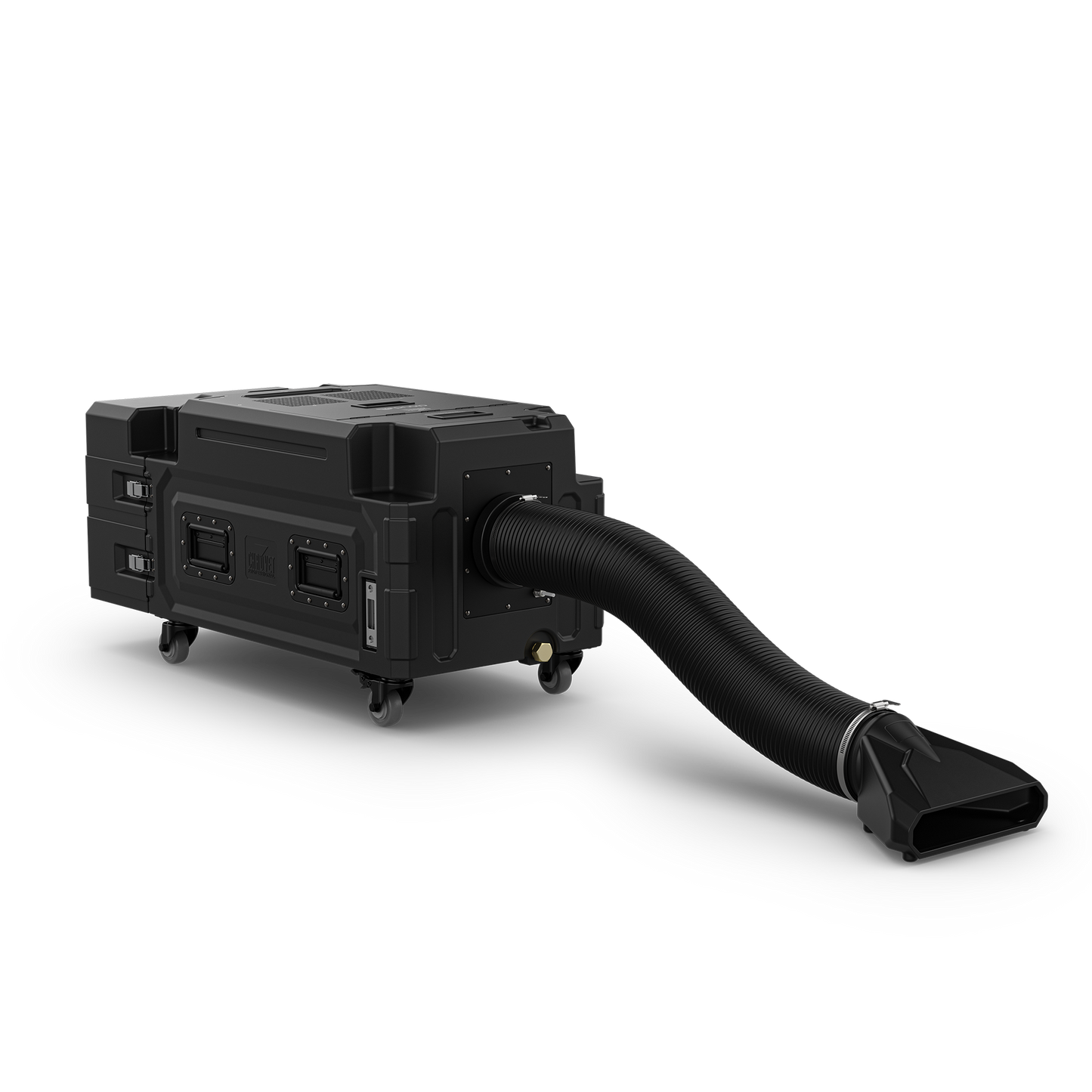

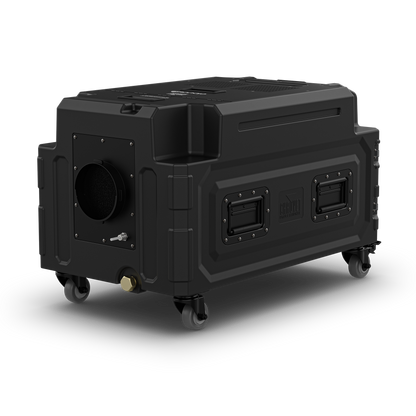

Cloud 9X IP

The Cloud 9X IP is a compact, IP-rated low-lying fogger that creates dense, floor-hugging fog using only tap water and specialized fluid, eliminating the need for dry ice or CO2.
Ideal for professional touring productions, event stages, and ballrooms requiring a reliable, continuous low-fog effect without the logistical challenges of dry ice.

From the Manufacturer

Cloud 9X IP is a compact low-lying fogger that produces high-impact floor-hugging fog ideal for stages and ballrooms. No refrigeration, dry ice or CO2 is needed, making for easy and safe operation that requires no special handling, licensing, or training.

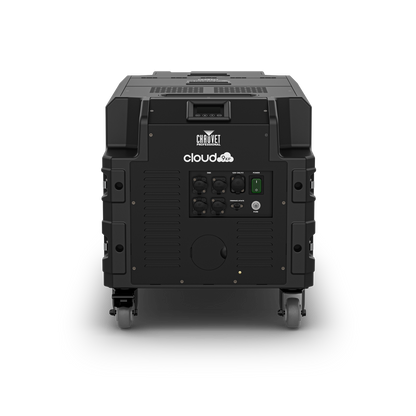

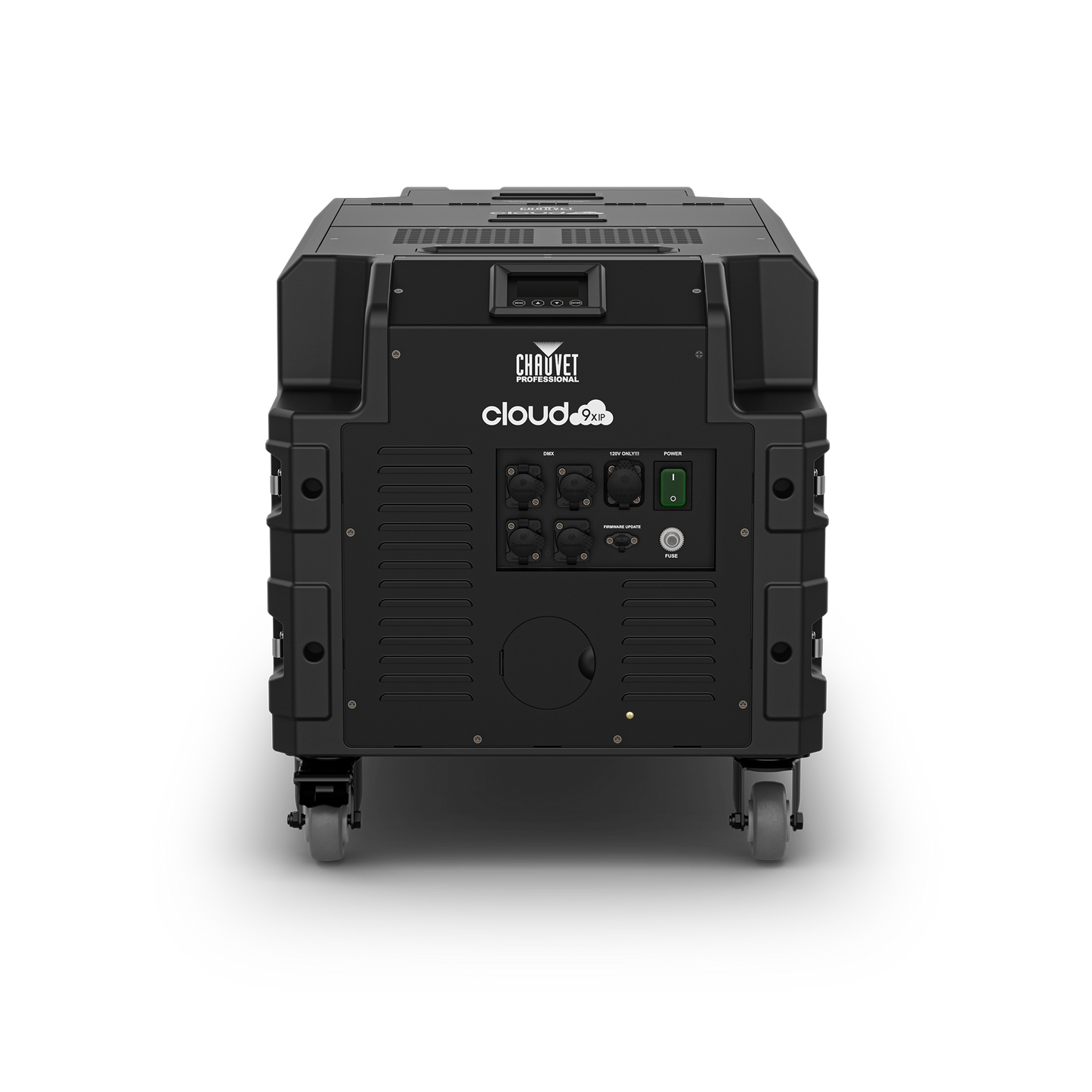

Cloud 9X IP creates continuous output using only LLG low-lying fog fluid and tap water (no need for distilled!). Taking full advantage of its new ability to use water from a faucet, Cloud 9X IP features a rear fitting that accepts a regular garden hose for automated refilling as water is depleted.

With a fast five-minute heat-up time and integrated water drainage system with a durable brass fitting that withstands repeated use, Cloud 9X IP setups and cleanups are always quick, easy, and reliable. Convenient control is available in any setting or application, via full-color onboard control display, RDM, DMX, or its included wireless RF handheld remote.

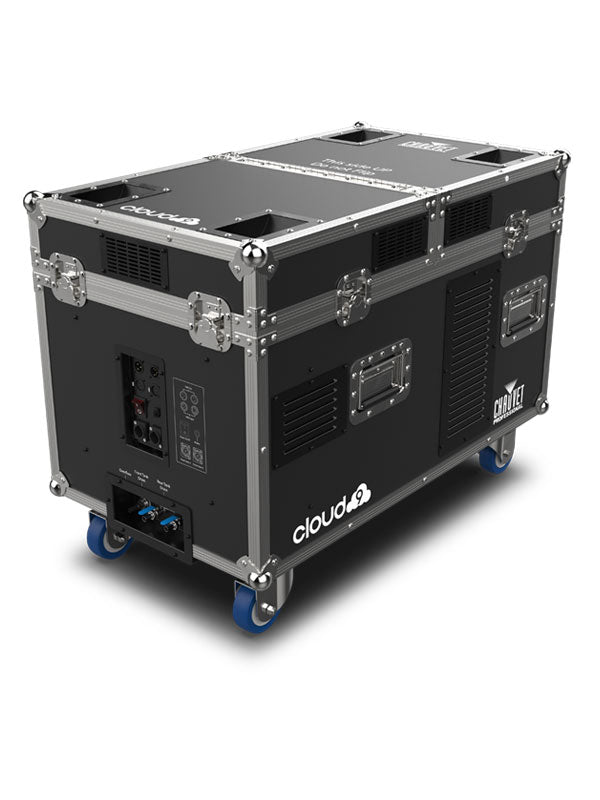

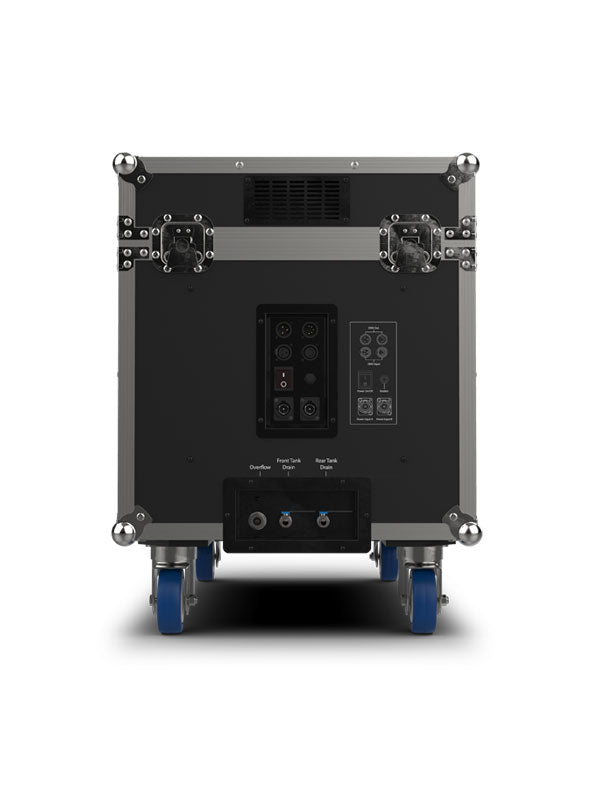

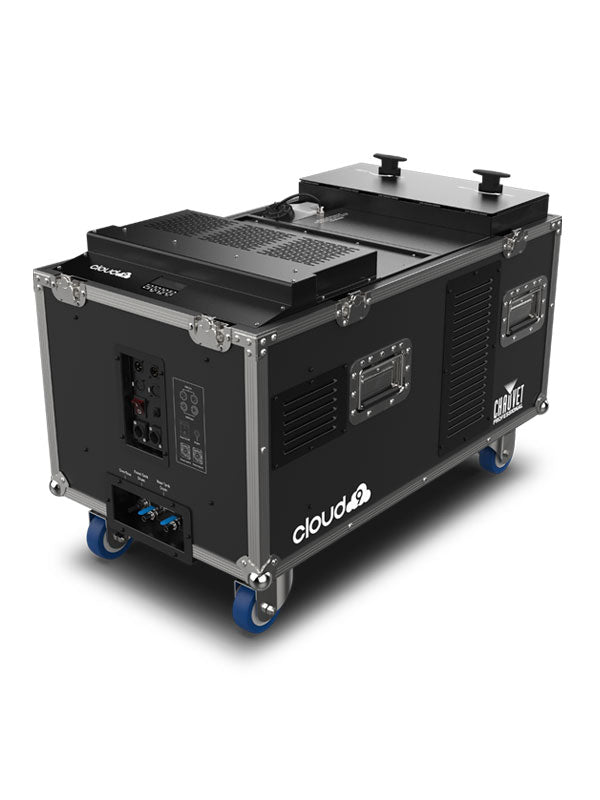

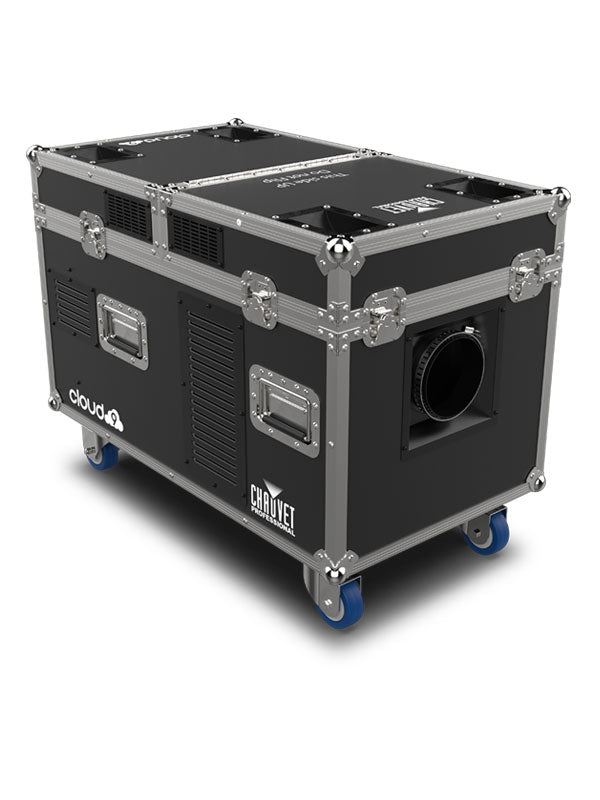

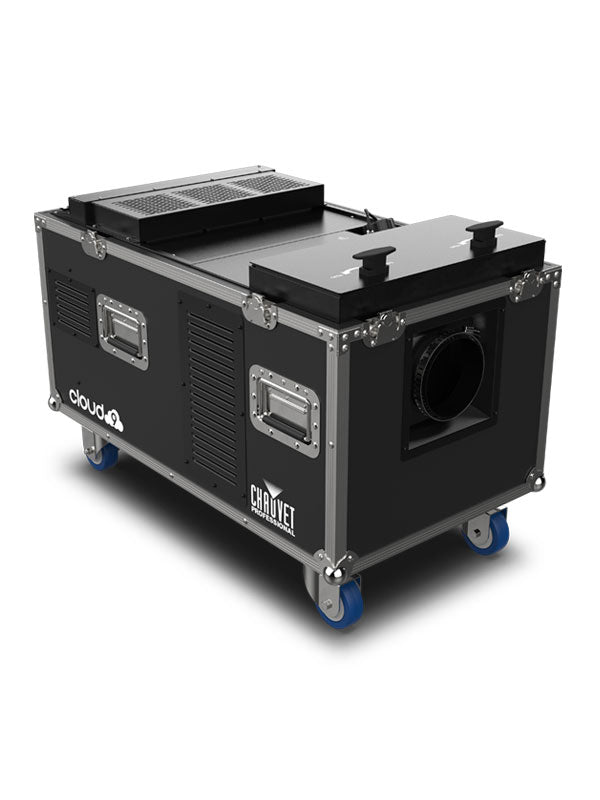

Cloud 9X IP features an upgraded housing that is not only inherently corrosion resistant, but also signficantly lighter than the previous Cloud 9 model that it replaces (total weight has been reduced from ~120lbs to ~75lbs). Its new housing is also stackable (up to 3 tall), making for easy transportation by truck, and features a removable rear cover for storing accessories, keeping everything self-contained in the unit.

Features

• Generates continuous low-lying fog capable of covering a 3,230 square foot area.

• Reaches operational temperature in just five minutes for rapid event deployment.

• Automates refilling with a direct garden hose connection for unattended operation.

• Offers versatile control via DMX, RDM, onboard display, and included wireless remote.

• Housed in a rugged, integrated flight case with a stackable design for touring.

• Simplifies cleanup using an integrated water drainage system with a durable brass fitting.

Specifications

Dynamic Effects

• Fan Performance: 81 cfm
• Low Fluid Shutdown: Yes

Construction / Physical

• Dimensions (without back cover):  30 x 17.36 x 19.22 in (762 x 441 x 488.1 mm)
• Dimensions (with back cover): 37.72 x 17.36 x 19.22 in (958 x 441 x 488.1 mm)
• Output Nozzle (outer diameter): 4.76 in (121 mm)
• Hose Length (fully extended): 11 ft (3.4 m)
• Weight: 76.6lb (34.75 kg)
• Exterior Color: Black
• Fluid Tank Capacity: 0.8 gal (3 l)
• Water tank Capacity: 7.32 gal (27.7 l)
• Fluid Consumption: 25 ml/min (0.88 fl oz/min)
• Water Consumption (distilled): 184.7 ml/min (6.25 fl oz/min)
• Maximum Run Time: 2 hours max runtime @ 100% output

Connections

• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)
• Firmware Upgrades: USB type C

Control

• Control Protocol: DMX, RDM, Wireless remote
• DMX Channels: 3
• Modes/Personalities: 1 personalities (3)
• On-Board Control: Yes
• Included remote: Yes

Electrical

• Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
• Power and Current: 1960 W, 17.5 A @ 120 V, 60 Hz
• Power and Current: 1281 W, 5.59 A @ 230 V, 50 Hz
• Heat-up Time: 5 min
• Breaker Size: 10 A, 250V

Certifications / Qualifications

• CE, ROHS, UKCA
• IP Rating: IP53, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• Cloud 9X IP
• Seetronic Powerkon IP65 power cable
• RF Remote (2-button)
• 2 pcs. hose clamps, 6 in diameter
• Barbed hose adapter (.5 in) diameter
• 2 pcs. barbed hose adapter hose clamp 1 in(25 mm) diameter

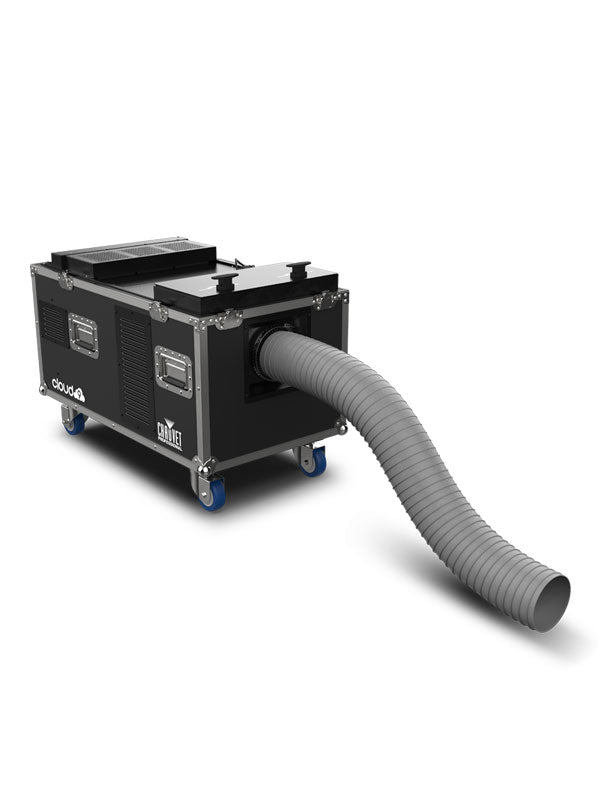

• 6ft (2m) output hose, 5 in, (130 mm) diameter
• Removable rear cover
• Hose coupler, 5 in (130mm) diameter
• Floor nozzle, 5 in (130mm) diameter
• Overfill hose (polyurethane, 6mmOD, 4mm ID, 80 in / 204 cm)
• Quick Reference Guide

Required Accessories

• LLG Fluid
