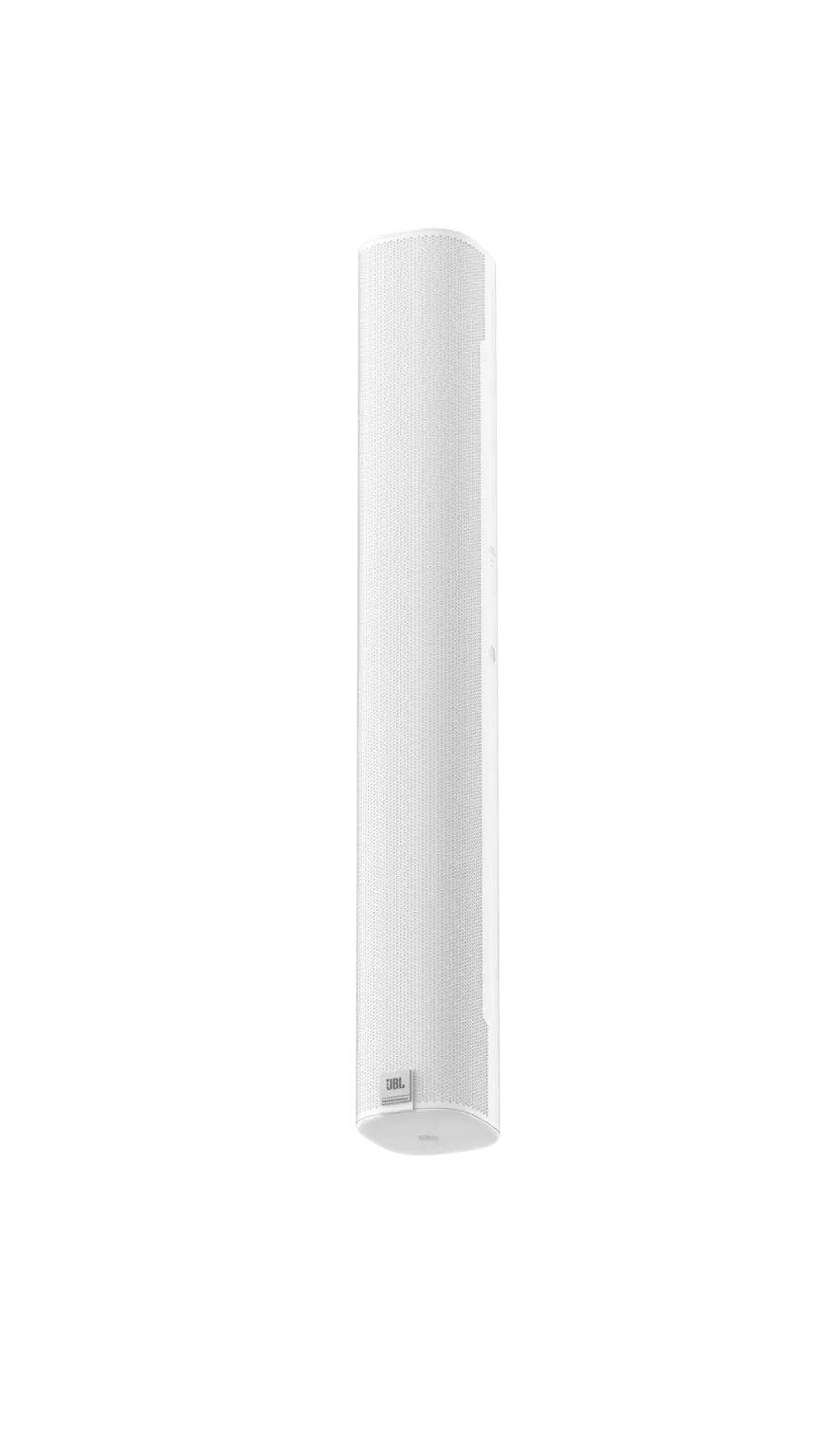

COL600

A slim column installation loudspeaker designed for speech and music reinforcement, offering wide horizontal dispersion, controlled vertical coverage, and a discreet architectural form factor.

From The Manufacturer:

The JBL COL600 is an elegant 24-inch (600 mm) slim column loudspeaker that provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt to the aim. This allows optimum coverage while the speaker is mounted flat to the wall. Its compact design complements architectural spaces and is ideal for environments such as conference rooms, lecture halls, retail stores, and transit areas.

Features:

• Two 5" × 2.25" racetrack woofers + 1" tweeter

• Wide 160° horizontal coverage with controlled vertical dispersion

• Built-in 10° down-tilt for optimal audience coverage

• Slim 600 mm column design (architectural aesthetic)

• 70V / 100V multi-tap transformer + 8Ω operation

• IP54-rated for dust and water resistance

• Tweeter positioned at top for improved coverage

• Includes L-brackets and swivel tilt mount

• ADA-compliant shallow depth design

Specification:

• System Type: Slim column loudspeaker

• Frequency Range (-10 dB): 70 Hz – 20 kHz

• Frequency Response (±3 dB): 105 Hz – 20 kHz

• Power Handling (8Ω):

• 80 W continuous (pink noise, 2 hrs)

• 160 W program

• 320 W peak

• Sensitivity: 86 dB (2.83V/1m)

• Maximum SPL: 105 dB continuous / 111 dB peak

• Coverage Pattern:

• Horizontal: 160°

• Vertical: 110° (with 10° down-tilt)

• Nominal Impedance: 8 ohms

• Transformer Taps:

• 70V: 20W / 10W / 5W / 2.5W

• 100V: 20W / 10W / 5W

• Drivers:

• 2 × 5" × 2.25" racetrack LF drivers

• 1 × 1" HF tweeter

• Enclosure Depth: 93 mm (3.7")

• Environmental Rating: IP54

• Dimensions: 598 × 102 × 93 mm

• Weight: 3.5 kg
