COLORado Batten Q15

From the Manufacturer

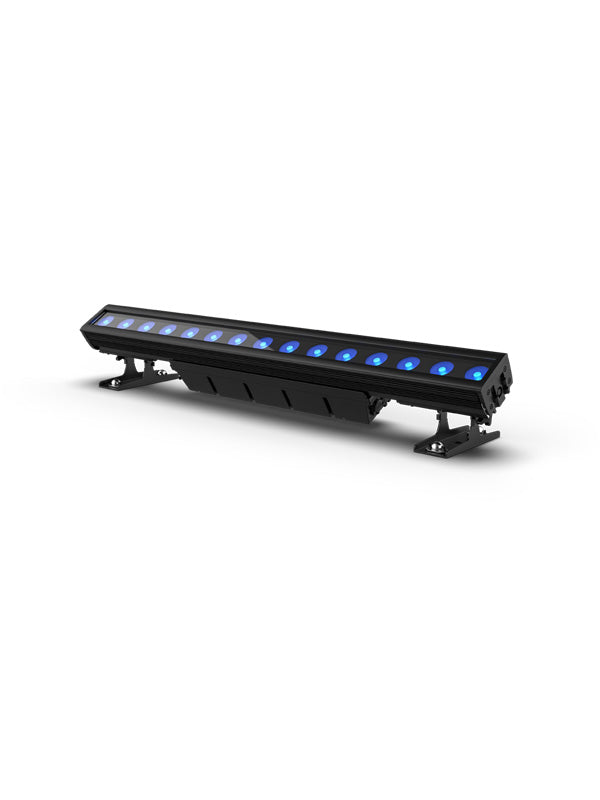

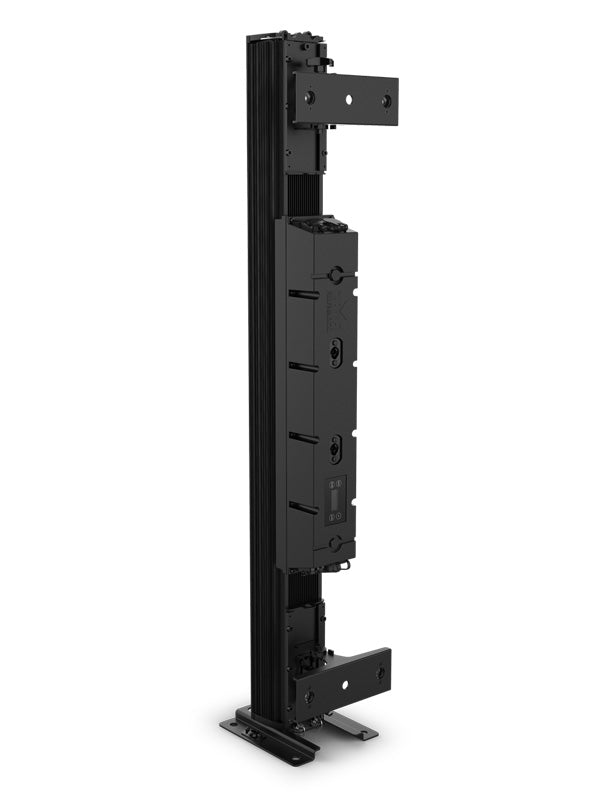

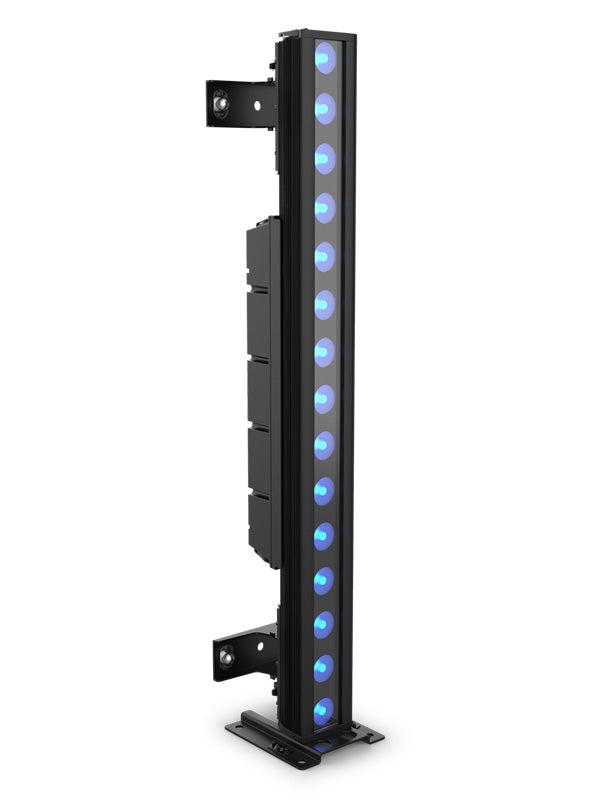

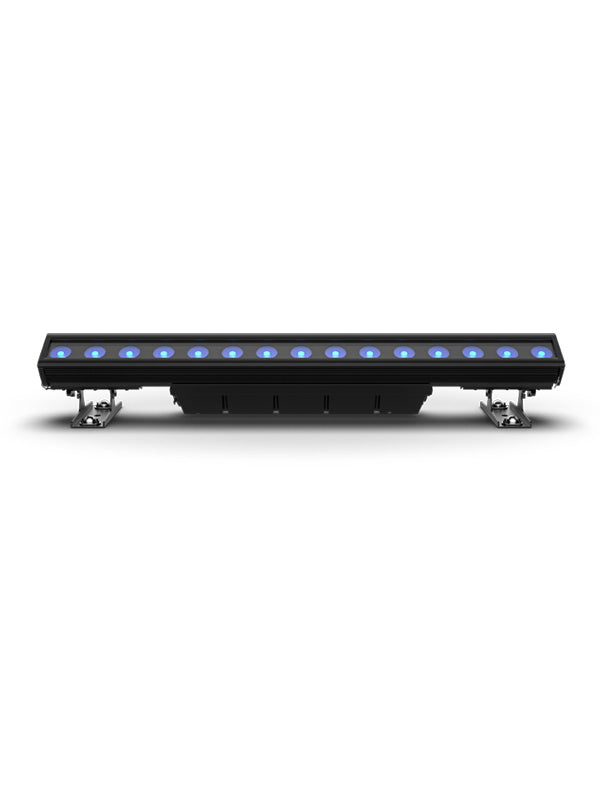

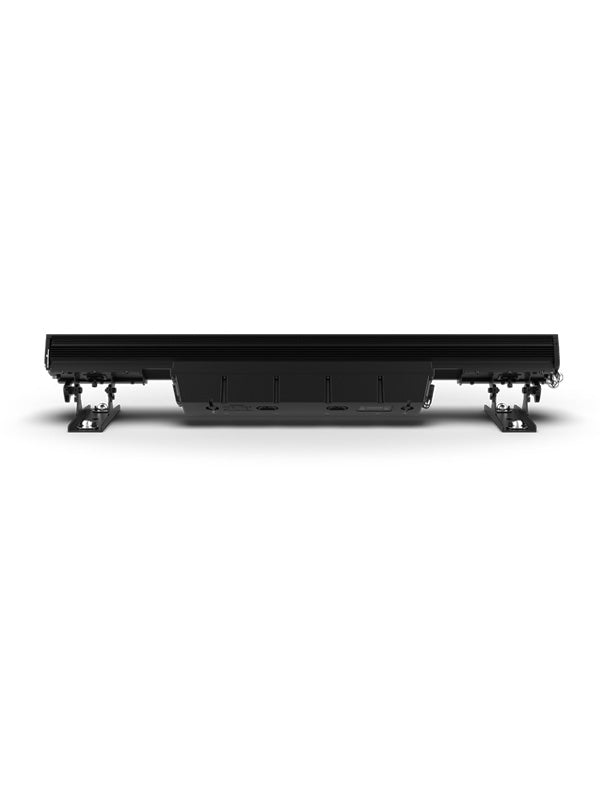

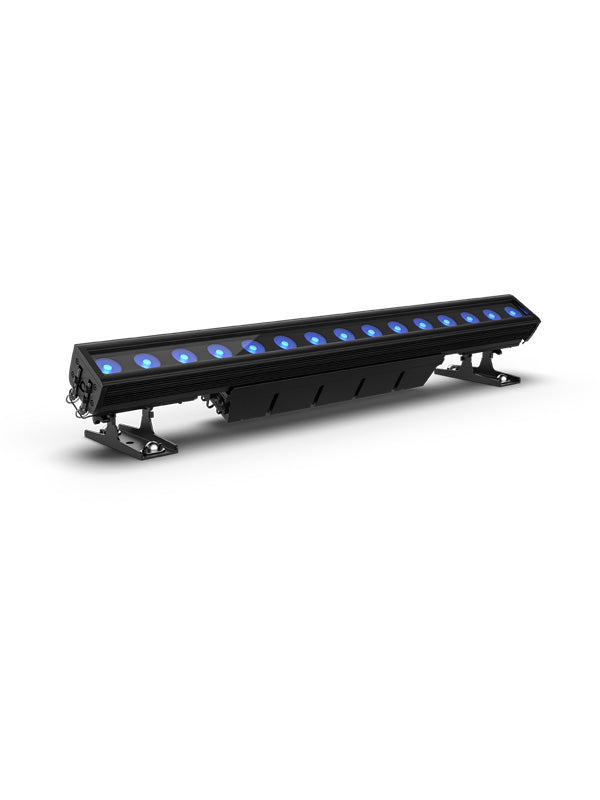

COLORado Batten Q15 is a rugged, tour-ready, quad-color RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of “skittles” and allow for awesome pixel-mappable looks. The IP65-rated unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way by adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.

Features

• Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
• All environment operation with IP rated power and DMX connections
• Unique end-cap and back plate mounting options
• Color temperature presets, from 1800 K to 8000 K
• Selectable, smooth dimming curves for programming versatility
• Built for touring, live event, television, and theatrical productions
• Large, easy to navigate display with password protection

Specifications

Optical

• Light Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
• Color Temperature (range): 1800 to 8000 K
• Installed Optics: 16°
• Beam Angle (Horizontal): 15.5°
• Beam Angle w/Filter (Horizontal): 41.9°
• Beam Angle (Vertical): 14.7°
• Beam Angle w/Filter (Vertical): 15.3°
• Field Angle (Horizontal): 28.6°
• Field Angle w/Filter (Horizontal): 77.9°
• Field Angle (Vertical): 28.1°
• Field Angle w/Filter (Vertical): 32.1°
• Lumens: 6,324
• Lumens w/Filter: 5,547
• Illuminance (total): 2399 lux @ 5 m
• Illuminance w/Filter (total): 653 lux @ 5 m
• Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)
• Weight: 28.8 lb (13 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1 Cell: 4, 6, 8, 10
  15 Cell: 45, 60, 64, 66, 76
• Modes/Personalities: 9 personalities

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
• Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
• Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
• Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• Colorado Batten Q15
• Seetronic powerKON® IP65 power cord
• 2 Omega Bracket
• Base Plate
• 2 Retaining Pins
• 2 Safety Cable
• Glare Shield
• Filter
