COLORado Panel Q40

From the Manufacturer

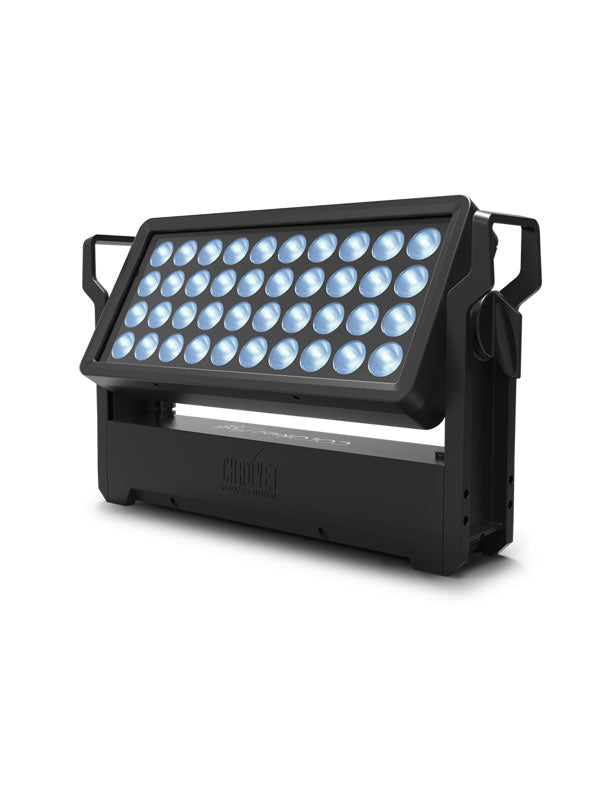

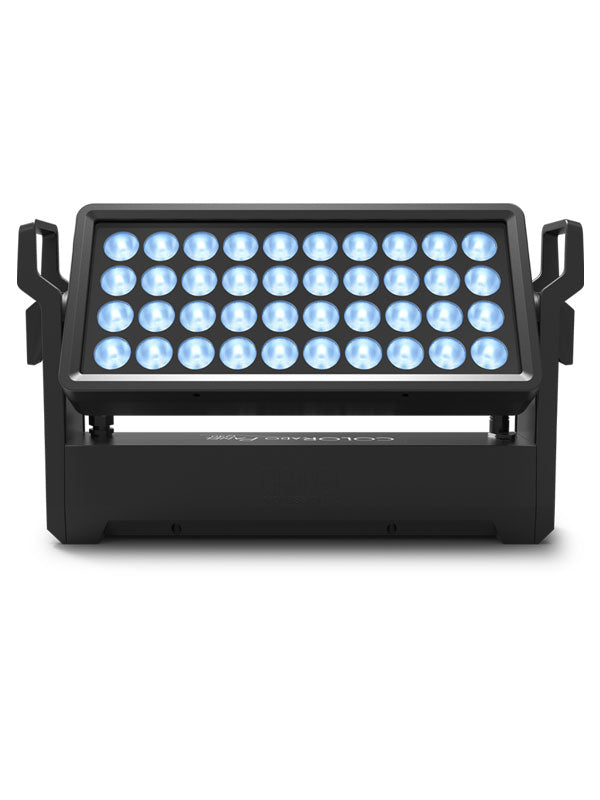

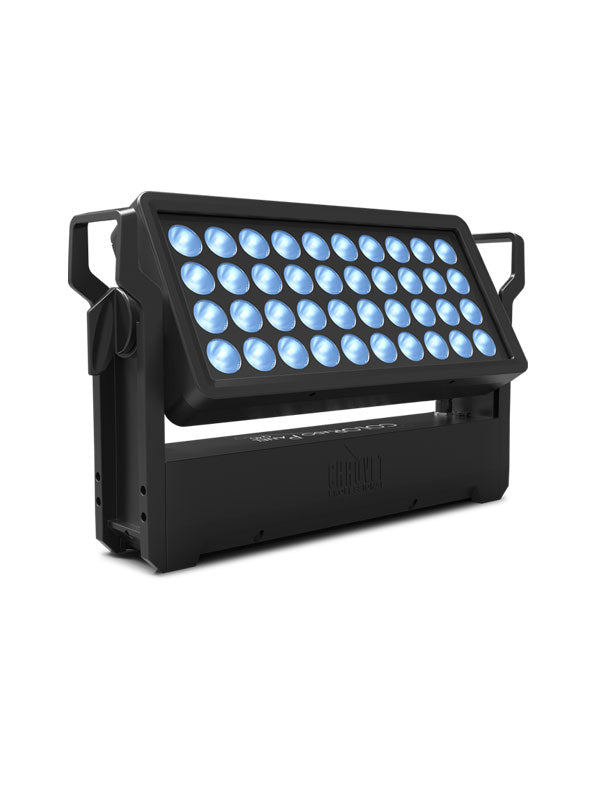

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

Features

• Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed
• Superior edge-to-edge color mixing
• At home in any weather conditions with IP rated power and DMX connections
• Included magnetic flood filter for wide area wash
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• WDMX & RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves to eliminate flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional color mixing and high efficiency
• Included omega bracket for quick and easy truss/pipe mounting

Specifications

Optical

• Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Installed Optics: 15°
• Beam Angle (w/o filter): 20.4°
• Beam Angle (w/filter): 24.6°
• Field Angle (w/o filter): 33.8°
• Field Angle (w/ filter): 50.4°
• Lumens: 29,407
• Lumens (w/filter): 17,992
• Illuminance (w/o filter): 8,347 lux @ 5 m
• Illuminance (w/ filter): 2,590 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Tilt Ranges: 0° to 150°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
• Weight: 28.2 lb (12.8 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

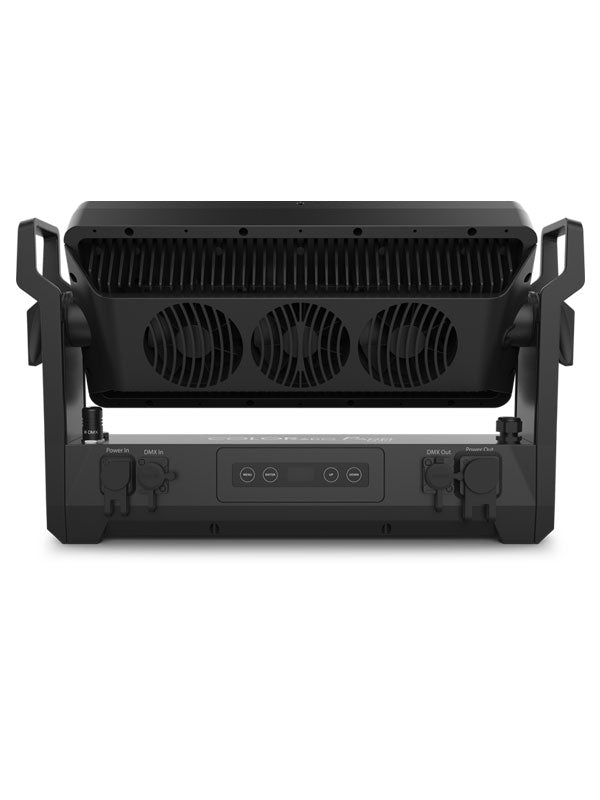

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, W-DMX, RDM
• DMX Channels: 4, 7, 11, 16 or 22
• Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
• Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
• Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
• Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• Seetronic Powerkon IP65 power cord
• Color Blending Filter lens
• Omega bracket with mounting hardware
