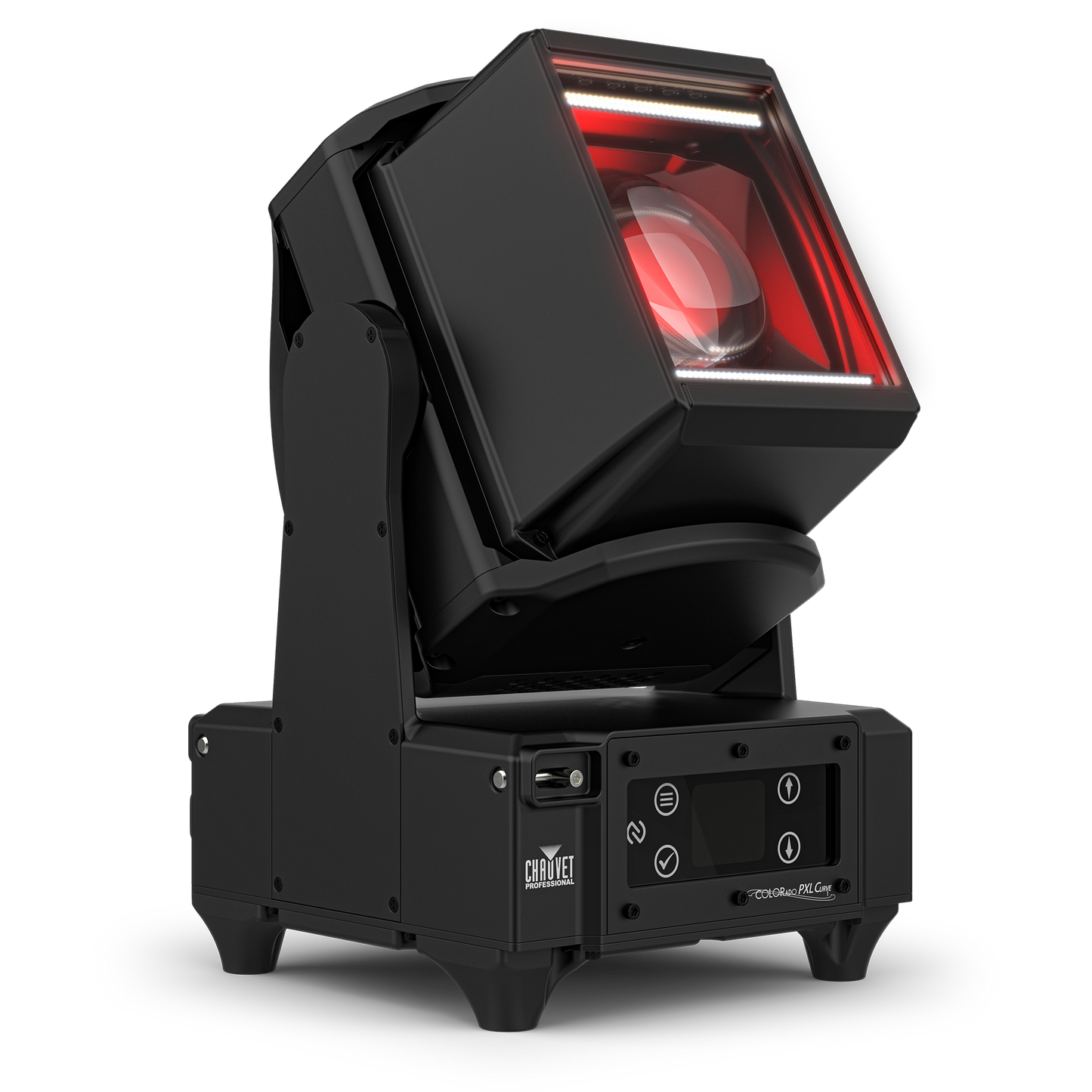

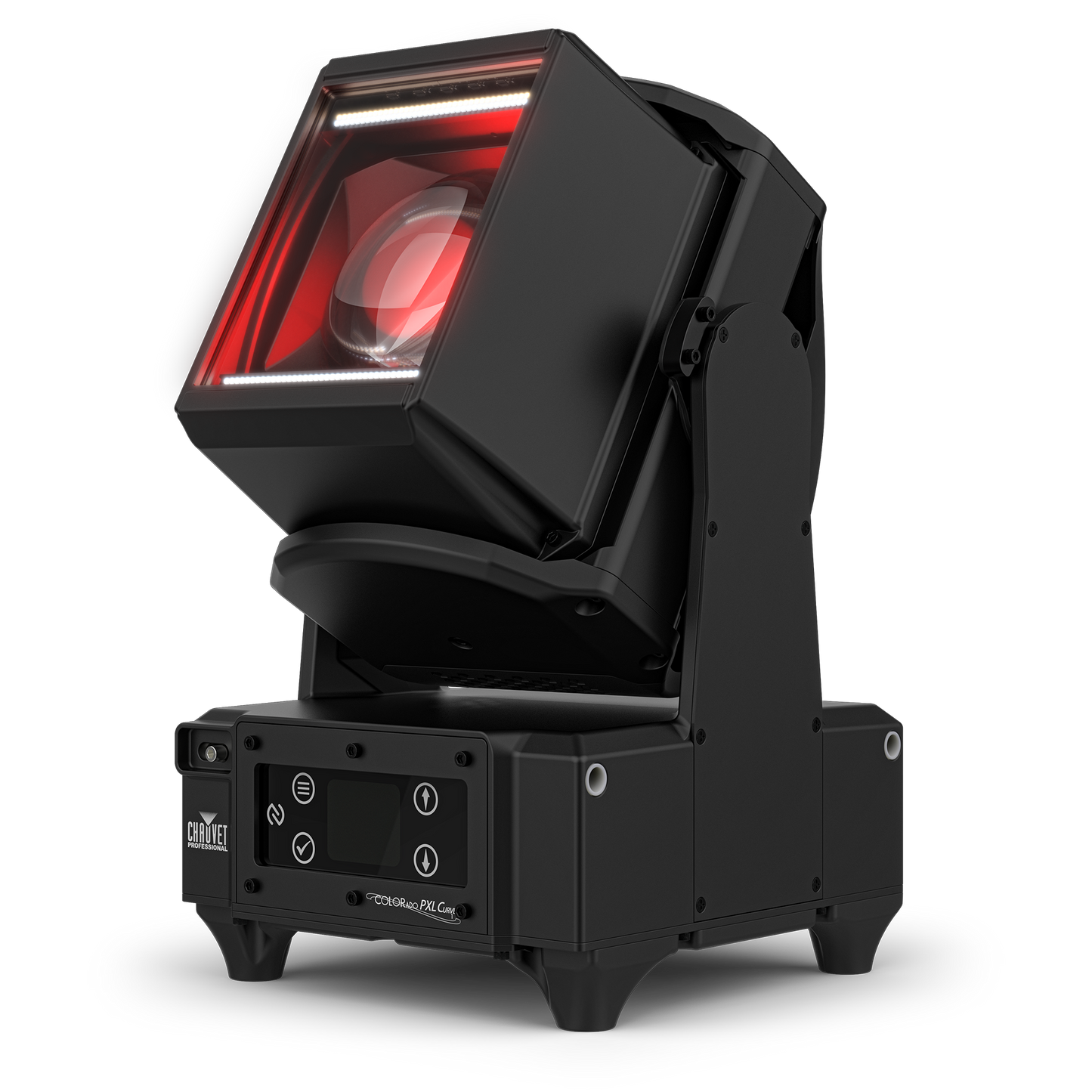

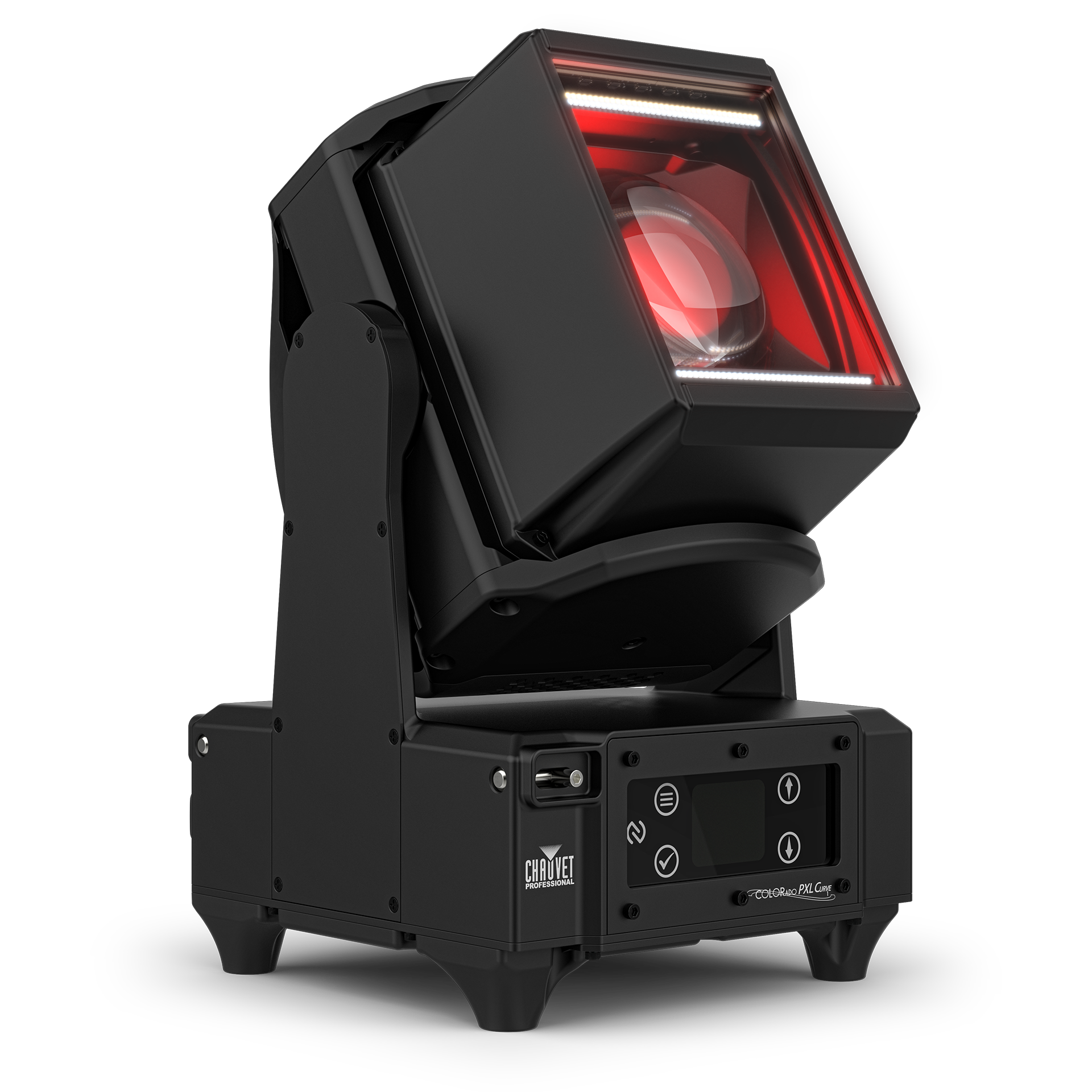

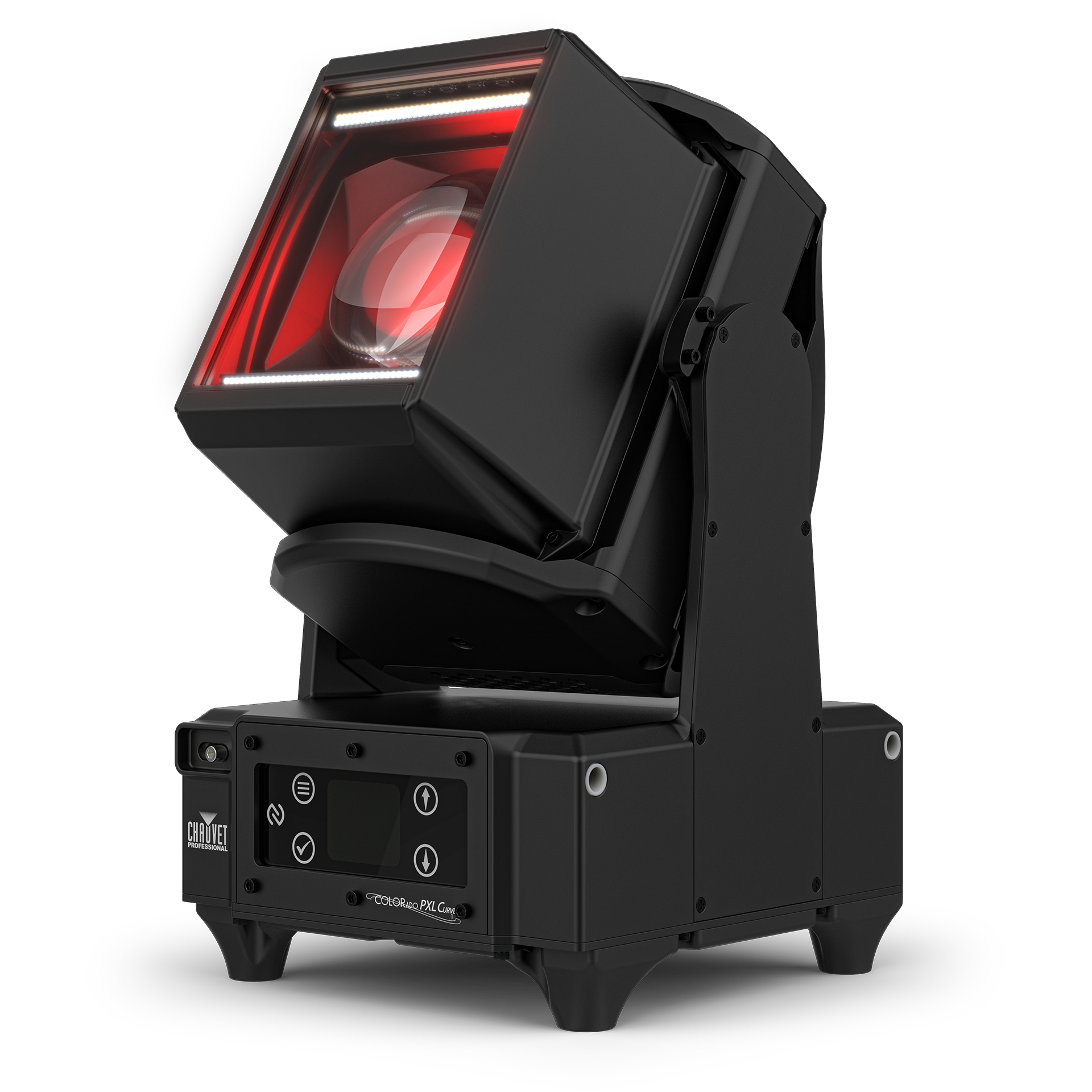

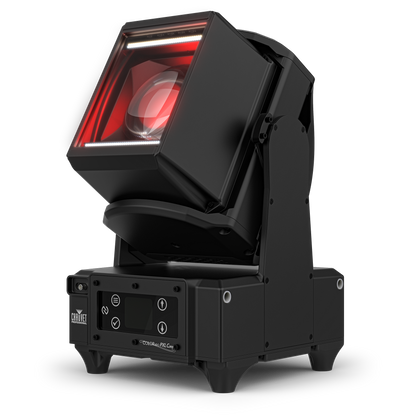

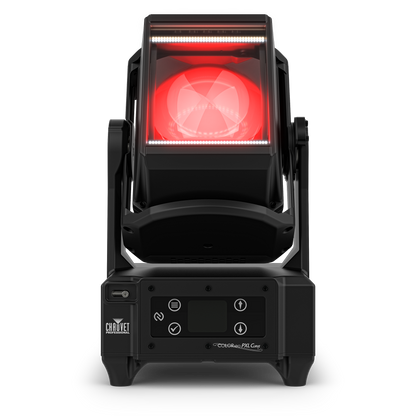

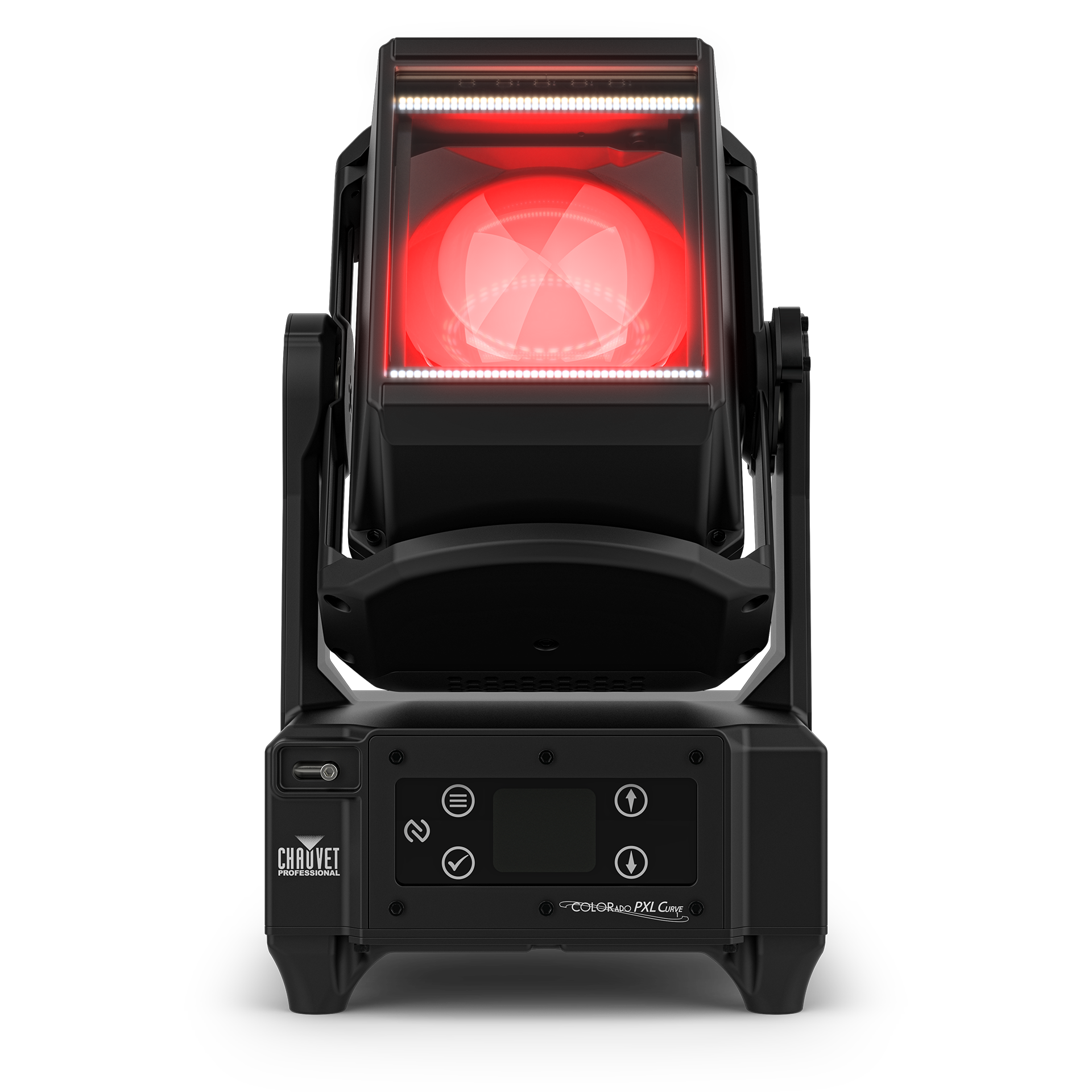

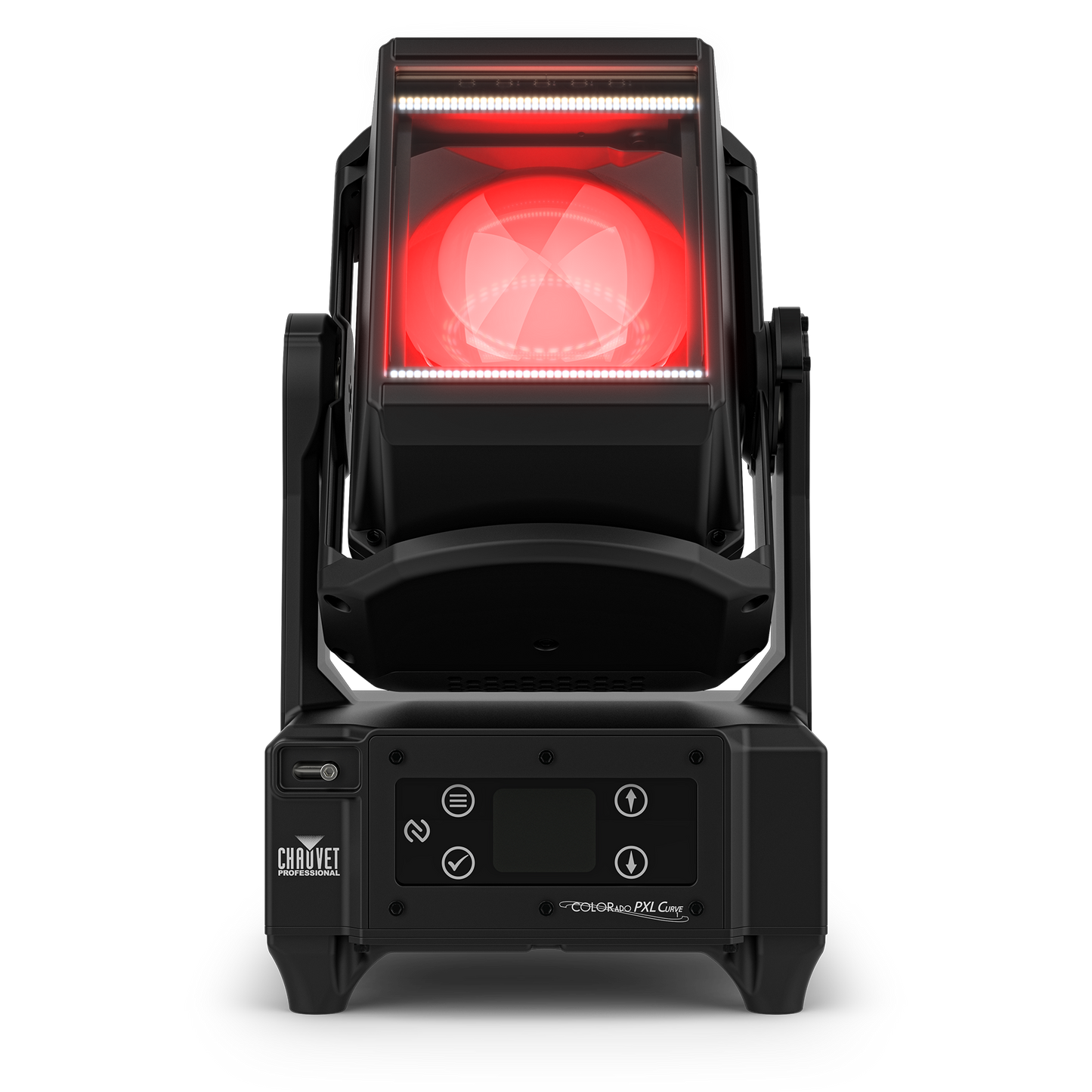

COLORado PXL Curve 1

The CHAUVET Professional COLORado PXL Curve 1 is a compact IP65-rated RGBW moving beam and wash fixture designed for creative pixel-mapped arrays and dynamic stage lighting. Featuring a powerful 120 W RGBW LED, motorized pan, tilt and zoom, and dual linear cool-white and warm-white strobe sections, it combines movement, color, wash, beam and strobe effects in a lightweight fixture. DMX, Art-Net, sACN, RDM and NFC support provide flexible control for touring, concerts, festivals and professional installations.

From The Manufacturer:

COLORado PXL Curve 1 features motorized pan, tilt and zoom in a compact IP65-rated RGBW LED beam and wash fixture that brings the added punch of dual linear cool and warm white LED strobe cells.

Designed for seamless pixel mapping with multiple fixtures, alignment pins maintain pixel pitch while its color blending and rectangular head perfectly match other COLORado PXL models in the rig.

Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

Key Features:

• Compact IP65-rated RGBW beam and wash fixture

• Single 120 W quad-color RGBW LED

• 160 SMD strobe LEDs

• 80 cool-white and 80 warm-white strobe LEDs

• 8-section control of warm-white and cool-white strobe cells

• Motorized pan

• Motorized tilt

• Motorized zoom

• 60° pan movement

• Up to approximately 200° tilt movement

• Electronic dimmer

• Electronic shutter and strobe

• Strobe rate from 0–25 Hz

• Color temperature presets

• Move-in-Black functionality

• Designed for seamless side-by-side pixel mapping

• Alignment pins maintain consistent pixel pitch

• DMX control

• Art-Net control

• sACN control

• RDM enabled

• NFC enabled

• IP65-rated 5-pin DMX and TCP/IP connections

• Lightweight and compact design

• Slotted Omega bracket for professional rigging

Specifications:

• Product Type: Moving RGBW Beam / Wash / Strobe Fixture

• Manufacturer: CHAUVET Professional

• Product Family: COLORado PXL

• Model: COLORado PXL Curve 1

• SKU: COLORADOPXLCURVE1

• Protection Rating: IP65

• Main Light Source: 1 × 120 W Quad-Color RGBW LED

• Main LED Life Expectancy: 50,000 Hours

• Strobe Light Source: 160 SMD LEDs

• Strobe LEDs: 80 Cool White / 80 Warm White

• Strobe LED Life Expectancy: 50,000 Hours

• Beam Angle Without Strobe: 3.4°–30.2°

• Beam Angle With Strobe: 3.4°–32.1°

• Field Angle Without Strobe: 4.4°–38.7°

• Field Angle With Strobe: 4.3°–66.3°

• Zoom Range Without Strobe: 3.4°–40.8°

• Zoom Range With Strobe: 3.4°–144.3°

• Lumens Without Strobe: 1,558 lm

• Lumens With Strobe: 4,630 lm

• Pan / Tilt: 60° / approximately 190–200°

• Strobe Rate: 0–25 Hz

• Dimmer: Electronic

• Zoom: Motorized / Manual

• Dim Modes: 2

• Dim Curves: 4

• Control Protocols: DMX / Art-Net / sACN / RDM / NFC

• DMX Channels: 24 or 45

• Art-Net Channels: 24 or 45

• Personalities: 2

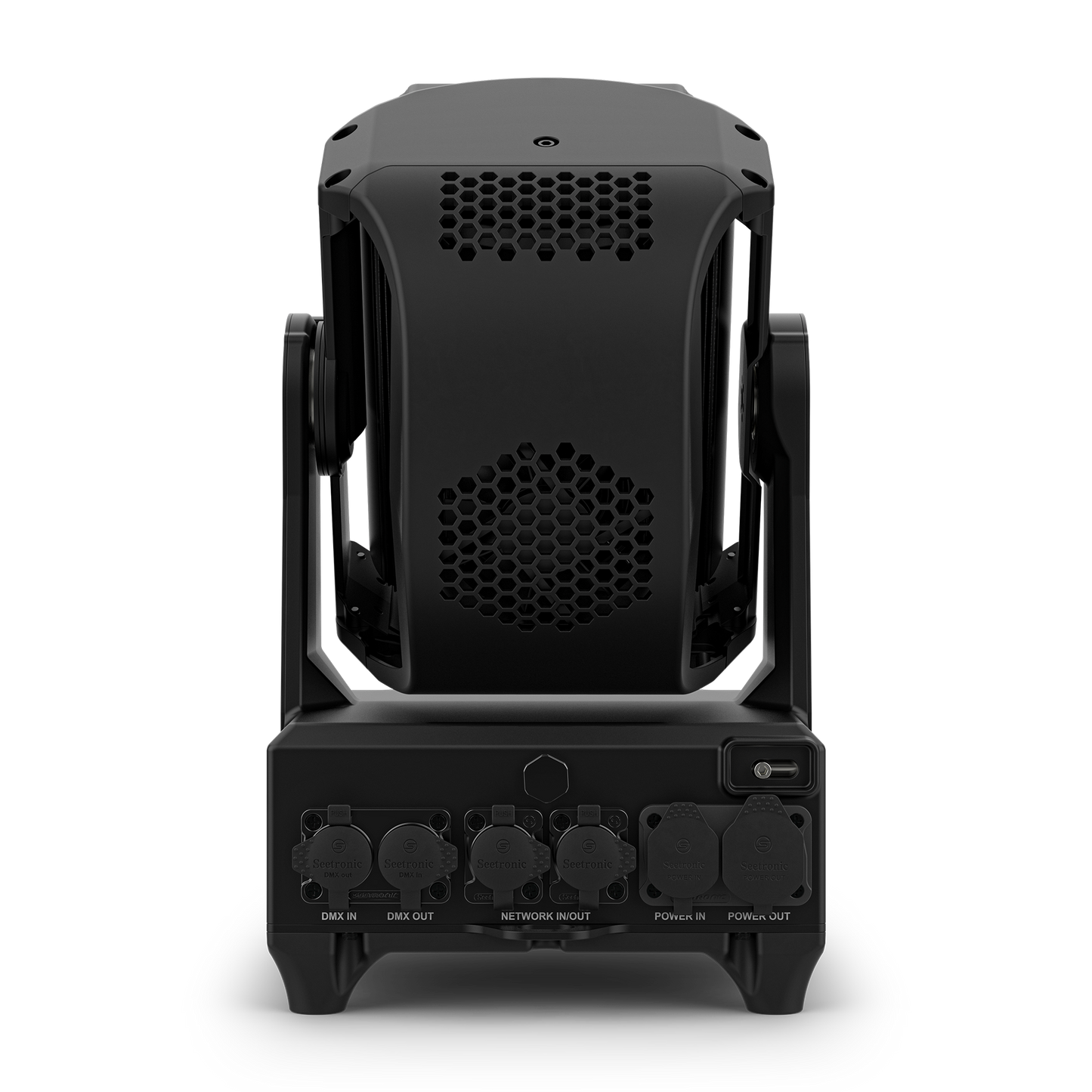

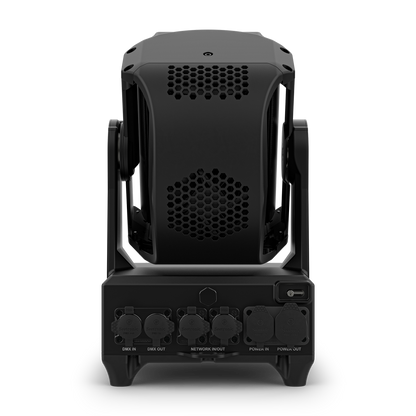

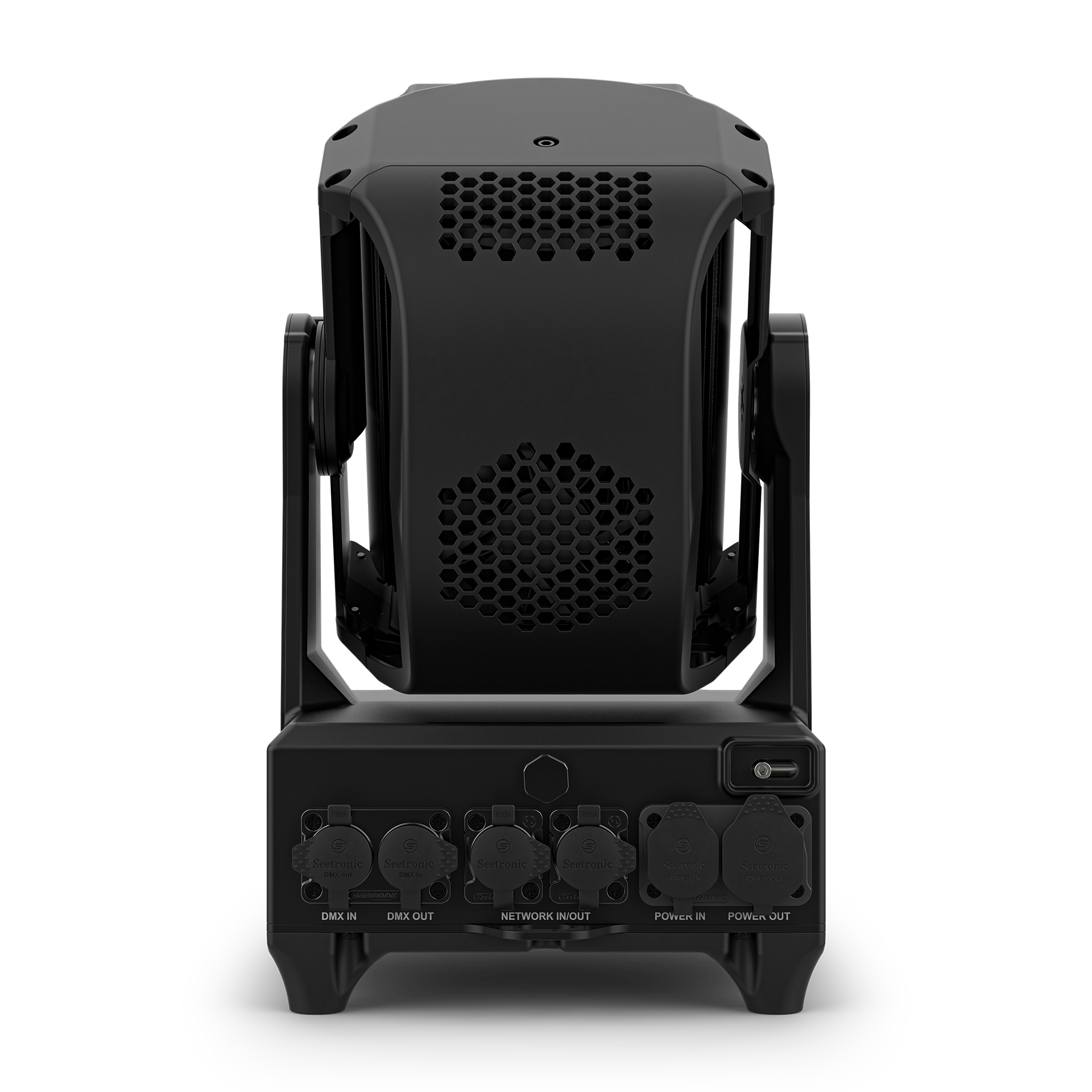

• Data Connections: IP65 5-Pin XLR / etherCON

• Power Input: Seetronic Powerkon

• Power Output: Seetronic Powerkon

Applications:

• Concerts

• Touring productions

• Festivals

• Stage productions

• Theatre

• Television

• Live events

• Outdoor productions

• Pixel-mapped lighting arrays

• Creative moving-light arrays

• Entertainment venues

• Professional lighting installations

Included Accessories:

• COLORado PXL Curve 1 Fixture

• Power Cord – Edison to PowerKon IP

• Slotted Omega Bracket

• Mounting Hardware

Compatible Accessories:

• CTC-50HC

• CTC-50HCN

• RIGLINKPOWERKON

• RIGLINK

• RIGLINKDMX

• CPRACKUS

Size:

• 199 × 215 × 330 mm

• 7.83 × 8.46 × 12.99 in

Weight:

• 6.8 kg

• 15 lb

Electrical / Thermal:

• Input Voltage: 100–240 VAC, 50/60 Hz

• Power Supply: Auto-Ranging

• Power Input: Seetronic Powerkon

• Power Output: Seetronic Powerkon

• Main LED: 120 W RGBW

• Main LED Life Expectancy: 50,000 Hours

• Strobe LED Life Expectancy: 50,000 Hours

• Protection Rating: IP65
