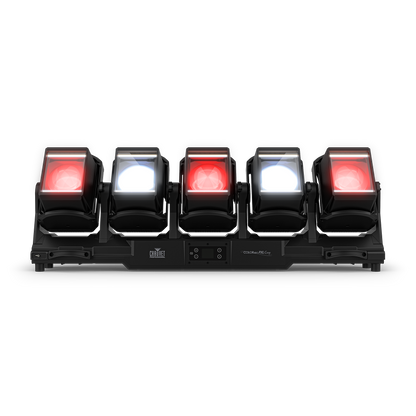

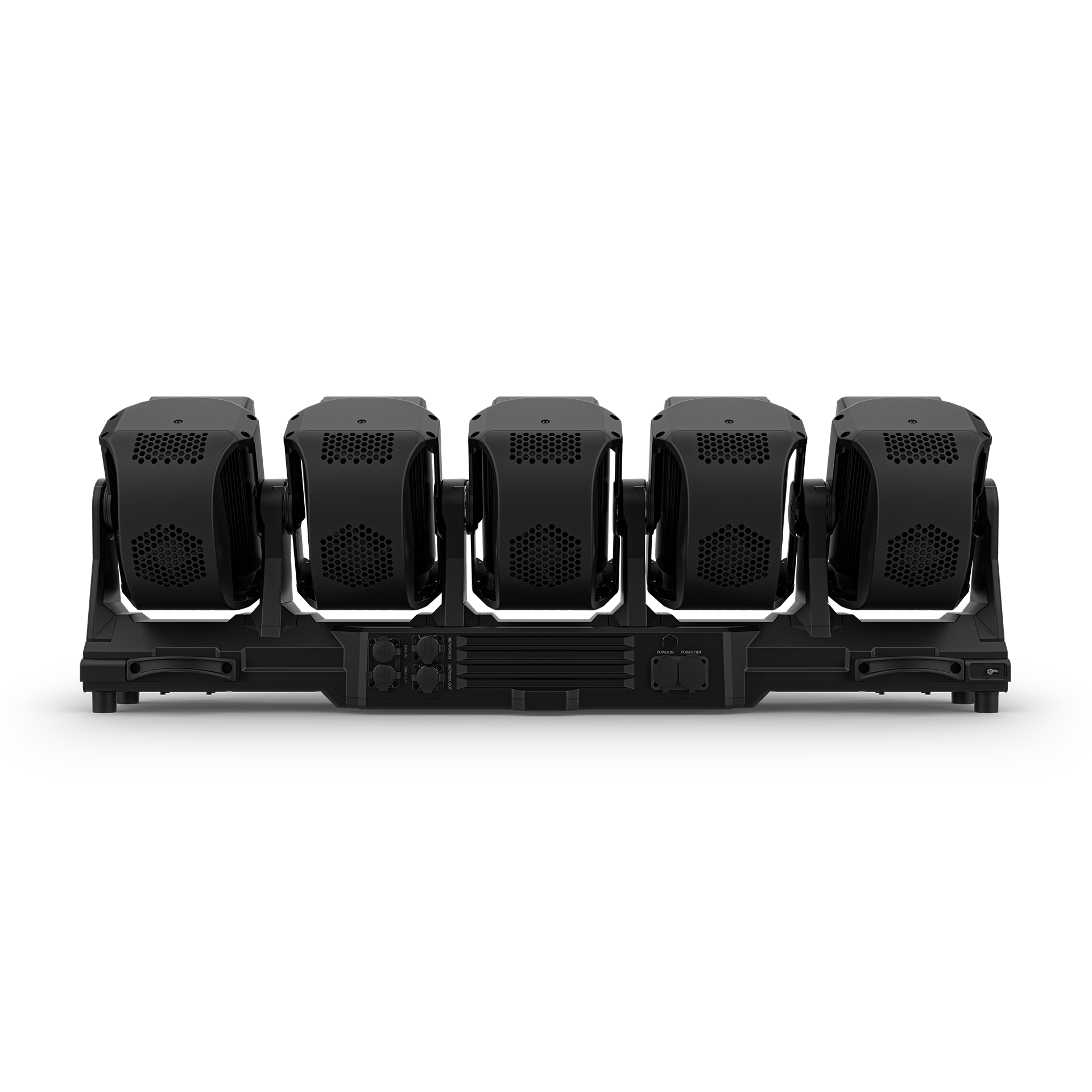

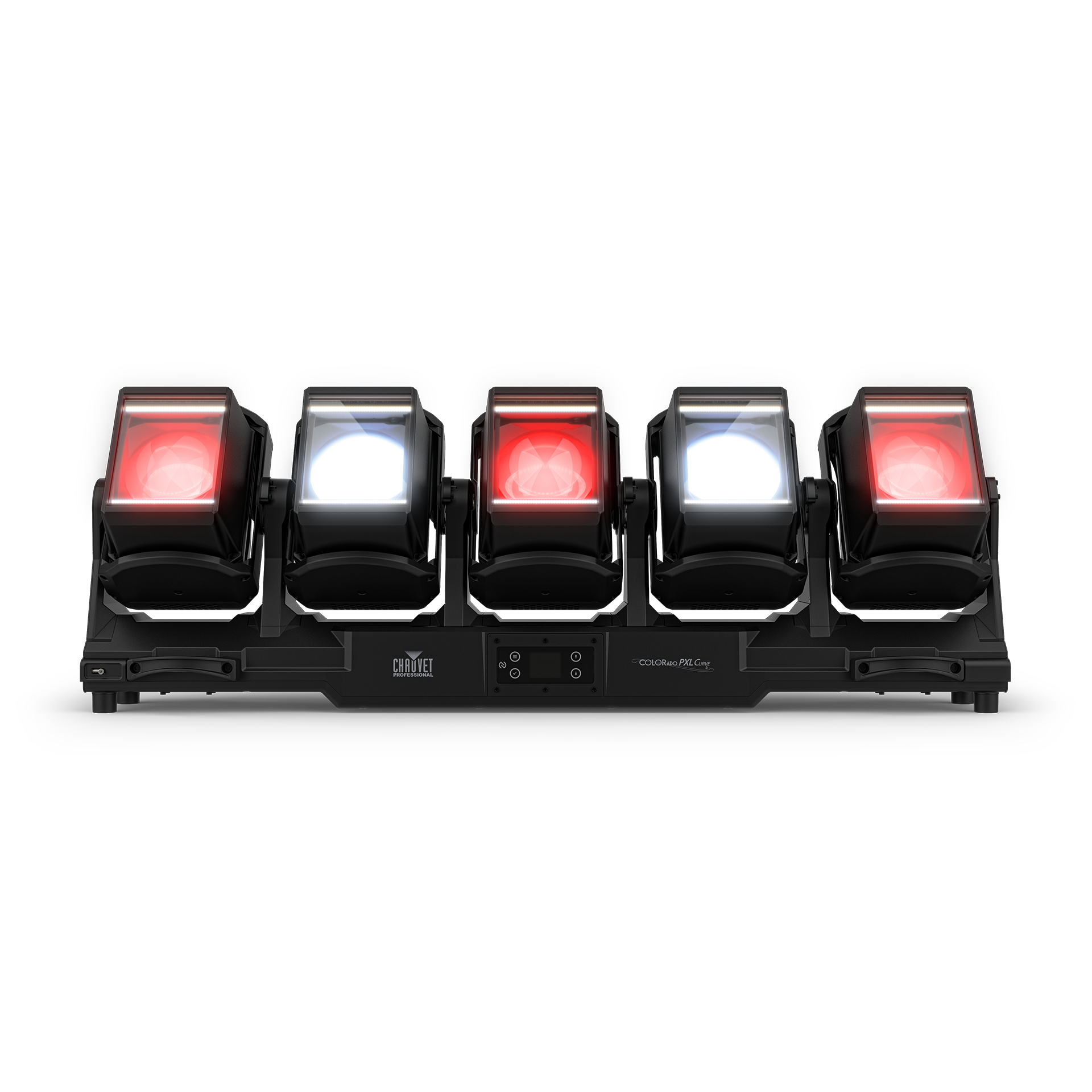

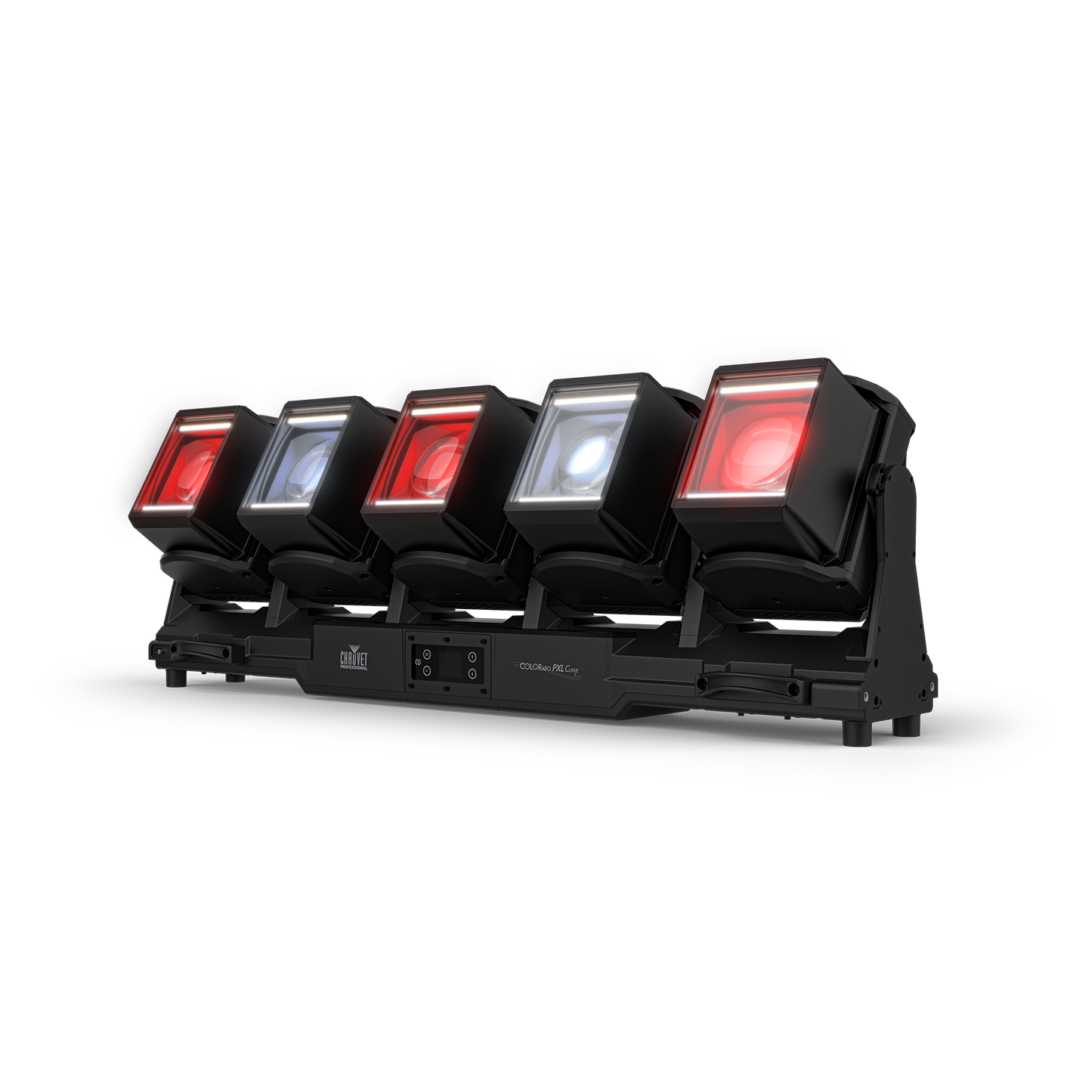

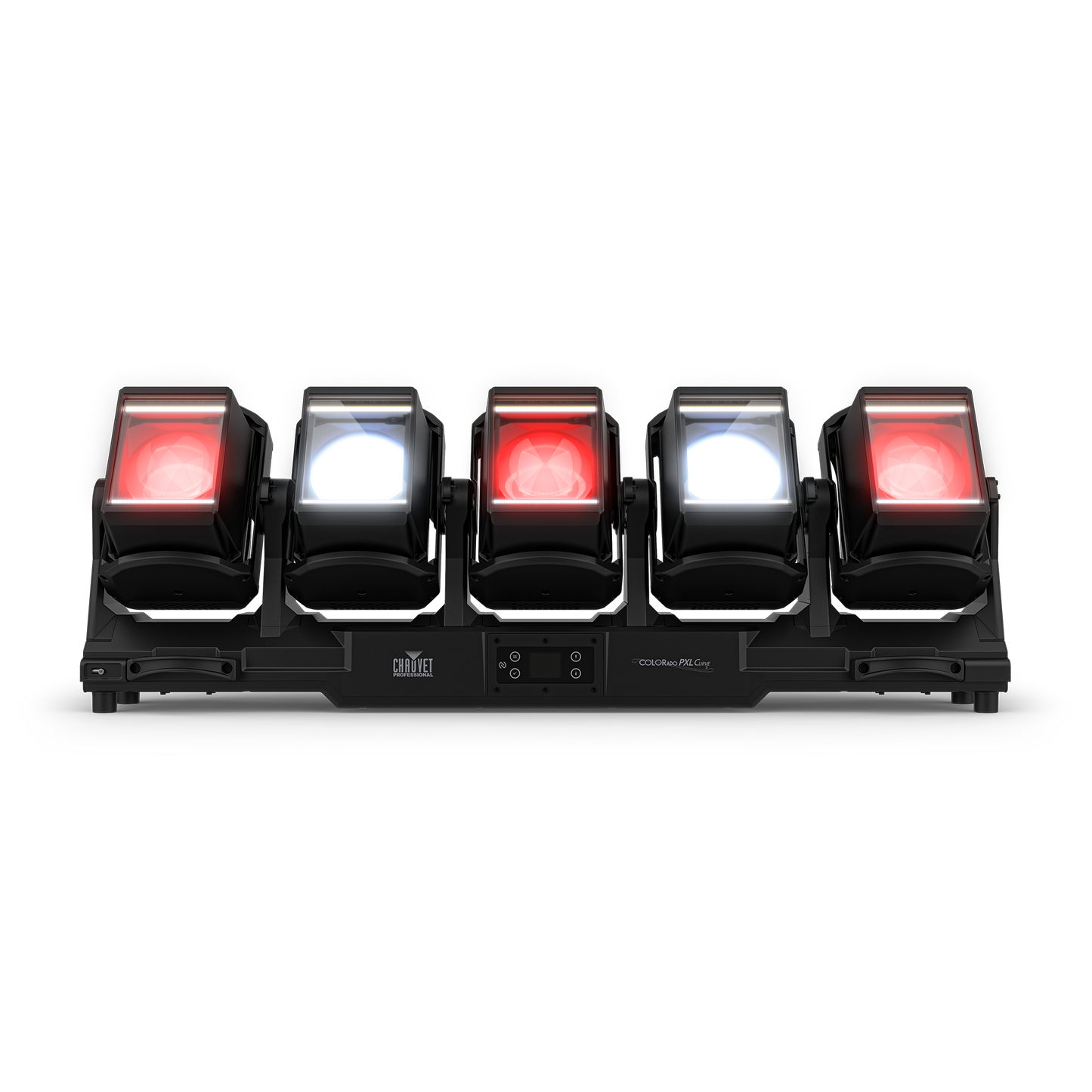

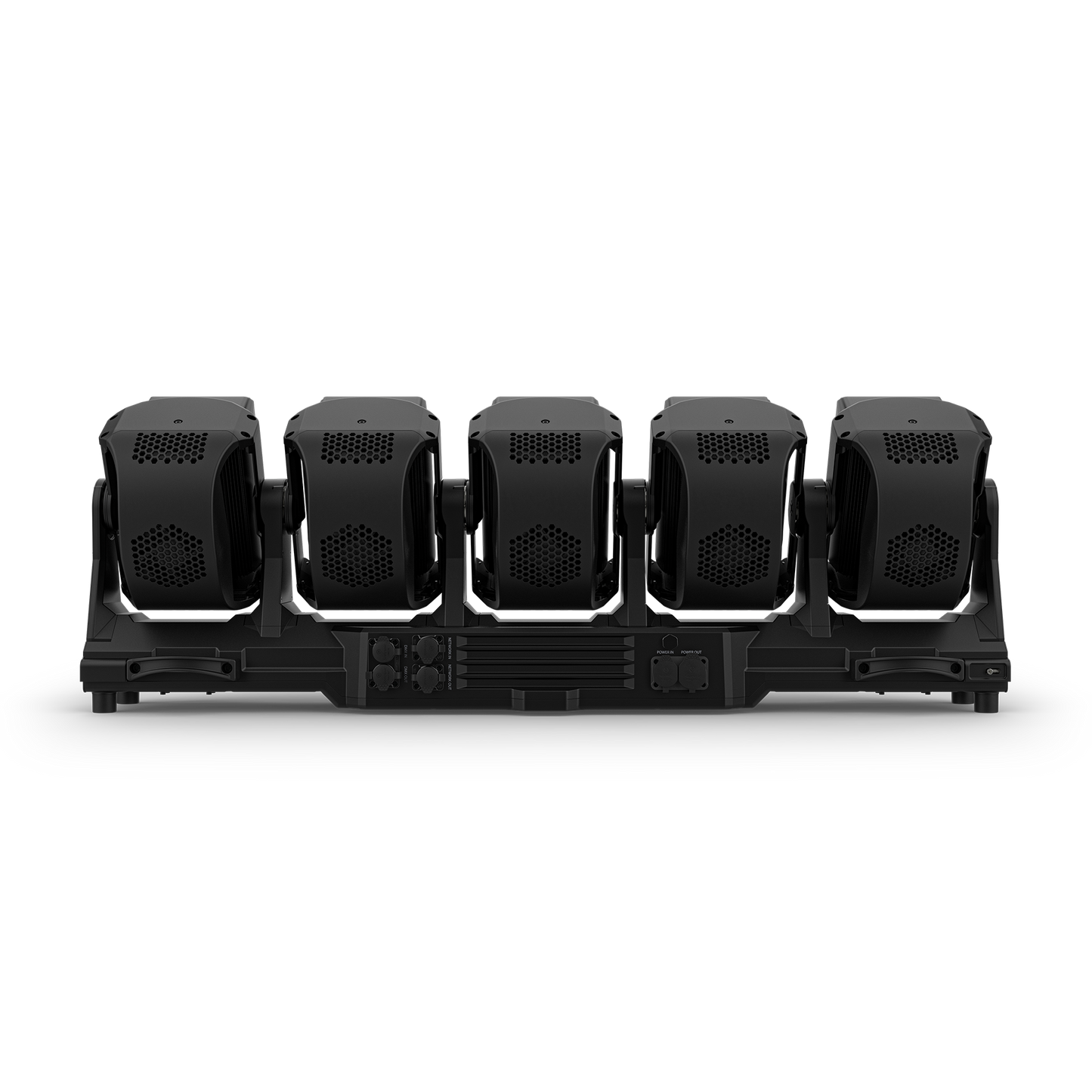

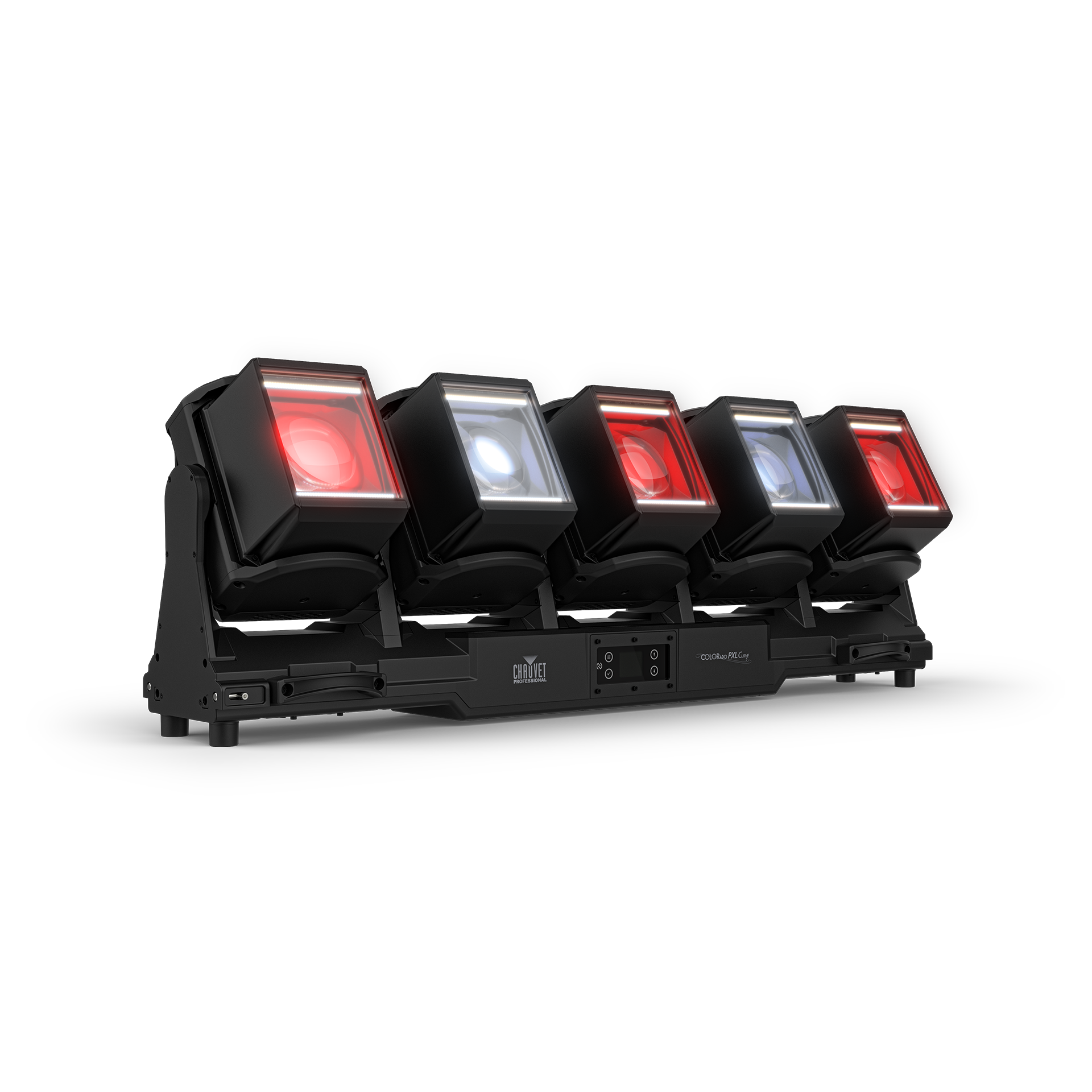

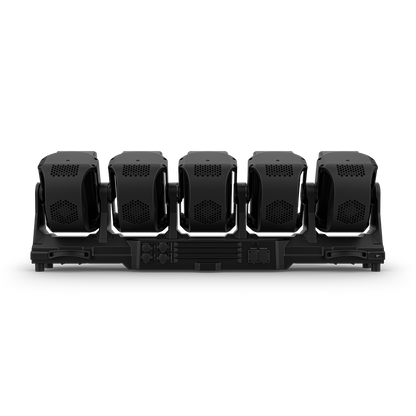

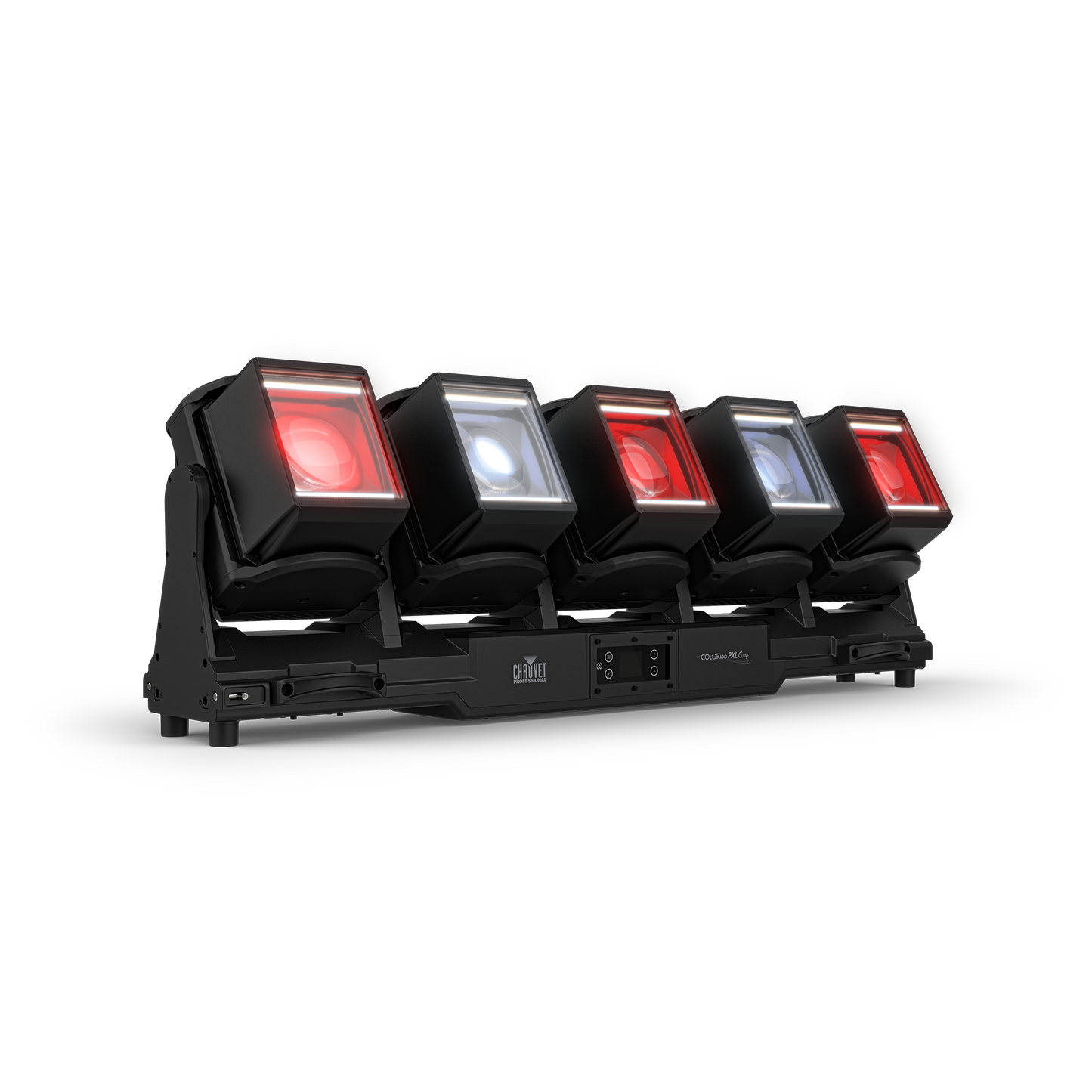

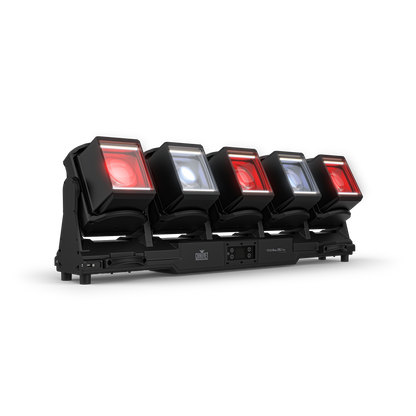

COLORado PXL Curve 5

The CHAUVET Professional COLORado PXL Curve 5 is a powerful IP65-rated motorized RGBW batten featuring five independently controlled moving heads. Each head combines a 120 W RGBW LED with motorized pan, tilt and zoom, plus dedicated warm-white and cool-white linear strobe cells. Designed for seamless pixel-mapped arrays, the fixture provides dynamic beam, wash, movement and strobe effects for touring, festivals, theatre and large-scale professional productions.

From The Manufacturer:

The COLORado PXL Curve 5 is an IP65-rated RGBW arrayable batten featuring five independent motorized heads with zoom, pan, and tilt, plus dual linear cool and warm white strobes per head for dynamic effects.

Optimized for seamless side-by-side mounting, alignment pins keep spacing consistent across linked fixtures for cohesive looks on touring stages, theatrical productions, and temporary outdoor events.

The fixture is designed for seamless pixel mapping with COLORado PXL Curve 1, while its color blending and rectangular heads match other COLORado PXL models within the rig.

Key Features:

• Professional IP65-rated motorized LED batten

• Five independently controlled moving heads

• 5 × 120 W RGBW LEDs

• Individual pixel control

• Motorized pan, tilt and zoom

• 60° pan movement per head

• 200° tilt movement per head

• Dual linear warm-white and cool-white LED strobes per head

• 8-section control of warm-white and cool-white strobe cells per head

• Electronic dimmer

• Electronic shutter and strobe

• 0–25 Hz strobe rate

• Color temperature presets from 3200–7500 K

• Seamless side-by-side mounting

• Alignment pins maintain consistent pixel pitch

• DMX512 control

• Art-Net control

• sACN control

• RDM support

• NFC enabled

• IP65-rated DMX and network connections

• Slotted Omega brackets for professional rigging

Specifications:

• Product Type: Motorized RGBW Beam / Wash / Strobe Batten

• Manufacturer: CHAUVET Professional

• Series: COLORado PXL

• Model: COLORado PXL Curve 5

• SKU: COLORADOPXLCURVE5

• Protection Rating: IP65

• Main Light Source: 5 × 120 W RGBW LEDs

• LED Life Expectancy: 50,000 Hours

• Color Temperature Range: 3200–7500 K

• Beam Angle – Spot: 8.3°

• Beam Angle – Flood: 30.4°

• Field Angle – Spot: 10.3°

• Field Angle – Flood: 115.8°

• Zoom Range: 8.3°–155.1°

• Single Head Beam Angle Without Strobe: 3.2°–30.3°

• Single Head Beam Angle With Strobe: 3.2°–32.3°

• Single Head Field Angle Without Strobe: 3.7°–38°

• Single Head Field Angle With Strobe: 3.7°–88.7°

• Total Output: 42,172 Lumens

• Spot Illuminance: 18,062 lux @ 5 m

• Flood Illuminance: 2,166 lux @ 5 m

• Pan / Tilt: 60° / 200°

• Strobe Rate: 0–25 Hz

• Dimmer: Electronic

• Control Protocols: DMX / Art-Net / sACN / RDM

• DMX Channels: 120 / 155 / 195 / 355

• Control Personalities: 4

• Data Connections: IP65 5-Pin XLR / Seetronic etherCON IP65

• Power Input: Seetronic Powercon IP65

• Power Output: Seetronic Powercon IP65

• Selectable PWM: 600 / 1200 / 2000 / 4000 / 6000 / 15000 Hz

Applications:

• Concerts

• Touring productions

• Festivals

• Arena productions

• Theatre

• Television

• Live events

• Outdoor productions

• Pixel-mapped lighting arrays

• Moving-light arrays

• Large-scale stage designs

• Professional lighting installations

Included Accessories:

• COLORado PXL Curve 5 Fixture

• Seetronic Powercon IP65 Power Cord

• 2 × Omega Brackets

Compatible Accessories:

• CTC-50HC Clamp

• CTC-50HCN Narrow Clamp

• CTC-SLC Lightweight Clamp

• CTC-50G Trigger Clamp

• SC08 Safety Cable

• RIGLINKTR1

• RIGLINK PowerKON Cables

• RIGLINK etherKON Cables

• RIGLINKDMX 5-Pin DMX

• RIGLINKCOMBO

• POWERSTREAM4IP

• CPRACK

Size:

• 999 × 225 × 343 mm

• 39.33 × 8.86 × 13.50 in

Weight:

• 32.4 kg

• 71.4 lb

Electrical / Thermal:

• Input Voltage: 100–240 VAC, 50/60 Hz

• Power Supply: Auto-Ranging

• Power Consumption @ 120 V: 1136 W / 9.49 A

• Power Consumption @ 208 V: 1105 W / 5.44 A

• Power Consumption @ 230 V: 1113 W / 4.87 A

• Power Linking @ 120 V: 1 Unit

• Power Linking @ 208 V: 2 Units

• Power Linking @ 230 V: 2 Units

• Protection Rating: IP65 – Temporary Outdoor / Wet Use

• Certifications: CE / MET / UKCA / FCC
