COLORado Solo Batten 4

From the Manufacturer

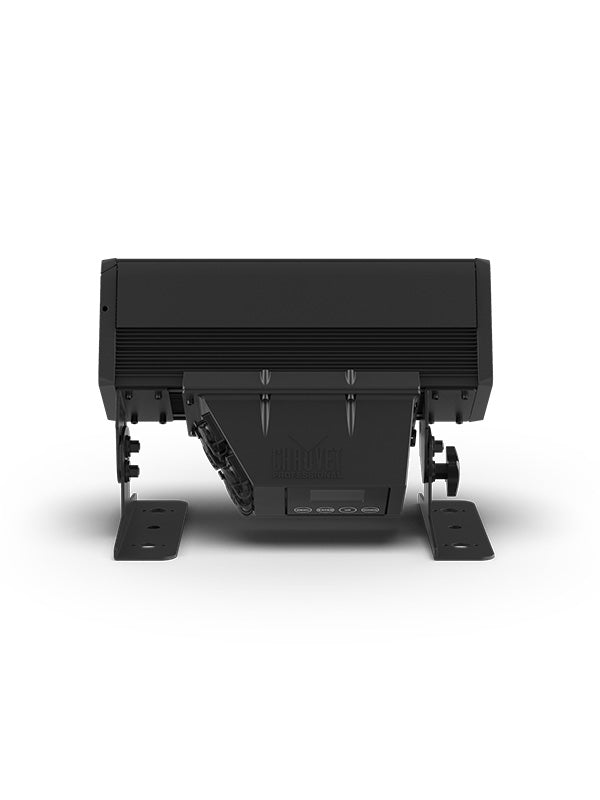

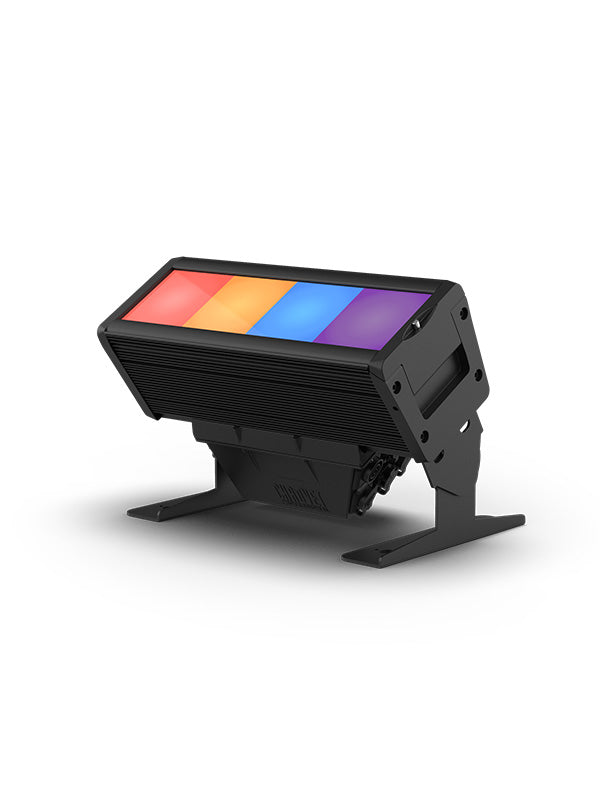

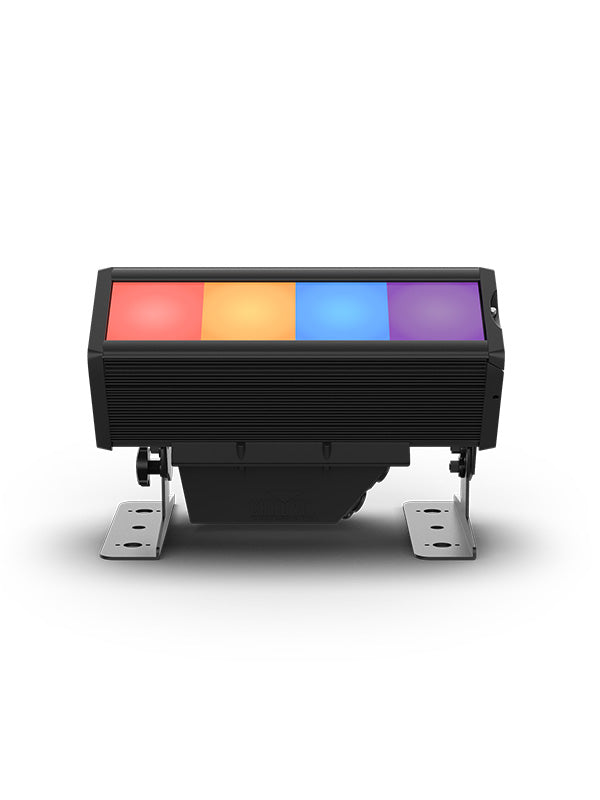

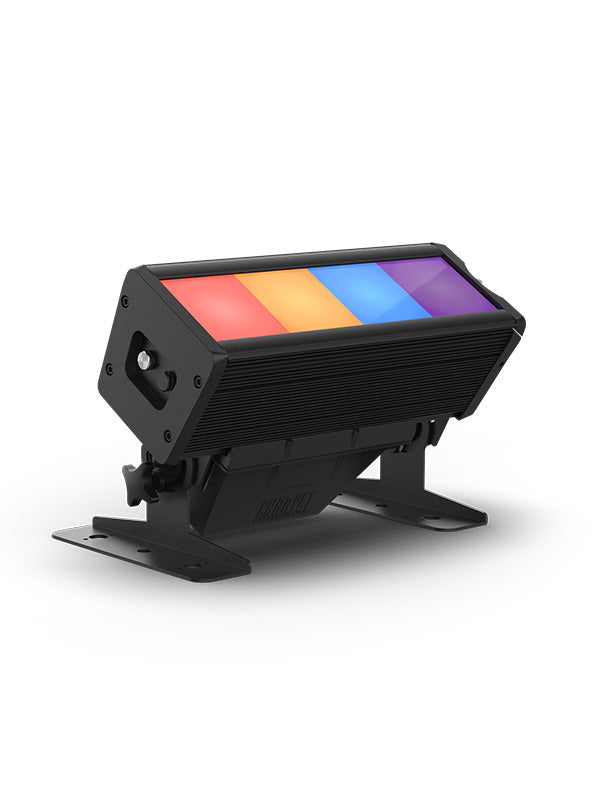

COLORado Solo Batten 4 is a unique RGBAW 4-cell LED batten with seamless end-to-end color mixing. This compact, multi-purpose fixture has four completely homogenized, individually-controlled square sections that project smooth color-mixing without separation or dimmed lens corners. This versatile batten is IP65-rated and can be used as a wash or for pixel-mappable eye-candy effects. It also compliments our COLORado Solo Batten perfectly. This small but robust fixture was built for touring, festivals, installations, and theatrical productions. This unit includes IP-rated power, DMX, and Ethernet connections, as well as a large, password-protected display.

Features

• RGBAW 4-cell LED Batten with seamless end-to-end color for wash or pixel mapping
• Completely homogenized color with no separation or dimmed lens corners
• All-environment operation with IP rated power, DMX, and Ethernet connections
• Color temperature presets, from 1800K to 8000 K
• Selectable, smooth dimming curves for programming versatility
• Built for touring, live event, television, and theatrical productions
• Large, easy-to-navigate display with password protection

Specifications

Optical

• Light Source: 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancy
• Color Temperature (range): 1800 to 8000 K
• CRI (3200 K): 77.2
• Installed Optics: 18°
• Beam Angle (Horizontal): 18°
• Beam Angle (Horizontal w/ Filter): 35°
• Beam Angle (Vertical): 17°
• Beam Angle (Vertical w/ Filter): 16°
• Field Angle (Horizontal): 34°
• Field Angle (Horizontal w / Filter): 66°
• Field Angle (Vertical): 30°
• Field Angle (Vertical w / Filter): 32°
• Lumens: 3,730
• Illuminance (total): 1,270 lux @ 5 m
• Illuminance w/ Filter (total): 432 lux @ 5 m
• Selectable PWM: 600, 1,200, 2,000, 4,000, 6,000, 25,000

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 14.65 x 9.06 x 9.96 in (372 x 230 x 253 mm)
• Dimensions (shipping size): 17.32 x 8.85 x 13.58 in (440 x 225 x 345 mm)
• Weight:17.2 lb (7.8 kg)
• Weight (shipping weight): 20.50 lb (9.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 13.5 x 3.81 in (342.9 x 97 mm)

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDM
• DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
• DMX Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
• Art-Net Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
• Art-Net Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
• Modes/Personalities: 19 personalities

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 13 units @ 120 V; 24 units @ 208 V; 25 units @ 230 V
• Power and Current: 114 W, 0.990 A @ 120 V, 60 Hz [4.2 A inrush]
• Power and Current: 116 W, 0.558 A @ 208 V, 60 Hz [3.60 A inrush]
• Power and Current: 116 W, 0.538 A @ 230 V, 50 Hz [2.6 A inrush]
• Power and Current (resting): 10 W, 0.09 A @ 120 V, 60 Hz
• Power and Current (resting): 23 W, 0.11 A @ 208 V, 60 Hz
• Power and Current (resting): 26 W, 0.11 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• COLORADO SOLO BATTEN 4, with glare shield
• Seetronic Powerkon IP65 power cord
• Wall Wash Filter
• Omega Brackets
• Quick Reference Guide
