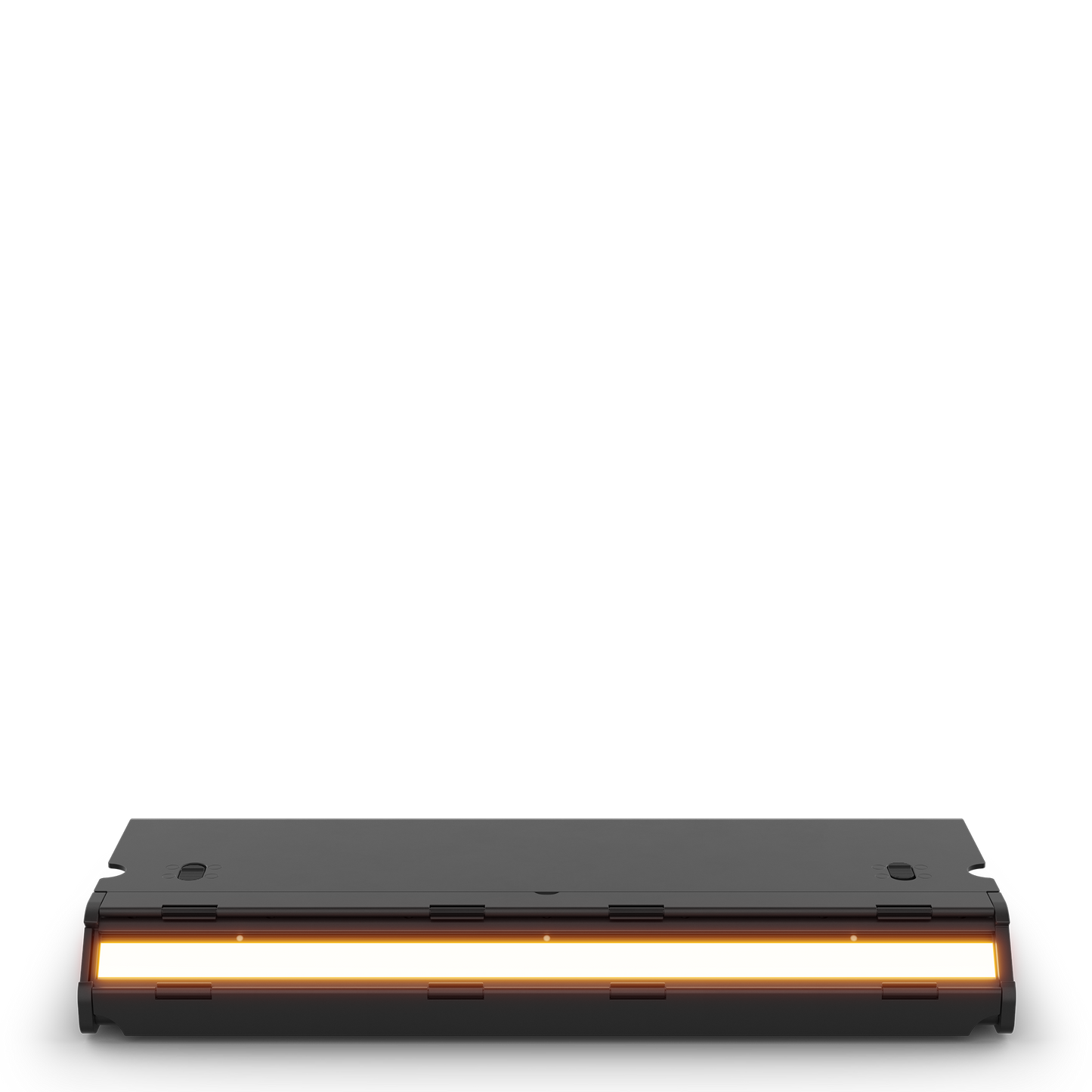

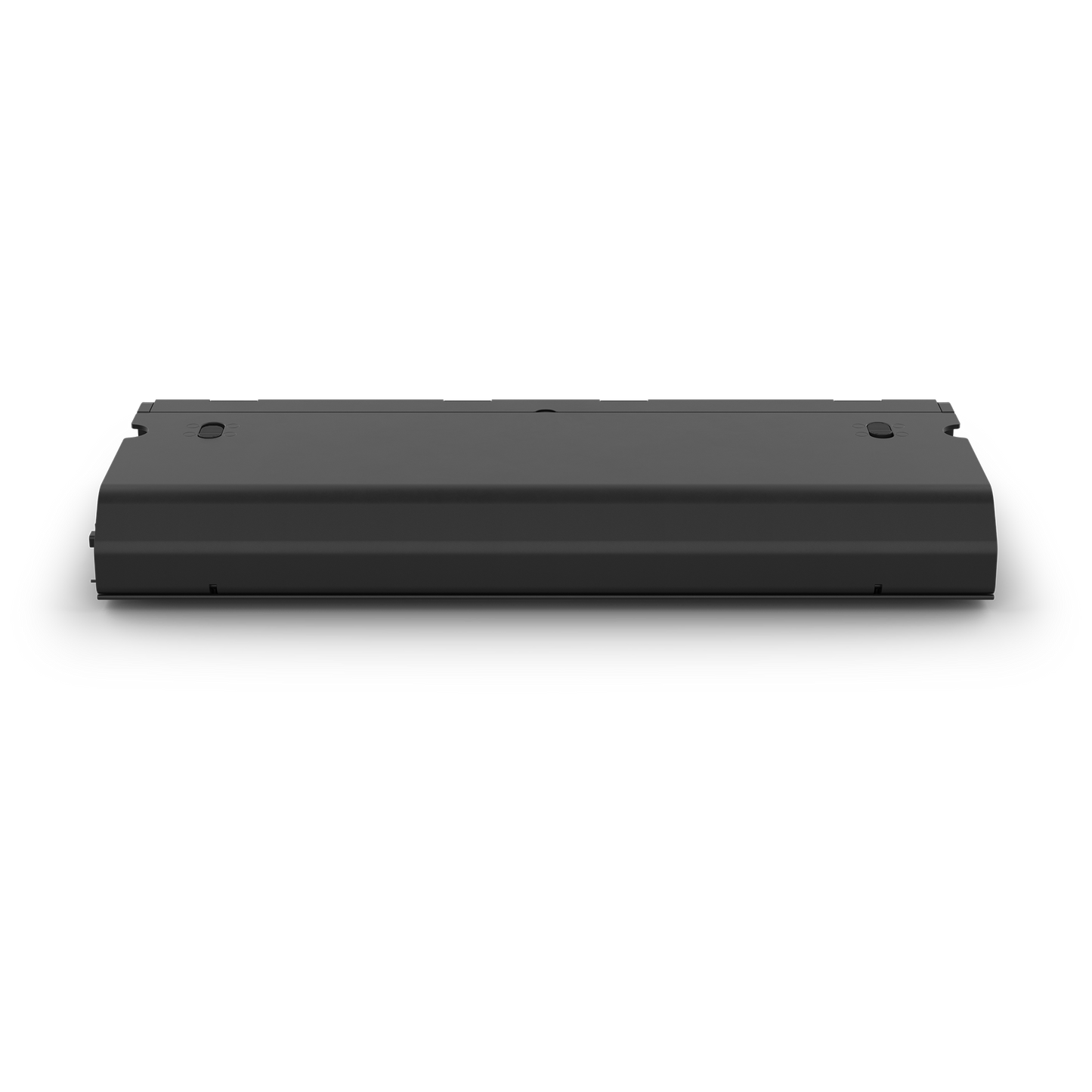

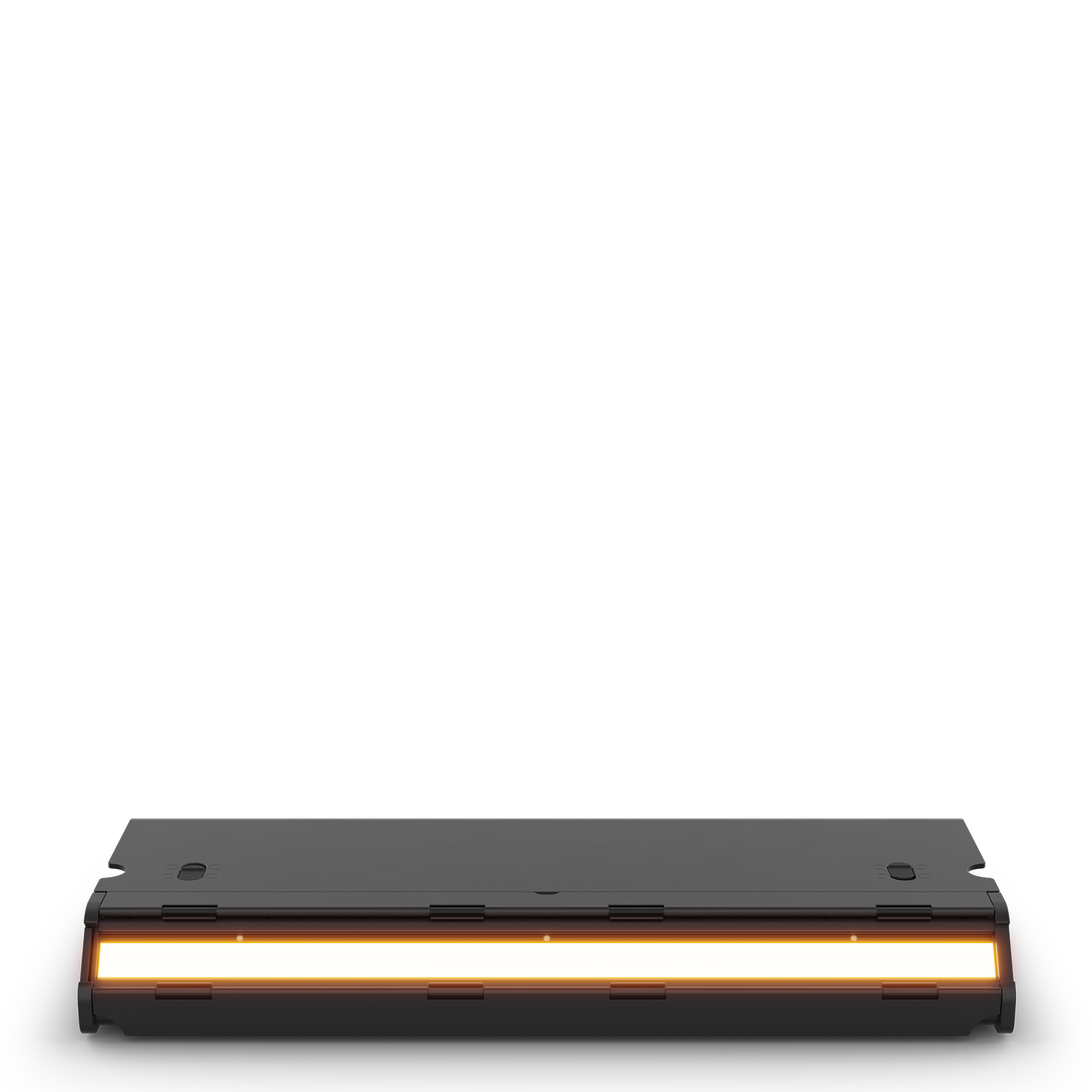

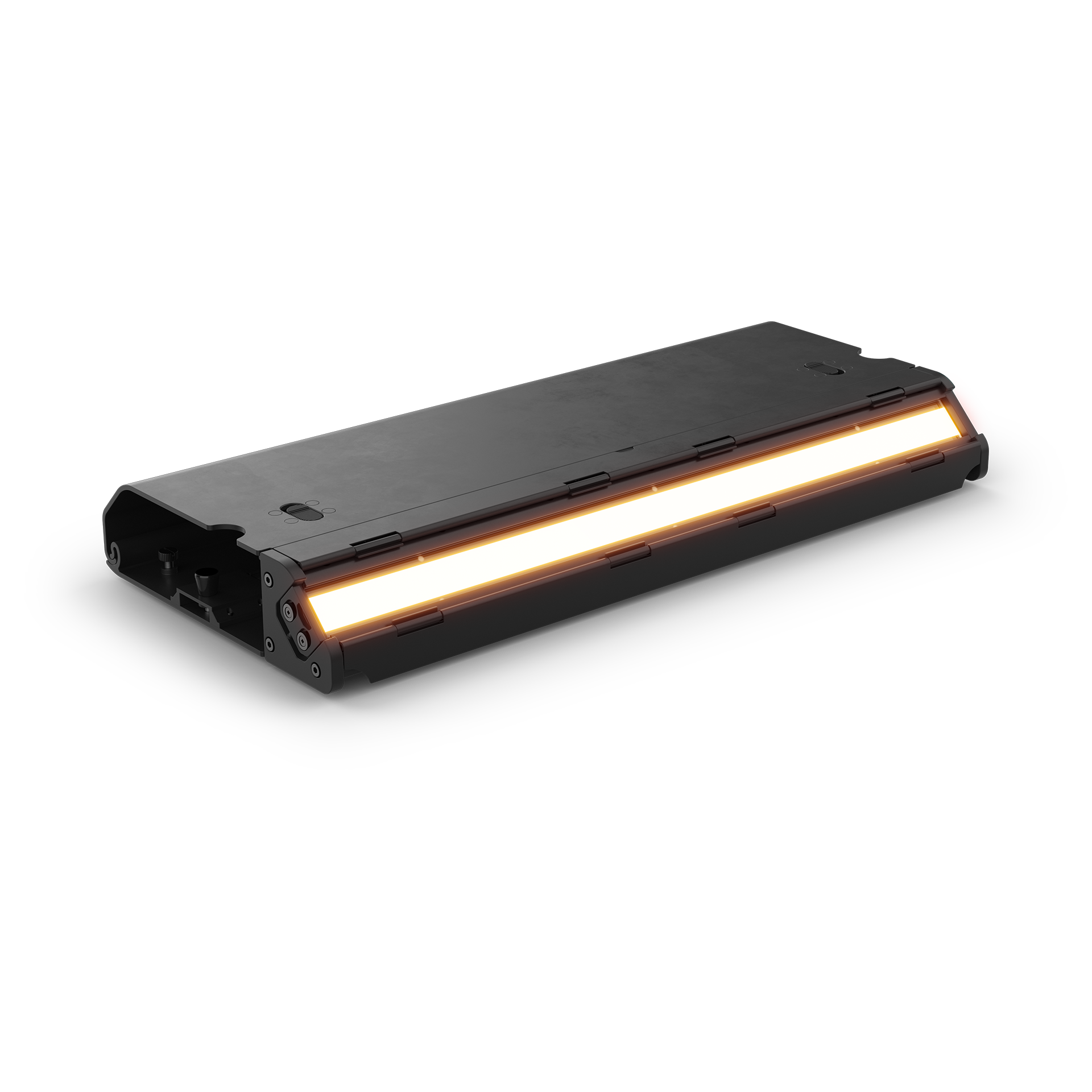

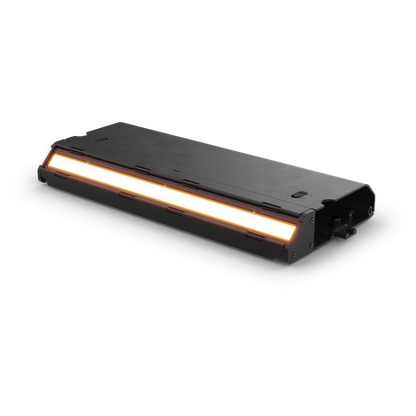

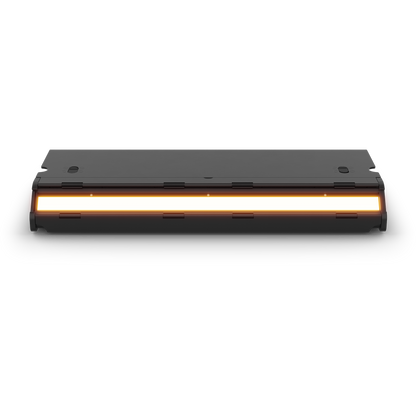

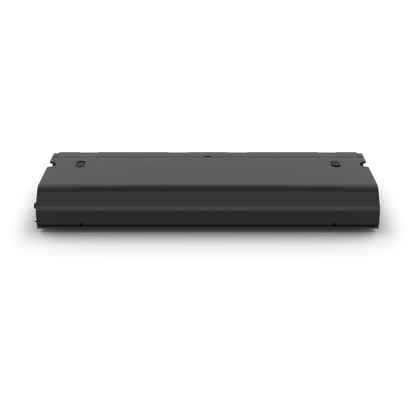

COLORado Solo Edge 1

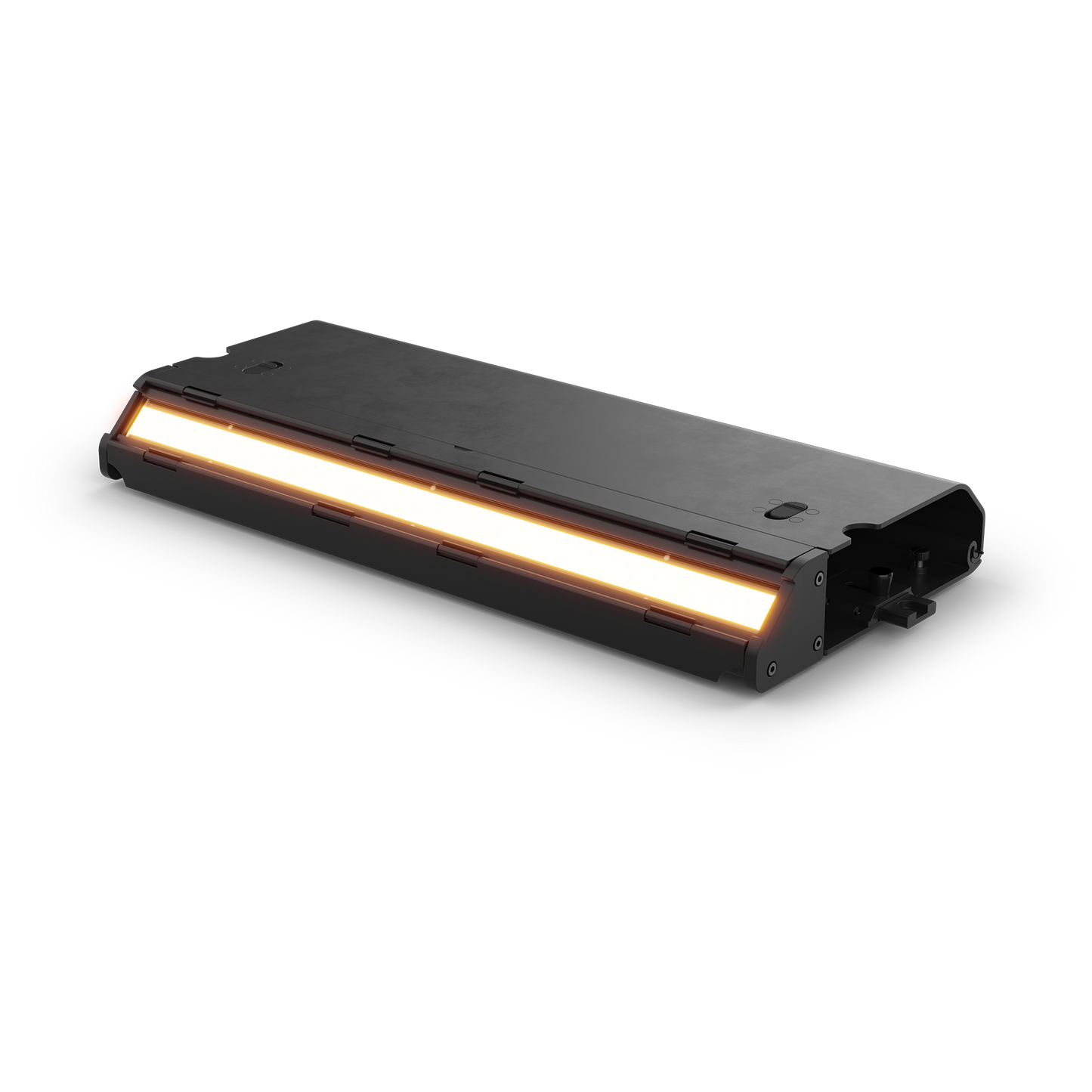

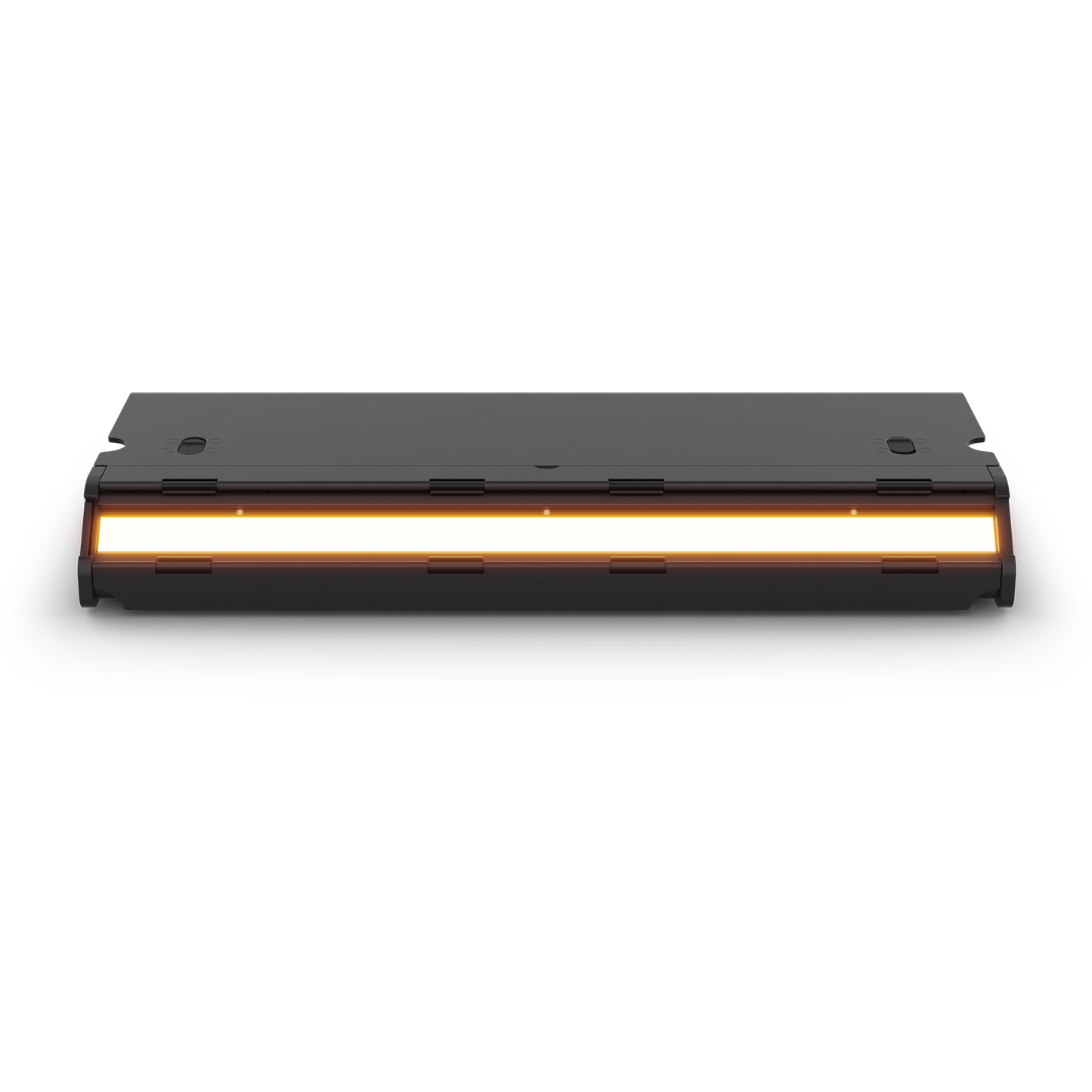

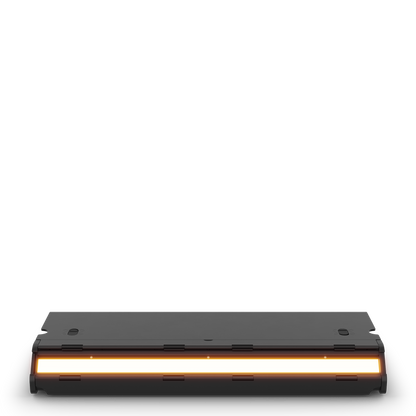

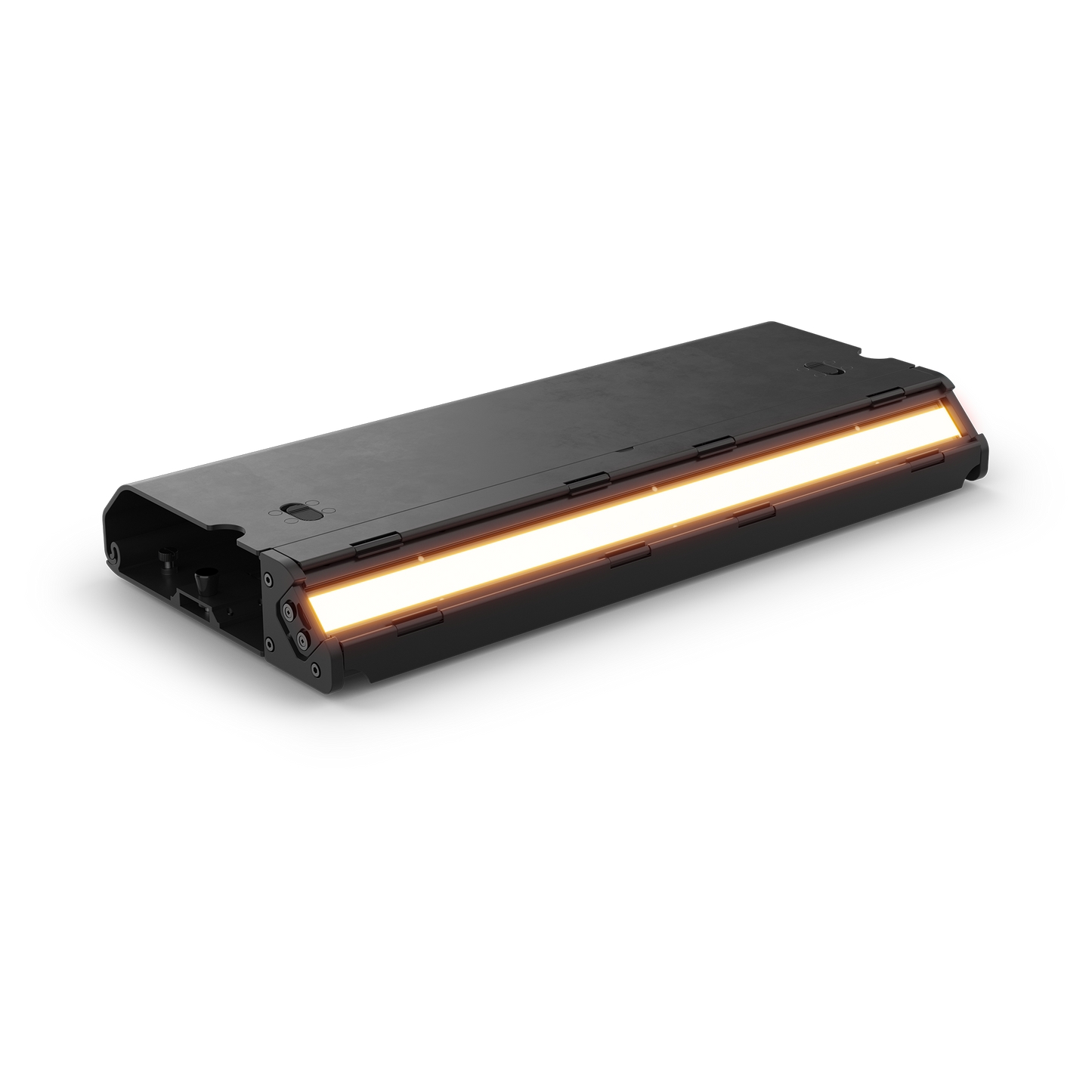

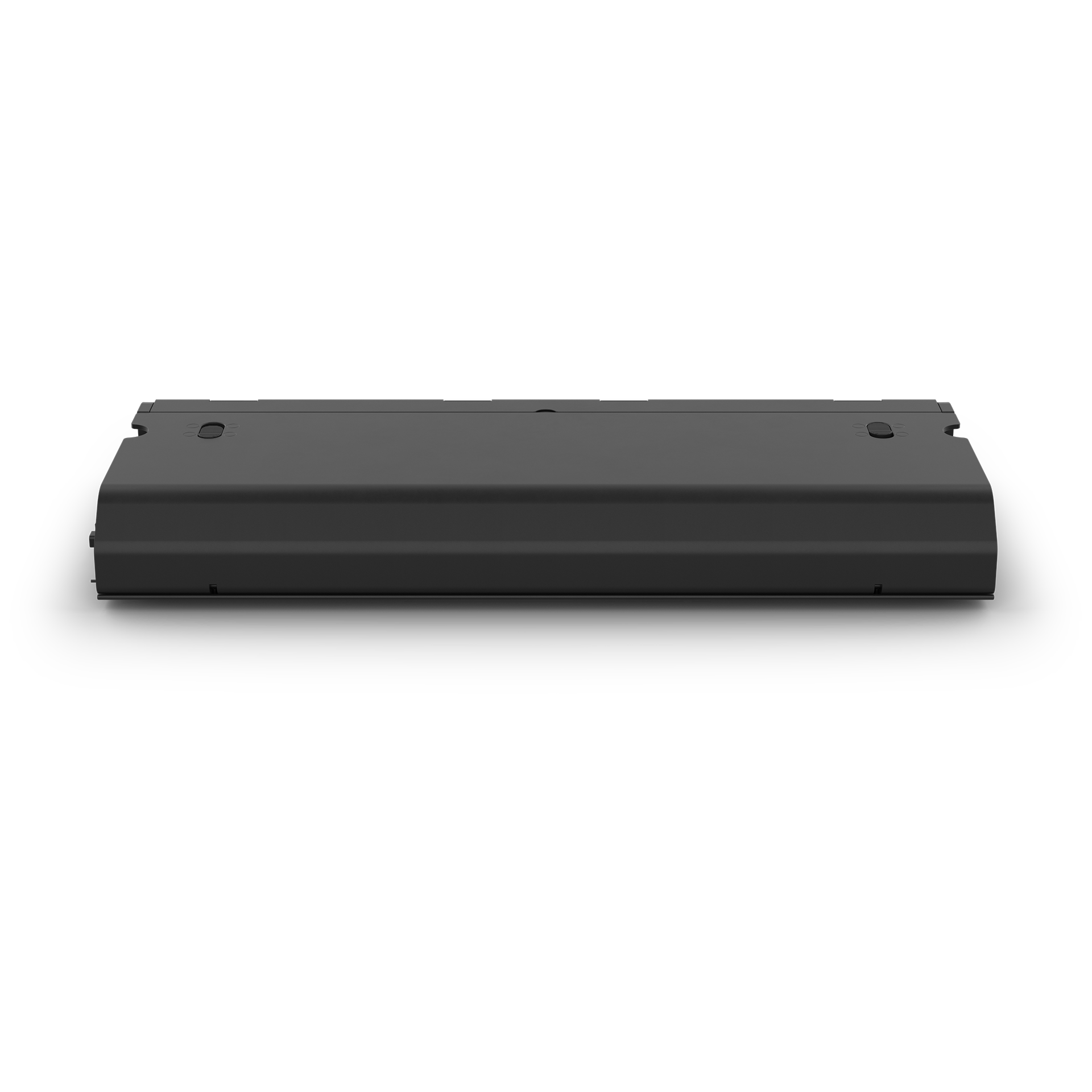

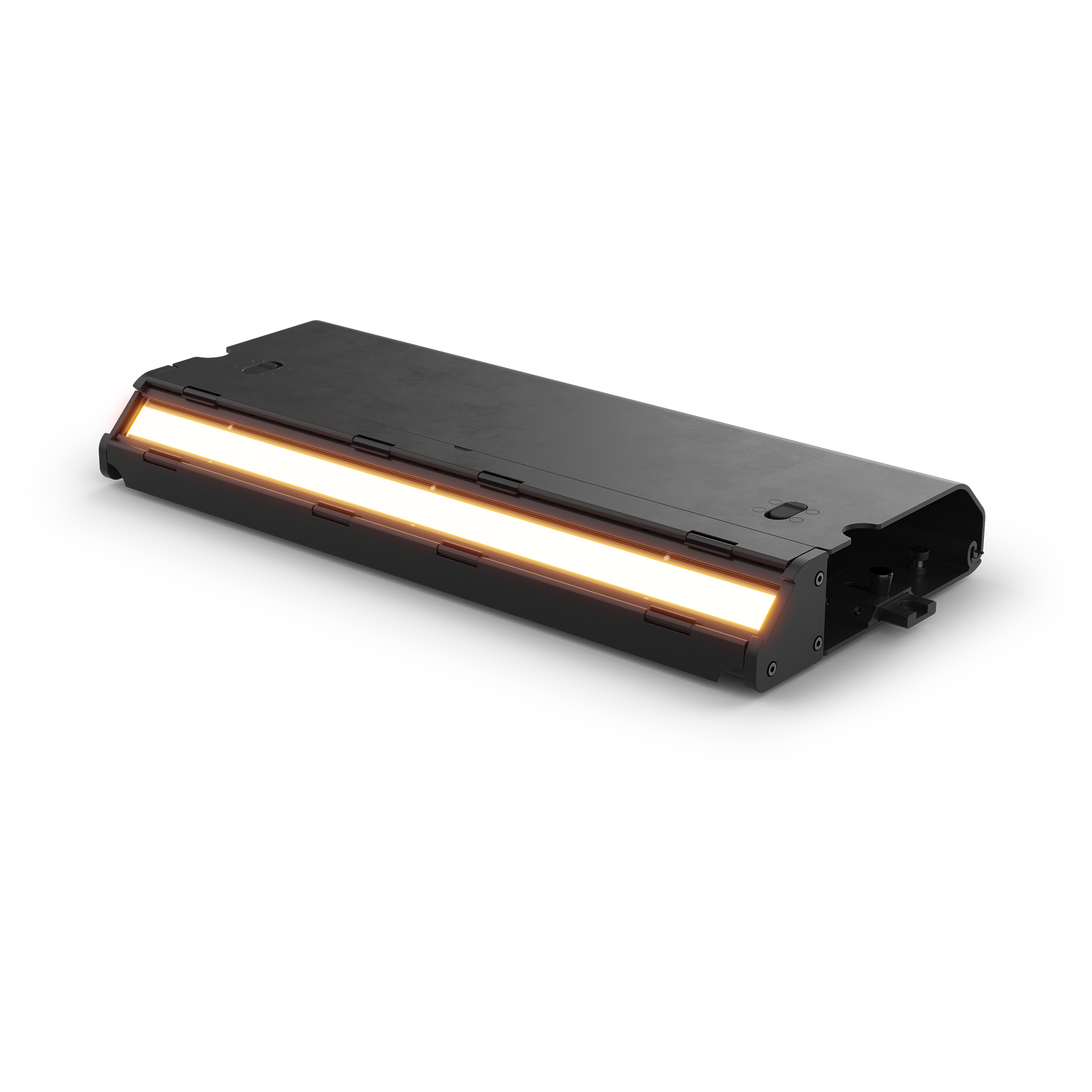

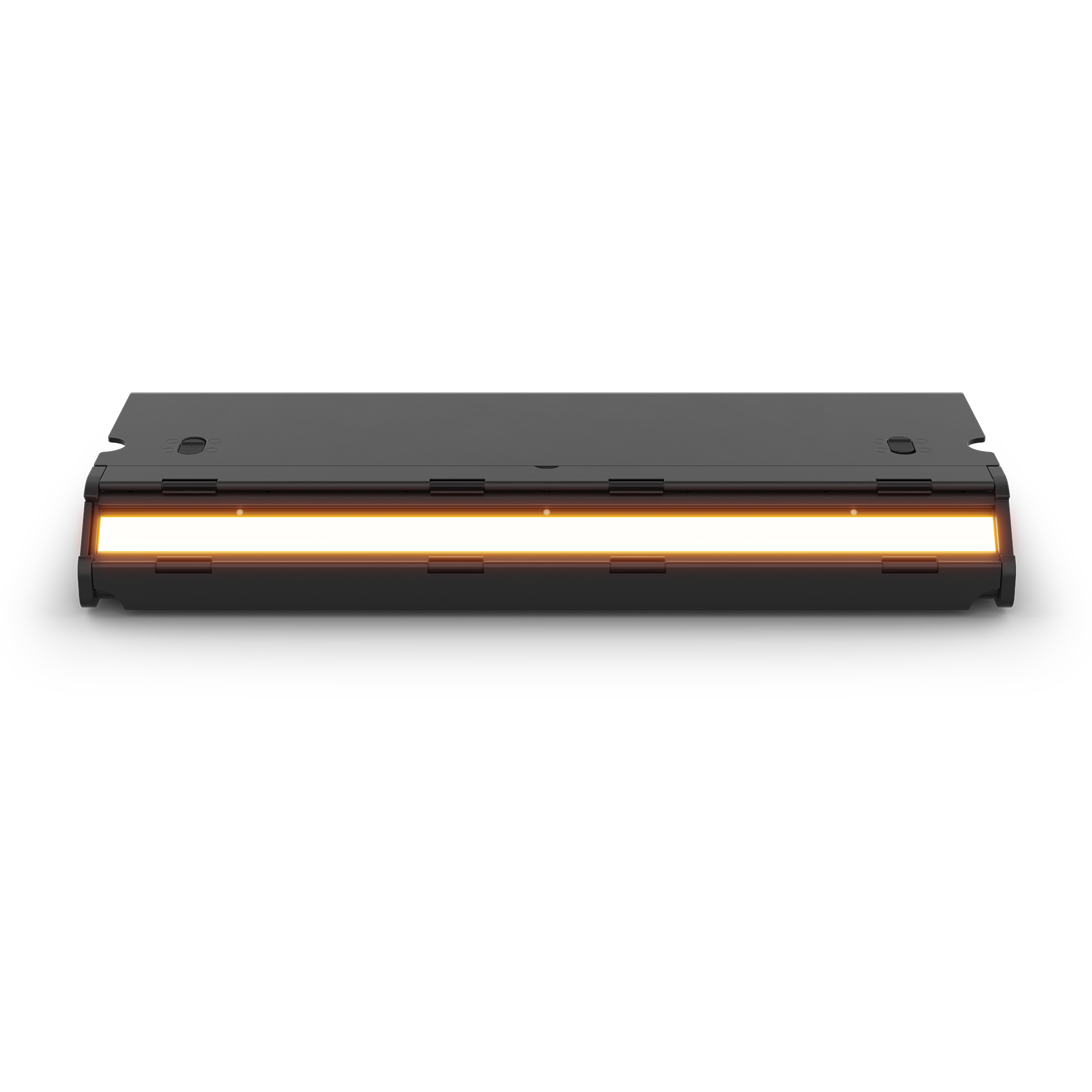

The CHAUVET Professional COLORado Solo Edge 1 is a low-profile, 0.5-meter IP65-rated RGBwWL LED footlight designed for seamless end-to-end stage-edge lighting in touring, theatre, and broadcast applications.

From the Manufacturer

The COLORado Solo Edge 1 projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output with no distracting hot spots. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off. Its IP65-rated, low-profile housing delivers demanding indoor or temporary outdoor stage performance while staying visually unobtrusive — designed for productions where clean aesthetics are paramount.

Features

• Single-source lens produces smooth, even output with no distracting points of light
• Included stealth filter helps the fixture visually disappear when not in use
• Fully controllable RGB marker lights provide visual cues for performers or clearly define stage boundaries

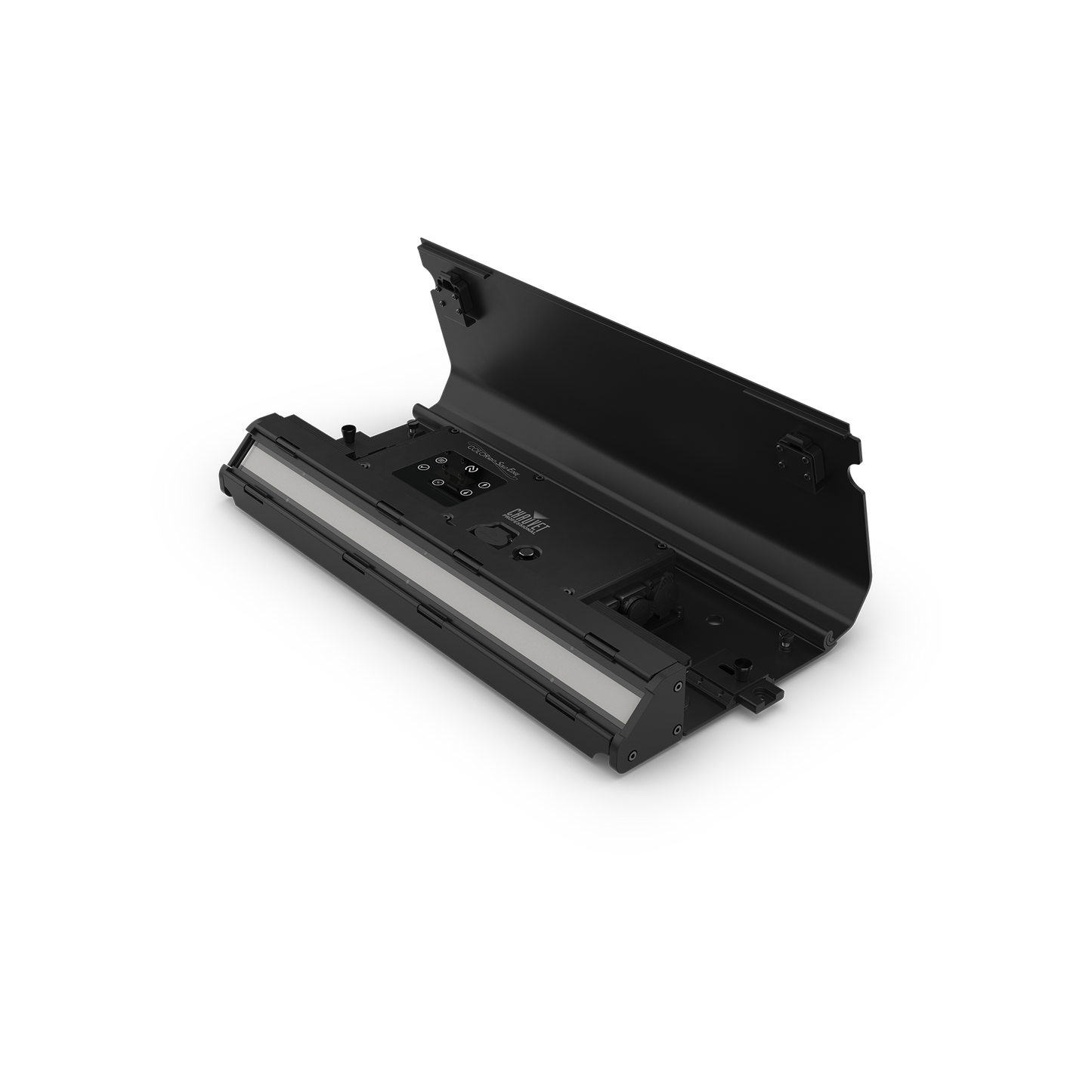

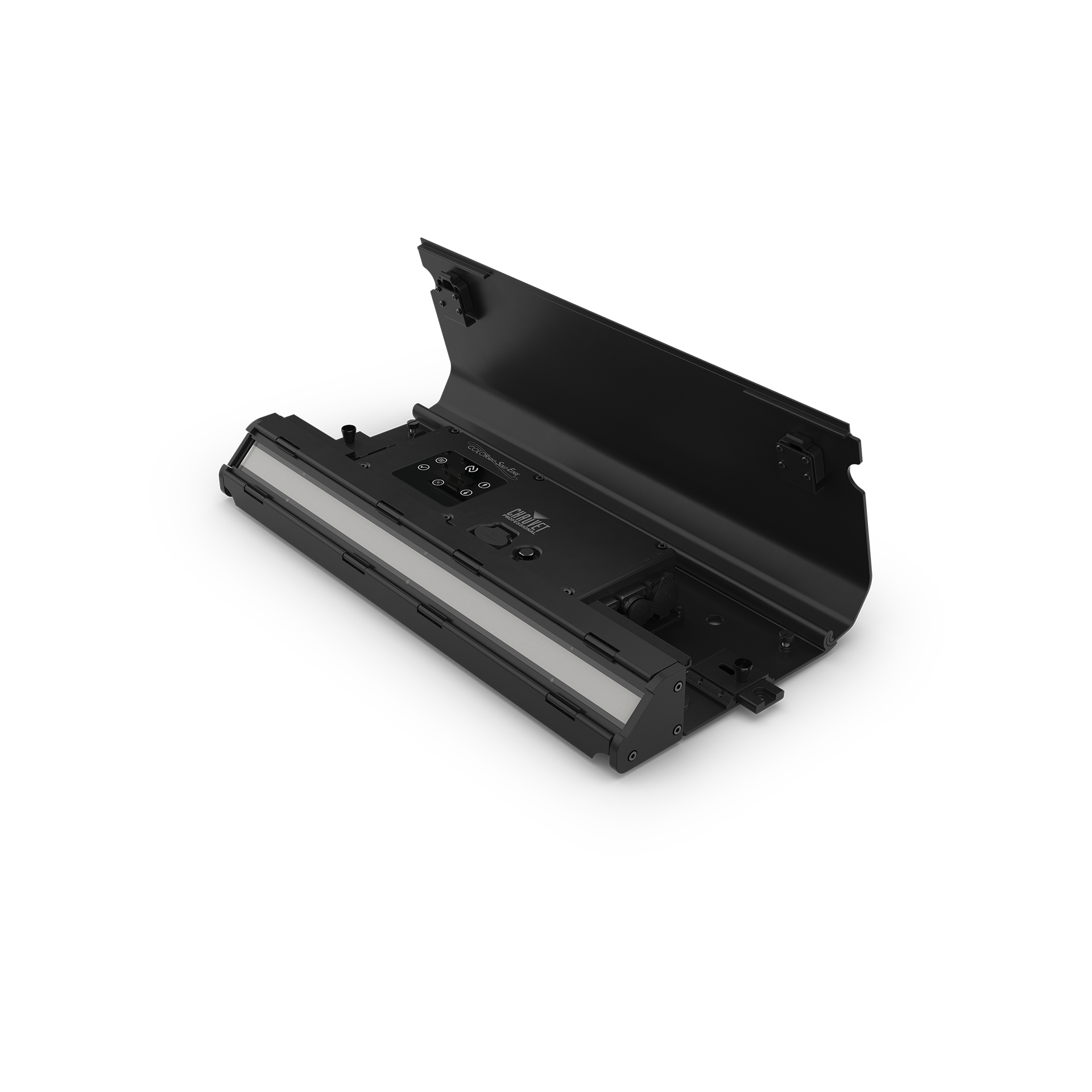

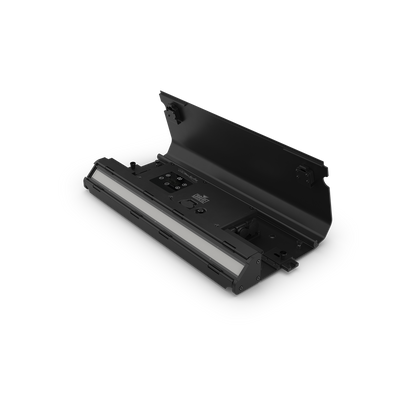

• End-to-end design with covered display eliminates gaps and conceals cables for a clean look
• IP65-rated housing built for demanding indoor and temporary outdoor environments
• 56 RGBwWL LEDs deliver a full color spectrum and high-CRI white light (CRI 93.1 @ 3200K)
• Color temperature range from 2800 to 8000K with color temperature presets
• Electronic dimmer and strobe with 4 dim modes and 4 dim curves
• Art-Net, sACN, DMX, and RDM control with 22 DMX personalities
• Auto-ranging power input (100–240 VAC) with power-linking support for up to 21 units
• Recommended use: Concert & touring, theatre, broadcast, stage-edge and footlight applications

Specifications

Optical

• Light Source (Primary): 56 LEDs (Quintuple-color RGBwWL)
• Light Source (RGB Markers): 6 LEDs (Tri-color RGB)
• Color Temperature Range: 2800 to 8000 K
• Color Temperature (at full): 6516 K
• CRI @ 3200K: 93.1
• Beam Angle (H / V): 118.2° / 120.1°  |  With Stealth Filter: 88.4° / 89.2°
• Field Angle (H / V): 154.4° / 155.2°  |  With Stealth Filter: 139.1° / 128.8°
• Lumens: 6,988 (without stealth filter) / 1,731 (with stealth filter)
• Illuminance: 107 lux @ 5 m (without stealth filter) / 37 lux @ 5 m (with stealth filter)

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: Yes

Construction

• Dimensions: 19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)
• Weight: 12.52 lb (5.68 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy and aluminum die-cast
• IP Rating: IP65

Connections

• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB, Ethernet (RJ45)

Control

• Control Protocol: Art-Net, sACN, DMX, RDM
• DMX Channels (1 Cell): 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14, or 21
• DMX Channels (2 Cell): 8, 9, 9, 10, 12, 19, 21, 22, 23, or 37
• Personalities: 22

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 126 W @ 120 V / 125 W @ 208 V / 125 W @ 230 V
• Power Linking: 11 units @ 120 V  |  19 units @ 208 V  |  21 units @ 230 V

Certifications

• Compliance: CE, MET, RoHS
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)

Optional Accessories

• CTC-50HC – Professional Clamp
• CTC-50HCN – Professional Clamp, Narrow Profile
• RIGLINK TR1 Cables
• RIGLINK IP65 DMX Cables
• RIGLINK IP Network Cables

What's in the Box

• COLORado Solo Edge 1
• Seetronic Powerkon IP65 power cable
• Power and data linking cables
• Stealth Filter
• 2x Omega bracket with mounting hardware
