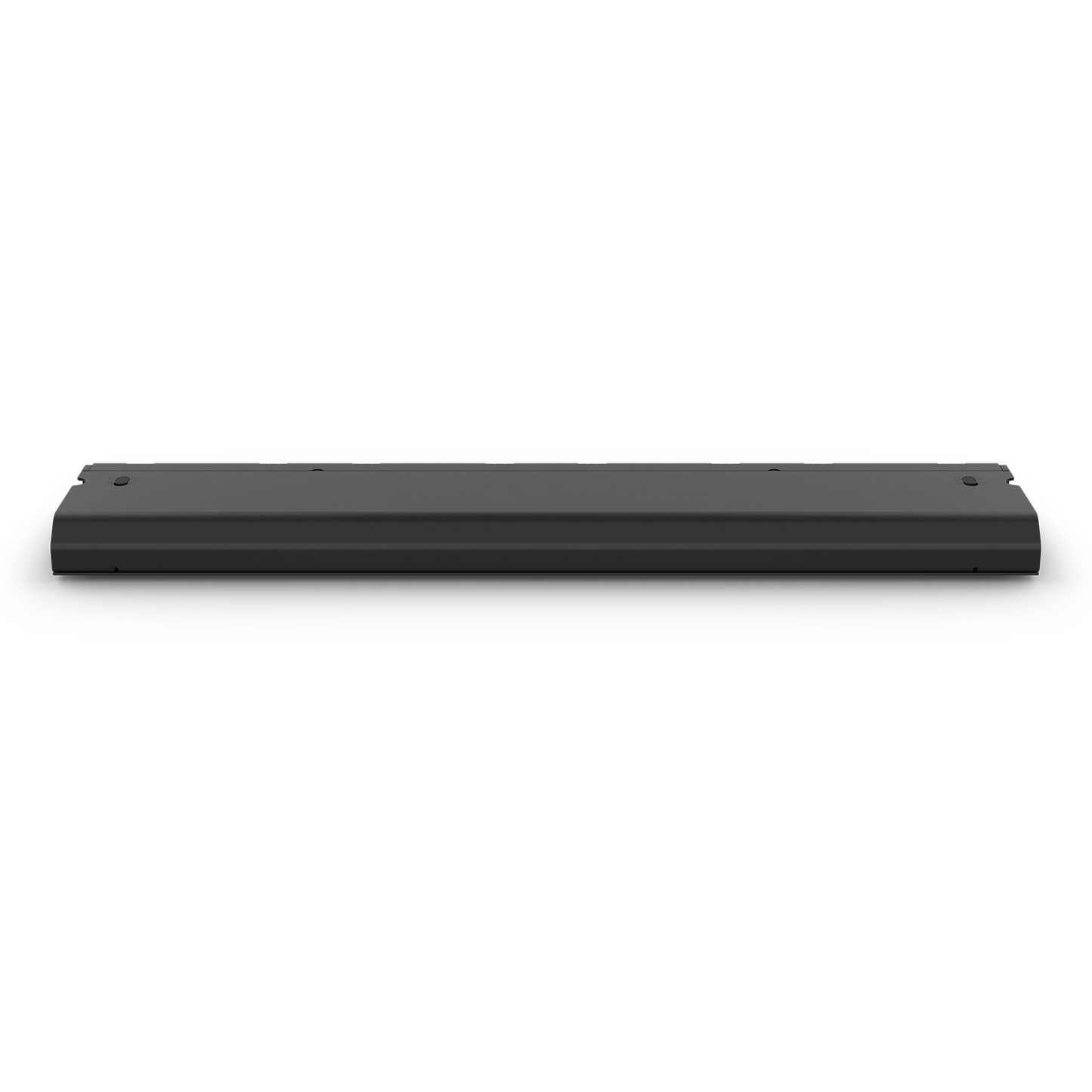

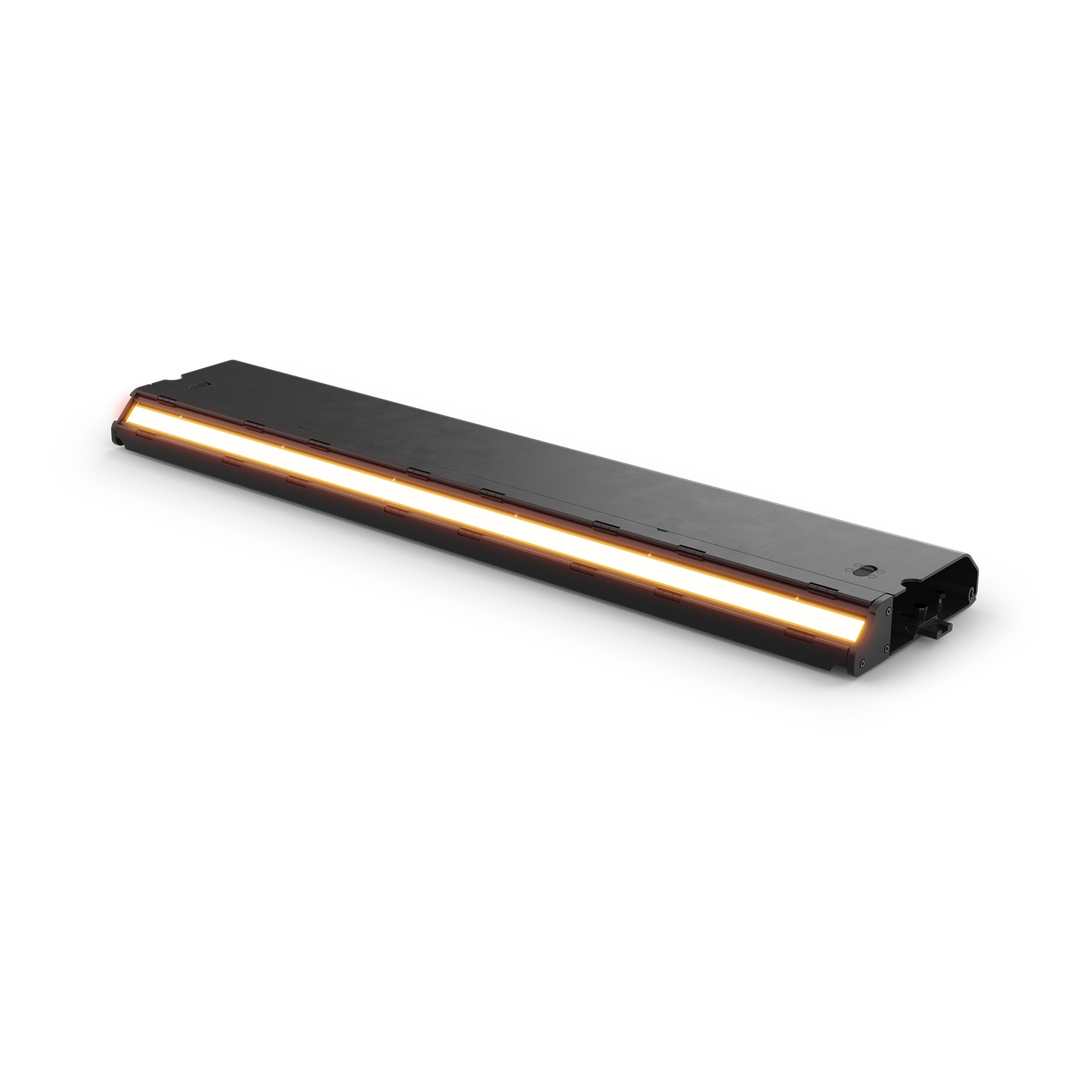

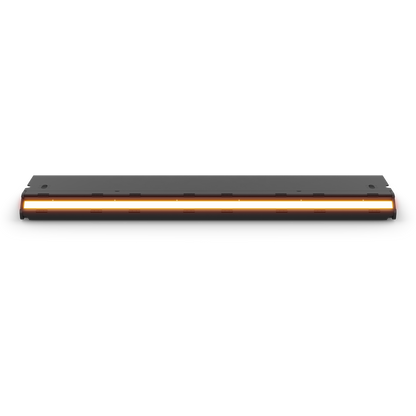

COLORado Solo Edge 3

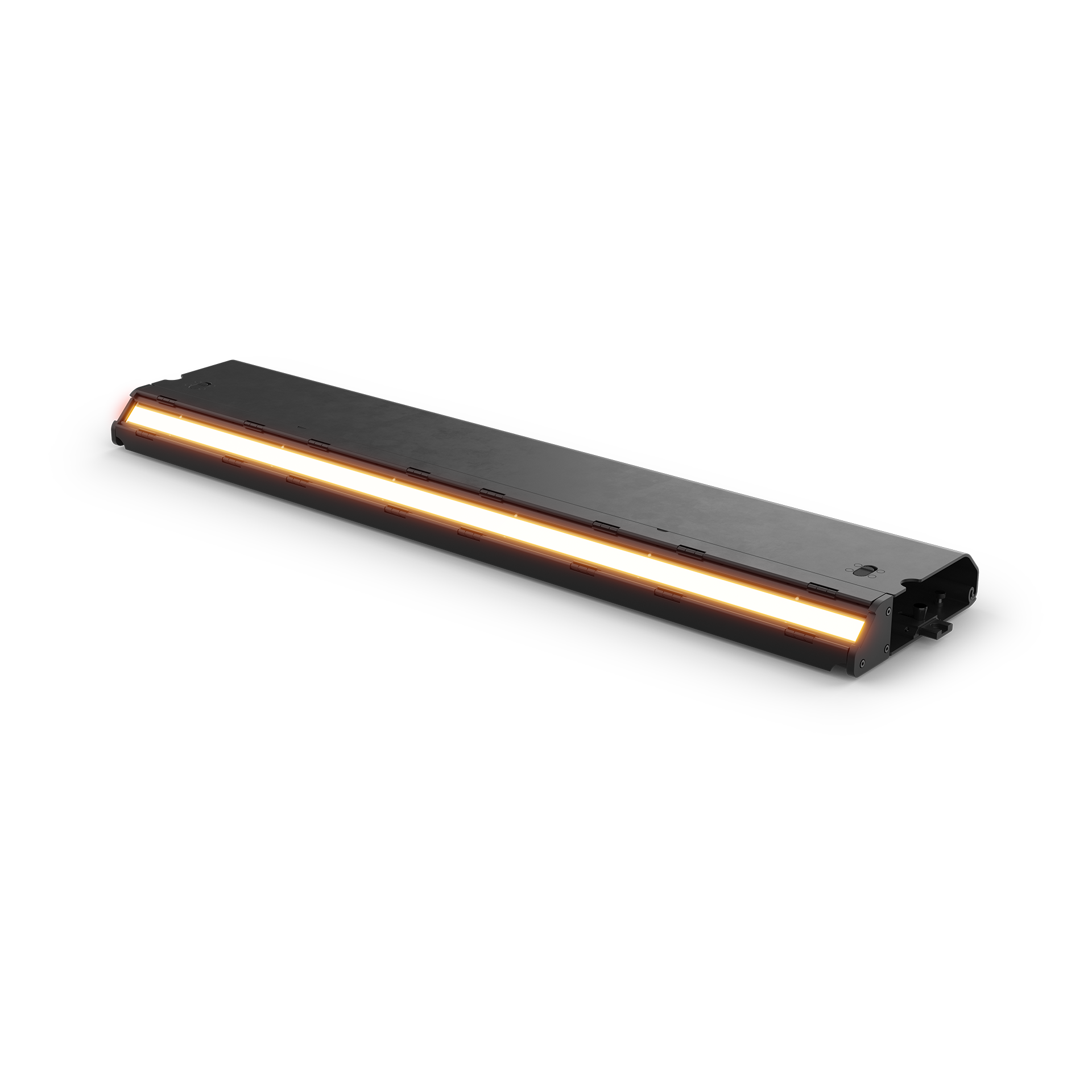

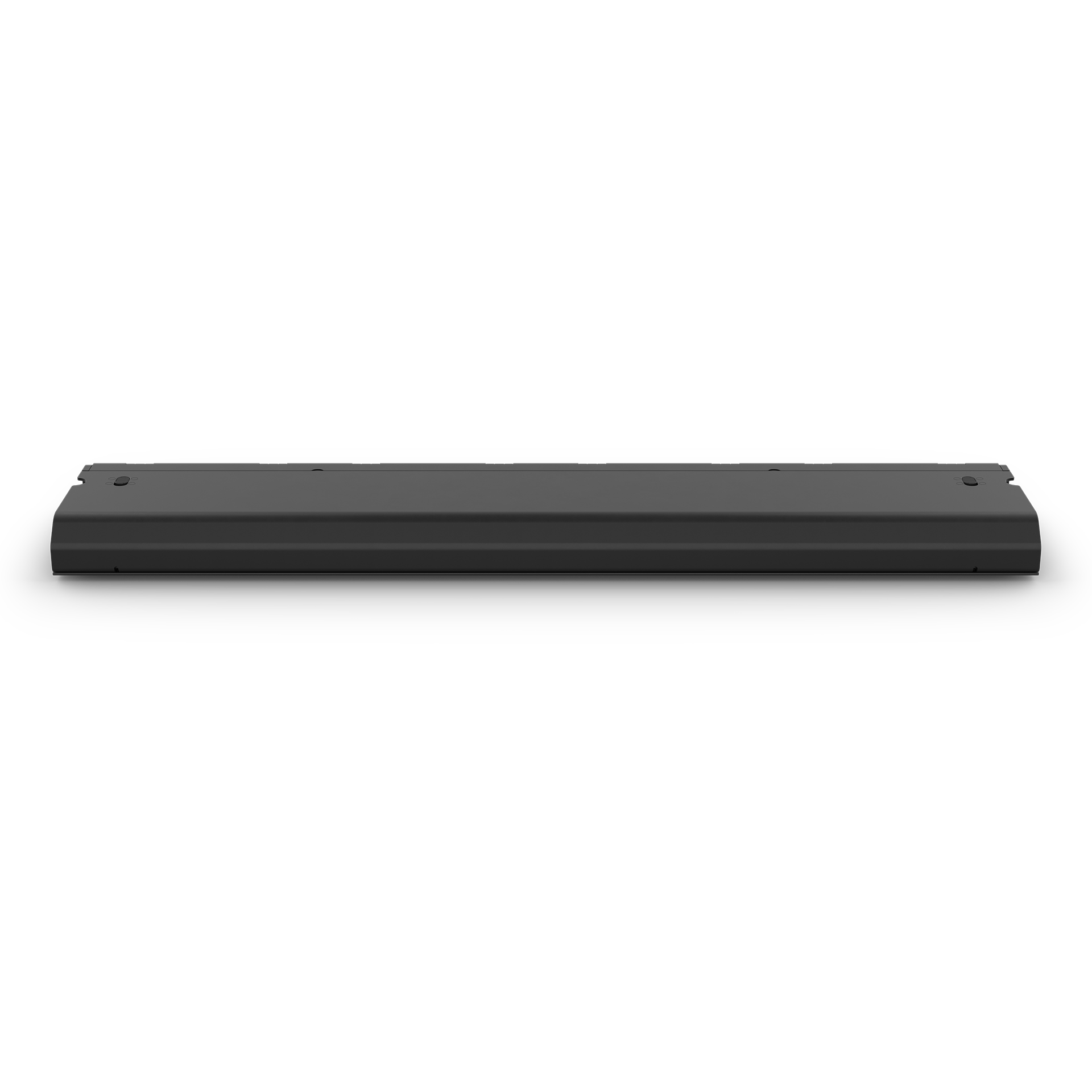

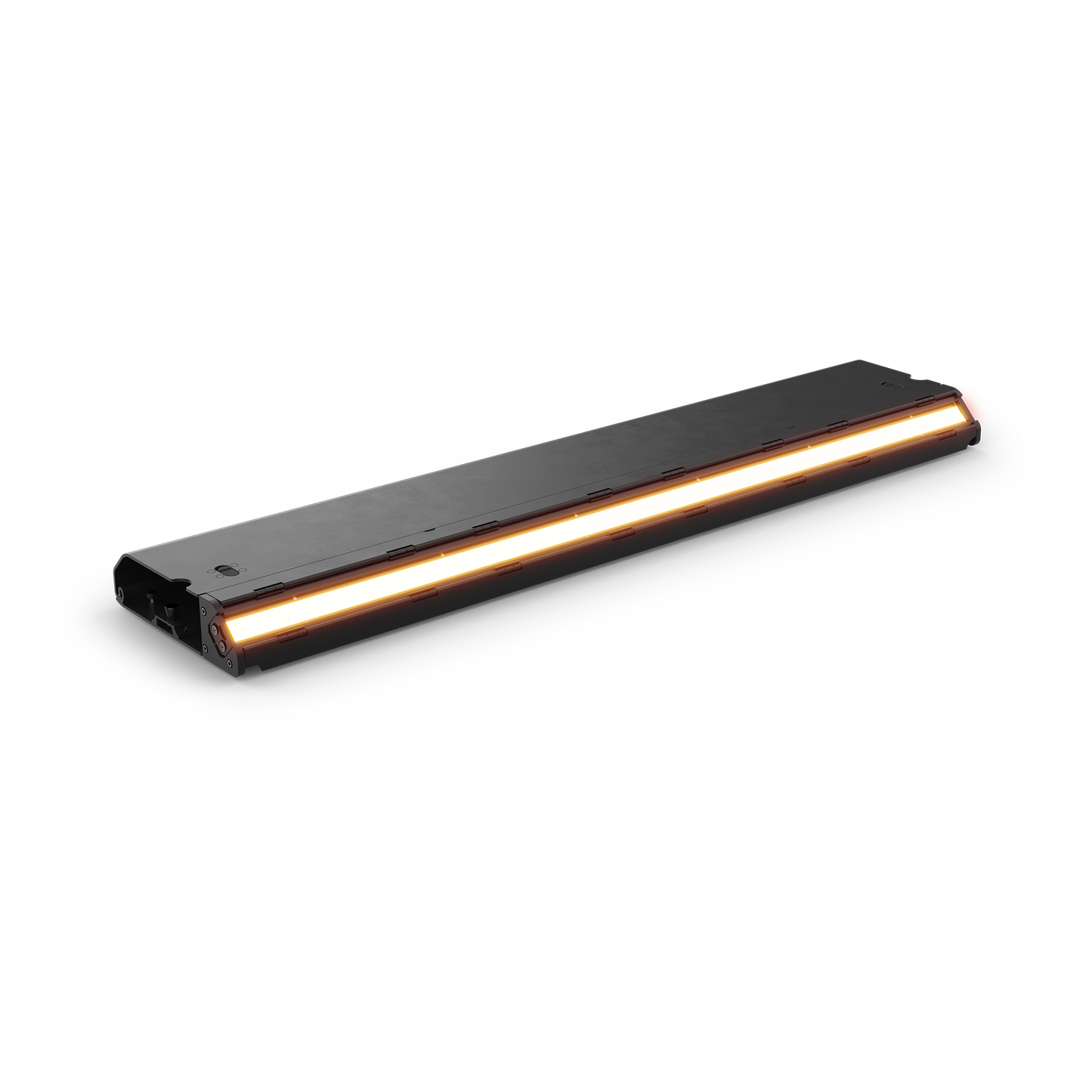

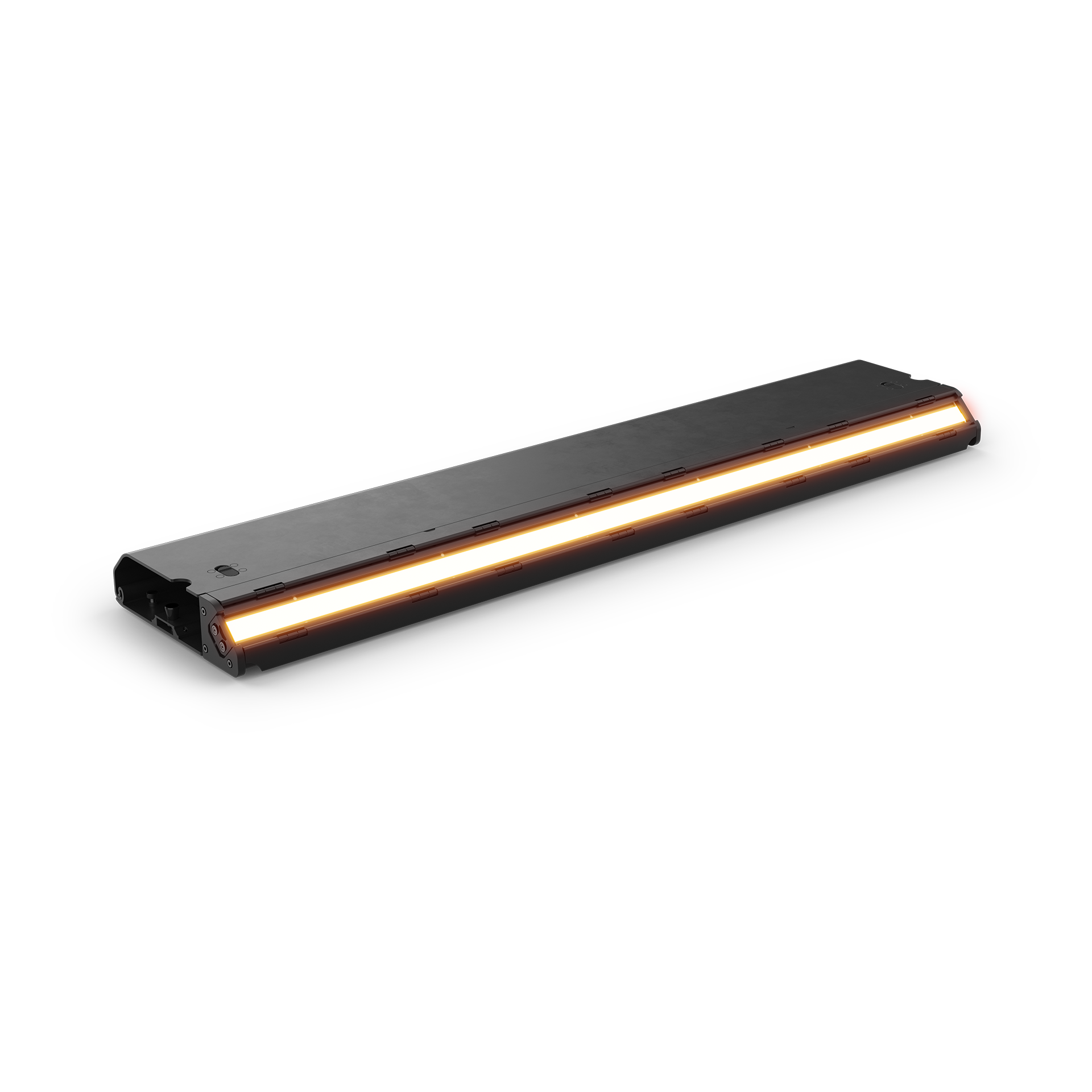

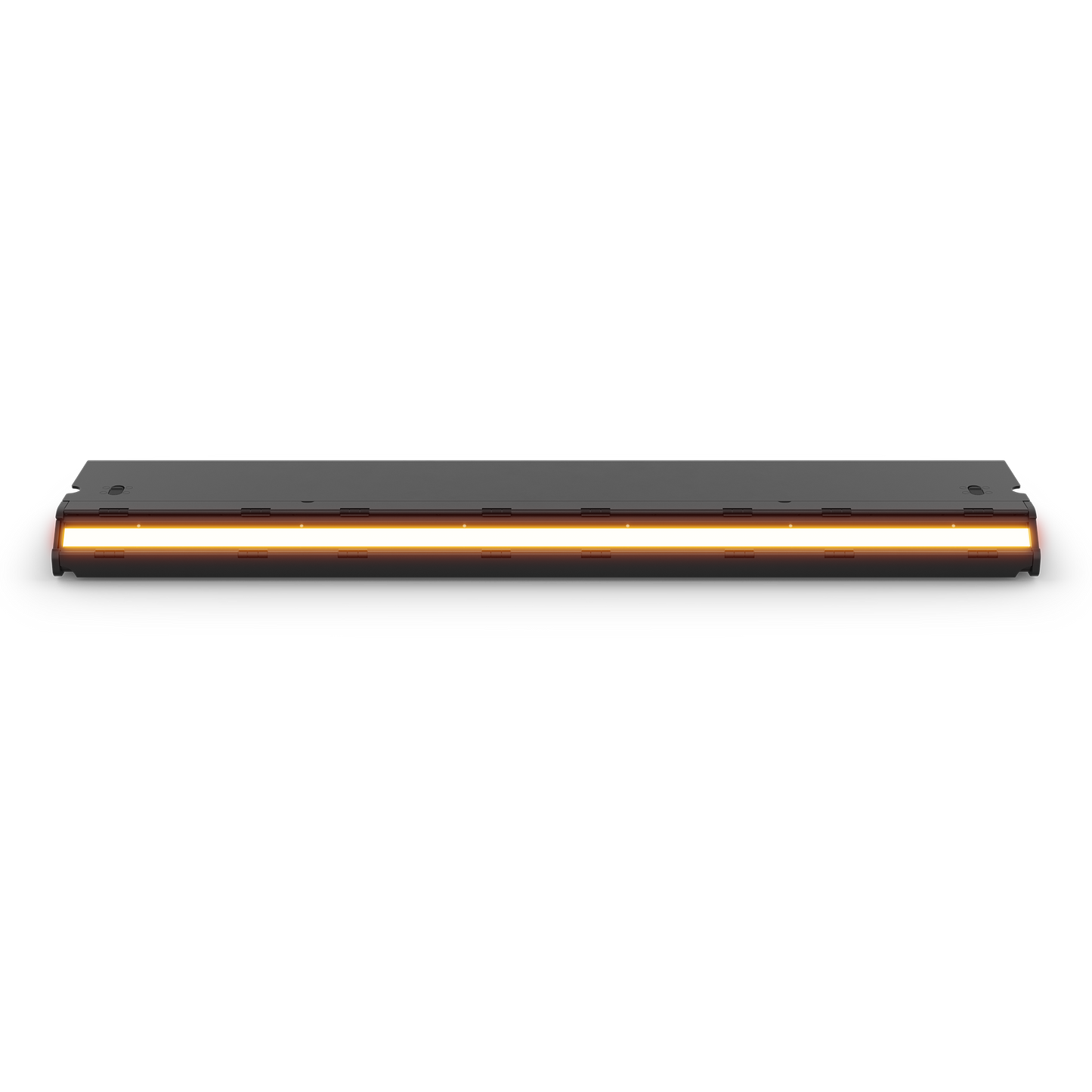

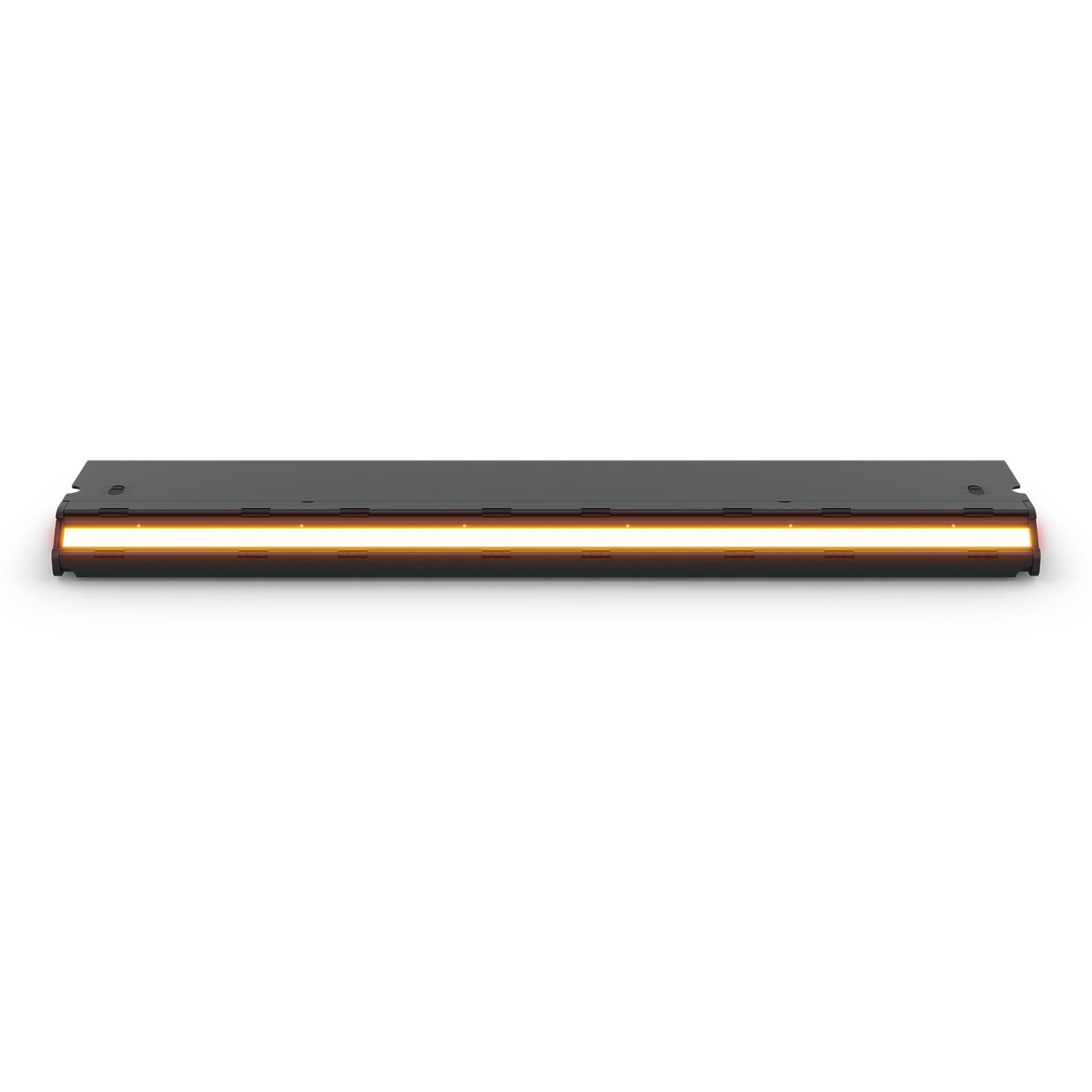

The CHAUVET Professional COLORado Solo Edge 3 is a low-profile, 1-meter IP66-rated RGBwWL LED footlight designed for seamless end-to-end stage-edge lighting in touring, theatre, and broadcast applications.

From the Manufacturer

The COLORado Solo Edge 3 projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output with no distracting hot spots. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off. Its rugged IP66-rated, low-profile housing supports demanding indoor or temporary outdoor stage environments while remaining visually unobtrusive — purpose-built for productions where clean aesthetics are non-negotiable.

Features

• Single-source lens produces smooth, even output with no distracting points of light
• Included stealth filter helps the fixture visually disappear when not in use
• Fully controllable RGB marker lights provide independent visual cues for talent or stage edge definition via DMX

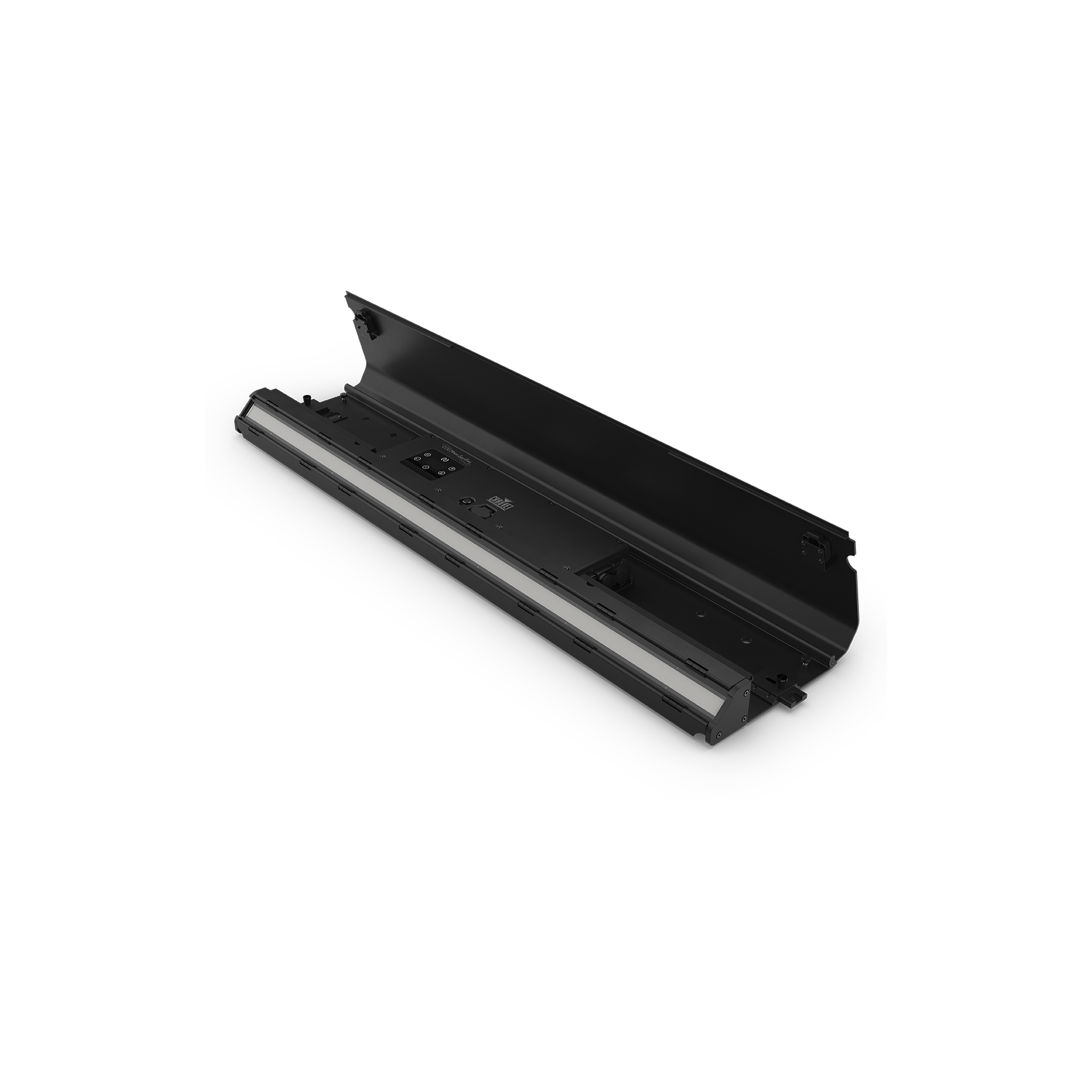

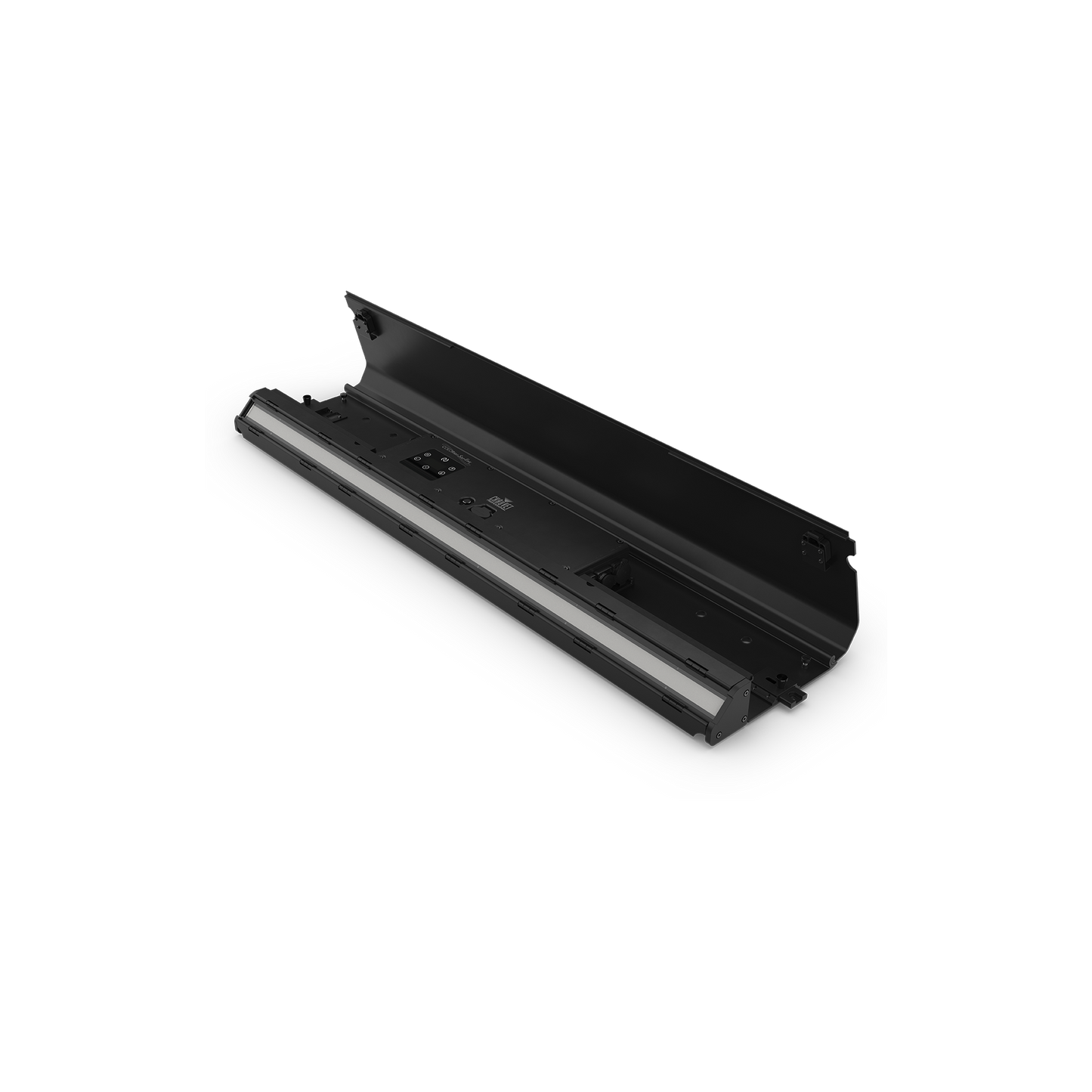

• End-to-end design with covered display eliminates gaps and conceals cables for a clean, uninterrupted look
• IP66-rated housing built for demanding indoor and temporary outdoor environments
• 112 RGBwWL LEDs deliver a full color spectrum and high-CRI white light (CRI 92.5 @ 3200K)
• Color temperature range from 2800 to 8000K with color temperature presets
• Electronic dimmer and strobe with 4 dim modes and 4 dim curves
• Art-Net, sACN, DMX, and RDM control with 32 personalities
• Auto-ranging power input (100–240 VAC) with power-linking support for up to 11 units
• Recommended use: Concert & touring, theatre, broadcast, stage-edge and footlight applications

Specifications

Optical

• Light Source (Primary): 112 LEDs (Quintuple-color RGBwWL)
• Light Source (RGB Markers): 12 LEDs (Tri-color RGB)
• Color Temperature Range: 2800 to 8000 K
• Color Temperature (at full): 6329 K
• CRI @ 3200K: 92.5
• Beam Angle (H / V): 116.4° / 121.5°  |  With Stealth Filter: 89.5° / 91.6°
• Field Angle (H / V): 148.4° / 158°  |  With Stealth Filter: 131.4° / 137.4°
• Lumens: 17,416 (without stealth filter) / 4,144 (with stealth filter)
• Illuminance: 235 lux @ 5 m (without stealth filter) / 82 lux @ 5 m (with stealth filter)

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: Yes

Construction

• Dimensions: 39.37 x 8.85 x 2.51 in (1000 x 225 x 64 mm)
• Weight: 22 lb (10 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy and aluminum die-cast
• IP Rating: IP66

Connections

• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB, Ethernet (RJ45)

Control

• Control Protocol: Art-Net, sACN, DMX, RDM
• DMX Channels (1 Cell): 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14, or 21
• DMX Channels (2 Cell): 8, 9, 9, 10, 12, 19, 21, 22, 23, or 37
• DMX Channels (4 Cell): 14, 15, 15, 18, 22, 33, 37, 41, 42, or 69
• Personalities: 32

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 242 W @ 120 V / 237 W @ 208 V / 236 W @ 230 V
• Power Linking: 5 units @ 120 V  |  10 units @ 208 V  |  11 units @ 230 V

Certifications

• Compliance: CE, MET, FCC
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)

Optional Accessories

• CTC-50HC – Professional Clamp
• CTC-50HCN – Professional Clamp, Narrow Profile
• RIGLINK TR1 Cables
• RIGLINK IP65 DMX Cables
• RIGLINK IP Network Cables

What's in the Box

• COLORado Solo Edge 3
• Seetronic Powerkon IP65 power cord
• Power and data linking cables
• Stealth Filter
• 2x Omega bracket with mounting hardware
