COLORdash Batten-Hex 12XIP

The Color Batten is great for medium sized stages and is a great option to be used for backlight.

We really like how it features 12 individually-controllable hex colored LEDs that can be used to make great effects.

From the Manufacturer:

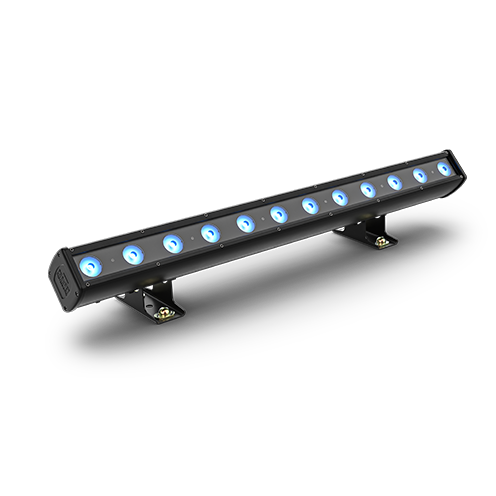

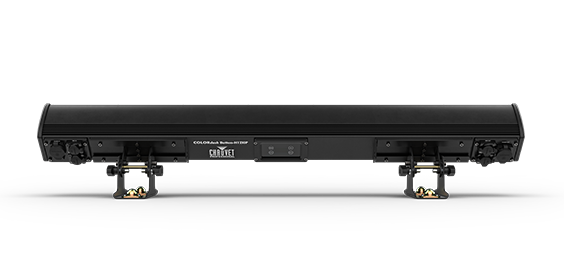

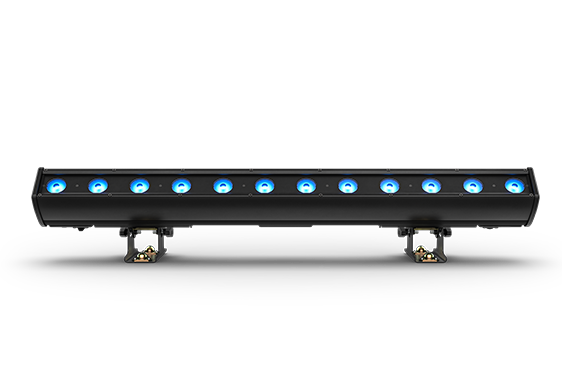

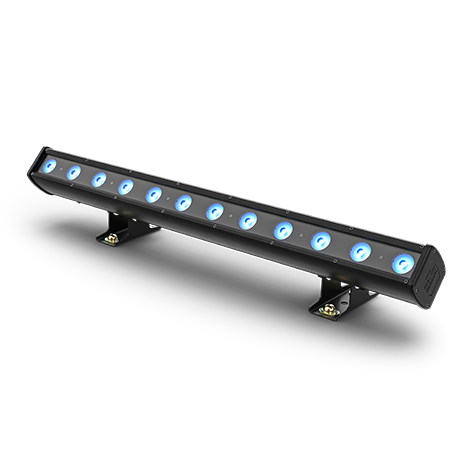

The rugged COLORdash Batten H12X IP RGBWAUV linear wash with 12 individually-controllable hex-colored LEDs efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 18 lbs while delivering over 4,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Maintains an even pixel pitch for perfect pixel mapped looks when used in multiples. Setup is easy with hanging brackets that double as floor stands. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, COLORdash Batten H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

In the Box:

• Colordash Batten H12X IP

• Neutrik powerCON TRUE1 power cord

• Omega Bracket (2pc)

Features:

• Rugged RGBWA-UV LED batten for events where indoor/outdoor flexibility is needed

• At home in any weather conditions with IP rated power and DMX connections

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• RDM (Remote Device Management) for added flexibility

• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades

• Easy to read OLED display with password protection and touchscreen interface

• Advanced optics provide exceptional color mixing and high efficiency

• Floor trunnions with omega bracket for easy hanging

Specification:

• Optical

• Light Source: 12 LEDs (RGBAW+UV) 10 W, (532 mA), 50,000 hours life expectancy

• Color Temperature (at full): 11567 K

• Beam Angle: 24.9°

• Field Angle: 40.7°

• Lumens: 4,796 lm

• Illuminance (total): 881 lux @ 5 m

• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

• Dynamic Effects

• Dimmer: Electronic

• Shutter/Strobe: Electronic

• Strobe Rate: 0 to 23 Hz

• Standalone Color Mixing: Yes

• Color Temperature Presets: Yes/No

• Dim Modes: 4

• Built-in Automated Programs: Yes

• Construction/Physical

• Dimensions: 39.4 x 8.129 x 3.78 in (1000 x 208 x 96 mm)

• Weight:17.4 lb (8 kg)

• Exterior Color: Black

• Housing Material: Aluminum diecast

• Control

• Control Protocol: DMX, RDM

• DMX Channels: 6, 8, 9, 13, 14, 42, 47 or 59

• Modes/Personalities: 8 personalities (6, 8, 9, 13, 14, 42, 47, 59)

• Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V

• Power and Current: 154 W, 1.284 A @ 120 V, 60 Hz

• Power and Current: 151 W, 0.741 A @ 208 V, 60 Hz

• Power and Current: 151 W, 0.667 A @ 230 V, 50 Hz

• Certifications

• CE, MET, UKCA, FCC

• IP Rating : IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

• IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve

• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included:

• Colordash Batten H12X IP

• Neutrik powerCON TRUE1 power cord

• Omega Bracket (2pc)
