Compact PTZ 1080P FHD 10X-30X Camera with HDMI/SDI/NDI/USB 3.0/POE

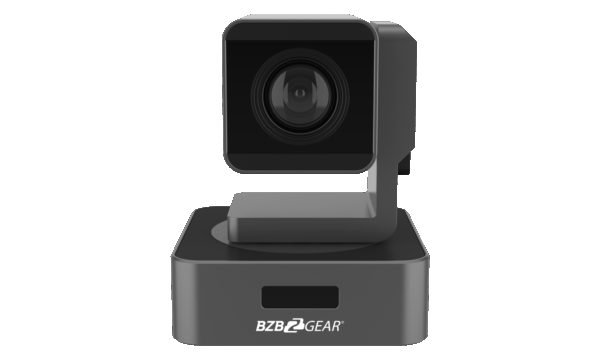

The BZBGEAR BG-VPTZ-HSU3 is a compact PTZ camera with 10X-30X zoom, perfect for offices and classrooms.

From the Manufacturer:

Introducing the BG-VPTZ-HSU3, a versatile COMPACT PTZ 1080P FHD camera with 10X/20X/30X zoom options, multiple output interfaces (HDMI, 3G-SDI, USB 3.0, IP streaming), and a compact design perfect for offices and classrooms. For enhanced audio/video over IP streaming, the BG-VPTZ-HSU3 supports NDI|HX2 with the BG-VPTZN-HSU3 model.

With the ability to capture 1080p@60Hz video, this camera delivers exceptional image quality and supports H.264/H.265 video compression and RTMP(S) for live streaming. Offering flexible control via RS-232, RS-485, LAN, or IR remote, it also boasts 255 preset positions.  Additional features include Power over Ethernet (PoE), audio embedding, and a sturdy all-aluminum chassis, making it a top choice for high-quality video capture and streaming in various settings.

The BG-VPTZ-HSU3 camera finds applications in video conferencing, live streaming, content creation, surveillance, and large venue settings. Its high-resolution imaging, audio integration, and multiple output options enhance professional video conferences and engaging webinars.

Connectivity and Features:

The BG-VPTZ-HSU3 camera boasts impressive capabilities. It can capture images at resolutions of up to 1080p at 60Hz, ensuring that you get high-definition, sharp visuals for your applications. What sets it apart is its versatility in output options, with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. This flexibility enables seamless integration into various workflows, making it adaptable for a wide range of settings and purposes.

Additionally, it offers 10X, 20X, or 30X optical zoom lenses, which is invaluable for capturing detailed close-ups, even in large venues. For applications where synchronized audio and video are crucial, the camera features a 3.5mm audio input jack to embed audio directly into the video stream. It supports H.264 and H.265 video compression formats and can broadcast using ONVIF, RTSP, and RTMP IP streaming protocols.

Control Options:

The BG-VPTZ-HSU3 camera provides a wealth of control options to suit your specific needs. It can be controlled using RS-232, RS-485, LAN (local area network), or the included IR remote control. This diverse range of control methods ensures that you can choose the most convenient one for your particular use case. Moreover, the camera supports various control protocols, including IP VISCA, ONVIF, and PELCO-P/D, which simplifies integration into existing setups and control systems. When it comes to configuring and managing camera angles and settings, you have the luxury of storing up to 255 preset positions internally.

Furthermore, nine of these presets are easily accessible via the included IR remote control, streamlining camera operation and enhancing user-friendliness. In conclusion, the BG-VPTZ-HSU3 camera is a versatile and adaptable solution, offering high-resolution imaging, diverse output options, audio integration, and a comprehensive array of control methods and protocols to cater to the unique needs of a wide range of professional applications.

What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices.

What is NDI|HX3?

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a "cleaner" implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI.

Who Uses NDI Technology

NDI technology finds widespread application across diverse industries, encompassing broadcasting, live events, education, gaming, healthcare, corporate communication, security, entertainment, virtual studios, and government sectors. This versatile technology excels in delivering flawless audio and video transmissions over IP networks, making it indispensable for tasks like live broadcasts, remote learning, esports streaming, medical imaging, and more.

NDI stands as an adaptable platform, boasting easy setup, minimal latency, and top-tier video connectivity, catering to a broad spectrum of use cases. From professional broadcast studios to consumer-grade setups, NDI seamlessly integrates into various devices and workflows. This adaptability makes it an ideal choice for businesses operating in various sectors, including broadcast and professional audiovisual, cloud video management, conferences, education, gaming, and security.

Features:

• BROADCAST QUALITY VIDEO: Fluid motion, clear image, and accurate colors
• LATEST STREAMING TECH: Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook live streaming
• SIMULTANEOUS VIDEO OUTPUTS: 3G-SDI / HDMI / USB3.0 / IP Streaming
• POWER OVER ETHERNET: Delivers power directly over an ethernet cable from your PoE enabled network switch
• AUDIO EMBEDDING: Connect audio mixer output or powered mic and embed audio into your live stream
• FLEXIBLE INSTALLATION OPTIONS: Supports ceiling, wall, tripod, or desk mount installations
• Multiple control options
• Smart menu & WebGUI Interface
• Includes 2D/3D noise reduction functions
• All-aluminum high-stability chassis
• Resolutions up to 1080p@60Hz
• Small form factor for tight installs
• AAC audio encoding support
• Main and sub streams available
• Supports NDI||HX2

Specifications:

Camera Specs

• Image Sensor: 1/2.7″ Exmor CMOS (10X), 1/2.8″ Exmor CMOS (20X), 1/2.8″ Exmor CMOS (30X)
• Frame Rate: 1080p@60/ 59.94 / 50 /30 / 29.97 /25
• 1080i@60/59.94 / 50 / 30 / 29.97 / 25
• 720p@60/50/ 30 / 25, 480i@60, 576i@50
• Zoom: Optical - 10X/20X/30X
• F-number: 1.6(W)-3.5(T) (10X), 1.6(W)-3.5(T) (20X), 1.3(W)-4.8(T) (30X)
• Focus: f=5.1mm~51mm (10X), f=4.7mm~94.0mm (20X), f=5.2mm~148.4mm (30X)
• Effective Pixels: 2.70 Megapixel (10X), 2.38 Megapixel (20X), 2.70 Megapixel (30X)
• View Angle (H): 72° (10X), 65° (20X), 65.4° (30X)
• Min Illumination: 0.5lux (F 1.8, AGG ON)
• Shutter Speed: 1 to 1/10000s
• Image Adjustment: Vertical Flip & Mirror Supported

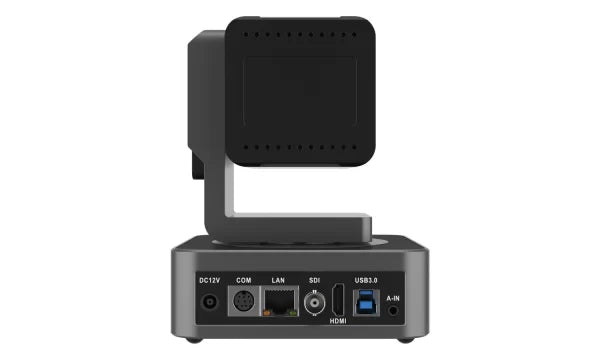

Input/Output Interface

• Video Output: HDMI, 3G-SDI, USB 3.0 (USB 2.0 backwards compatible port only), RJ45 Network (10/100M Adaptive Ethernet ports)
• Audio Input: 3.5mm audio interface, Line In
• Communication interface: 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
• Power Connection: DC IN 12V, Power over Ethernet

Mechanical

• Pan/Tilt Rotation: ±178°, Tilt Rotation Angle -30°~ +90°
• Pan 90°/s; Tilt: 90°/s
• Presets: Max 255 Presets ( Remote 9 Presets)
• Network Protocol: VISCA, PELCO P/D, ONVIF Protocol, NDI|HX2

IPC Video Features

• Video standard: H.265/H.264/MJPEG
• Video Stream: Main stream, Sub stream
• Main stream resolution: 1920x1080, 1280x720
• Sub stream resolution: 720x480, 320x240
• Bit Rate: 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
• Bit Rate Type: Variable rate, Fixed rate
• Maximum Frame: 60fps
• Audio encode standard: G.711, G.722, G.722.1, G.728, G.722.1C AAC
• Audio stream rate: 96K, 128K, 256K
• Supported protocols: TCP/IP, RTSP, RTMP

Generic

• Dimensions (L*W*H): 4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
• Gross Weight: 3.5 lbs [1.6kg]
• Operating Temperature: 14°F ~ 122°F / -10°C ~ 50°C
• Max Consumption: 12W DC12V@1A
• Attention:: USB 3.0 connection port on BG-VPTZ-10HSU3 camera is only compatible with USB 3.0 port on either PC or MAC when connected directly and only compatible with up to 10ft USB 3.0 cable due to a limitation in the chipset. This camera will not work with any USB 3.0 peripherals. It doesn't affect BG-VPTZ-20HSU3 or BG-VPTZ-30HSU3 models.
• Working Environment: Indoor Only
