CONTROL 12C/T

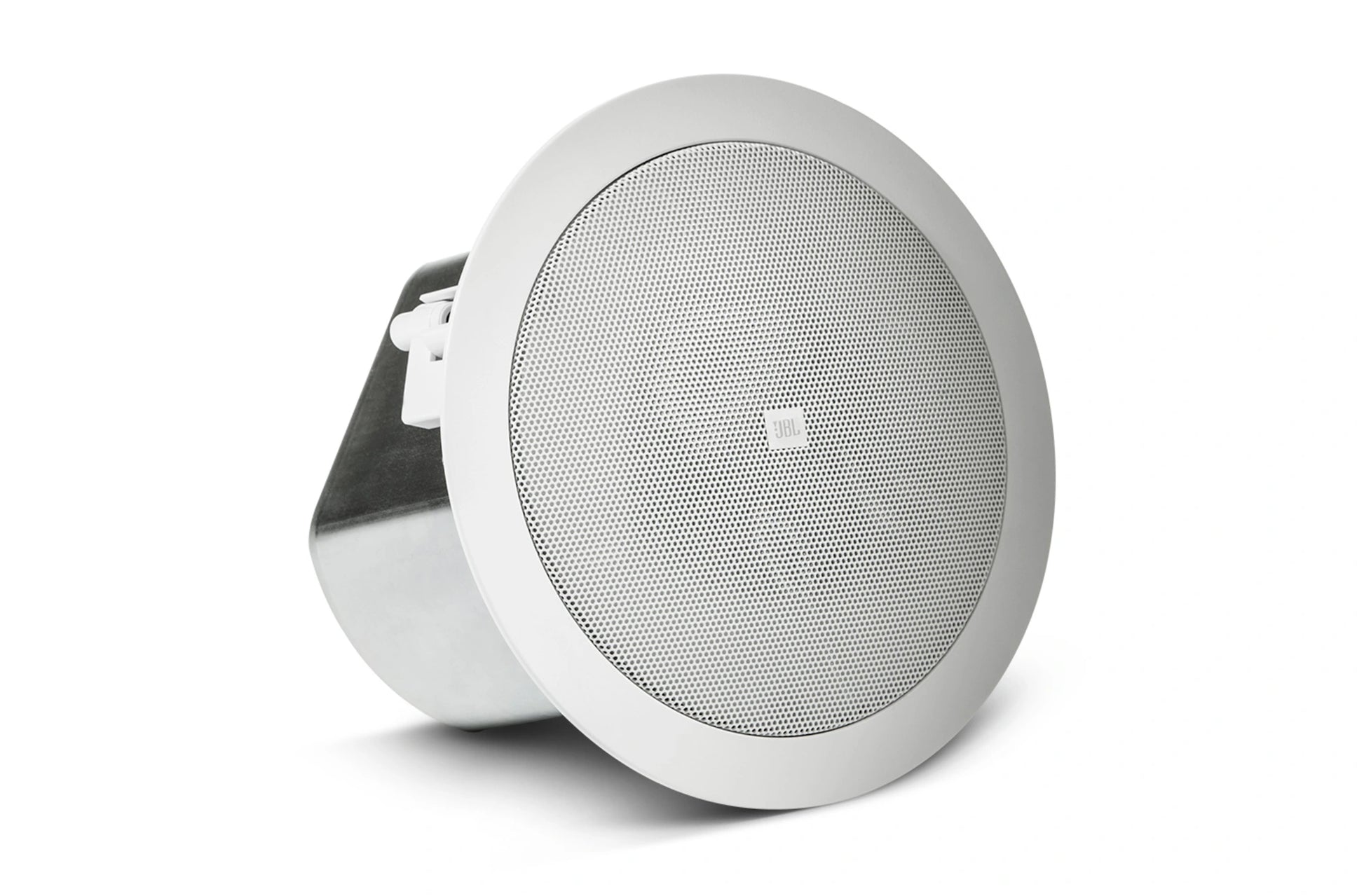

Compact, clean, and installer-friendly, the JBL Control 12C/T is a discreet ceiling loudspeaker for commercial spaces that need reliable full-range sound without visual clutter.

From The Manufacturer:

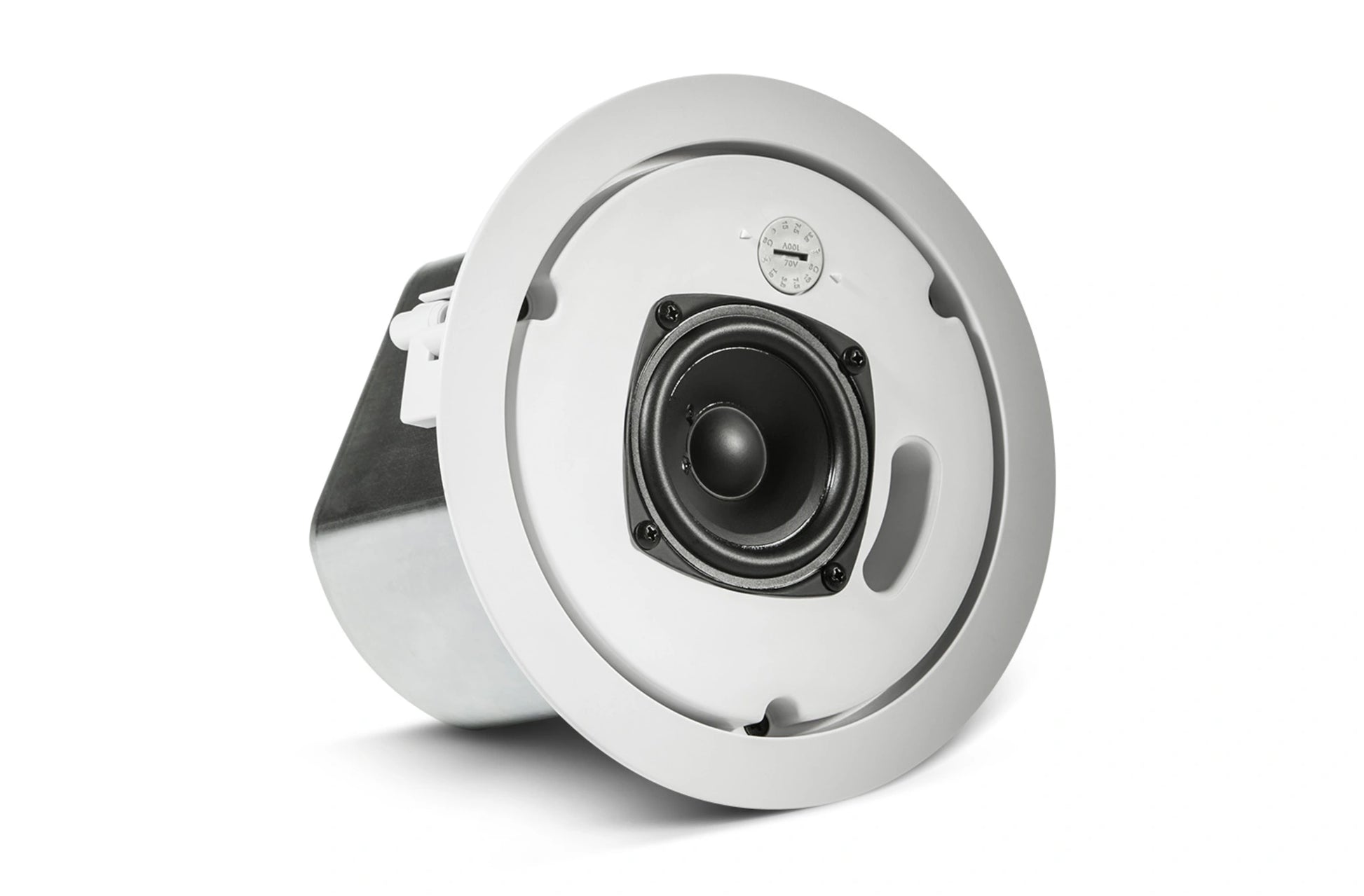

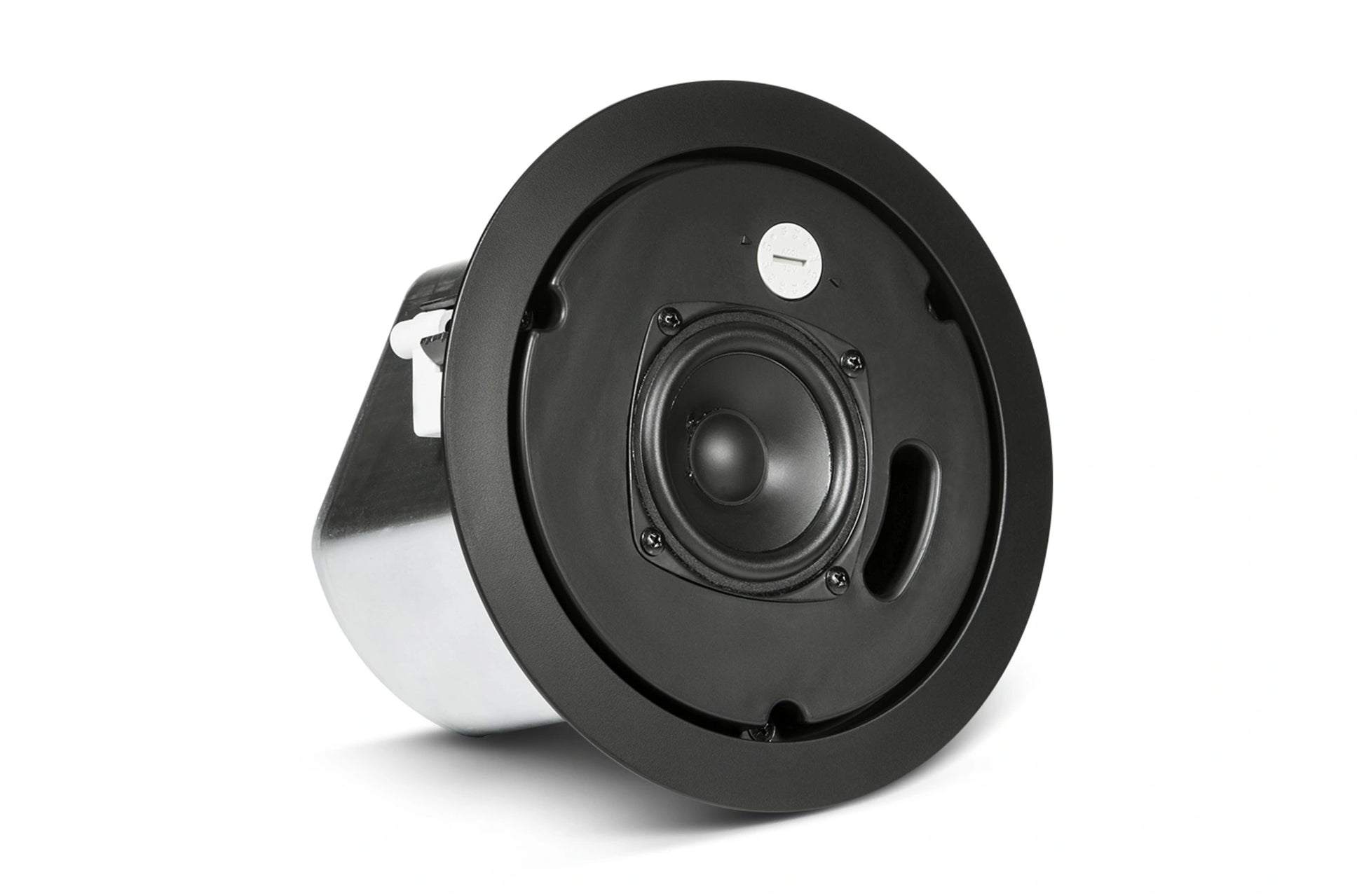

JBL describes the Control 12C/T as a compact full-range ceiling loudspeaker with a 76 mm (3 in) wide-bandwidth cone driver, vented paintable baffle, integrated backcan, and operation for 70V/100V distributed systems or low-impedance use.

Specifications:

• Type: Compact ceiling loudspeaker
• Frequency range: 68 Hz - 17 kHz (-10 dB)
• Frequency response: 95 Hz - 15 kHz (+/-3 dB)
• Coverage: 130 degrees conical
• Sensitivity: 84 dB
• Maximum SPL: 97 dB low-impedance, 103 dB peak; 96 dB at top 70V/100V tap
• Driver: 76 mm (3 in) full-range cone driver

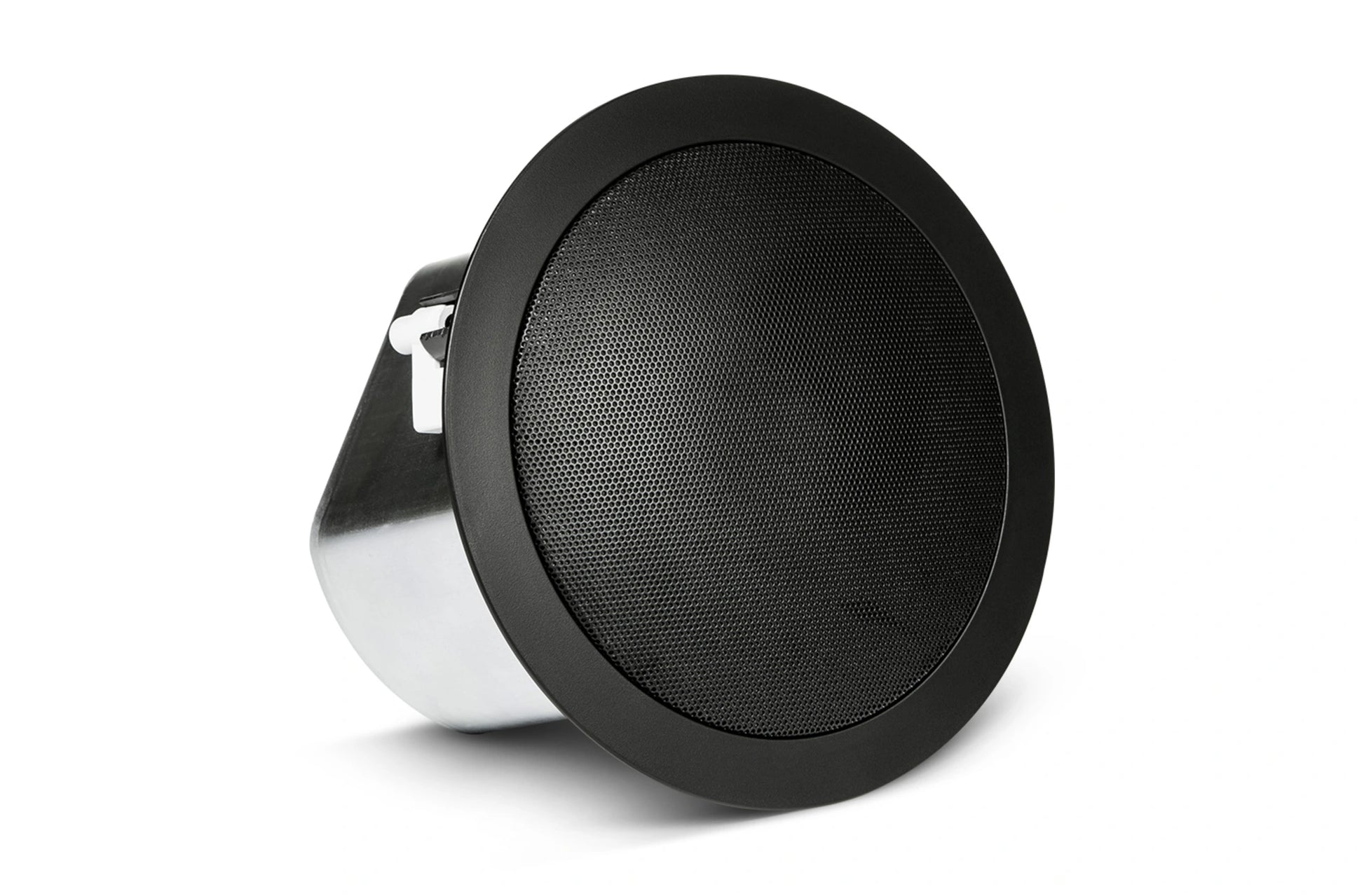

• Colour: White or black

Included:

Control 12C/T ceiling loudspeaker with integrated backcan and grille.

Applications:

Background and foreground music, paging, commercial ceilings, hospitality, retail, education, meeting rooms, and distributed audio installations.

Contents:

Speaker, grille, support hardware, cutout template, paint shield, and connector.

Included Accessories:

C-ring support backing plate, 2 tile support rails, cutout template, paint shield, removable locking multi-pin connector, and grille.

Accessories (Not Included):

MTC-24NC new construction bracket, MTC-24MR mud-ring construction bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail extension, MTC-CS-Teth1 grille safety tether, and MTC-14WG/16WG high-humidity grille.

Size:

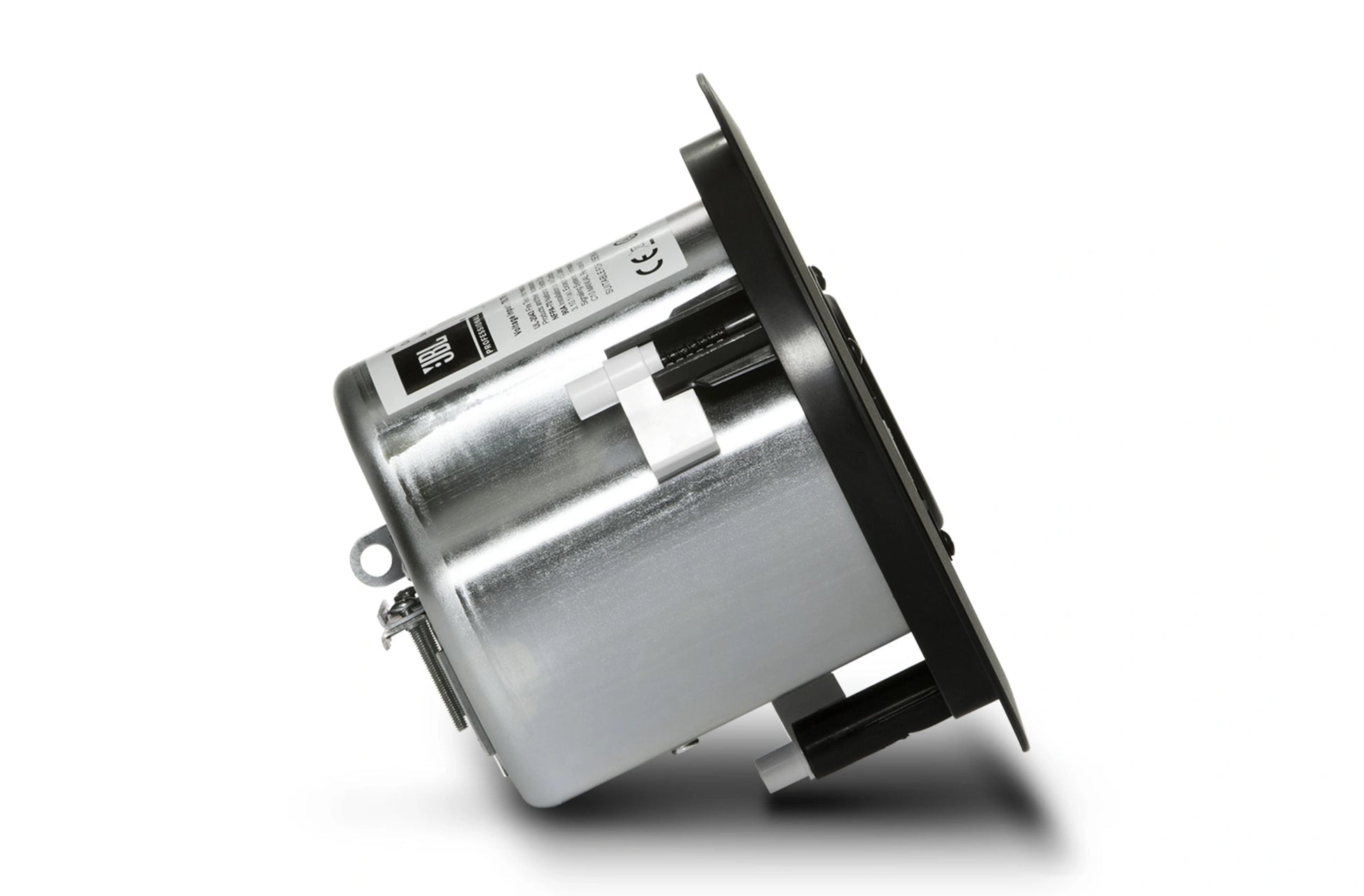

196 mm diameter x 138 mm depth from back of baffle. Ceiling cutout: 170 mm diameter.

Weight:

1.6 kg (3.5 lb) per speaker.

Electrical/Thermal

8 ohms in direct/bypass setting. 70V/100V taps: 15 W, 7.5 W, 3.8 W; 1.9 W at 70V only. Low-Z rating: 40 W continuous program, 20 W continuous pink noise, 80 W peak. UL1480/UL2043 listed for air handling spaces.
