Sku:
CONTROL 14C/T
Control 14C/T
Regular price
$135.00
Regular price
Sale price
$135.00
Unit price
per
Shipping calculated at checkout.
Vendor:
JBL
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

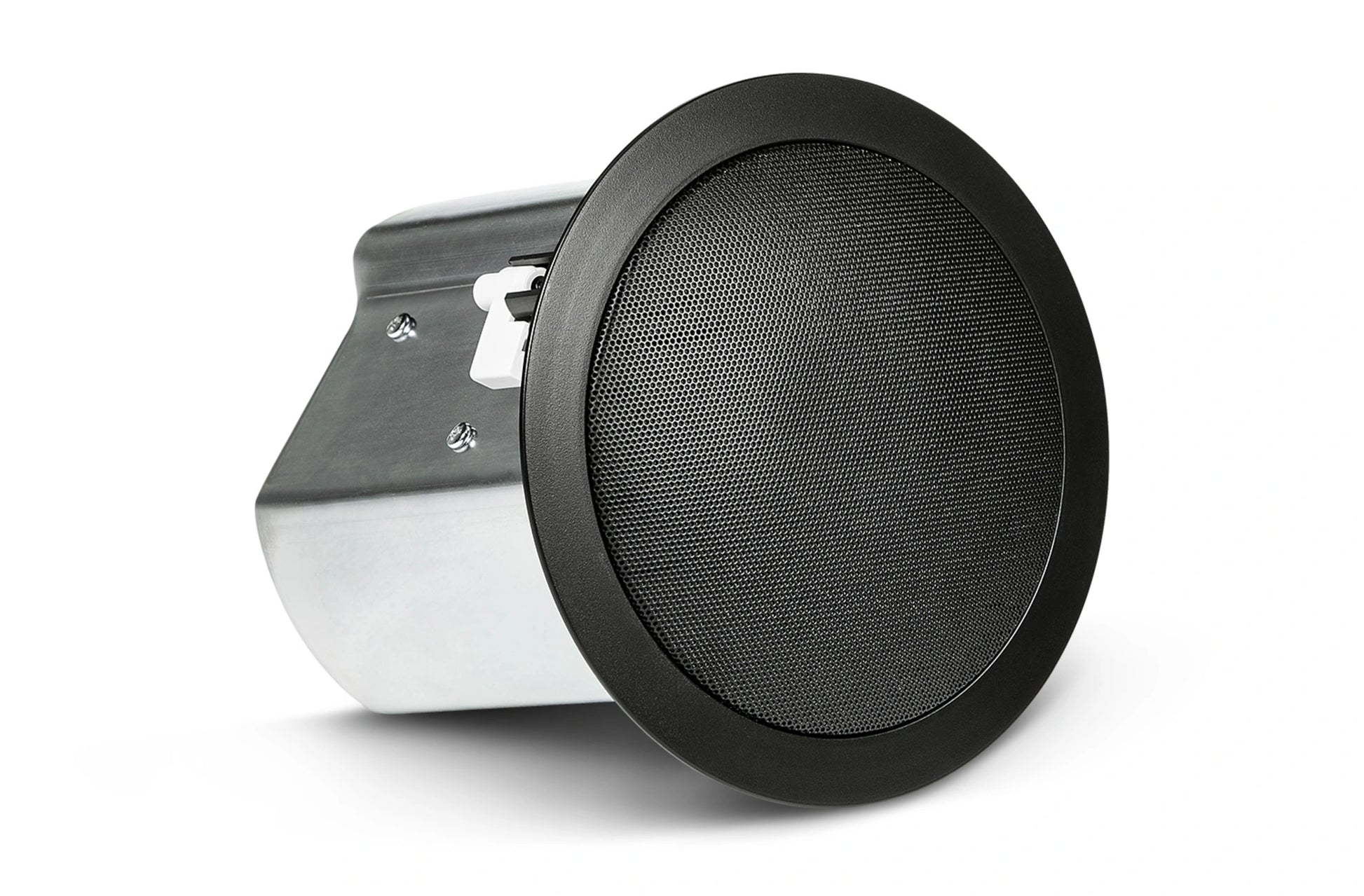

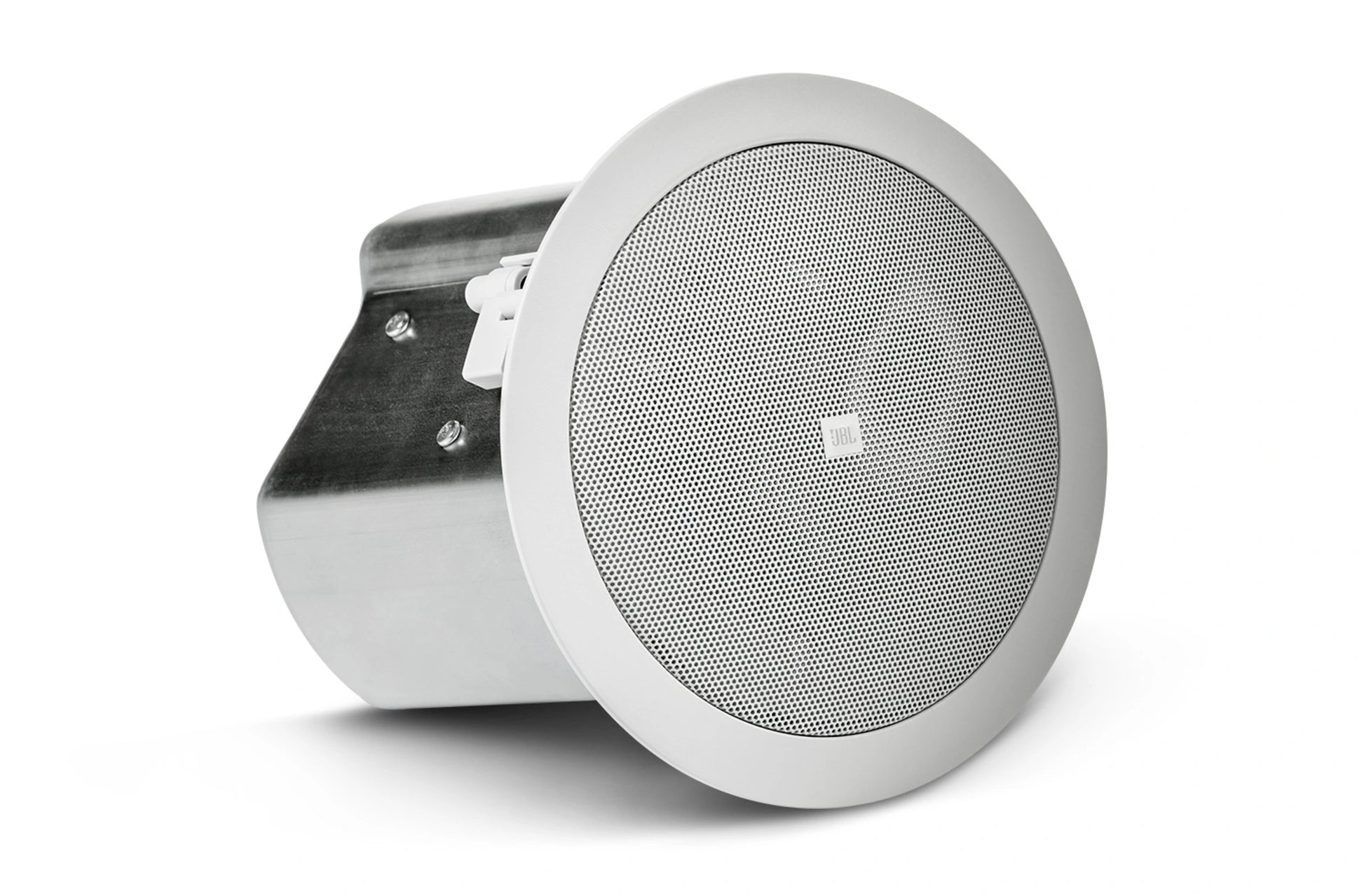

The JBL Control 14C/T is a two-way 4” coaxial ceiling loudspeaker with an integrated backcan for easy installation in many applications.
From the Manufacturer:

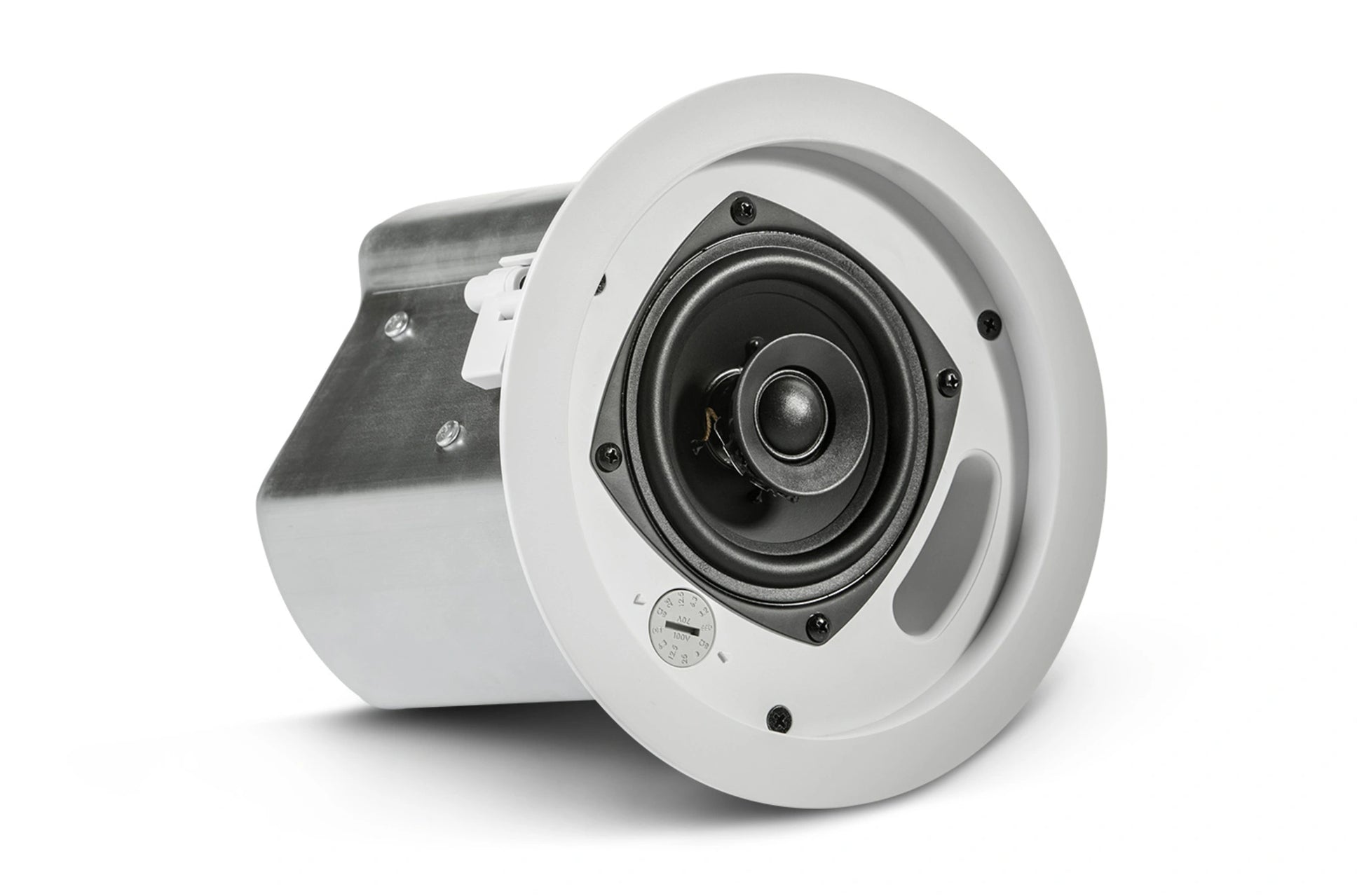

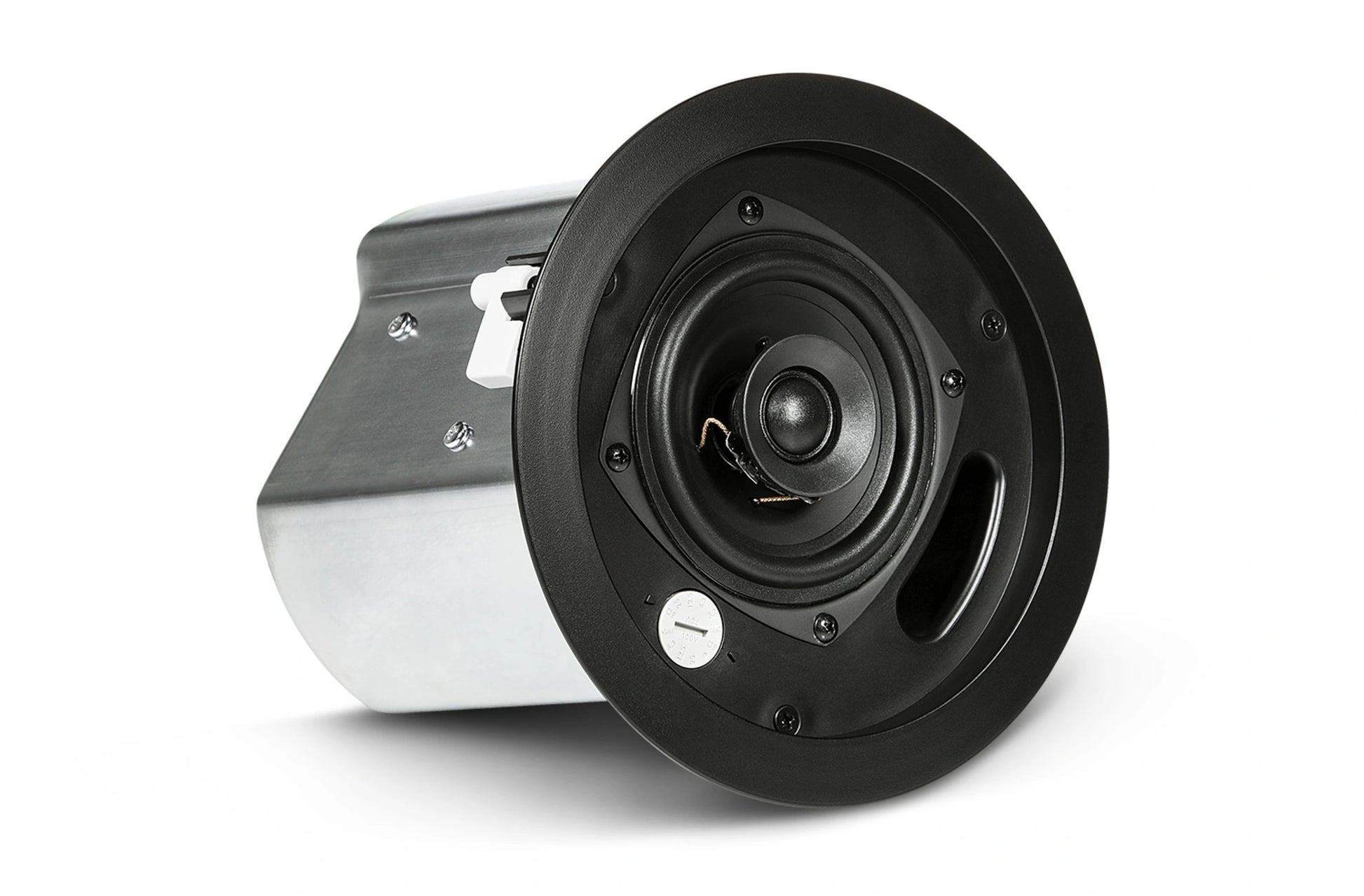

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with an integrated backcan for quick and easy installation.
Features:
- Components:
- 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
- 19 mm (0.75 in) soft-dome liquid-cooled tweeter
- Integrated backcan for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation
- 30 Watts at 8Ω nominal setting
- 25W multi-tap at 70V/100V
- 74 Hz – 20 kHz bandwidth with wide 120° coverage
- White or black (-BK)
Specifications:
- Frequency Range (-10dB): 74 Hz – 20 kHz
- Power Rating: IEC System Long-Term Ratings (low-Z direct):
- 60 Watts Continuous Program Power
- 30 Watts Continuous Pink Noise (120W peak), 100 hr
- Transformer Taps: 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
- Frequency Response (±3 dB): 100 Hz – 20 kHz
- Sensitivity: 87 dB (1kHz - 16 kHz)
- Coverage Angle: 120° conical
- Directivity Factor (Q): 7.6
- Directivity Index (DI): 8.1 dB
- Maximum SPL (1m): 101 dB (low-impedance, 108 dB peak)
- 101 dB (top 70V/100V tap)
- Impedance: 8 ohms (in direct/bypass 8Ω setting)
- Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
- Drivers: LF Driver: 100 mm (4.0 in)
- HF Driver: 19 mm (3/4 in)

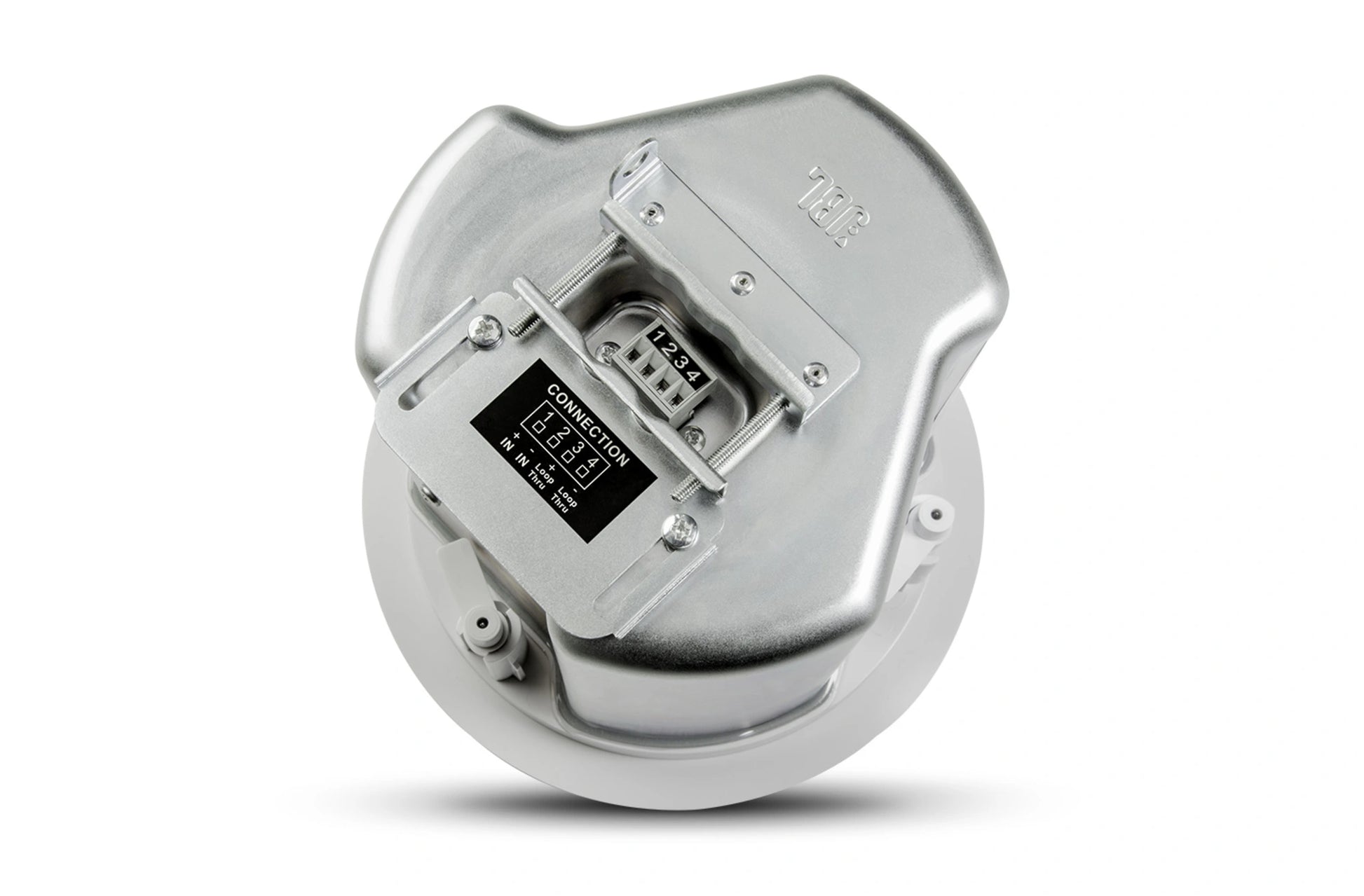

- Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
- Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
- Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
- Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
- Dimensions: 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
- Ceiling Cutout Size: 170 mm (6.7 in) diameter (cardboard cutout template included)
- Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
- Safety Seismic Attachment: One point, top surface
- Net Weight: 2.2 kg (4.8 lbs, one speaker)
- Shipping Weight: 8.2 kg (17.9 lbs, pair in master carton)
- Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
- Optional Accessories: MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
- Color: White or Black
- Backcan: formed steel (integrated backcan)
- Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
- Plenum Usage: Yes, backcan included
