CONTROL 19CST

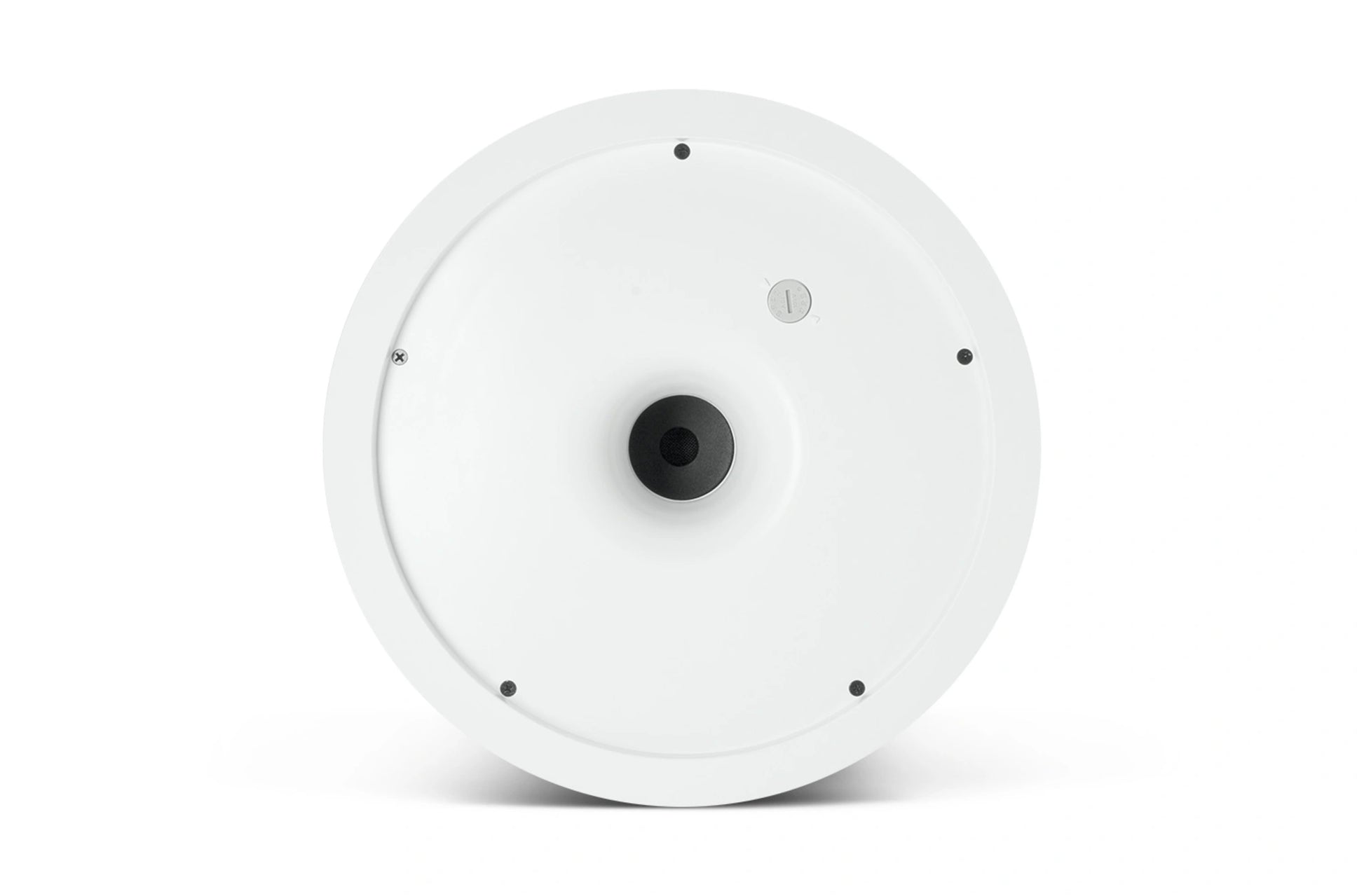

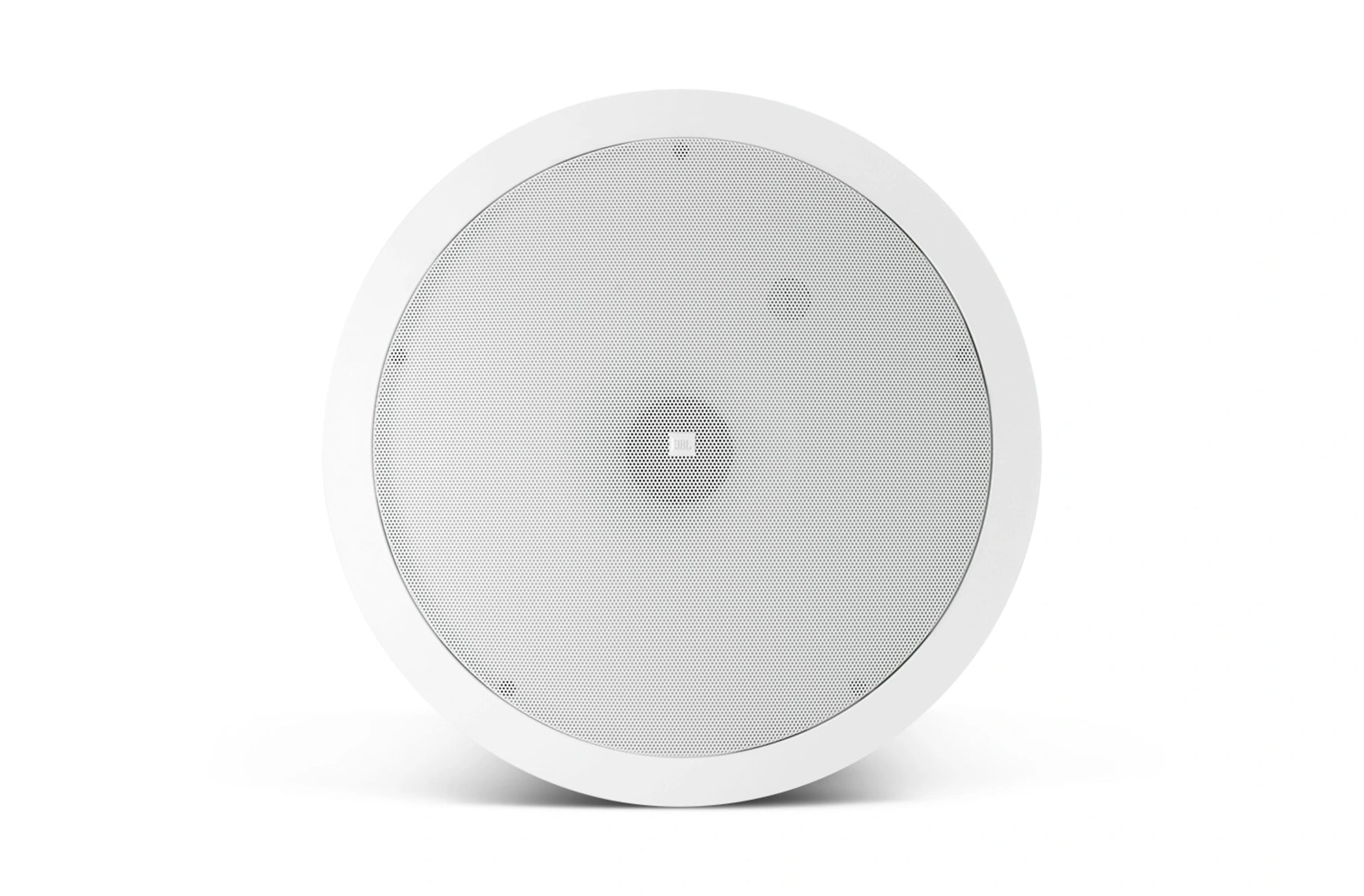

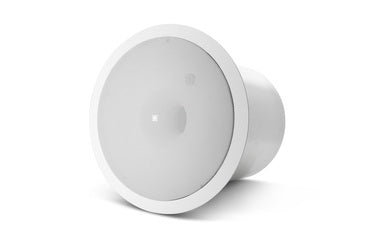

The JBL Control 19CST in-ceiling subwoofer produces powerful bass in a low-profile design.

From the Manufacturer:

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

Features:

• Unique Nested Chamber™ design and Linear
• Component: Long excursion 200 mm (8 in) driver.
• Packaged with grille, backcan and tile rails for fast
• Simple installation and wire connection method.

Specifications:

• Frequency Range: 42 Hz - 200 Hz
• Power Rating: See transformer taps
• Transformer Taps: 75W, 30W, 15W (& 7.5W @ 70V)
• Coverage Angle: 180° conical
• Maximum SPL (1m): 108 dB (70V/100V, center of ceiling)
• 114 dB (70V/100V, near corner)
• Nominal Impedance: 8 ohms
• Drivers: 200 mm (8.0 in) subwoofer
• Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Input Connectors: Removable locking connector with screw-down terminals.
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Outside Dimensions (H x Dia): 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
• Ceiling Cutout Size: 305 mm (12.0 in) diameter (cardboard cutout template included)
• Net Weight (each): 6.3 kg (14 lb)
• Shipping Weight (pair): 14.3 kg (32 lb)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
• Sensitivity: 95 dB SPL in ceiling near corner,
• 89 dB in center of ceiling
• Color: White
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Plenum Usage: Yes, backcan included
