CONTROL 226C/T

The JBL Control 226C/T is a professional quality 6.5" Loudspeaker with HF Compression Driver for superior quality in-ceiling applications.

From the Manufacturer:

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.

Features:

• Consistent 120° broadband pattern control for exceptional coverage.
• Coaxial design featuring:
  • Kevlar-reinforced 165 mm (6.5 in) woofer.
  • 25 mm (1 in) compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• 150 Watts Power Handling.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Integrated back can with clean, contemporary grille

Specifications:

• Frequency Range (-10dB): 47 Hz - 19 kHz
• Power Rating: IEC Long-Term System Power Rating:
• 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise
• (400 W peak), 100 hrs
• Transformer Taps: 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass
• Sensitivity: 90 dB (1 kHz - 16 kHz)
• Coverage Angle: 120° conical, constant directivity
• Drivers:
  • LF Driver: 165 mm (6.5 inch)
  • HF Driver: compression driver, 25 mm (1 inch) coil
• Dimensions (H x Dia): Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
• Net Weight (each): 9.1 kg (20.0 lb)
• Shipping Weight (pair): 23.9 kg (52.5 lb)
• Maximum SPL (1m): 112 dB (low-impedance, 118 dB peak)
• 108 dB (top 70V/100V tap)
• Impedance: 8 ohms (in direct/bypass setting)

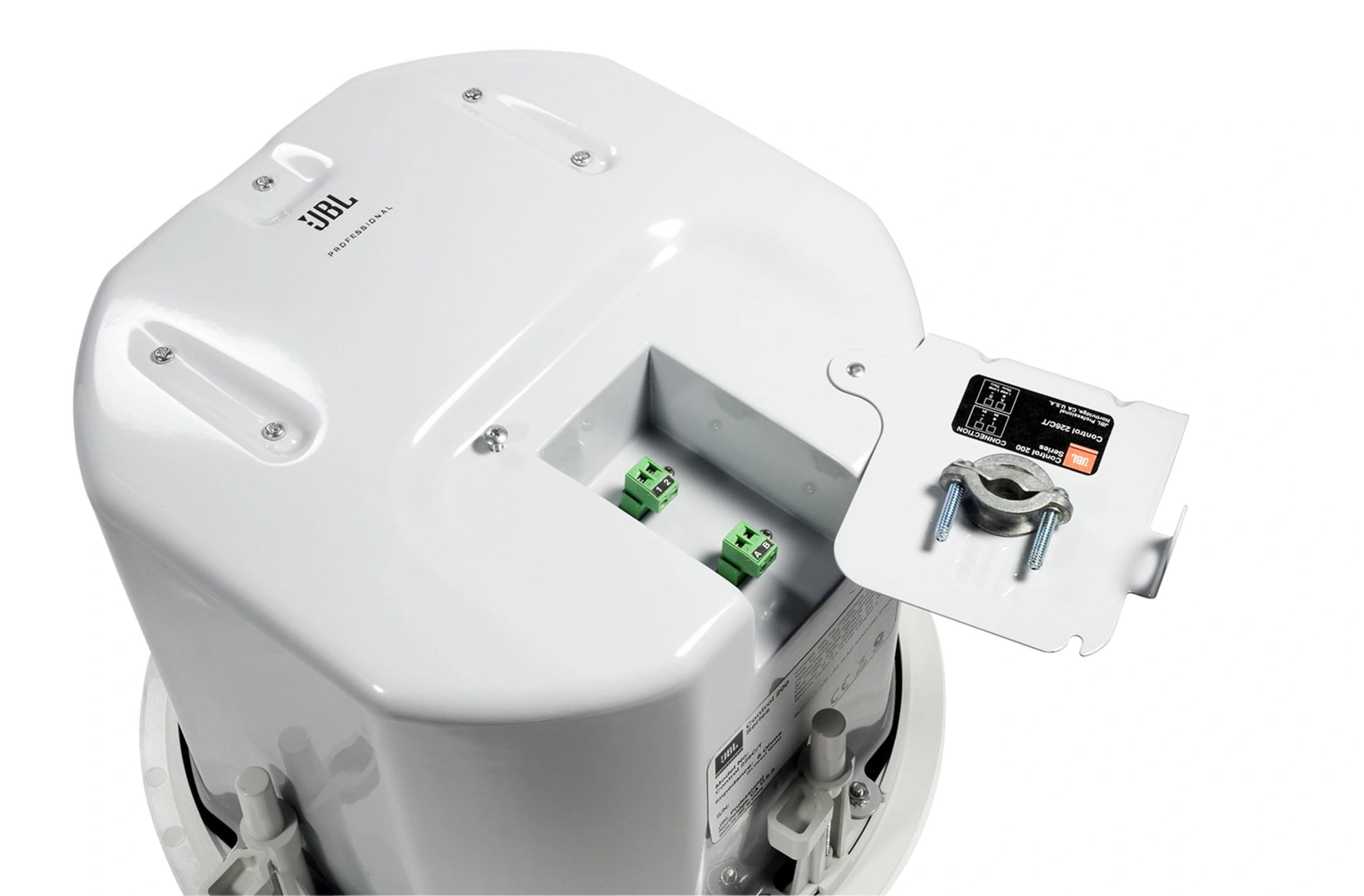

• Input Connectors: Removable locking connector with screw-down terminals.
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: ABS baffle with UL94-V0 flame class fire rating.
• Ceiling Cutout Size: 307 mm (12.1 in) diameter (cardboard cutout template included)
• Included Accessories: Press-in Grille, C-Ring, Tile Rails.
• Optional Accessories: MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket
• Plenum Usage: Yes, backcan included
