CONTROL 227CT
CONTROL 227CT
Regular price
$341.00
Regular price
Sale price
$341.00
Unit price
per
Shipping calculated at checkout.
Vendor: JBL
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

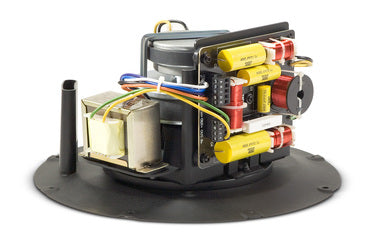

The JBL Control 227CT is a 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver for superior quality in-ceiling applications.
From the Manufacturer:
The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.
Features:
- Consistent 120° broadband pattern control for exceptional coverage.
- Coaxial design featuring:
- Kevlar-reinforced 165 mm (6.5 in) woofer.
- 25 mm (1 in) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- 150 Watts Power Handling.

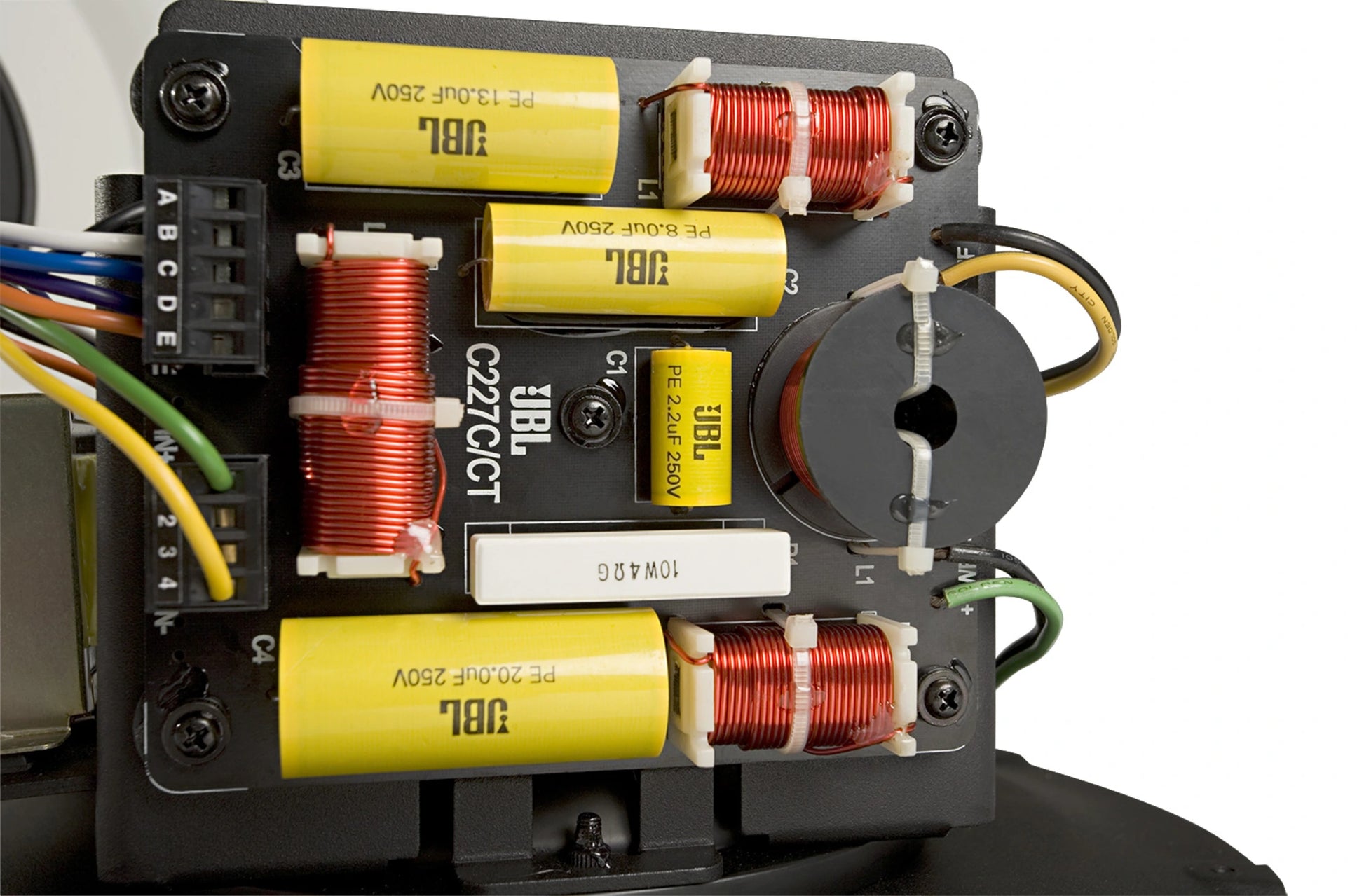

- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Separate back can and contemporary grille available. (sold separately)
Specifications:
- Frequency Range (-10dB): 43 Hz - 19 kHz
- Transformer Taps: 68W, 34W, 17W (& 8.5W @ 70V)
- Sensitivity: 90 dB (1 kHz - 16 kHz)
- Coverage Angle: 120° conical, constant directivity
- Frequency Response (-3 dB): 75 Hz - 17 kHz
- Drivers:
- LF Driver: 165 mm (6.5 inch)
- HF Driver: compression driver, 25 mm (1 inch) coil
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Dimensions (H x Dia): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
- Net Weight (each): 5.2 kg (11.5 lb)
- Shipping Weight (pair): 6.6 kg (14.5 lb)
- Power Rating: See transformer taps
- Maximum SPL (1m): 108 dB (top 70V/100V tap)
- Input Connectors: Screw locking barrier strip for bare wire
- Color: White
- Backcan: formed steel (wood-lined; accessory)
- Baffle/Rim: Metal, round, driver pre-mounted to baffle, ported.
- Ceiling Cutout Size: 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
- Included Accessories: Ported baffle pre-attached, transformer on 227CT
- Optional Accessories: MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
- Plenum Usage: Yes, with accessory backcan
