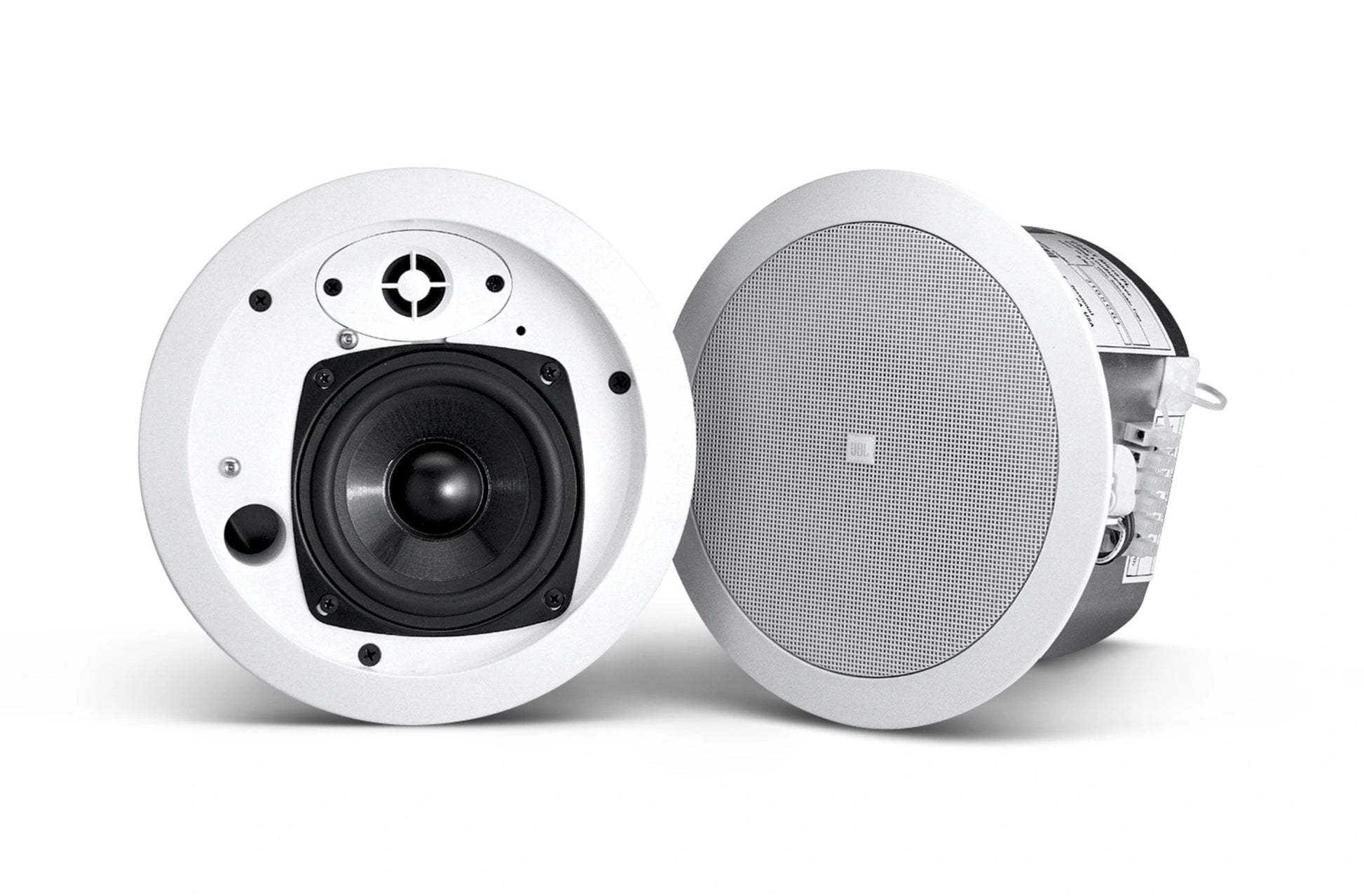

Control 24CT MicroPlus

The JBL Control 24CT MicroPlus compact in-ceiling speaker provides high-quality sound for music and music-plug-paging systems for applications like cafes, businesses, retail, and much more.

From the Manufacturer:

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features:

• 150° conical coverage.
• Smooth frequency response.
• Advanced crossover network provides very even coverage throughout listening area.
• Components:
  115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
  12 mm (.5 in) polycarbonate tweeter for extended response.
• Includes 25 W multi-tap transformer for 70 V/100 V systems.
• Shallow 105 mm (4.1 inch) depth from back of baffle.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications:

• Frequency Range: 80 Hz - 25 kHz
• Power Capacity: 30 W Continuous Program Power; 15 W Continuous Pink Noise
• Transformer Taps: 70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps
• Nominal Sensitivity: 85 dB SPL @ 1 m (3.3 ft)
• Coverage Angle: 150° conical
• Crossover Frequency: 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
• Maximum SPL (1m): 99 dB @ 1 m (3.3 ft), 25 W tap
• Low Frequency: 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
• High Frequency: 12 mm (0.5 in) polycarbonate
