Control 25AV-LS

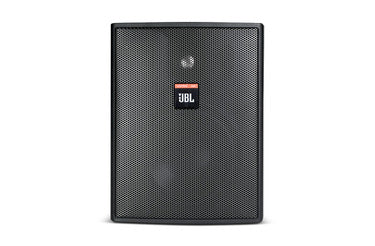

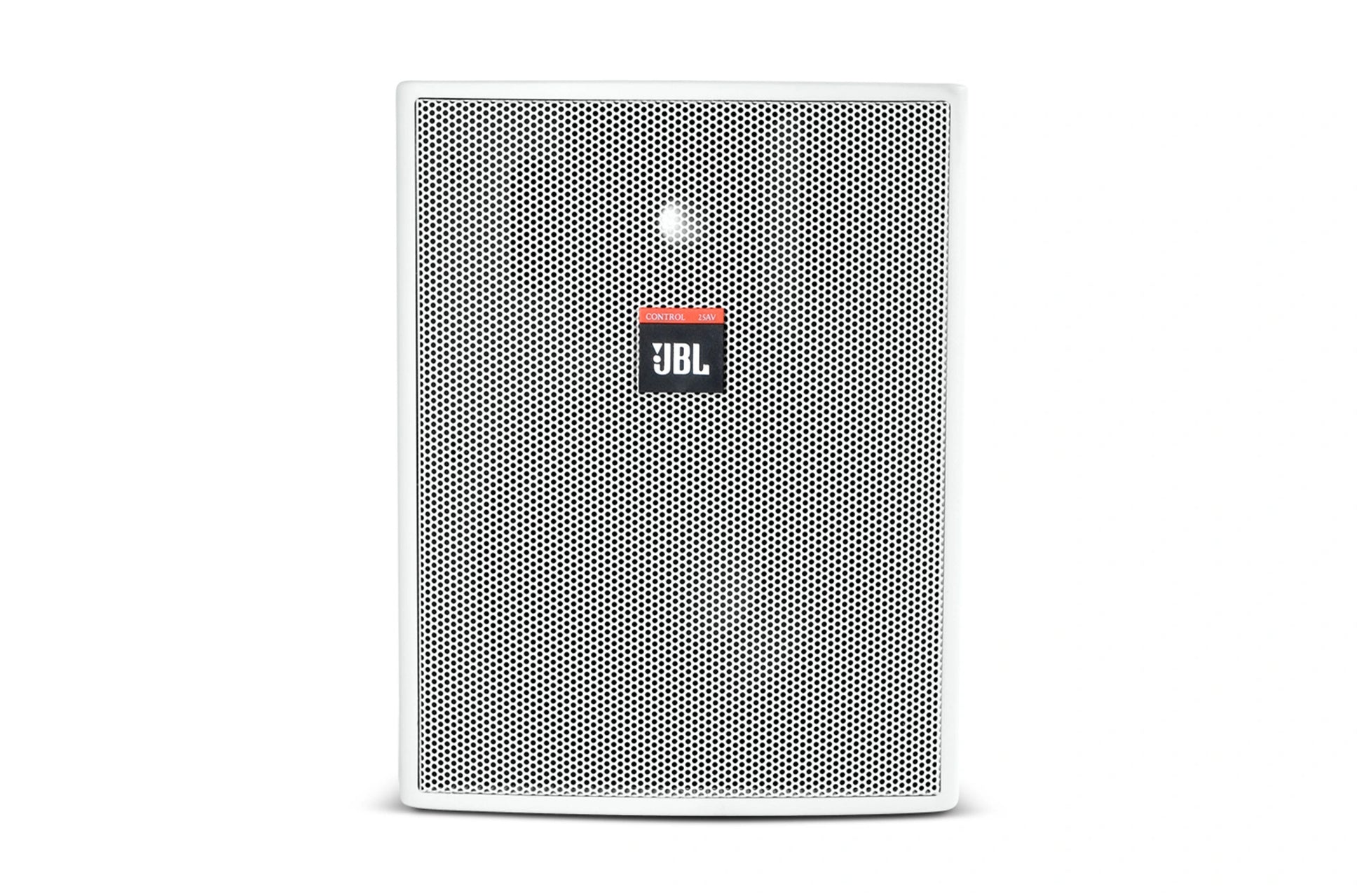

The JBL Control 25AV-LS is a compact indoor-outdoor loudspeaker for Life Safety applications.

From the Manufacturer:

The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems. This loudspeaker is EN 54-24 Compliant for life safety applications.

Features:

• UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
• EN 54-24 Compliant for Life Safety Applications
• Video shielded for use near video monitors.
• Extremely smooth frequency response.
• Aluminum Grille with Polyester Powder Coating for enduring reliability.
• 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
• SonicGuard™ overload protection.
• 130 mm (5.25 in) polypropylene coated woofer, 20 mm (.75 in) titanium coated horn-loaded tweeter.
• Includes InvisiBall® mounting hardware and sealed input panel cover.
• Screw-down input terminals.
• 105° x 85° high frequency horn.

Specifications:

• Frequency Range (-10dB): 90 Hz - 20 kHz
• Power Rating: 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
• Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
• Sensitivity: 88dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode); 76 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 8 ohm bypass mode)
• Coverage Angle: 110°H x85°V (1 kHz to 16 kHz, ave.)
• Directivity Factor (Q): 4.8 (500 Hz to 4kHz)
• Directivity Index (DI): 6.5dB (500 Hz to 4kHz)
• Maximum SPL (1m): 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 92 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured
• Drivers: 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
• HF: 20mm (.75 in) titanium coated PEI
• Input Connectors: Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
• Enclosure: ABS, (materials rated UL94-5VA)
• Grille: Aluminum with polyester powder coating
• Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
• Safety Agency: UL1480-UUMW Listed (S7232), EN54-24:2008 certified, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
• Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
• Net Weight (each): 3.8 kg (8.4 lbs) ea
• Shipping Weight: 8.6 kg (19 lbs) pair
• Included Accessories: 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
• Optional Accessories: MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.MTC-28/25CM to install speaker down from the ceiling.See JBL Control Contractor Bracket and Adapter Handbook.
• Mounting Hardware: InvisiBall™ aimable wall-mounting system included.
