CONTROL 26-DT

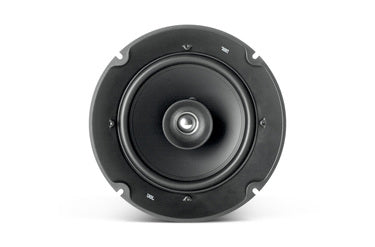

The JBL Control 26-DT compact ceiling speaker fits into standard backcans for 8” drivers.

From the Manufacturer:

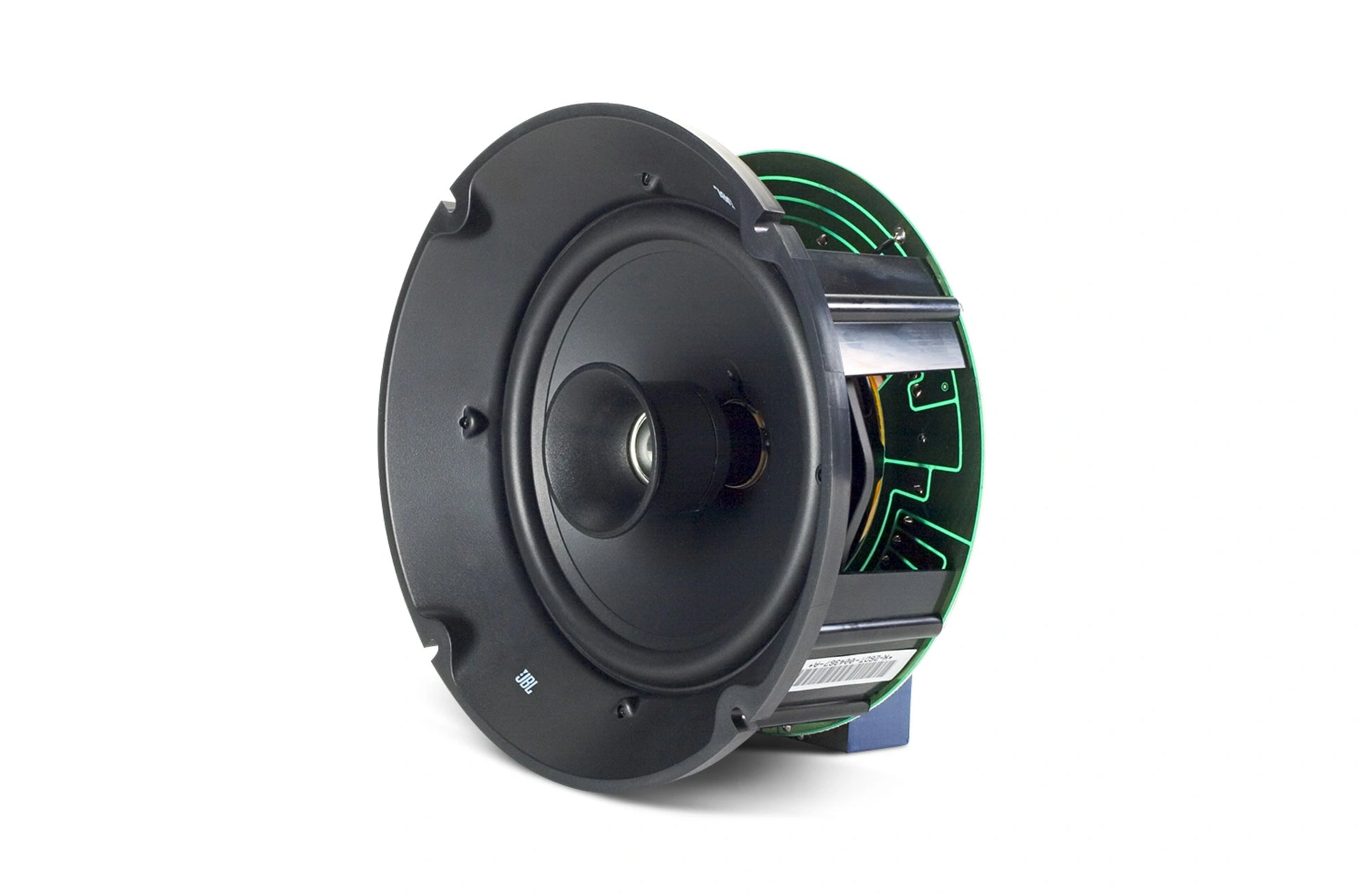

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.

Features:

• Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
• Comes complete with transducer, network and transformer.
• Advanced crossover network provides natural sound and even coverage throughout listening area.
• 60 W transformer for 70 V or 100 V distributed speaker lines.
• Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

Specifications:

• Frequency Range: 80 Hz - 20 kHz
• Power Rating: See transformer taps
• Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
• Coverage Angle: 90° conical
• Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
• Maximum SPL (1m): 106 dB (top 70V/100V tap)
• Drivers:
  • LF Driver: 165 mm (6.5 in)
  • HF Driver: 19 mm (¾ in)
• Input Connectors: Screw locking barrier strip for bare wire
• Outside Dimensions (H x Dia): 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
• Net Weight (each): 4.2 kg (10 lb)
• Shipping Weight (pair): 9.7 kg (21 lb)
• Sensitivity: 89 dB (100 Hz - 10 kHz)
• Safety Agency: In accordance with IEC60849 / EN60849.
• Plenum Usage: Requires third-party plenum rated backcan
