CONTROL 26C

The JBL Control 26C powerhouse ceiling speaker delivers max sound over a wide area for installations requiring even coverage throughout an area.

From the Manufacturer:

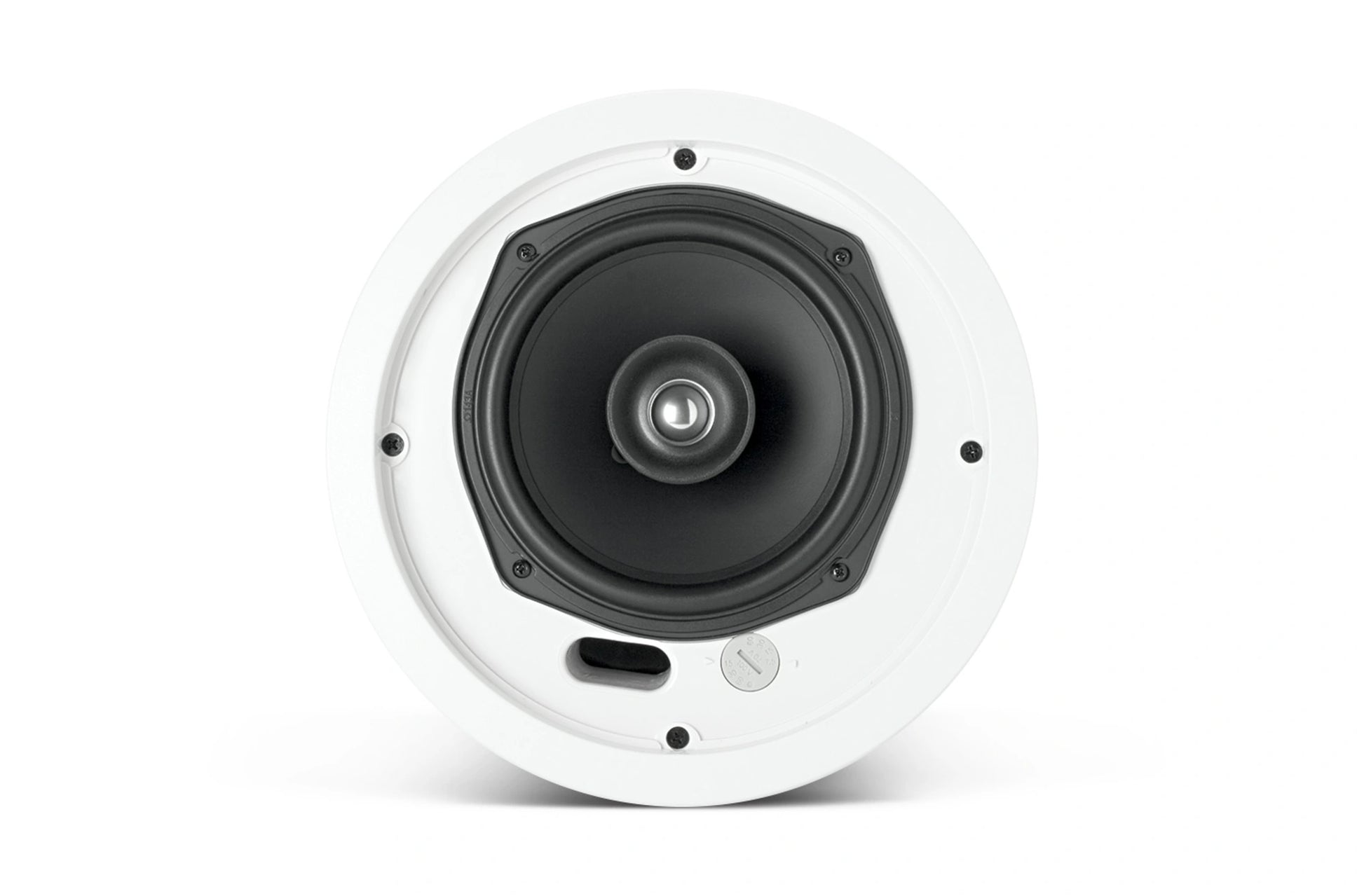

The Control 26C is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

Features:

• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
• High power, wide frequency response and low distortion for high sound level capability.
• JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.

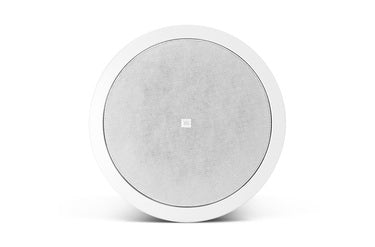

• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications:

• Frequency Range: 75 Hz - 20 kHz
• Power Rating:
  • IEC System Long-Term Ratings (low-Z direct):
    • 150 Watts Continuous Program Power
    • 75 Watts Continuous Pink Noise (150W peak), 100 hrs
• Nominal Sensitivity: 89 dB, 1m/1 W
• Coverage Angle: 110° conical
• Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
• Impedance: 16 ohms
• Maximum SPL (1m): 107 dB (low-impedance, 113 dB peak)
• Drivers:
  • LF Driver: 165 mm (6.5 in)
  • HF Driver: 19 mm (¾ in)
• Terminations: Removable 4-pin locking connector with screw-down terminals.
• Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
• Net Weight (each): 2.7 kg (6 lbs)
• Shipping Weight (pair): 6.4 kg (15 lbs)
• Sensitivity: 89 dB (100 Hz - 10 kHz)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 220 mm (8.75 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
• Plenum Usage: Yes, backcan included
