Control 31

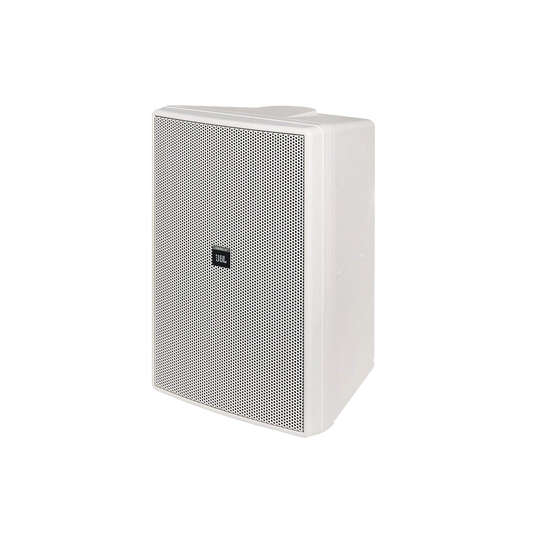

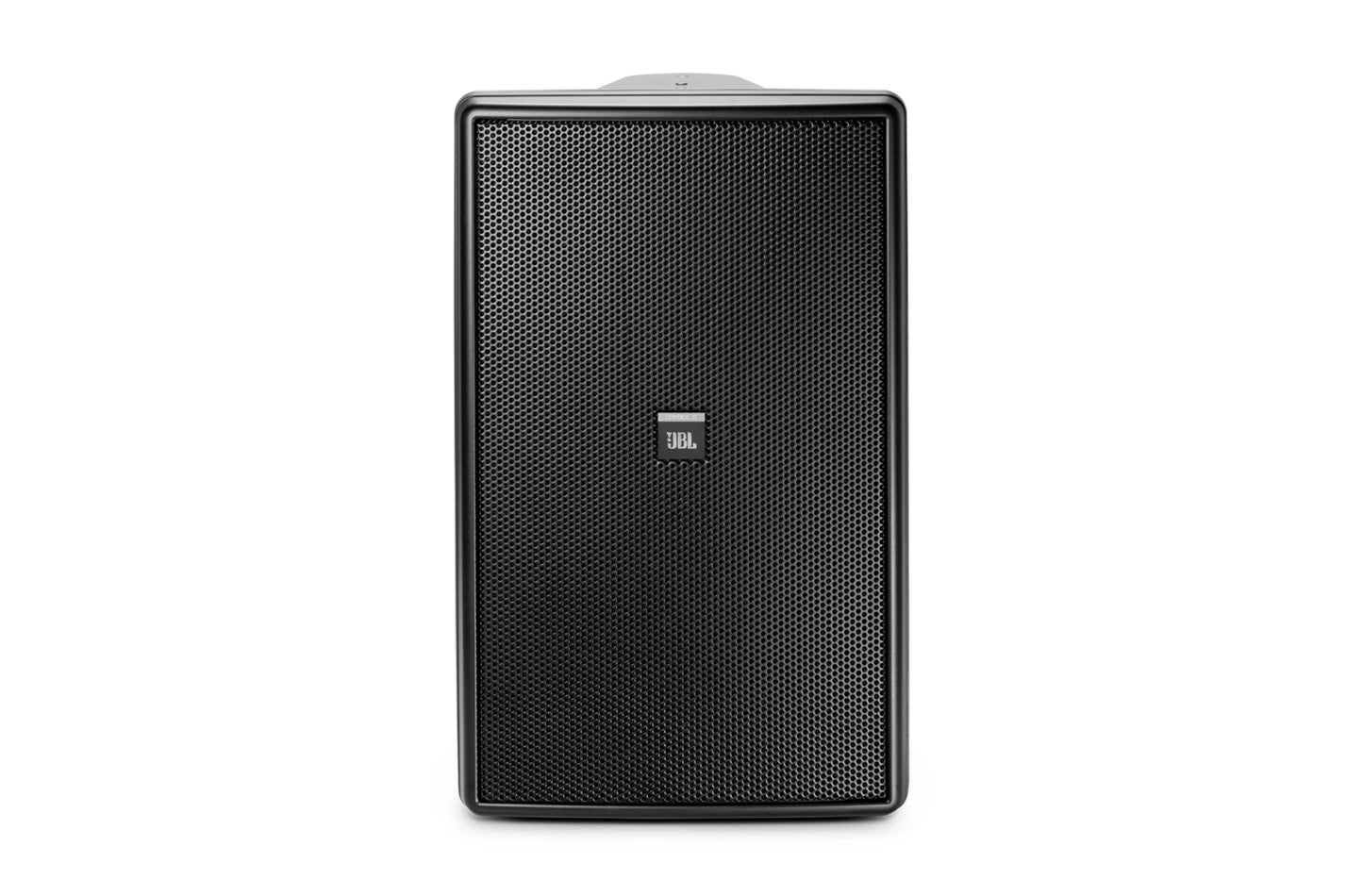

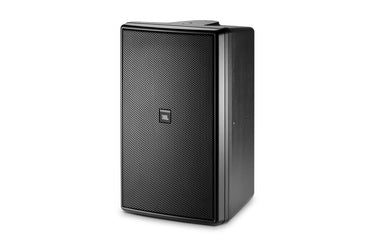

The JBL Control 31 indoor/outdoor monitor speaker is ideal for outdoor environments that need professional sound quality.

Features

• Components:

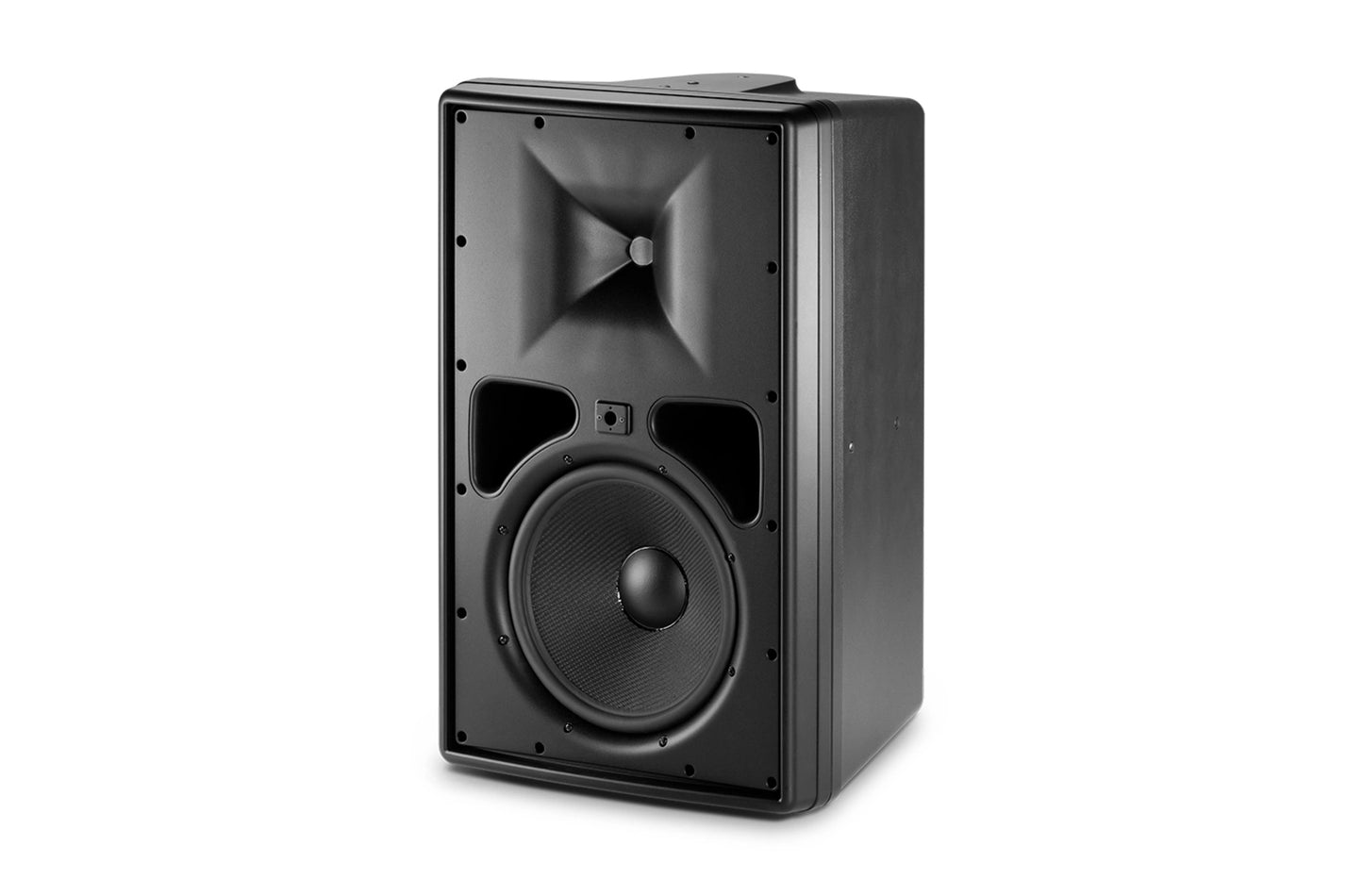

  • 250 mm (10 in) woven fiberglass cone LF driver with 52 mm (2 in) voicecoil.
  • High-output 2414H-C compression driver with 25 mm (1 in) exit, unique (patented) design and high-temperature polymer diaphragm.
• 250 Watt capability (in 8Ω thru setting), plus 150 Watt transformer for 70V or 100V distributed lines, with 8Ω thru bypass.
• Extended bandwidth, extremely smooth frequency response
• Highly outdoor-capable design with included WeatherMax™ multi-layer grille and optional marine-kit grille for salt-air environments.
• 110° x 110° symmetrical coverage.
• Includes InvisiBall® mounting hardware plus ten 6 mm attachment points for suspension and optional U-bracket.
• Included sealed input panel cover and screw-down input terminals for secure connection.

Specifications:

• Frequency Range (-10dB):
  • 33Hz – 19kHz
• Frequency Response (±3 dB):
  • 42Hz – 14kHz
• Power Ratings:
  • 250 W (1000 W peak), 2 hrs. 200 W (800 W peak), 100 hrs.
• Maximum SPL (1m):
  • 116 dB continuous (123 dB peak)
• Sensitivity:
  • 92 dB
• Coverage Angle:
  • 110°H x110°V
• Directivity Factor (Q):
  • 5.7, averaged 500 Hz to 10 kHz
• Directivity Index (DI):
  • 7.3 dB, averaged 500 Hz to 10 kHz
• Impedance:
  • 8 ohms
• Crossover Type:
  • 2nd order low-pass, 2nd order high-pass, plus conjugate shaping circuitry.
• Transformer Taps:
  • 70V: 150W, 75W, 38W, 19W 100V: 150W, 75W, 38W Insertion Loss: <0.65 dB at any tap setting Thru Setting: 8Ω nominal
• Recommended High-Pass:
  • Protective 40 Hz high-pass (24 dB/oct) for any transformer tap and for 8Ω operation
• Drivers:
  • LF: 250 mm (10 in) woven-fiberglass cone with pure butyl rubber surround, 52 mm (2 in) voice coil on high-temperature fiberglass voice coil former, optimized cone geometry, linear suspension spider, FEA-optimized motor construction, aluminum ring on pole piece.
• HF:
  • JBL 2414H-C compression driver with 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, JBL-patented design, fluid-cooled.
• Enclosure:
  • High impact Polystyrene (HIPS) with 10% glass fill plus patent-pending internal 5 mm foamed polyurethane secondary mold for additional cabinet density.
• Grille:
  • Zinc-plated and thermoset-composite coated steel, WeatherMax™ multi-layer foam with tight-weave mesh vapor barrier.
• Mounting hardware:
  • InvisiBall wall-mounting system included. Ten 6 mm attachment points on cabinet for suspending or for optional U-bracket. One 6 mm secondary safety attachment point (for forged shoulder steel eyebolt, not included) on back panel.
• Outdoor Capability:
  • IP-55 per IEC529. Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray. Optional MTC-30MK marine-kit grille increases longevity in highly corrosive environments.
• Input Connectors:
  • Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2).
• Safety Agency:
  • Transformer is listed per UL1876

• Dimensions (H x W x D):
  • 593 x 372 x 345 mm
  • 23.3 x 14.6 x 13.5 in
• Net Weight (each):
  • 18.8 kg
  • 41.5lb
• Shipping Weight (ea):
  • 22.0 kg
  • 48.5 lb
• Included Accessories:
  • 1 pc MTC-PC2 input panel cover, InvisiBall wall-mounting system, 6 mm x 305 mm InvisiBall hex wrench.
• Optional Accessories:
  • MTC-30MK Marine-Kit Grille in black or white (-WH), consisting of grille and protective covers for baffle screws. MTC-30CM (&-WH) Ceiling-Mount Adapter for installing speaker down from the ceiling. MTC-30UB (&-WH) U-Bracket
